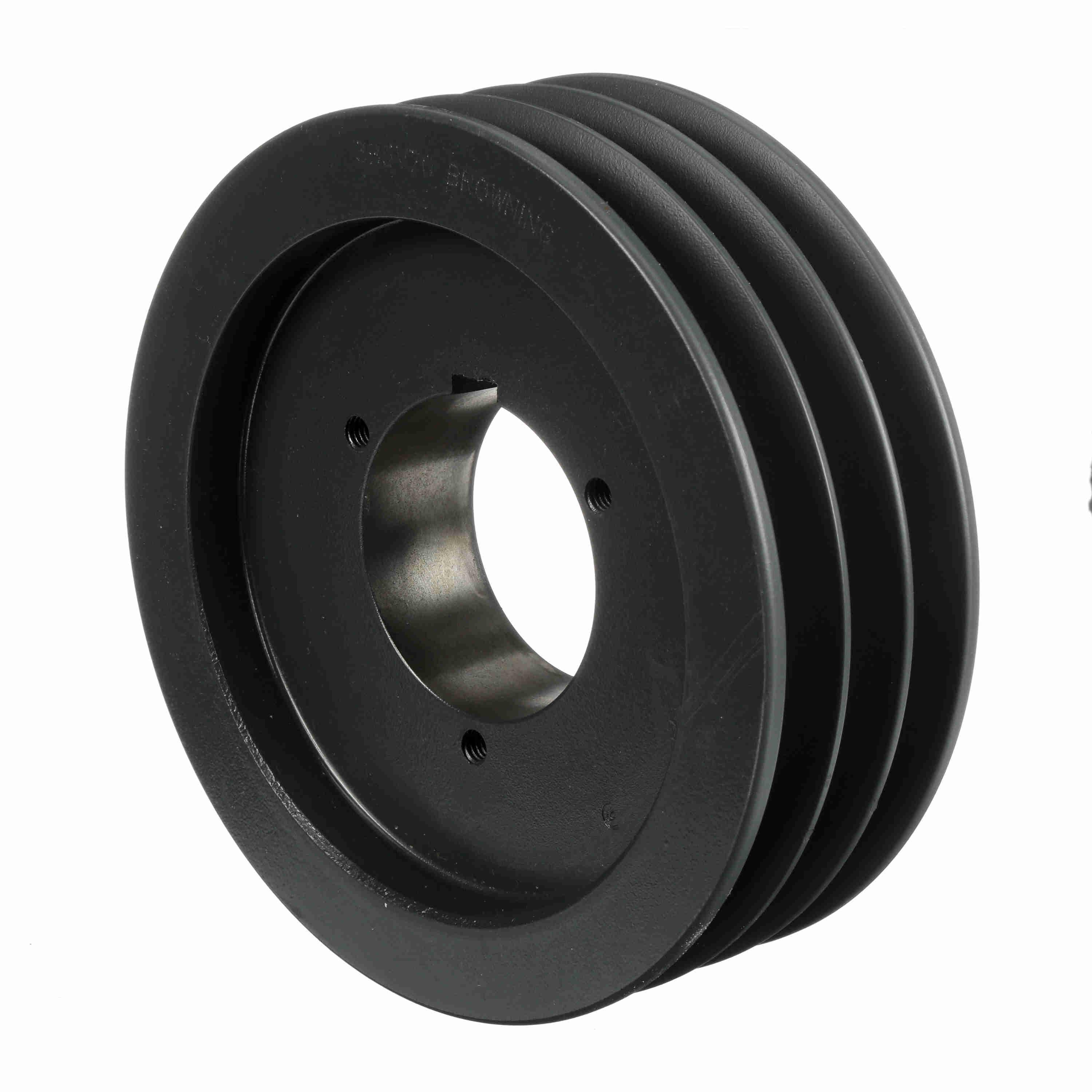

| Item | V-Belt Sheave |
|---|---|
| Bore Dia. | 1/2" to 1 15/16" |
| Bore Type | Split Taper |
| Bushing Type | B |
| Face Width | 2 7/16" |
| Hub Projection | 17/64" |
| Material | Cast Iron |
| No. Of Grooves | 3 |
| Outside Dia. | 7 7/25" |
|---|---|
| Overall Length | 2 29/32" |
| Pitch Dia. (5v) | 7.1" |
| Pitch Dia. (a) | 6 4/5" |
| Pitch Dia. (b) | 7.3" |
| Series | B5V Series |
| Suitable For Use With | Gripbelt A And B, 5V Cross Section Belts |
| Type | Type 4 Web |
| Height (cm) | 18.49 |
|---|---|
| Length (cm) | 7.39 |
| Width (cm) | 18.49 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 5.7465 |
