| Item | Mixing Valve |
|---|---|
| Body Material | Glass Filled Polysulfone |
| Cold Inlet Temp. | +33°F to +80°F |
| Connection Type | Compression x Compression |
| Flow Coefficient | 0.82 |
| Flow Rate | 0.35-5.5 GPM |
| Hot Inlet Temp. | +120° to +180°F |
| Hot Inlet Temp. Range | 120°F to 180°F |
| Includes Temperature Gauge | No |
| Inlet (cold) Temperature Range | 33°F to 80°F |
| Inlet Connection Size | 3/8" |
| Inlet Size | 3/8" |
| Inlet Type | Compression |
|---|---|
| Max. Operating Pressure | 125 psi |
| Max. Pressure | 125 psi |
| Outlet Connection Size | 3/8" |
| Outlet Temperature Range | 95°F to 120°F |
| Outlet Type | Compression |
| Overall Height | 5" |
| Overall Width | 1 7/8" |
| Seal Material | EPDM |
| Temp. Range | +95°F to +125°F |
| Valve Type | Thermostatic |
| standard | ASSE 1070, CUPC LISTED, NSF/ANSI 372 |
| Height (cm) | 7.11 |
|---|---|
| Length (cm) | 14.22 |
| Width (cm) | 12.45 |
| HS Code | 8481809015 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.3195 |
| Style | Model | Flow Rate | Inlet Size | Inlet Type | Outlet Type | Temp. Range | Outlet Size | Overall Width | Overall Height | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

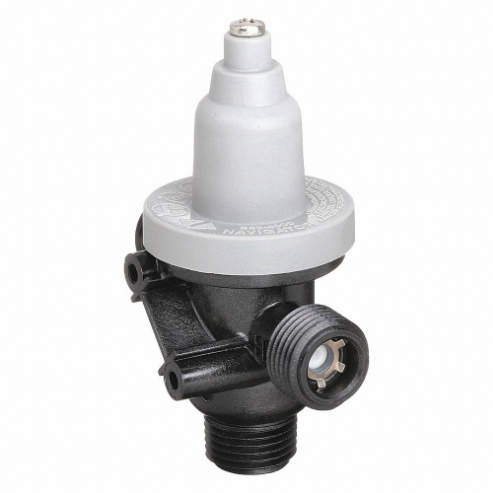

| A | S59-4000 | 0.35-5.5 GPM | 1/2" | MNPT | MNPT | +95°F to +125°F | 1/2" | 1 7/8" | 4 1/8" | $189.36 | |

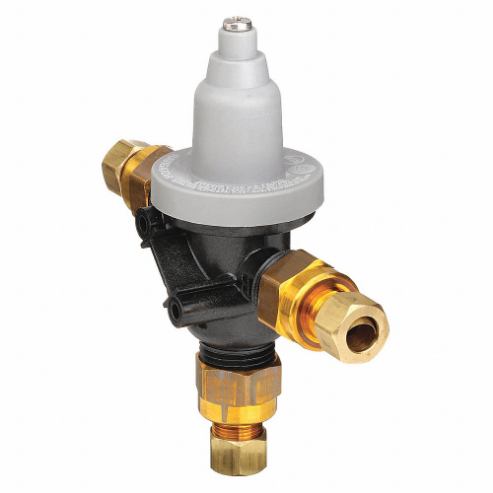

| B | S59-4000A | 0.35-5.5 GPM | 3/8" | Compression | Compression | +95°F to +125°F | - | 1 7/8" | 5" | $219.21 | |

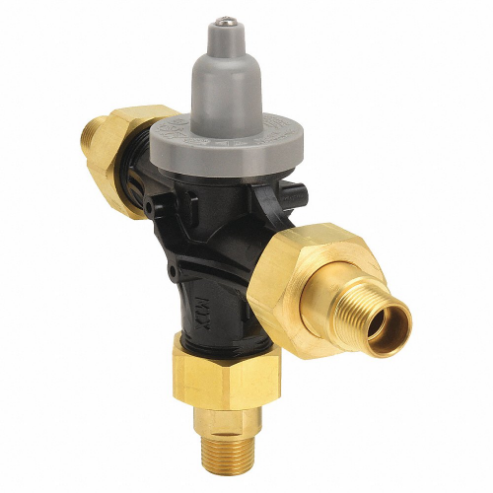

| C | S59-4016D | 0.5-15 GPM | 1/2" | MNPT, Sweat | MNPT, Sweat | +95°F to +125°F | 1/2" | 2 1/4" | 7" | - | RFQ
|

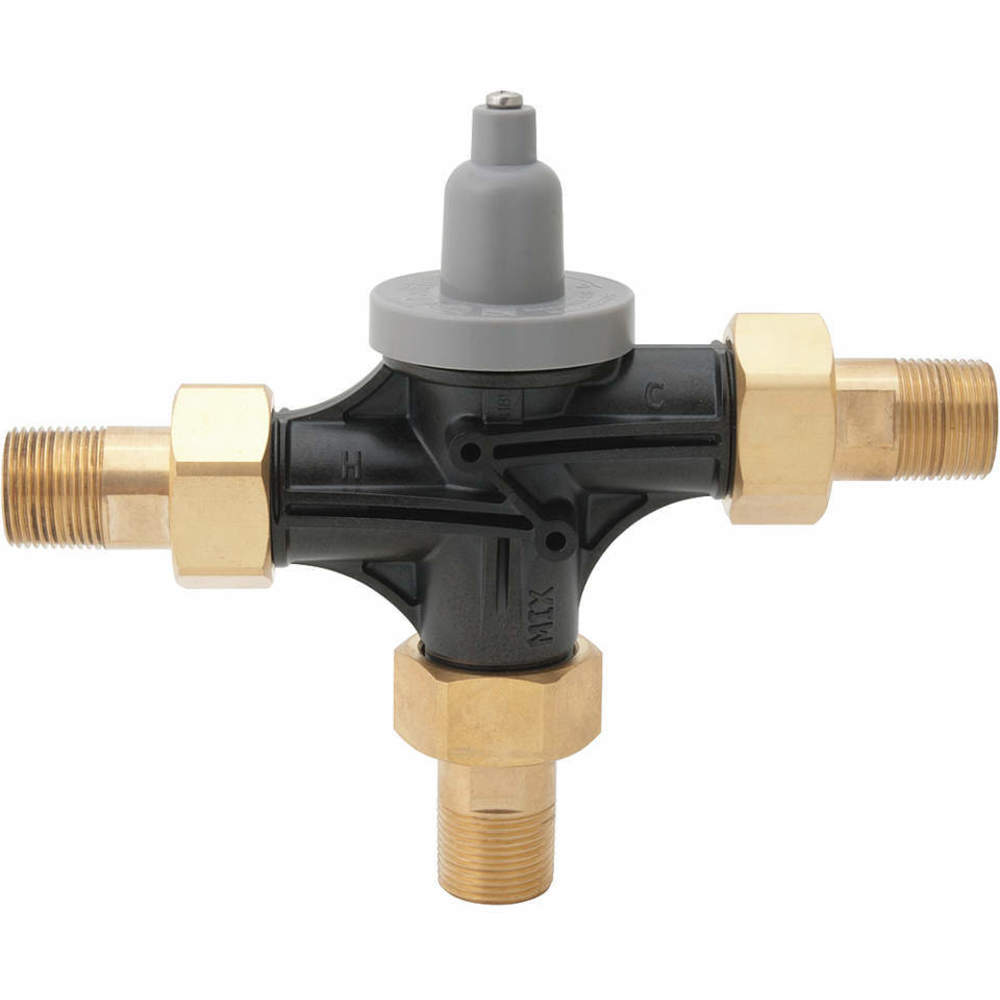

| D | S59-4016N | 0.5-15 GPM | 3/4" | MNPT | MNPT | +59°F to +140°F | 3/4" | 2 1/4" | 7" | $358.31 | |

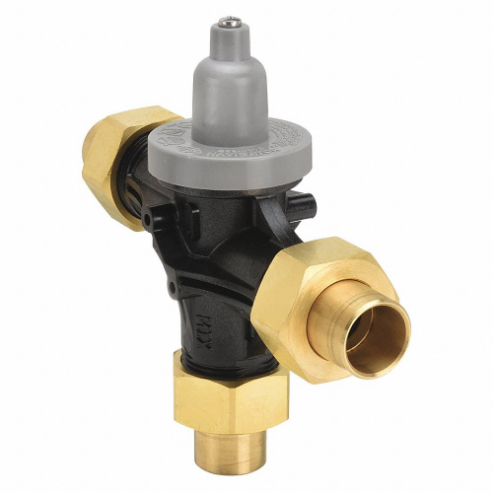

| E | S59-4016S | 0.5-15 GPM | 3/4" | Sweat | Sweat | +59°F to +140°F | 3/4" | 2 1/4" | 6 1/2" | $355.33 | |

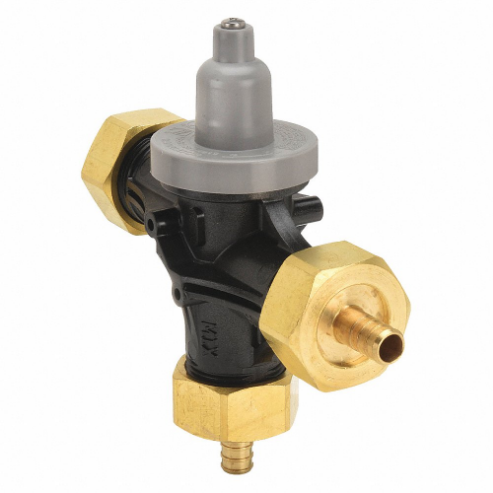

| F | S59-4016X | 0.5-11 GPM | 1/2" | PEX | PEX | +59°F to +140°F | 1/2" | 2 1/4" | 6 1/2" | $329.20 | |

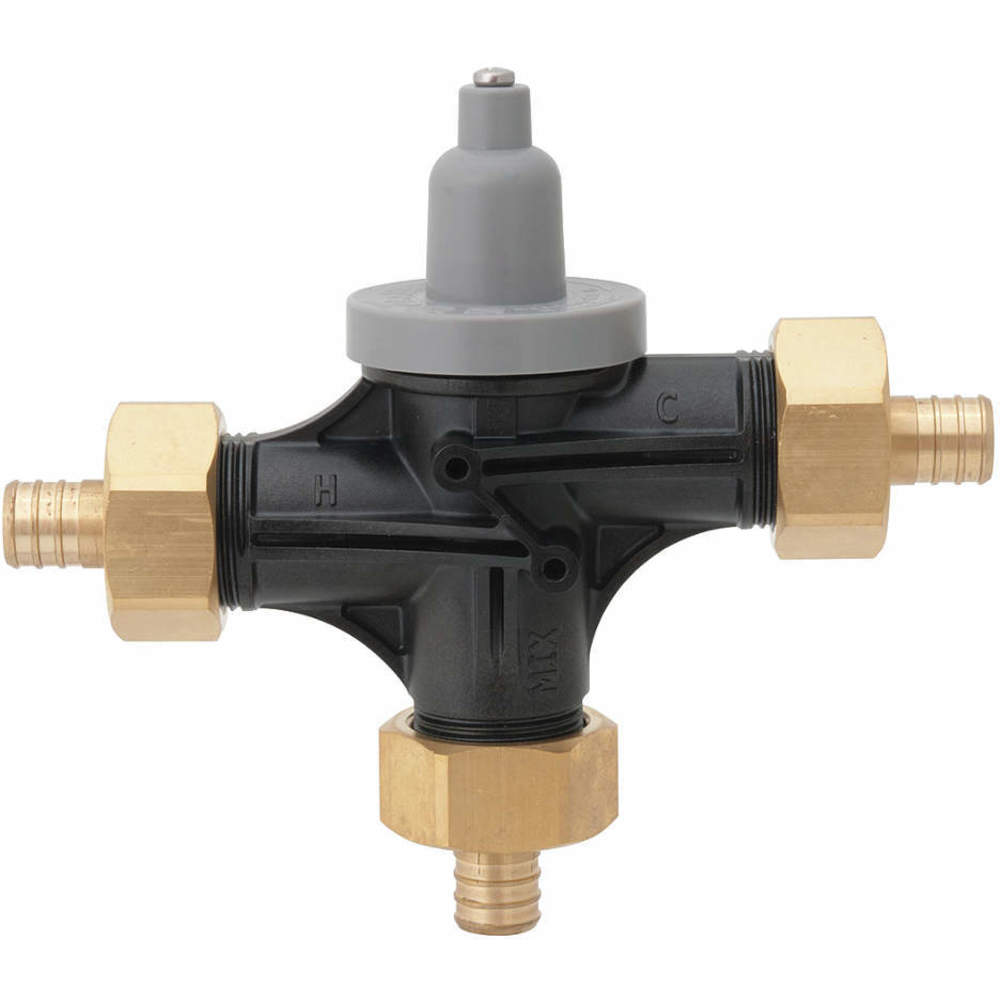

| G | S59-4016Y | 0.5-11 GPM | 3/4" | PEX | PEX | +59°F to +140°F | 3/4" | 2 1/4" | 6 1/2" | - | RFQ
|
