| Item | Bolted Bulkhead Tank Flange |
|---|---|
| Basic Pipe Fitting Material | Plastic |
| Body Material | Polypropylene |
| Bolt Material | Stainless Steel |
| Color | Black |
| Fitting Body Material | Glass Reinforced Polypropylene |
| Fitting Material | Polypropylene |
| Fitting Material Finish | Glass Reinforced |
| For Tank Shape | Curved, Flat |
| Gasket Material | EPDM |
| Inside Connection Gender | Female |
| Inside Connection Size | 3" |
| Inside Connection Type | NPT |
| Material | Polypropylene |
| Max. Operating Pressure | 150 psi |
| Maximum Operating Temperature | 150°F |
|---|---|
| Minimum Operating Temperature | -20°F |
| Mount Type | Bolt On |
| No. Of Bolt Holes | 6 |
| Outside Connection | 3" Female NPT |
| Outside Connection Gender | Female |
| Outside Connection Size | 3" |
| Outside Connection Type | NPT |
| Overall Length | 5 1/2" |
| Pipe Fitting Material | Polypropylene |
| Pipe Size | 3" |
| Required Hole Size | 3 13/32" |
| Size | 3 x 3" |
| Temp. Range | -20°F to +150°F |
| Height (cm) | 5.84 |
|---|---|
| Length (cm) | 13.97 |
| Width (cm) | 16.51 |
| HS Code | 3917400090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.035 |
| Style | Model | Required Hole Size | Pipe Size | Max. Operating Pressure | Fitting Material | Gasket Material | Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | BF075 | 1 1/2" | 3/4" | 150 psi | Polypropylene | EPDM | -20°F to +150°F | $92.63 | |

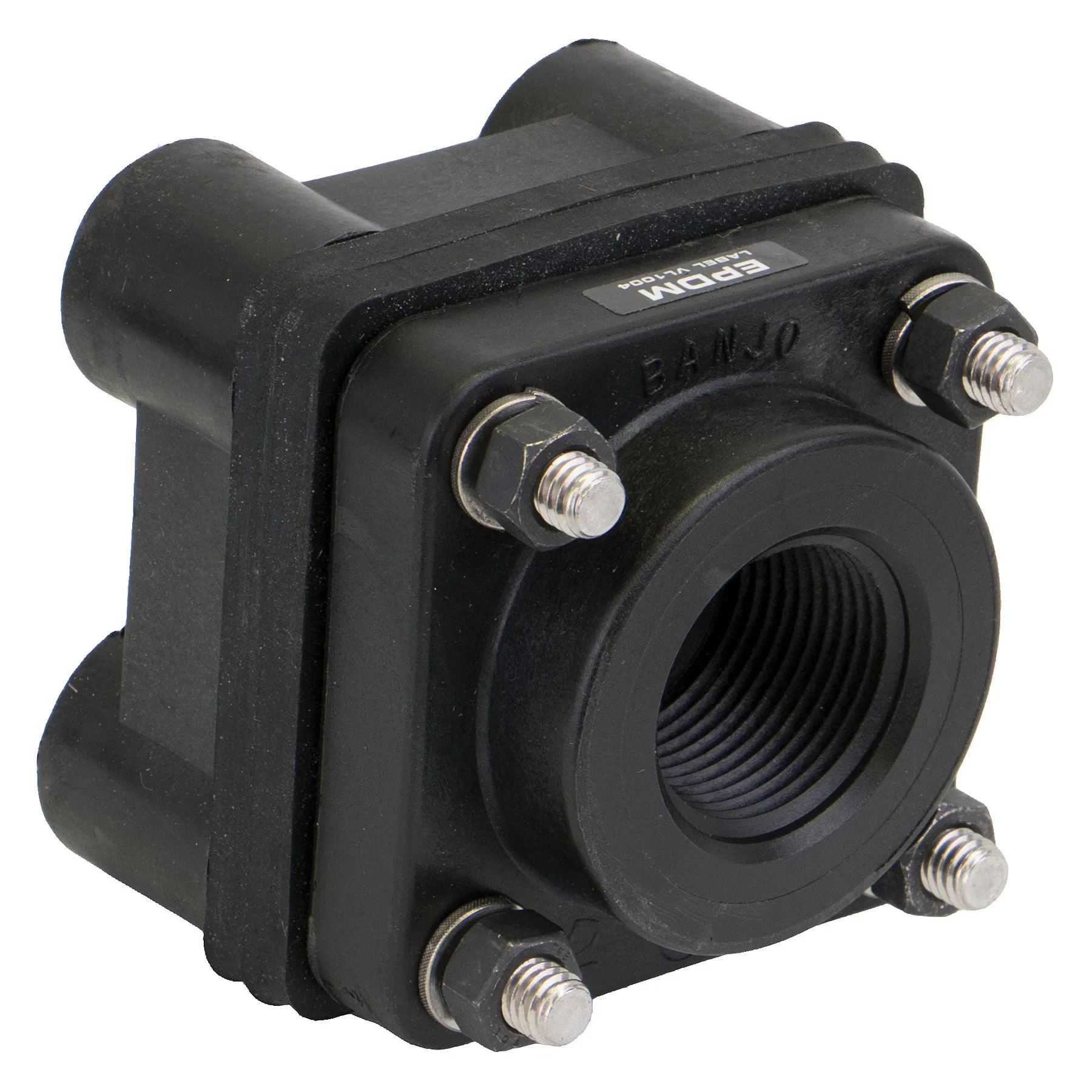

| B | BF100 | 1 1/2" | 1" | 150 psi | Polypropylene | EPDM | -20°F to +150°F | $92.63 | |
| C | BF150 | 2 1/4" | - | 150 psi | Polypropylene | EPDM | -20°F to +150°F | $93.73 | |

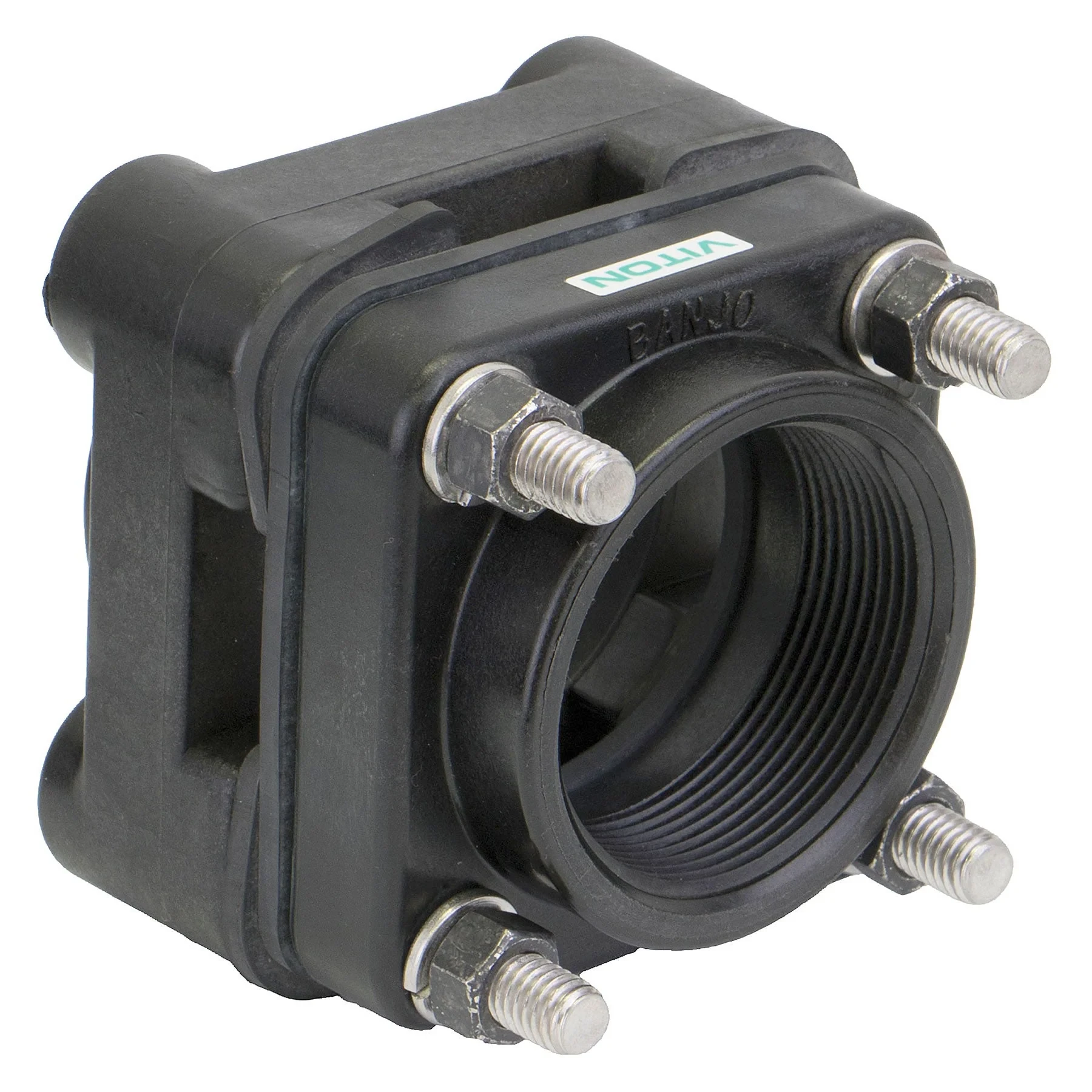

| D | BF200 | 2 1/4" | 2" | 150 psi | Polypropylene | EPDM | -20°F to +150°F | $93.76 | |
| E | BF220 | 2" | 2" | 150 psi | Polypropylene | EPDM | -20°F to +150°F | $103.51 | |
| F | MBF105 | - | - | - | - | - | - | $62.63 | |
| G | MBF103 | - | - | - | - | - | - | $62.63 |
