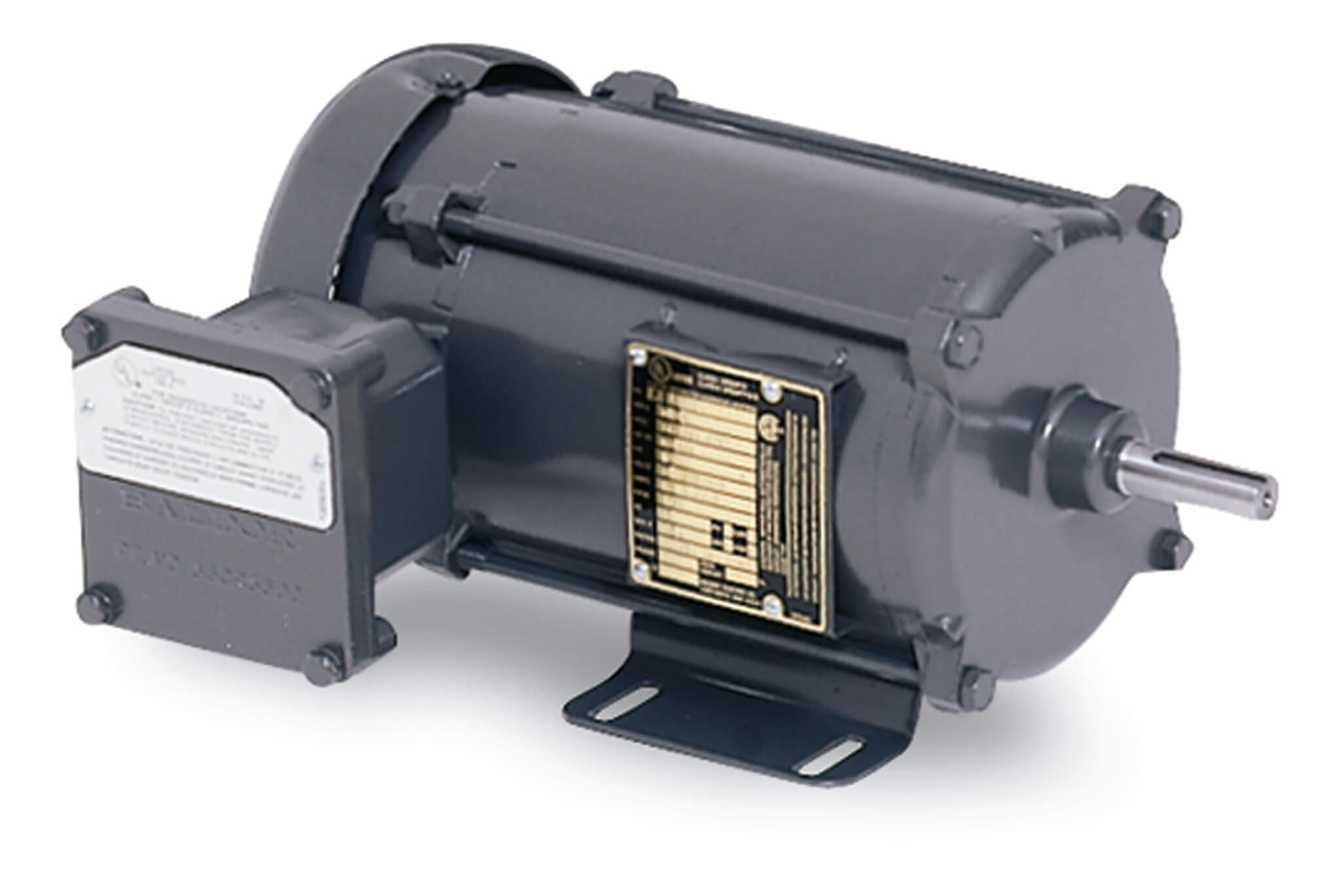

| Item | Hazardous Location Motor |
|---|---|
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 16.8/8.4A |
| Amps @ 208v | 18.5A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break-down Torque | 57.9 lbs.-ft. |
| Class | Stock |
| Code | L |
| Conduit Box Position | F1 |
| Design Code | A |
| Enclosure Design | XPFC |
| Enclosure Type | Explosion Proof Fan Cooled |
| Frame | 184T |
| Frame Size | 184T |
| Frequency | 60 Hz |
| Full Load Amps | 16.8/8.4A |
| Full Load Torque | 11.4 lbs.-ft. |
| Hazardous Location Class | 1D |
| Hazardous Location Division | Division 1 |
| Hp | 7 1/2 hp |
| Insulation Class | Class B |
| Lead | 9#16 |
| Line-line Res. @ 25° C | 1.43 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 48.2 lbs.-ft. |
|---|---|
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Multiplier | L1 |
| Nameplate Rpm | 3450 RPM |
| No Load Amps | 2.33A |
| No. Of Motor Leads | 9 |
| No. Of Poles | 2 |
| Nominal Efficiency | 89.5% |
| Phase | 3 |
| Power Factor | 93 |
| Proprietary | No |
| Pull-up Torque | 39.9 lbs.-ft. |
| Revision | D |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 91A |
| Temp. Code | T2C |
| Temp. Rise @ Rated Load | 74°C |
| Type | 3646M |
| Voltage | 230/460V |
| Wire Size | 16 AWG |
| Xp Class And Group | Class I Group D |
| Height (cm) | 41.28 |
|---|---|
| Length (cm) | 67.63 |
| Width (cm) | 42.23 |
| HS Code | 85015220 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 48.6 |
| Style | Model | Hp | Frame | Temp. Code | Nominal Efficiency | Break-down Torque | No Load Amps | Full Load Amps | Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | EM7075T | 3 hp | 145T | T3C | 86.5% | 18 lbs.-ft. | 1.2A | 7.2/3.6A | 3532M | $1,833.80 |
