| Item | Washdown Motor |
|---|---|
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 24.9-23.6/11.8A |
| Base | Rigid Base |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break-down Torque | 47.2 lbs.-ft. |
| Code | G |
| Color | White |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Enclosure Design | TEFC |
| Finish | Epoxy Coated |
| Frame | 215TC |
| Frame Material | Steel |
| Frame Size | 215TC |
| Frequency | 60 Hz |
| Full Load Amps | 24.9-23.6/11.8A |
| Full Load Torque | 15 lbs.-ft. |
| Hp | 10 hp |
| Insulation Class | Class F |
| Inverter Code | Inverter Duty |
| Lead | 9#14 |
| Line-line Res. @ 25° C | 0.972 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 26.2 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting Type | C Face, Foot Mounted |
| Multiplier | WD |
|---|---|
| Nameplate Rpm | 3490 RPM |
| Nema/iec | NEMA |
| No Load Amps | 4.17A |
| No. Of Motor Leads | 9 |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 90.2% |
| Overall Length | 18.64" |
| Phase | 3 |
| Power Factor | 88 |
| Proprietary | No |
| Pull-up Torque | 22.6 lbs.-ft. |
| Pulley Face Code | C Face |
| Revision | F |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 78.5A |
| Synchronous Rpm | 3600 RPM |
| Temp. Rise @ Rated Load | 78°C |
| Temp. Rise @ S. F. Load | 96°C |
| Type | 3729M |
| Voltage | 208-230/460V |
| Wire Size | 14 AWG |
| xp class/group | None |
| Height (cm) | 41.28 |
|---|---|
| Length (cm) | 67.63 |
| Width (cm) | 42.23 |
| HS Code | 85015220 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 54.9 |
| Style | Model | Voltage | Hp | Nameplate Rpm | Frame | Full Load Amps | Insulation Class | Service Factor | Shaft Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

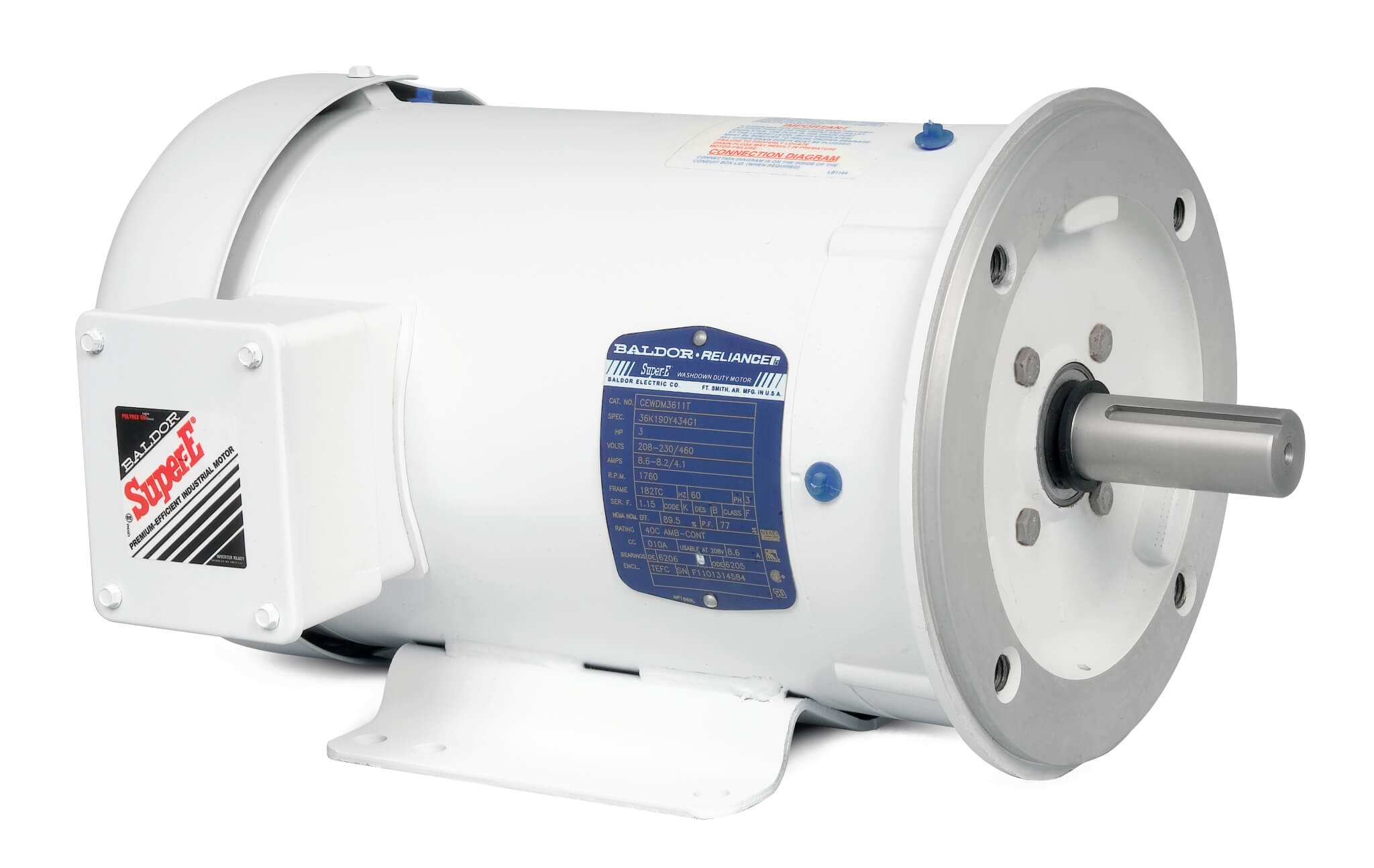

| A | CEWDM22976T | 208-230/460V | 7 1/2 hp | 1180 RPM | 254TC | 22-23/11A | Class F | 1.15 | 1 5/8" | $6,079.46 | |
| A | CEWDM23932T | 208-230/460V | 10 hp | 1180 RPM | 256TC | 30.2-30.6/15.1A | Class F | 1 | 1 5/8" | $6,910.39 | |
| A | CEWDM23933T | 230/460V | 15 hp | 1765 RPM | 254TC | 36/18A | Class F | 1.15 | 1 5/8" | $8,143.87 | |
| A | CEWDM23934T | 208-230/460V | 20 hp | 1765 RPM | 256TC | 48-52/24A | Class F | 1.15 | 1 5/8" | $9,444.30 | |
| A | CEWDM23994T | 230/460V | 15 hp | 3500 RPM | 254TC | 33.2/16.6A | Class F | 1.15 | 1 5/8" | $8,273.91 | |
| A | CEWDM3545 | 230/460V | 1 hp | 3450 RPM | 56C | - | Class F | 1.25 | 5/8" | $1,636.04 | |

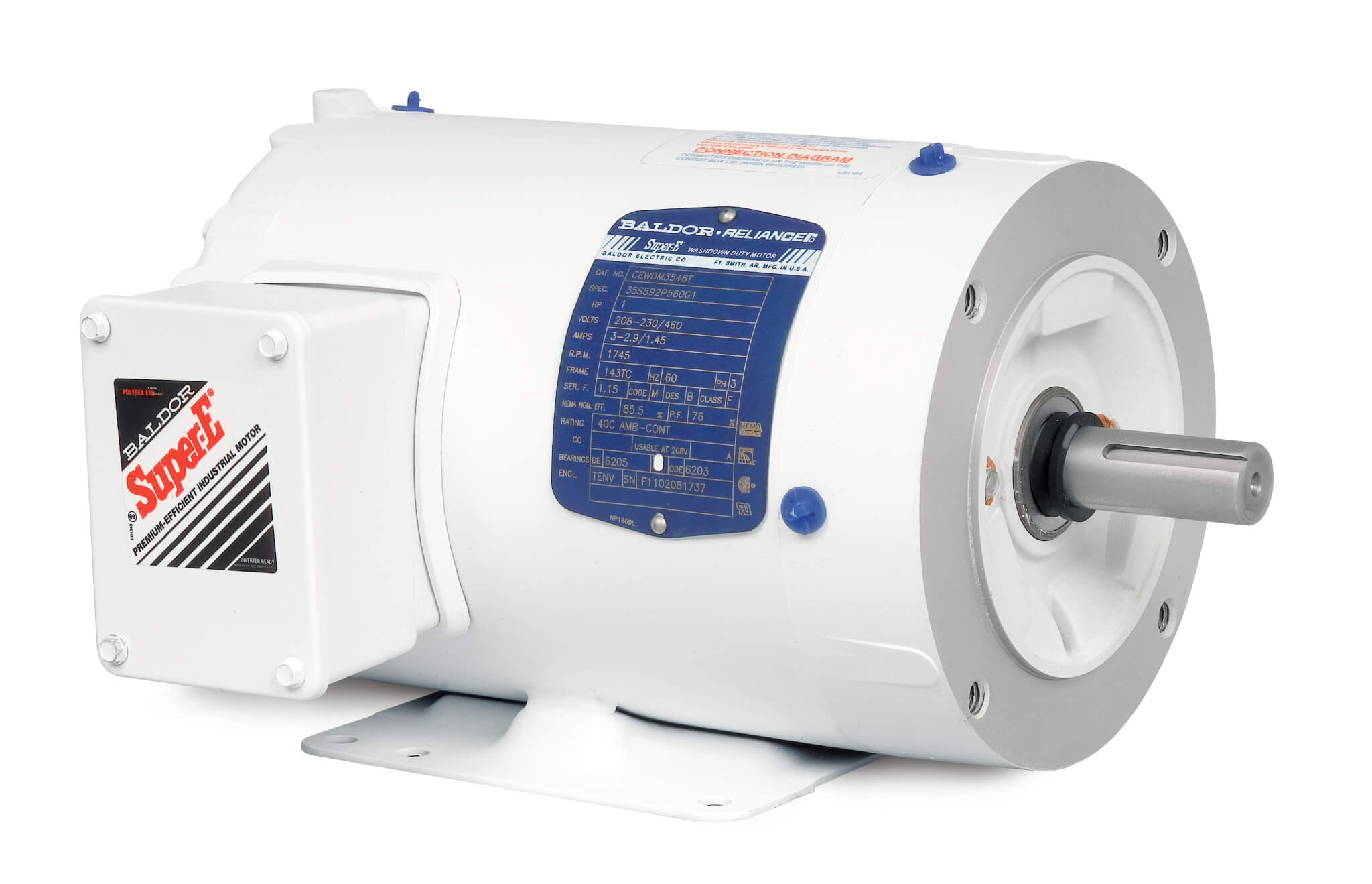

| B | CEWDM3546 | 208-230/460V | 1 hp | 1770 RPM | 56C | 1.7A | Class F | 1.15 | 5/8" | $2,708.31 |
