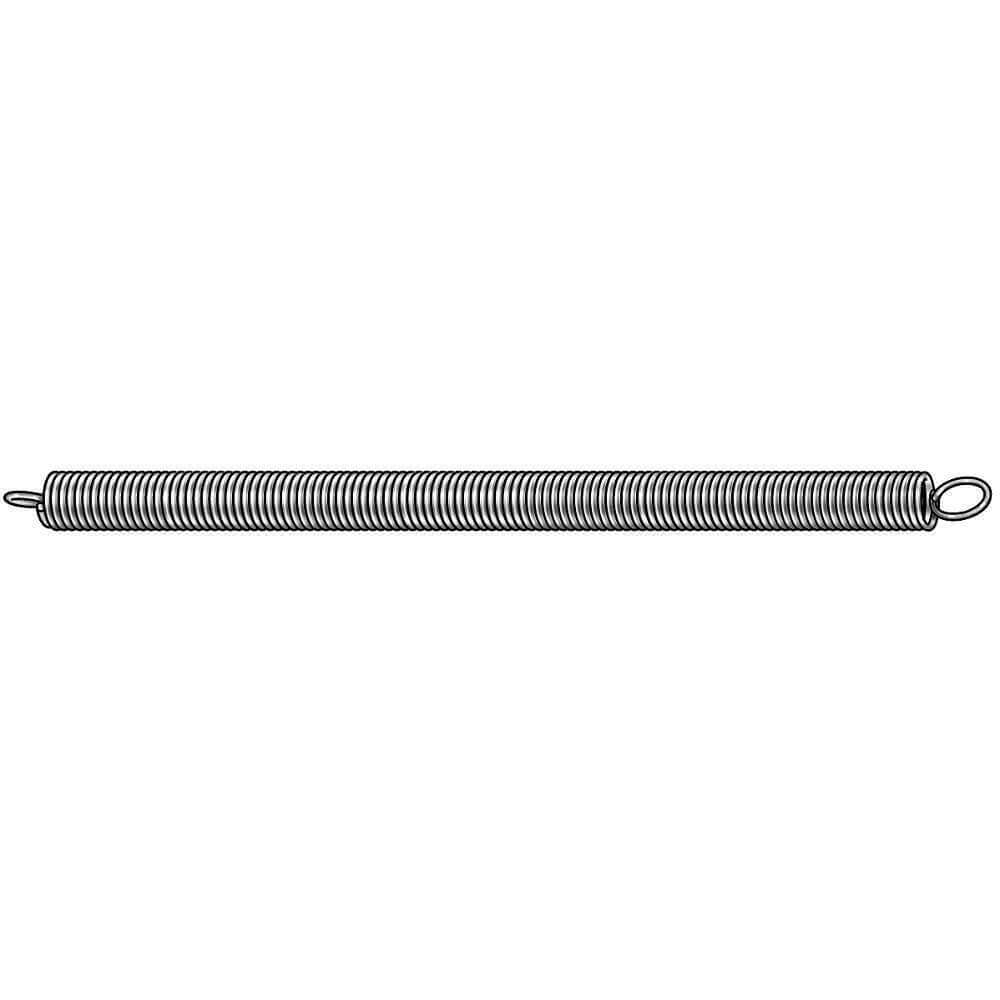

| Item | Extension Spring |
|---|---|
| Color | Gray |
| Elastic Limit | 1 3/5" |
| End Type | Crossover Center Loops |
| Extended Length | 3 5/32" |
| Finish | Plain |
| Free Length | 1 3/4" |
| Grade | Grade 302 |
| Hook Length | 7/32" |
| Load | 4.91 lbs. |
| Material | Stainless Steel |
|---|---|
| Outside Dia. | 0.312" |
| Overall Length | 1 3/4" |
| Product Type | Extension Spring |
| Spring Rate | 2.59 lbs.-in. |
| System Of Measurement | Imperial/Metric |
| Total Active Coils | 34.1 |
| Type | Utility |
| Wire Dia. | 0.035" |
| Standards | AISI 302/304, ASTM A313 |
| Height (cm) | 0.76 |
|---|---|
| Length (cm) | 7.62 |
| Width (cm) | 5.08 |
| HS Code | 7320205020 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.0225 |
| Style | Model | Finish | Material | Spring Rate | Load | Wire Dia. | Outside Dia. | Deflection @ Load | End Type | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1MZX5 | Zinc Plated | HDMB | 3.22 lbs.-in. | 2.3 lbs. | 0.023" | 0.188" | 0.55" | Crossover Center Loops | 12 | $12.80 | |
| A | 1MZX6 | Zinc Plated | HDMB | 5.21 lbs.-in. | 3.28 lbs. | 0.029" | 1/4" | 1/2" | Crossover Center Loops | 12 | $17.76 | |
| A | 1MZX7 | Zinc Plated | HDMB | 3 lbs.-in. | 2.62 lbs. | 0.029" | - | 0.73" | Crossover Center Loops | 12 | $17.61 | |
| A | 1MZX8 | Zinc Plated | HDMB | 8.56 lbs.-in. | 4.65 lbs. | 0.035" | - | 0.43" | Crossover Center Loops | 12 | $17.60 | |
| A | 1MZX9 | Zinc Plated | HDMB | 2.44 lbs.-in. | 2.33 lbs. | 0.023" | 0.188" | 0.74" | Crossover Center Loops | 12 | $13.81 | |
| A | 1MZY1 | Zinc Plated | HDMB | 3.28 lbs.-in. | 3.31 lbs. | 0.029" | 1/4" | 0.81" | Crossover Center Loops | 12 | $17.76 | |
| A | 1MZY2 | Zinc Plated | HDMB | 1.91 lbs.-in. | 2.62 lbs. | 0.029" | 0.312" | 1.15" | Crossover Center Loops | 12 | $18.39 |
