| Item | Plug |
|---|---|
| Cap Type | Screw On Cap |
| Compatible With Series | Dbr, Ebr, Ebrh, Fsqc, Id2Sr, Jbr, Md2Sr |
| Connection Orientation | Straight |
| Current Rating | 30A |
| Face Diameter | 1.86" |
| Features | Bushing Is Highly Resistant To Hydrocarbon Deterioration And Is Self Extinguishing, Neoprene Bushing Compressed By Cable Collar Prevent Entrance Of Water |
| For Maximum Cable Diameter | 1.125" |
| Grounding | Grounded |
| Grounding Style | Style 1 |
| Horsepower Rating | 40 hp |
| Housing Color | Gray |
| Housing Material | Copper Free Aluminum |
| Housing Material Finish | Epoxy Coat With Powder Finish |
| Hp Rating | 20 hp |
| Insulation Material | Fiberglass Reinforced Polyester |
| Material | Copper Free Aluminum |
| Maximum Operating Temperature | 40°C |
| Maximum Wire Size | 8 AWG |
|---|---|
| Minimum Operating Temperature | -25°C |
| Minimum Wire Size | 10 AWG |
| Nema Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Number Of Poles | 3.0 |
| Number Of Wires | 3 |
| Outside Diameter | 3.13" |
| Overall Length | 6" |
| Phase | Three |
| Polarized | No |
| Resistance Properties | Fire Resistant, Heat Resistant |
| Reverse Service | No |
| Switch Rated | No |
| Voltage | 600V AC |
| Voltage Rating | 250V DC/600V AC |
| Wire Connection Type | Wire Leads |
| Standards | CSA CERTIFIED 065179, CSA CERTIFIED C22.2 NO. 182.1-13, CULUS E145917 (200 AMP), UL 1682, UL 50E, UL E145916, UL E145917 |
| Height (cm) | 9.14 |
|---|---|
| Length (cm) | 16.76 |
| Width (cm) | 12.95 |
| HS Code | 8536698000 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.747 |
| Style | Model | Current Rating | Voltage Rating | Phase | Number Of Poles | Number Of Wires | Grounding Style | Hp Rating | Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

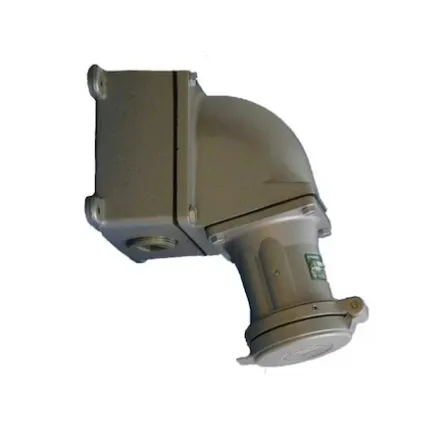

| A | ACP3022BC | 30A | 250V DC/600V AC | Single | 2.0 | 2 | Style 1 | 10 hp | Copper Free Aluminum | $680.53 | |

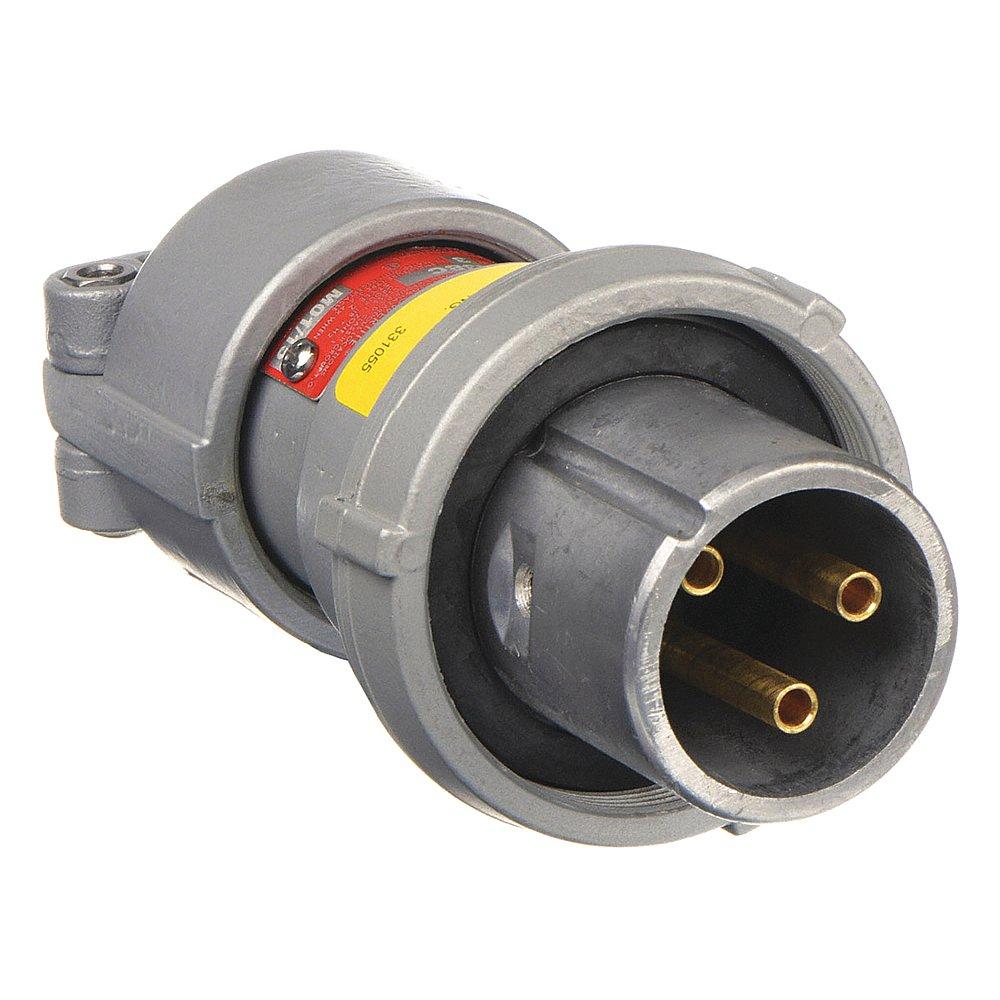

| B | ACP3023BC | 30A | 250V DC/600V AC | Single | 3.0 | 2 | Style 2 | 10 hp | Copper Free Aluminum | $769.20 | |

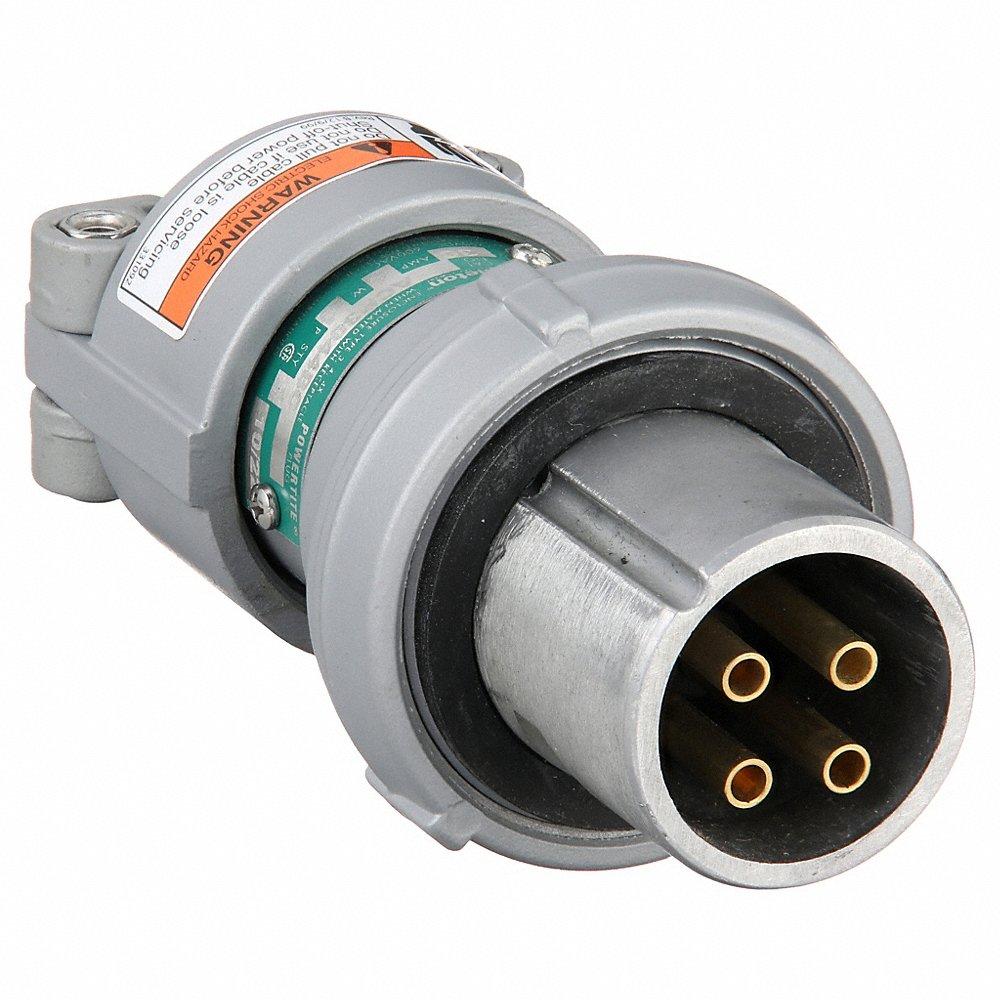

| C | ACP3034BC | 30A | 600V AC | Three | 4.0 | 3 | Style 2 | 20 hp | Copperfree Aluminum | $947.05 | |

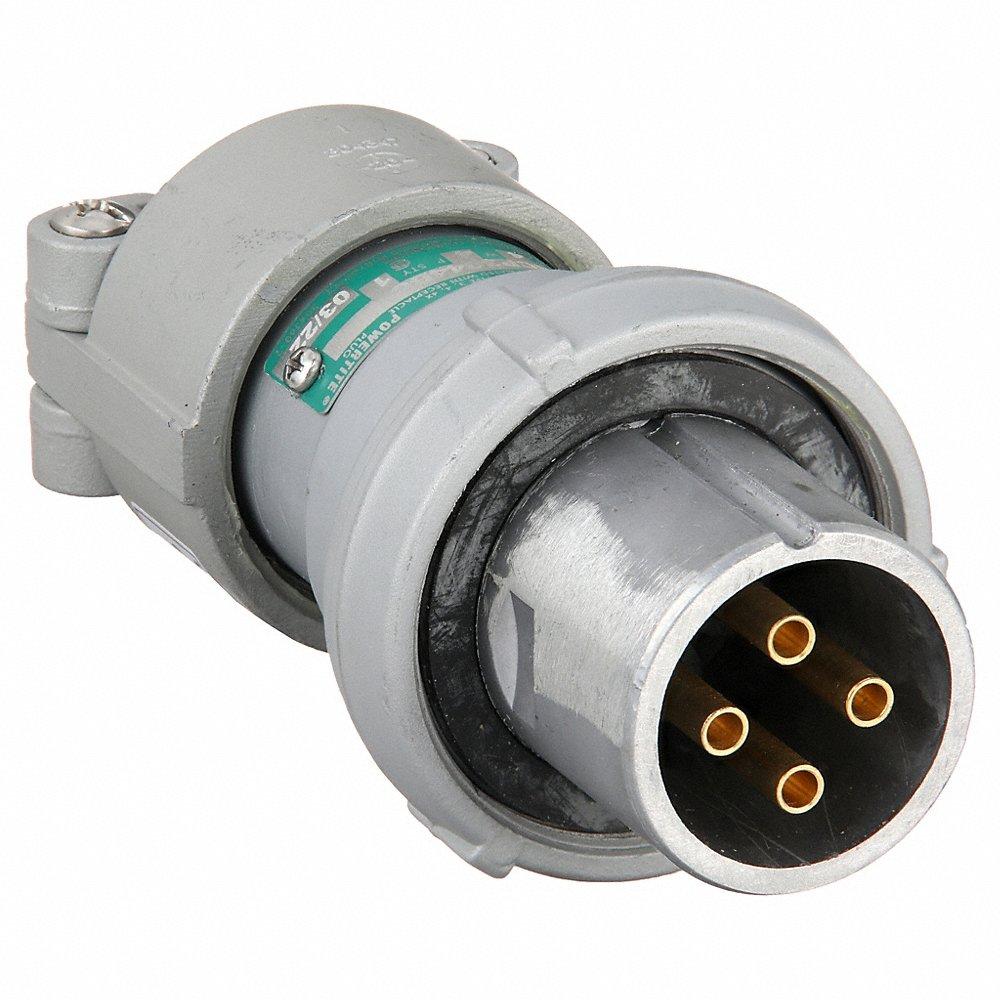

| D | ACP3044BC | 30A | 250V DC/600V AC | Three | 4.0 | 4 | Style 1 | 20 hp | Copper Free Aluminum | $775.99 | |
| E | ACP1034CD | 100A | 600V AC | Three | 4.0 | 3 | Style 2 | - | Copper Free Aluminum | $1,801.29 | |

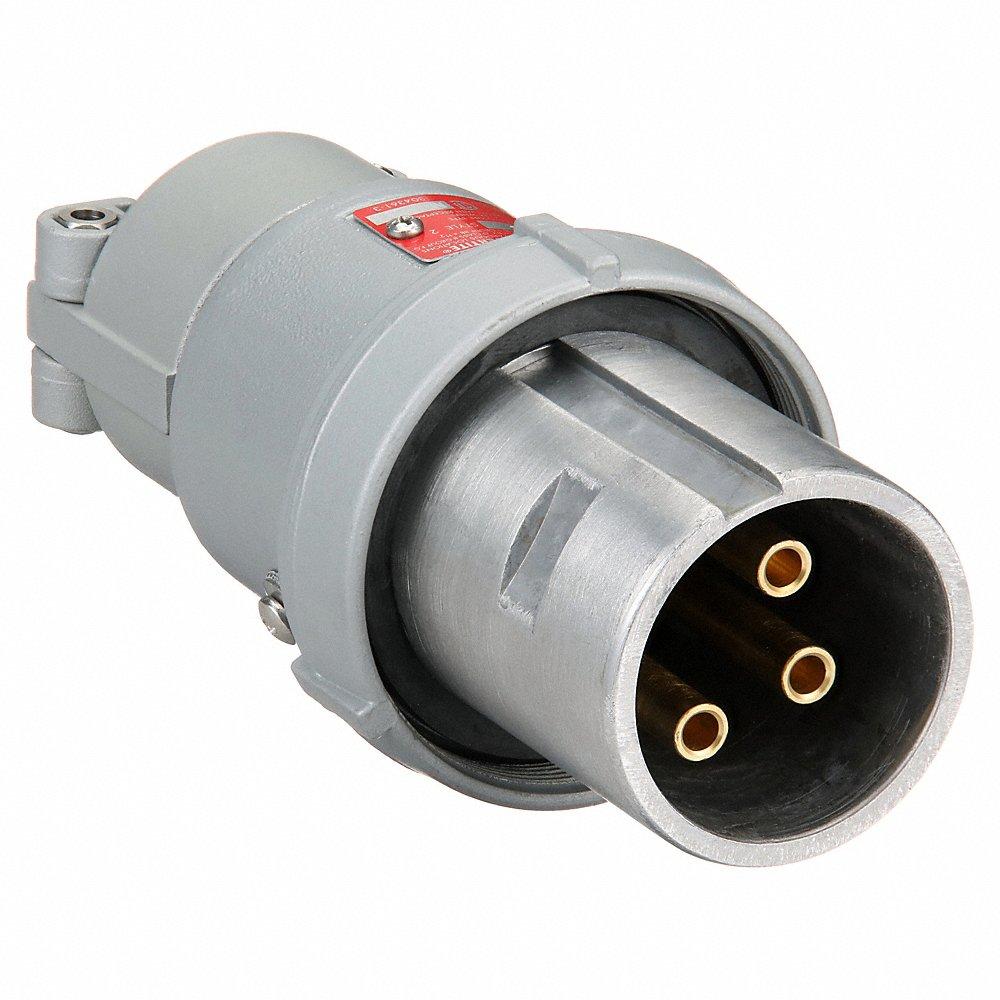

| F | ACP6034BC | 60A | 600V AC | Three | 4.0 | 3 | Style 2 | - | Copperfree Aluminum | $1,111.35 |
