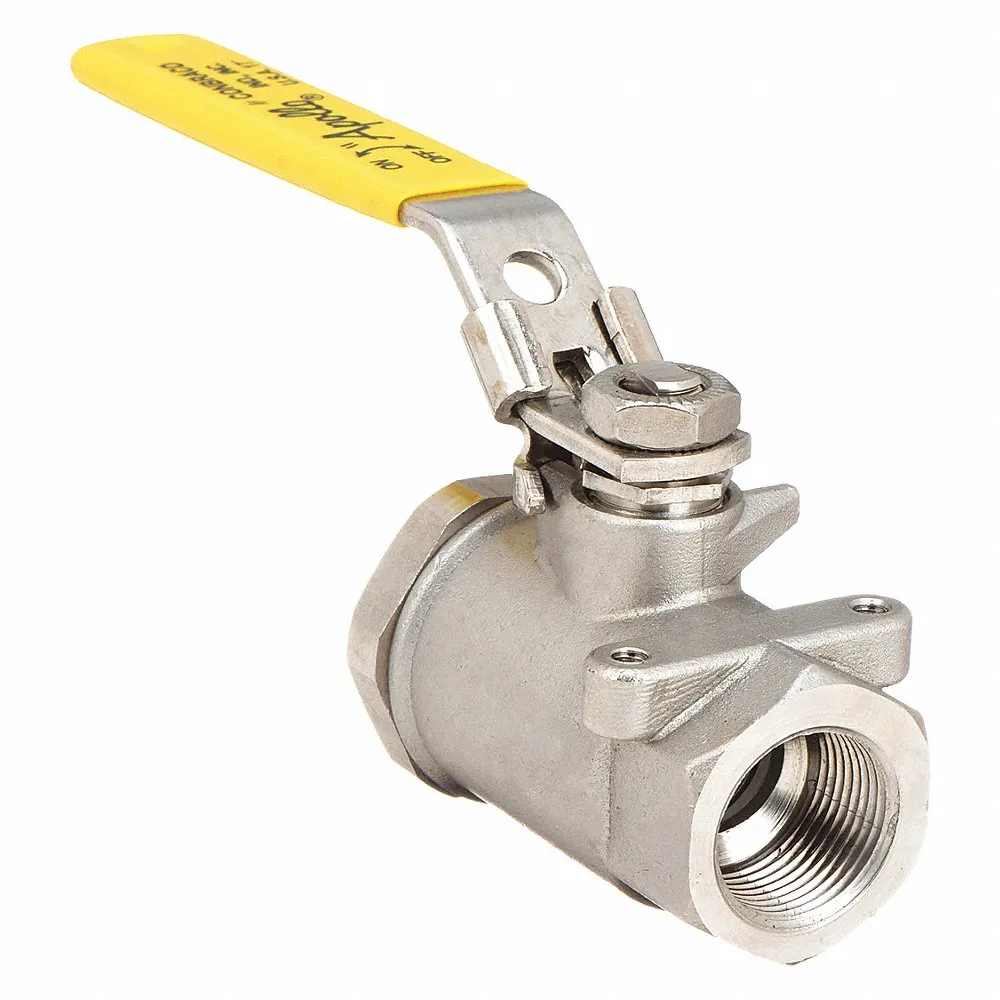

Apollo Valves 7610327A | 1CKR8 | Ball Valve, 1/2 in Pipe, Std, 2,000 psi CWP, -50 to 450 Deg. F, Locking Lever Handle, Female NPT

Q: What are the factors to consider while choosing this ball valve?

Major factors include pressure &amp; temperature suitability, connection size, material construction, sealing effectiveness, actuation options, environmental conditions and flow characteristics.

Specifications

Item	Ball Valve
3-a Compliance	Not Rated
Ball Material	Stainless Steel
Ball Port Style	Standard Port
Ball Valve Product Group	Manual
Body Material	Stainless Steel
Body Style	Inline
Bore Type	Reduced Bore
Cleaned And Bagged	Not Cleaned And Bagged
Coefficient Of Volume	15
Color	Silver
Connection Gender - Side 1	Female
Connection Gender - Side 2	Female
Connection Size - Side 1	1/2"
Connection Size - Side 2	1/2"
Connection Type	FNPT
Connection Type - Side 1	NPT
Connection Type - Side 2	NPT
D1	0.84
D2	0.84
Dimensions	6.22" x 1 3/4" x 2.91"
Finish	None
For Media	Steam, Water
Grade	Grade 316
Grease-free	No
Handle	Locking Lever
Handle Color	Yellow
Handle Height	1.79"
Handle Length	3.85"
Handle Material	Stainless Steel
Handle Type	Lever Locking
Housing Construction	2-Part

Included Mounting	Actuator Mounting Pad
Manufacturer Warranty	5 yrs.
Max. Operating Pressure	2000 psi
Max. Pressure (combustible Gas)	Not Rated
Max. Pressure (cwp)	2000 psi
Max. Steam Pressure	150 psi
Media Temp. Range	-50°F to +450°F
Media Temperature Range	-50°F to +450°F
Medically Clean	No
Nominal Valve Size	1/2"
Nsf Certifications For Food And Drinking Water	NSF 61
Outer Pipe Dia. Connection 1	0.84"
Outer Pipe Dia. Connection 2	0.84"
Pipe Schedule Compatibility	Schedule 40
Port Type	Standard
Seal Material	PTFE
Seat Material	PTFE
Series	76 Series Ball Valves
Shape	Straight
Size	1/2"
Spindle Material	Stainless steel
Stem Material	Stainless Steel
Stem Type	Blowout Resistant
Surface Protection	None
Temp. Range	-50°F to +450°F
Vacuum Service Rating	29 in. hg
Valve Body Color	Silver
Valve Body Style	Straight
Valve Construction	Two-Piece
Valve Series	76
With Filter	No
Standards	AMERICAN IRON AND STEEL (AIS), BUILD AMERICA BUY AMERICA ACT (BABA), BUY AMERICAN ACT (BAA), CRN, MATERIAL QUALITY CF8M (1.4408)

Product Details

Apollo 76-103-27A stainless steel ball valve prevent equipment damage and ensure safety by releasing excess pressure in industrial settings. It is used in manufacturing, oil & gas and chemical plants to prevent potential equipment damage or hazardous situations caused by pressure buildup. This valve ensures operational safety and maintains system integrity, contributing to efficient and reliable processes.

Shipping Information

Height (cm)	7.39
Length (cm)	15.8
Width (cm)	4.44

HS Code	8481803070
Country Of Origin	US
Weight (kg)	0.2835

Working Mechanism

To open the valve, the lever-lock handle is turned, causing the ball to rotate and clear the passage.
With the handle fully turned, the valve reaches its open state, permitting fluid flow.
The handle's position controls the flow rate, and reversing the handle's motion closes the valve.
The lever-lock ensures secure positioning.
This valve offers efficient fluid flow control and interruption, enhancing its usability.

Features

It includes a reinforced seat that improves pressure resistance and ensures a secure seal.
This valve is designed with a mounting pad, making it easy to attach an actuator for automated control.
It offers a blow-out proof stem design, preventing the stem from ejecting under pressure and enhancing safety.
This valve can operate effectively in vacuum conditions down to 29 inches of mercury, expanding its application range.
It incorporates a PTFE seal and MPTFE stem packing, assuring effective sealing and minimising leakage risks during operation.
This stainless steel valve features a vinyl grip handle for corrosion resistance and comfortable operation.
It has a lever nut made of 18-8 stainless steel, ensuring strength and reliability during manual operation.
The valve retainer is made from ASTM A351-CF8M / A276-316 stainless steel, ensuring compatibility with various conditions.
It has an A276-316 stainless steel gland nut & stem, ensuring durability and corrosion resistance.

Documentation

Certifications

Frequently Asked Questions

What type of connection does this have?

This valve has FNPT connections for easy integration into piping systems.

What are the factors to consider while choosing this ball valve?

Major factors include pressure & temperature suitability, connection size, material construction, sealing effectiveness, actuation options, environmental conditions and flow characteristics.

How does the lever-lock handle contribute to operational ease?

The lever-lock handle offers convenient manual control and secure positioning, allowing users to adjust the valve precisely.

How to install this Apollo ball valve?

Gather tools like wrenches and thread sealant, ensuring the cleanliness of valve and pipeline components.
Align the valve based on the arrow indicating the flow direction on its body.
Thread the FNPT connections onto matching pipeline male threads, applying thread sealant for a secure connection.
Use appropriate wrenches to tighten connections according to specified torque to avoid over-tightening or under-tightening.
Choose an accessible location with proper fluid flow dynamics for the valve's installation.
Attach an actuator securely to the provided mounting pad if automation is required.
Visually inspect alignment, tightness and valve orientation, ensuring it's in the closed position.
