| Item | Air Cooled Aftercooler |
|---|---|
| Air Inlet Size | 1 1/2" |
| Air Inlet Type | NPT |
| Air Outlet Connection Type | NPT |
| Air Outlet Size | 1 1/2" |
| Construction | Aluminum |
| Cooling Method | Air |
| Current Rating | 3.5A |
| Depth | 15.59" |
| Features | Reduced Air Slide Fouling |
| Fin Material | Aluminum |
| For Use With | Rotary Air Compressor |
| Frequency | 60 Hz |
| Height | 16.3" |
| Includes | Mounting Legs |
| Junction Box Design | Single Point Electrical |
| Max. Amps | 7/3.5A |
| Max. Flow Cfm @ 100 Psi | 245 CFM |
|---|---|
| Max. Pressure | 250 psi |
| Max. Temp. | 350°F |
| Maximum Air Flow | 245 CFM |
| Maximum Compressor Output Power | 40 hp |
| Maximum Fan Horsepower | 1/2 hp |
| Maximum Operating Pressure | 250 psi |
| Minimum Operating Pressure | 60 psi |
| Overall Depth | 15 9/16" |
| Overall Height | 16 1/4" |
| Overall Width | 19 7/8" |
| Phase | Single |
| Shell Material | Steel |
| Tube Material | Aluminum |
| Voltage | 115/230V AC |
| Width | 19 22/25" |
| Height (cm) | 41.28 |
|---|---|
| Length (cm) | 39.53 |
| Width (cm) | 50.48 |
| HS Code | 8419505000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 28.8 |
| Style | Model | Maximum Compressor Output Power | Air Inlet Size | Height | Phase | Voltage | Depth | Maximum Fan Horsepower | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|

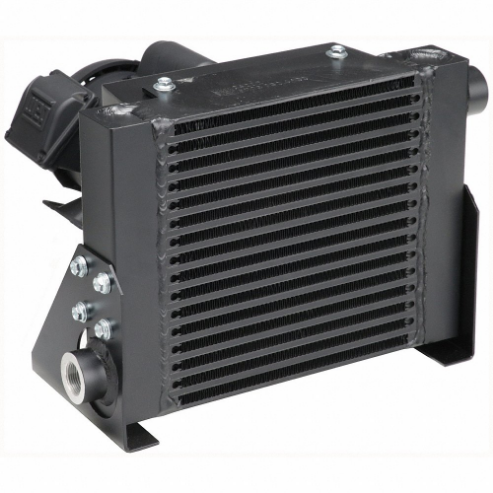

| A | CC100-1 | 20 hp | 1" | 12 16/25" | Single | 115/230V AC | 14 18/25" | - | $1,997.60 | |

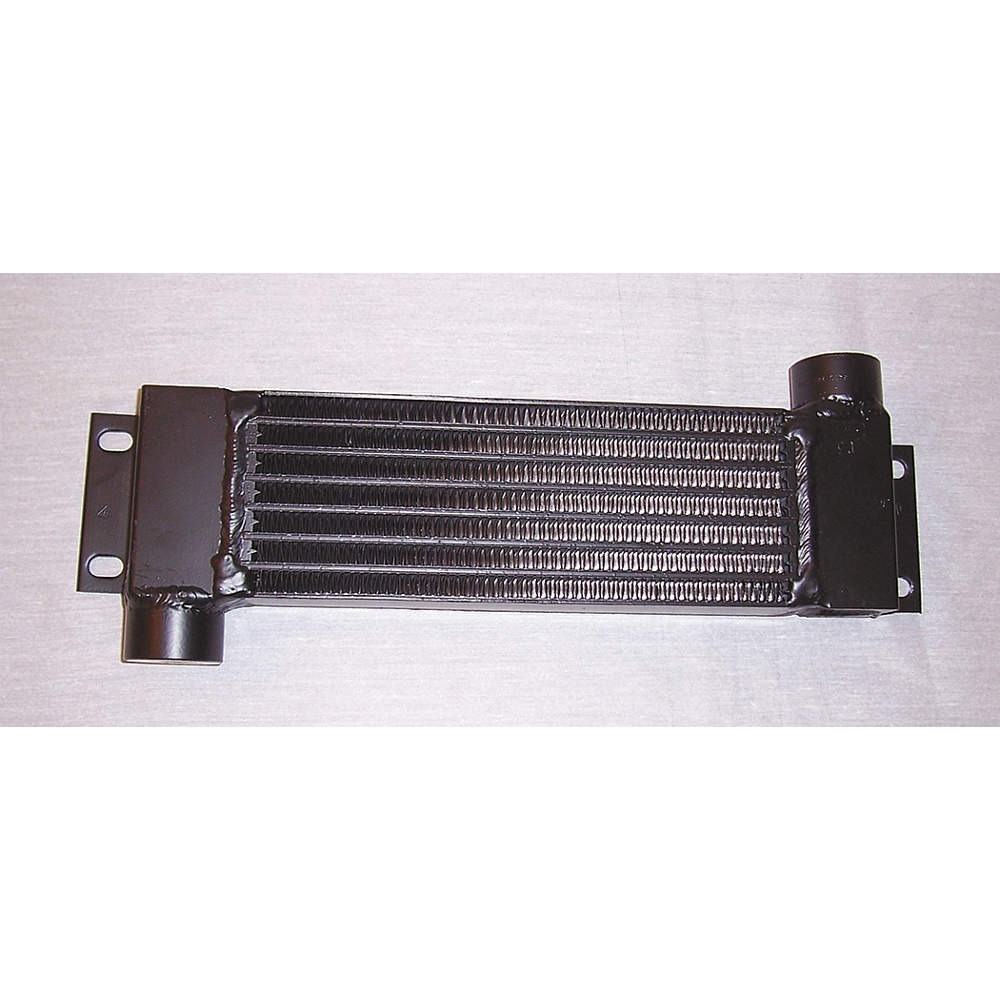

| B | C-1835BG | 10 hp | 1" | - | - | - | - | - | $471.76 | |

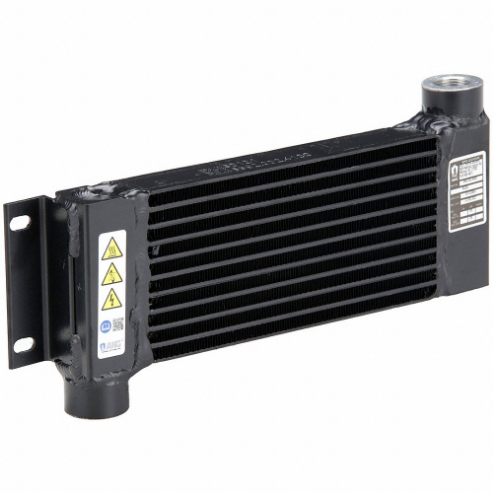

| C | C-3560BG | 15 hp | 1" | 6.77" | - | - | - | - | $526.91 | |

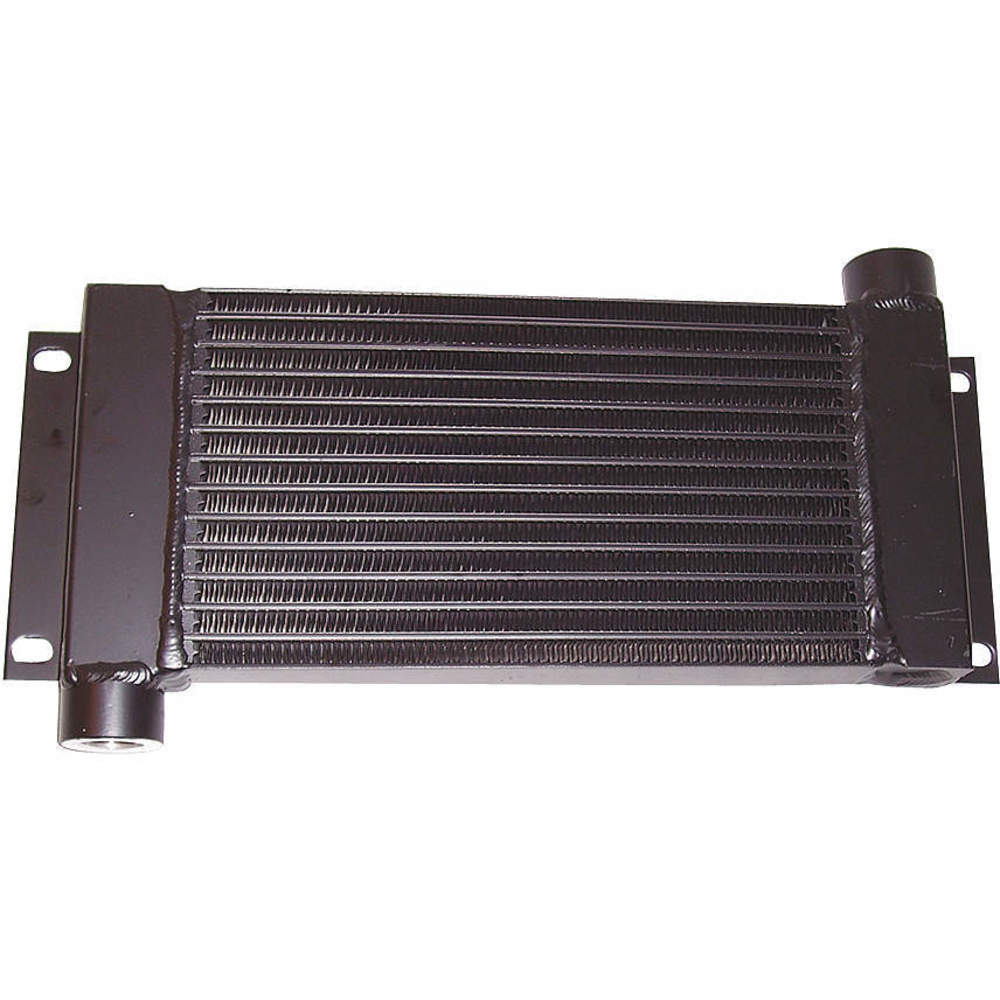

| D | C-70100BG | 25 hp | 1" | 9.17" | - | - | - | - | $649.40 | |

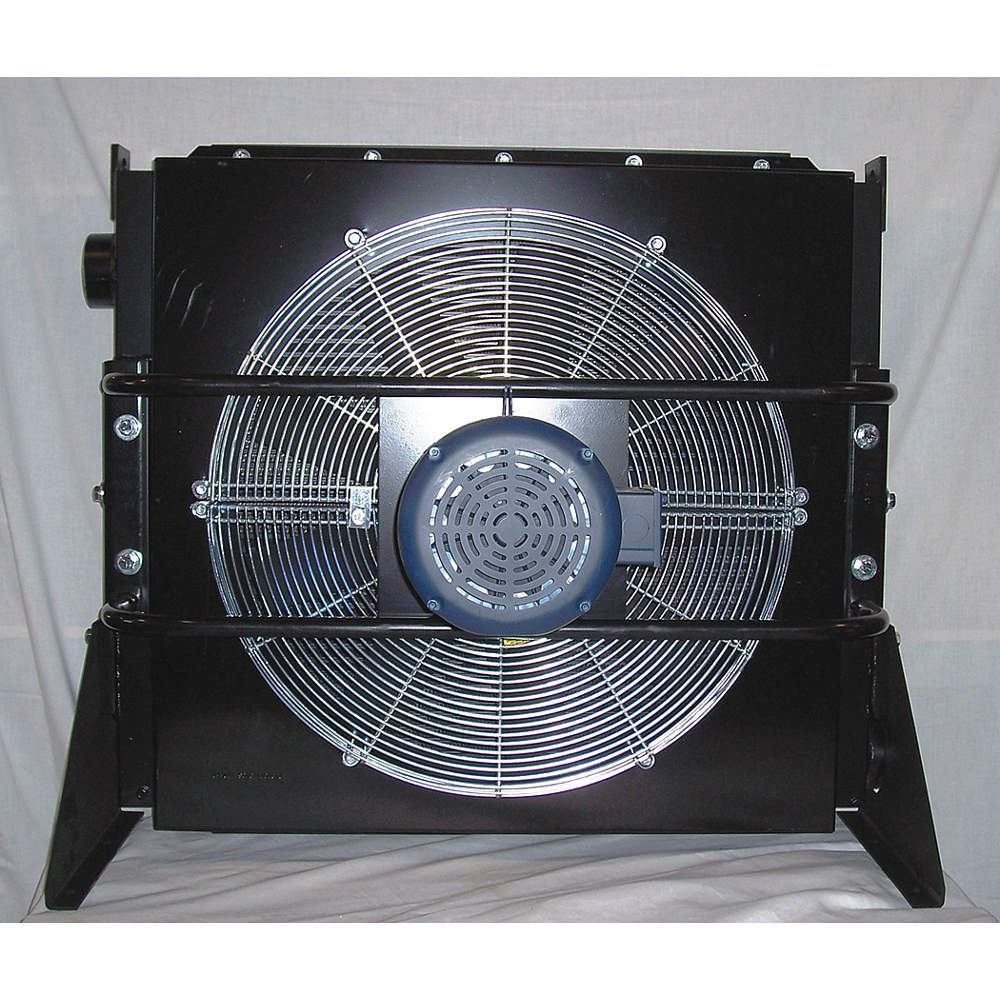

| E | CC1600-3 | 300 hp | 3" | 35.9" | Three | 230/460V AC | 24 19/25" | 5 hp | $13,314.55 | |
| F | CC2500-3 | 600 hp | 4" | 44 1/4" | Three | 230/460V AC | 30 7/25" | - | $16,155.95 | |
| G | CC3500-3 | 850 hp | 4" | 57.87" | Three | 230/460V AC | 33.82" | 10 hp | $20,016.86 |
