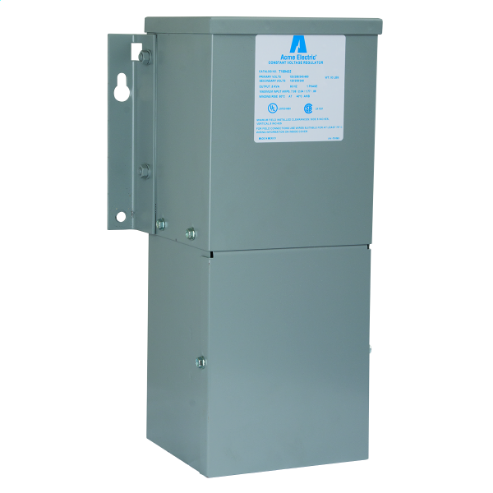

| Item | Transformer |
|---|---|
| Color | Gray |
| Construction | Encapsulated |
| Depth | 4 1/2" |
| Dimensions | 4.5" x 4.75" x 9.68" |
| Electrostatic Shield | Shielded |
| Enclosure Finish | Powder Polyurethane Paint |
| Enclosure Material | Stainless Steel |
| Enclosure Rating | NEMA 3R |
| Frequency | 50/60 Hz |
| Height | 9.68" |
| Includes Knockouts | No Knockouts |
| Input Voltage | 240/480V AC |
| Ip Rating | IP14 |
| Kva | 0.75 kVA |
| Kva Rating | 750 VA |
| Length | 4.5" |
| Max Temperature Rise | 115°C |
| Max. Temp. | 115°C |
| Mounting Location | Wall |
| Mounting Type | Wall |
| Nema Enclosure Rating | NEMA 3R |
| Nema Rating | Nema 3R |
| Outdoor Rated - Transformer | Yes |
|---|---|
| Output Voltage | 120/240V |
| Overall Depth | 4.5" |
| Overall Height | 9.68" |
| Overall Width | 4 3/4" |
| Pallet Quantity | 20 |
| Phase | Single |
| Power Rating | 0.75 kVA |
| Primary Voltage | 240/480V |
| Secondary Voltage | 120/240V |
| Shielded / Unshielded | Shielded |
| Sound Level | 45 dBA |
| Temperature Rise | 115°C |
| Ul Insulation Class | 155°C |
| Ul Standard | UL 506 |
| Va Rating - Transformer | 750 VA |
| Voltage Function | Step Down |
| Voltage Function - Transformer | Step Down |
| Width | 4.75" |
| Winding Material | Copper |
| Winding Material - Transformer | Copper |
| Standards | CSA C22.2 NO. 47, UL 506 |
| Height (cm) | 24.59 |
|---|---|
| Length (cm) | 11.43 |
| Width (cm) | 12.06 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 8.55 |
