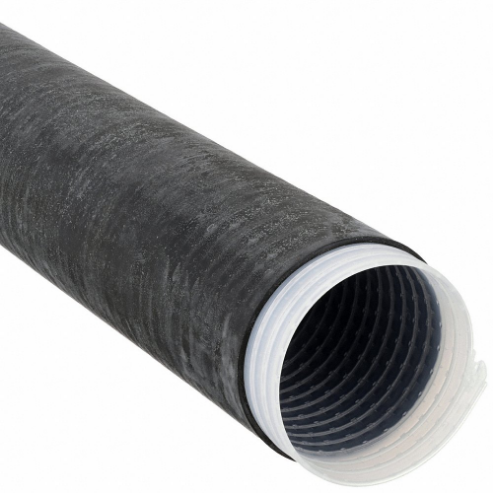

| Item | Cold Shrink Tubing |
|---|---|
| Adhesive Lined | No |
| Application | Insulation, Mechanical Protection, Repair |
| Cable Type | Power Cable |
| Color | Black |
| Conductor Material | Aluminum, Copper |
| Dielectric Strength | 1000V |
| Features | Requires No Tools Or Heat, Moisture Tight Seal, Suitable For Direct Buried Applications |
| Flame Retardant | No |
| I.d. After Shrinking | 0.95" |
| I.d. Before Shrinking | 1.94" |
| Inner Diameter After Shrink | 0.949" |
| Inner Diameter Before Shrink | 1.937" |
| Length (straight Wireway) | 18" |
| Material | EPDM Rubber |
| Max. Connector Length | 14" |
| Max. Temp. Rating | 194°F |
| Max. Voltage | 1000V |
| Maximum Conductor Size | 800 kcmil |
| Min. Temp. Rating | -40°F |
| Minimum Conductor Size | 600 kcmil |
| Model | Cold-Shrink |
|---|---|
| No. Of Conductors | 1 |
| Package Style | Individual Pieces |
| Shrink Ratio | Not Rated |
| Shrink Temp. | Not Applicable |
| Shrink Tube Material Type | Flexible |
| Shrink Tubing Adhesive Lined | No |
| Shrink Tubing I.d. Before Shrinking | 1.94" |
| Shrink Tubing Length | 18" |
| Shrink Tubing Properties | UV Light Resistant |
| Shrink Tubing Wall Type | Medium Wall |
| Splice Type | Cold Shrink |
| Temp. Range | -40°F to +194°F |
| Tubing Wall Type | Medium Wall |
| Use Shrink Tubing With Wire Size | 450 kcmil to 800 kcmil |
| Use With Wire Size | 500 Mcm to 800 Mcm |
| Voltage | 1 kV |
| Voltage Application | Low Voltage |
| Wall Thickness After Shrinking | Not Applicable |
| Wall Type | Medium Wall |
| Standards | ANSI C119.1 |
| Height (cm) | 15.24 |
|---|---|
| Length (cm) | 30.48 |
| Width (cm) | 25.4 |
| HS Code | 8546900000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 3.3075 |
| Style | Model | I.d. Before Shrinking | I.d. After Shrinking | Wall Thickness After Shrinking | Shrink Ratio | Temp. Range | Use With Wire Size | Min. Temp. Rating | Wire Size | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 7100164895 | 1.94" | 0.95" | Not Applicable | Not Rated | -40°F to +194°F | 450 Mcm to 800 Mcm | -40°F | - | 50 | $4,354.77 | |
| A | 7000005997 | 1.94" | 0.95" | Not Applicable | Not Rated | -40°F to +194°F | 450 Mcm to 800 Mcm | -40°F | - | 10 | $723.40 | |
| B | 7000006133 | 1.18" | 0.55" | Not Applicable | Not Rated | -40°F to +194°F | 2/0 AWG to 250 Mcm | -40°F | - | 10 | $837.67 | |
| C | 7000145516 | 2.67" | 1.27" | Not Applicable | Not Rated | -40°F to +194°F | 900 Mcm to 1000 Mcm | -40°F | - | 10 | $1,164.15 | |
| C | 7000058072 | 2.67" | 1.27" | 0.18" | 2:1 | -40°F to +194°F | 900 Mcm to 1000 Mcm | -40°F | - | 10 | $705.31 | |
| D | 7100010774 | 1.38" | 0.67" | Not Applicable | Not Rated | -40°F to +194°F | 250 Mcm to 400 Mcm | -40°F | - | 10 | $1,362.40 | |
| E | 7000132443 | 1.38" | 0.67" | Not Applicable | Not Rated | -40°F to +194°F | 250 Mcm to 400 Mcm | -40°F | - | 10 | $558.31 |
