Ships within 2 days via
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Business customers can apply for Net 30
No fees, No interest, Fast approval.
Payment

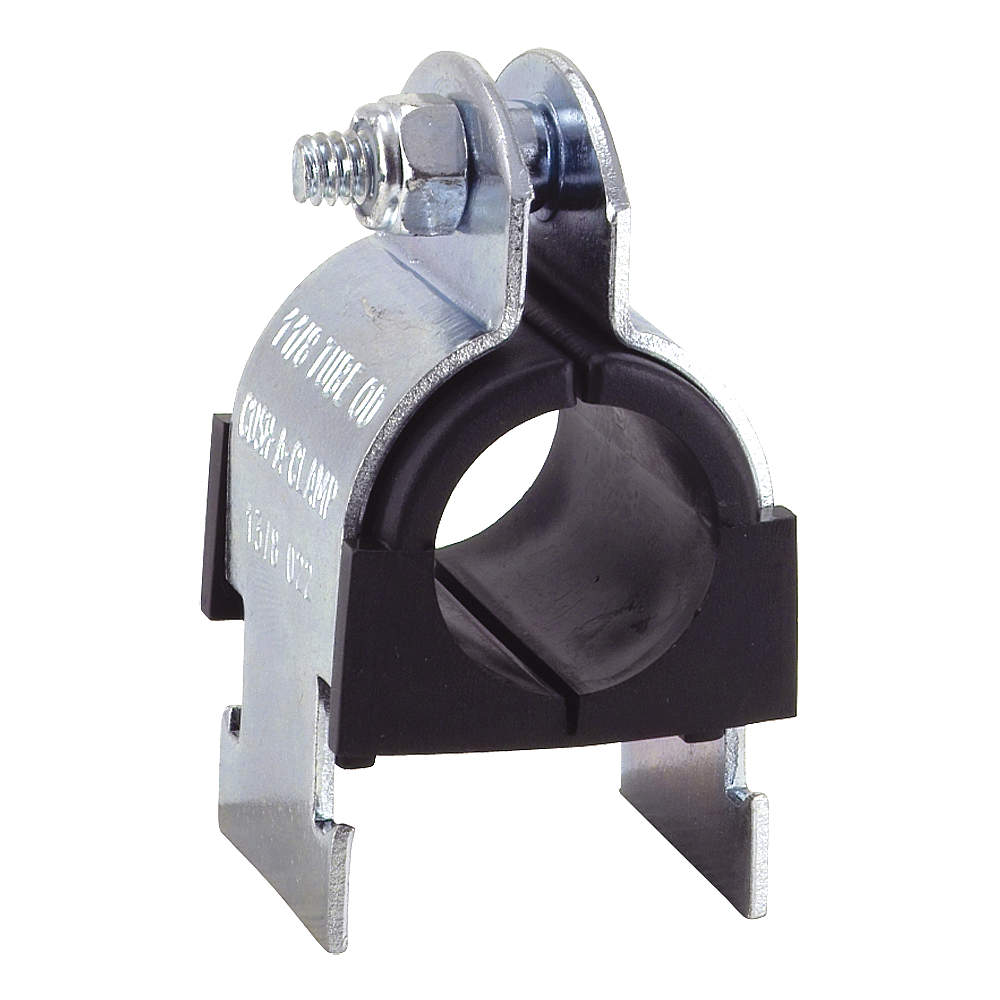

| Item | Cushioned Clamp |
|---|---|
| Bolt Head Size | 1/4" |
| Bolt Length | 1 3/64" |
| Bolt Material | Steel |
| Bolt Size | 1/4" x 1 3/64" |
| Clamp Material | Steel |
| Clamp Material Finish | Galvanized |
| Clamp Style | Cushioned Strut Clamp |
| Clamp Type | Strut Clamp |
| Cushion Material | TPE |
| Features | Controlled Squeeze Design |
| Finish | Electro Galvanized |
| For Copper Tube Size | 1/4" |
| For Environment | High Vibration |
| For Maximum Outside Diameter | 1/4" |
| For Rigid Conduit Size | 1/4" |
| For Strut Channel Width | 1 5/8" |
| For Tube Outside Diameter | 1/4" |
| For Use On | Tube |
| Height | 0.984" |
| Includes | Clamp, Cushion, Nylon Insert Nut, Shoulder Stud |
| Includes Mounting Hardware | Yes |
|---|---|
| Installed Height | 2 19/32" |
| Length | 5/8" |
| Load Capacity | 1000 lbs. |
| Material | Gold |
| Max. Load | 1000 lbs. |
| Maximum Operating Temperature | 275°F |
| Metal Detectable | No |
| Minimum Operating Temperature | -50°F |
| Mount Type | Channel |
| Number Of Mounting Holes | 0 |
| Overall Height | 63/64" |
| Overall Length | 5/8" |
| Overall Width | 1 5/8" |
| Resistance Properties | Corrosion Resistant, Shock Absorbing, Vibration Damping |
| Series | CUSH-A-CLAMP Series |
| Thread Size | 1/4" |
| Tube Size | 1/4" |
| Type | Strut Mounted |
| Width | 1 5/8" |
| Standards | MSS SP-58, MSS SP-69, TYPE 58 |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 19.05 |
| Width (cm) | 17.78 |
| HS Code | 7326908530 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.0225 |
| Style | Model | Max. Load | Metal Detectable | Bolt Size | Height | Load Capacity | Overall Length | Clamp Material | Bolt Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | T016T020 | - | No | 1/4" x 1 3/64" | 1.953" | 1000 lbs. | 1 7/16" | Steel | 1 3/64" | $7.16 | |
| B | T016NS020 | - | Yes | 1/4" x 1 3/64" | 1.953" | 1000 lbs. | 1 7/16" | Stainless Steel | 1 3/64" | $21.34 | |
| A | T008T012 | 1000 lbs. | No | 1/4" x 1 3/64" | 1.344" | 1000 lbs. | 15/16" | Steel | 1 3/64" | $6.39 | |
| B | T008NS012 | 1000 lbs. | Yes | 1/4" x 1 3/64" | 1.344" | - | - | - | - | $13.24 | |
| B | T004NS008 | - | Yes | 1/4" x 1 3/64" | 0.984" | 1000 lbs. | 5/8" | Stainless Steel | 1 3/64" | $14.27 | |
| A | T024N028 | - | No | 5/16" x 1 19/64" | 2.469" | 2200 lbs. | 1 61/64" | Steel | 1 19/64" | $10.16 | |
| B | T024NS028 | - | Yes | 5/16" x 1 5/16" | 2.469" | 2200 lbs. | 1 61/64" | Stainless Steel | 1 5/16" | $28.31 |
