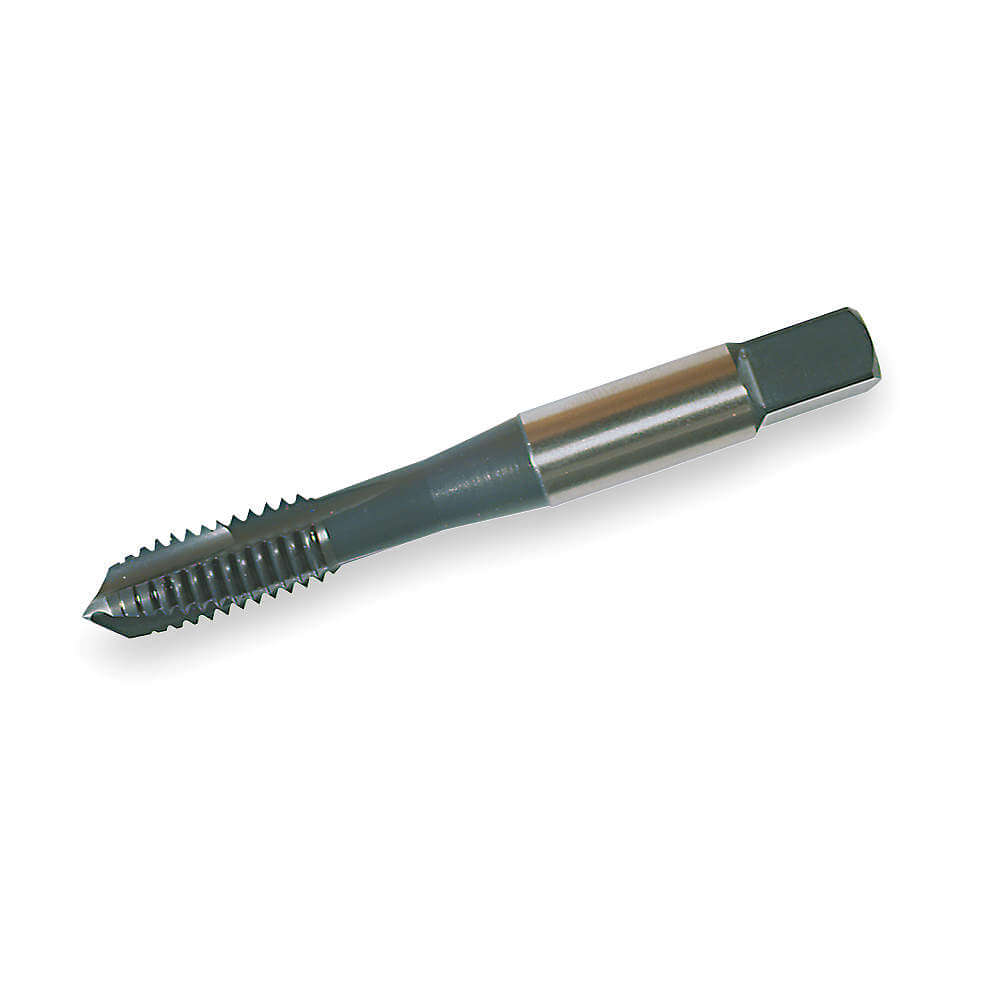

| Item | Spiral Point Tap |
|---|---|
| 55% Thread Drill Size | I |
| 65% Thread Drill Size | 17/64" |
| 75% Thread Drill Size | F |
| Class Of Fit | Class H3 |
| Coolant Fed | Non Coolant Through |
| Extended Neck | Yes |
| Finish | Black Oxide |
| List Number | 8301 |
| Material | High Speed Steel |
| Material Grade - Machining | Grade WP49EG |
| Measurement System | Fractional Inch |
| Number Of Flutes | 3 |
| Overall Length | 2 23/32" |
| Pitch Diameter Limits | H3 |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, P |
| Shank Dia. | 5/32" |
| Shank Length | 1 7/32" |
|---|---|
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 0.236" |
| Standards | DIN 371 |
| Tap Chamfer | Plug |
| Tap Finish | Black Oxide |
| Tap Material | HSS E |
| Tap Thread Size | 5/16"-18 |
| Tap Type | Plug |
| Thread Direction | Right Hand |
| Thread Length | 11/16" |
| Thread Limit | H3 |
| Thread Limit / Class Of Fit | H3, H3 |
| Thread Size | 5/16"-18 |
| Thread Standard | UNC |
| Thread Type | Coarse |
| Threads Per Inch | 18 |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 6.91 |
| Width (cm) | 2.54 |
| HS Code | 8207403000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.0225 |
| Style | Model | Thread Size | Thread Length | 75% Thread Drill Size | Thread Limit | Number Of Flutes | Overall Length | Shank Dia. | Thread Standard | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 5357285 | #6-32 | 3/8" | #36 | H3 | 3 | 1 31/32" | 9/64" | UNC | $29.51 | |
| A | 5365743 | #8-32 | 3/8" | 3.4 mm | H3 | 3 | 2 3/32" | 5/64" | UNC | $29.51 | |
| A | 5365763 | #10-32 | 1/2" | #21 | H3 | 3 | 2 11/32" | 3/32" | Unf | $31.10 | |
| A | 5365806 | 1/4"-20 | 5/8" | #7 | H3 | 3 | 2 1/2" | 1/8" | UNC | $33.66 | |
| A | 5365829 | 1/4"-28 | 5/8" | 5.45 mm | H3 | 3 | 2 1/2" | 1/8" | Unf | $33.04 | |
| A | 5365945 | 5/16"-24 | 11/16" | I | H3 | 3 | 2 23/32" | 5/32" | Unf | $39.09 | |
| B | 5365974 | 3/8"-16 | 3/4" | 0.3125" | H3 | 3 | 2 15/16" | 3/16" | UNC | $44.30 |
