| Item | Low Voltage Thermostat |
|---|---|
| Amperage | 2.5A |
| Application | Heat Or Cool |
| Backlit Type | Press Button |
| Batteries Included | Yes |
| Battery Backup | No |
| Battery Type | (2) AAA Batteries |
| Changeover Type | Manual |
| Color | White |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump Without Aux, Millivolt |
| Control Range | +45°F to +90°F |
| Control Type | Slide Switch |
| Dehumidification Control | No |
| Depth | 1 1/8" |
| Differential Type | Adjustable |
| Digit Size | Standard |
| Display | LCD |
| Display Type | Digital |
| Dual Transformer Compatible | Yes |
| Electrical Connection Type | Hardwired |
| Fan Settings | Auto-On |
| Filter Change Reminder | No |
| Frequency | 50/60 Hz |
| Height | 3 3/4" |
| Housing Color | White |
| Housing Material | Plastic |
| Humidification Control | No |
| Includes Positive Off | Yes |
| Key Pad Lockout | No |
| Maximum Control Temperature | 99°F |
| Maximum Operating Humidity | 90% |
| Maximum Operating Temperature | 150°F |
| Millivolt Compatible | Yes |
| Minimum Control Temperature | 45°F |
|---|---|
| Minimum Operating Humidity | 0% |
| Minimum Operating Temperature | -40°F |
| Mounting Direction | Horizontal |
| Mounting Location | Wall |
| Mounting Type | Surface Mount |
| Number Of Cooling Stages - Conventional System | 1 |
| Number Of Cooling Stages - Heat Pump System | 1 |
| Number Of Heating Stages - Conventional System | 1 |
| Number Of Heating Stages - Heat Pump System | 1 |
| Number Of Zones | 1 |
| Overall Depth | 1 1/8" |
| Overall Height | 5 5/16" |
| Overall Width | 3 3/16" |
| Power Method | Battery |
| Programming Capability | Not Programmable |
| Remote Sensing Capability | No |
| Shape | Rectangle |
| Stages | 1 H/1 C Conventional |
| Stages Heat | 1 |
| Stages Heat Pump | 1 H/1 C Heat Pump |
| Stages Heating/cooling | 1 H/1 C Conventional, 1 H/1 C Heat Pump |
| System Settings | Cool Heat Off |
| Temp. Control Range | +45°F to +90°F |
| Temp. Differential | 0.8°F to 1.5°F |
| Temperature Limiting | No |
| Temperature Scale | Fahrenheit, Celsius |
| Temporary Program Override | No |
| Terminal Designations | B, G, O, Rc, Rh, W, Y |
| Thermostat Type | Low Voltage |
| Voltage | 20/30V AC |
| Width | 5 1/8" |
| Height (cm) | 15.75 |
|---|---|
| Length (cm) | 11.18 |
| Width (cm) | 5.08 |
| HS Code | 9032100030 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.2025 |
| Style | Model | Display Type | Application | Terminal Designations | Programming Capability | Depth | Control Range | Voltage | Height | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1C20-101 | Analog | Heat Only | RH, W | - | 1 1/2" | +50°F to +90°F | 30V AC | 3 3/4" | $26.71 | |
| A | 1C21-101 | Analog | Cool Only | R, Y | - | 1 1/2" | +50°F to +90°F | 30V AC | 3 3/4" | $25.53 | |
| A | 1C26-101 | Analog | Heat And Cool | A, B, G, O, Rc, Rh, W, Y | - | 1 5/8" | +50°F to +90°F | 30V AC | 3 3/4" | $30.44 | |

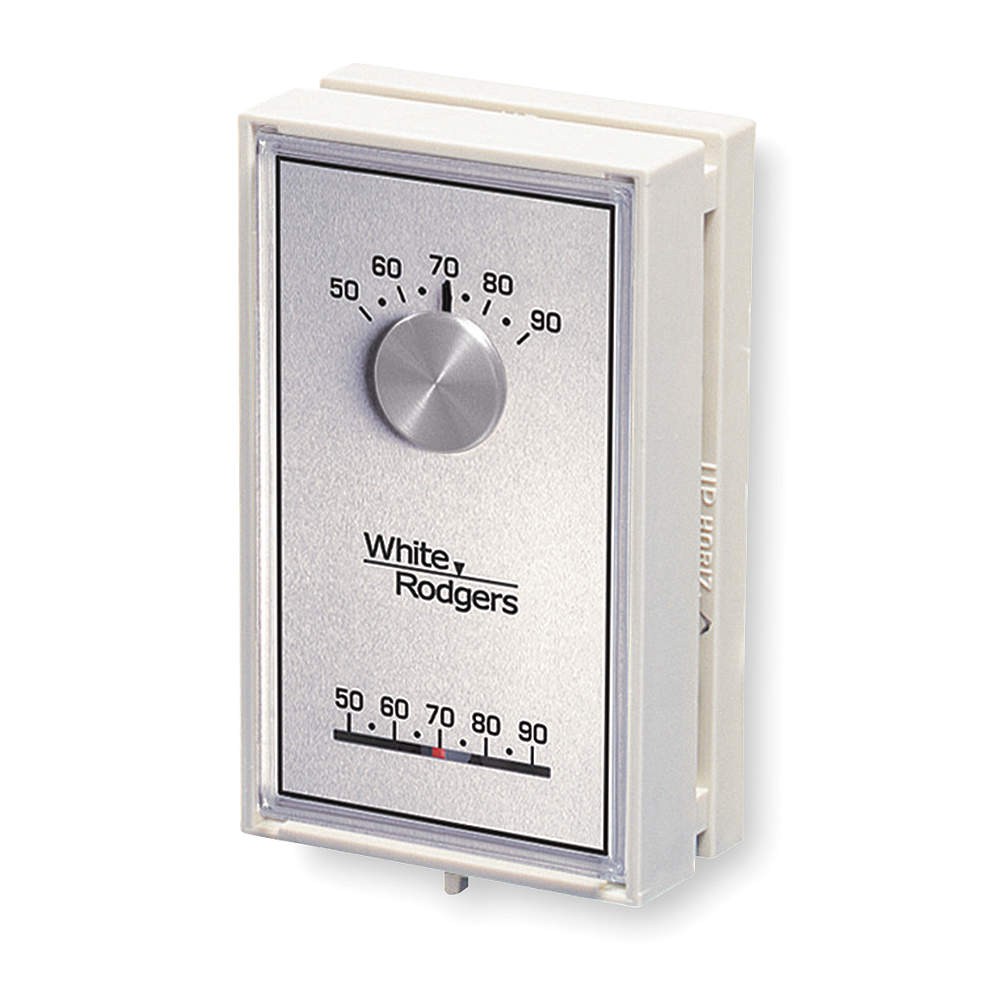

| B | 1E30N-910 | Analog | Heat Only | R, W | - | 1 1/2" | +50°F to +90°F | 20-30V AC | 4 1/2" | $70.26 | |
| C | 1E50N-301 | Analog | Heat Only | RH, W | - | 1 5/8" | +50°F to +90°F | 20-30V AC | 4 1/2" | $65.00 | |

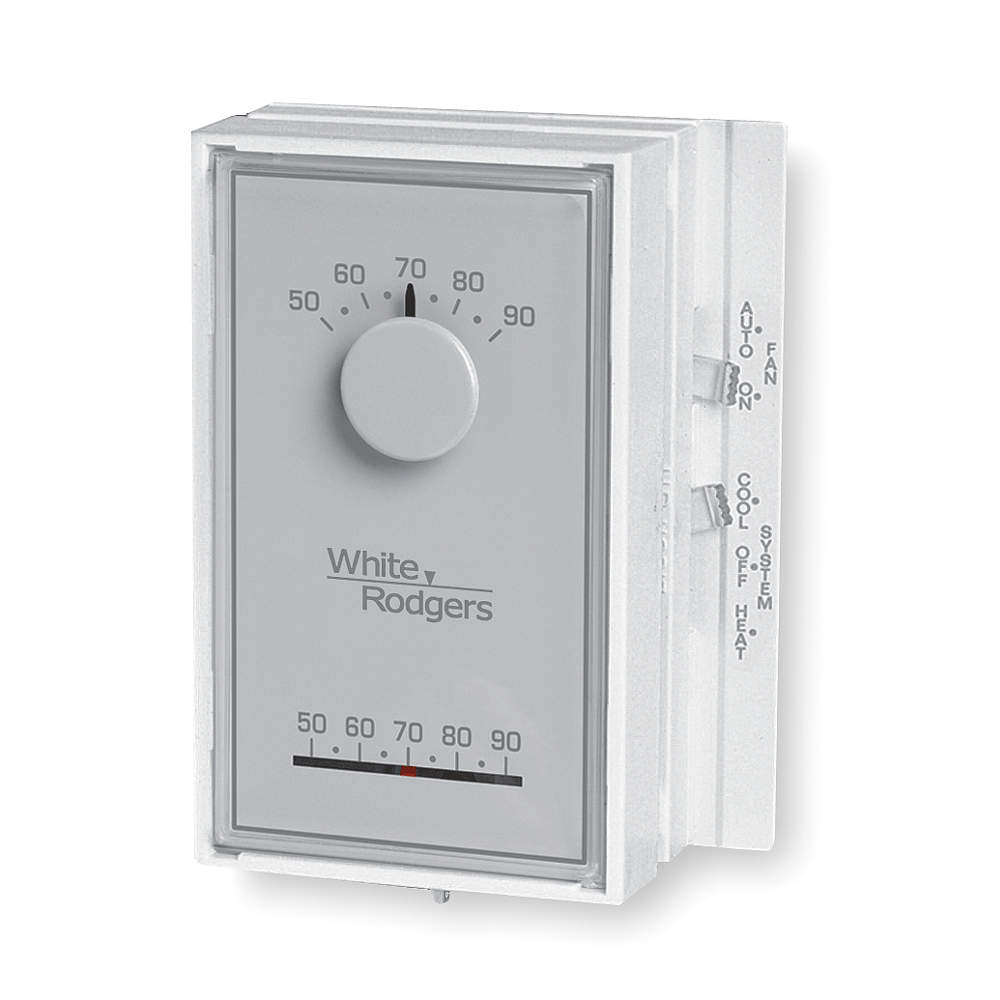

| D | 1E56N-444 | Analog | Heat And Cool | A, B, G, O, Rc, Rh, W, Y | - | 1 5/8" | +50°F to +90°F | 20-30V AC | 4 1/2" | $65.33 | |

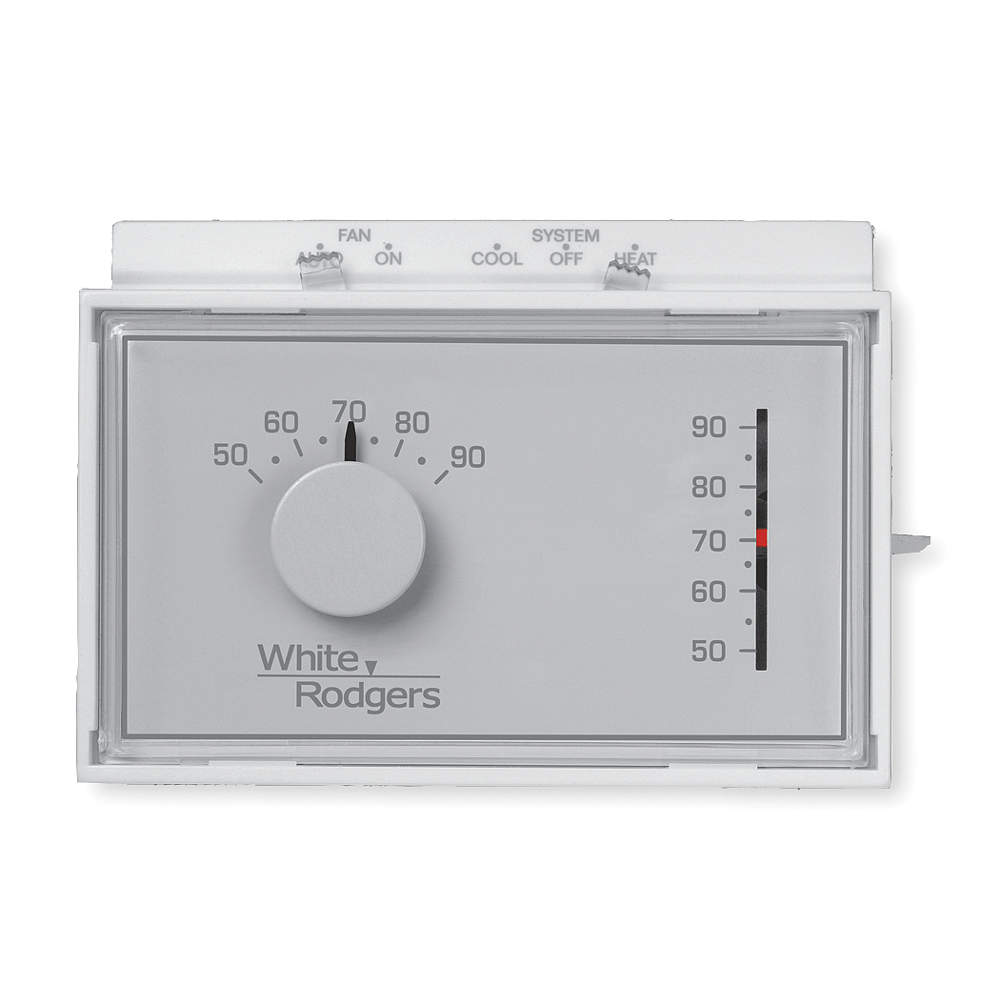

| E | 1F56N-444 | Analog | Heat And Cool | A, B, G, O, Rc, Rh, W, Y | - | 1 5/8" | +50°F to +90°F | 20-30V AC | - | $70.26 |
