| Item | Contactor |
|---|---|
| Actuator Type | Magnetic |
| Coil Type | Low Consumption |
| Coil Voltage | 24V DC |
| Contact Type | NO |
| Contactor Type | IEC Miniature |
| Control Voltage | 24V DC |
| Depth | 2.05" |
| Electrical Lifespan | 1.4 Million Cycles |
| Height | 2.28" |
| Main Contacts | NO |
| Max. Rated Operational Frequency | 25 Hz |
| Mechanical Lifespan (ac) | 10 Milion Cycles |
| Mechanical Lifespan (dc) | 12 Milion Cycles |
| Min. Rated Operational Frequency | 400 Hz |
| No. Of Contacts | 4 NO |
| Number Of Contacts | 4 |
| Number Of Poles | 4 |
| Part/accessory Type | Contactor |
|---|---|
| Power Poles | NO |
| Rated Current | 7A |
| Rated Insulation Voltage | 690V |
| Rated Operational Amps Ie Ac-1 | 18A |
| Rated Operational Voltage | 690V |
| Series | CWC Series |
| Terminal Type | Screw |
| Width | 1.77" |
| Degree Of Protection Ip (iec 60529) - Control Circuit | IP20 |
| Degree Of Protection Ip (iec 60529) - Main Circuit | IP20 |
| Main Contact | 4 NO |
| Rated Insulation Voltage Ui (pollution Degree 3) | 600V |
| Rated Insulation Voltage Ui (pollution Degree 3) - Iec 60974-4-1 | 690V |
| Rated Operational Current Ie Ac-1 (¿ = 55 ºc) | 18A |
| Rated Operational Voltage Ue | 690V |
| Reference | CWC0 |
| Height (cm) | 6.35 |
|---|---|
| Length (cm) | 9.4 |
| Width (cm) | 6.35 |
| Country Of Origin | BR |
|---|---|
| Weight (kg) | 0.2178 |
| Style | Model | Number Of Poles | Depth | Height | Contactor Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|
| A | CWC09-01-30V24-X50 | - | 2.05" | 2.28" | - | $30.72 | |
| A | CWC09-10-30V24-X50 | - | 2.05" | 2.28" | - | $30.72 | |
| B | CWC012-10-30L02 | 3 | 2.05" | 2.28" | IEC Miniature | - | RFQ
|
| C | CWC09-00-40L03 | 4 | 2.05" | 2.28" | IEC Miniature | $44.55 | |
| D | CWC09-10-30L02 | 3 | 2.05" | 2.28" | IEC Miniature | $43.64 | |
| E | CWC09-00-40L02 | 4 | 2.05" | 2.28" | IEC Miniature | $44.55 | |

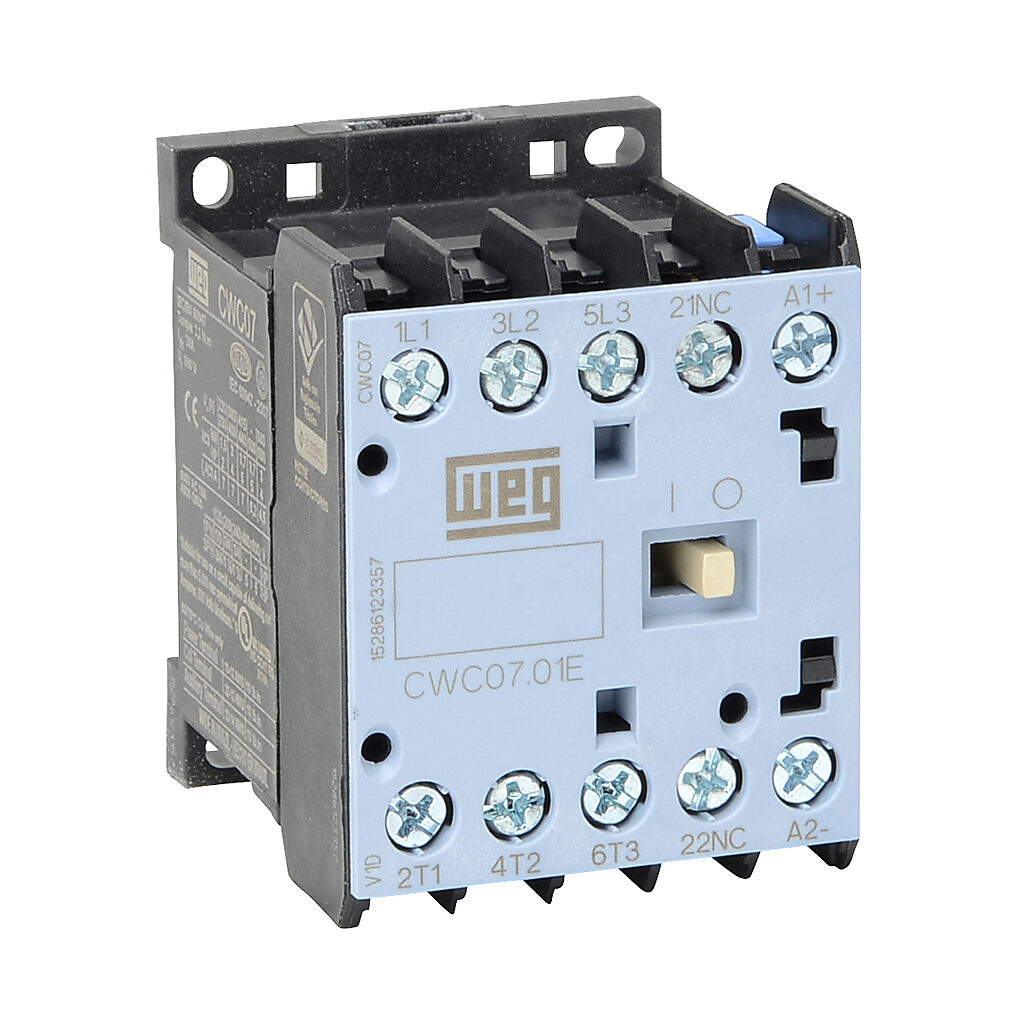

| F | CWC07-01-30L02 | 3 | 2.05" | 2.28" | IEC Miniature | $40.00 |
