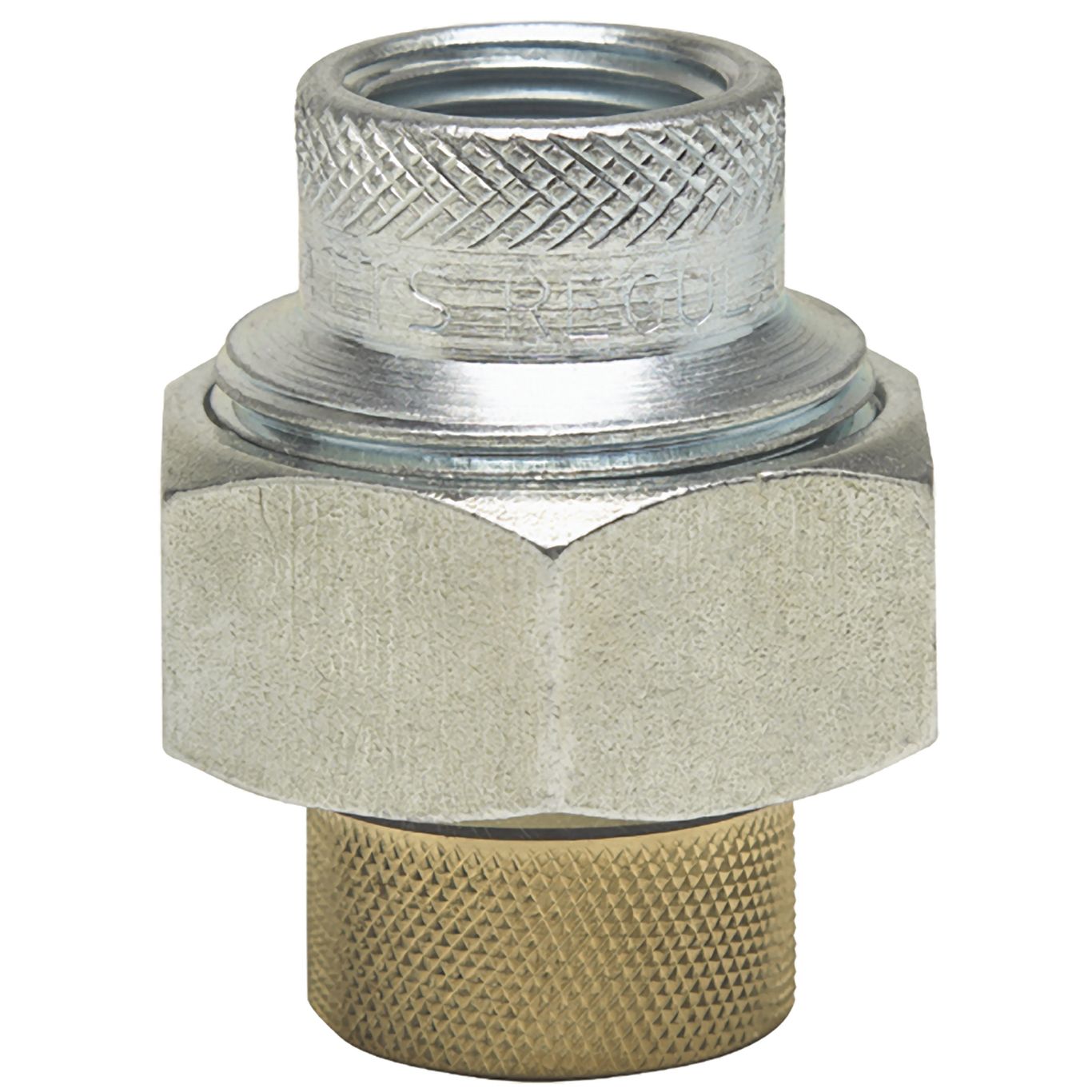

| Item | Dielectric Union |
|---|---|
| Application | Non-Potable Water, Steam |
| Basic Fitting Shape | Union |
| Color | Brass |
| Dielectric Union Lead Free Designation | Lead Free |
| Fitting Side A Gender | Female |
| Fitting Side A Material | Brass |
| Fitting Side A Nominal Pipe Size | 1 1/2" |
| Fitting Side A Type | NPT |
| Fitting Side B Gender | Female |
| Fitting Side B Material | Malleable Iron |
| Fitting Side B Nominal Pipe Size | 1 1/2" |
| Fitting Side B Type | NPT |
| Gasket Material | Buna N |
|---|---|
| Hex Size | 3 1/2" |
| Insulator Material | Polysulfone |
| Max. Pressure | 250 psi |
| Max. Temp. | 180°F |
| Maximum Operating Pressure | 250 psi |
| Nut Material Finish | Galvanized Malleable Iron , Zinc Plated |
| Overall Length | 2 3/4" |
| Pipe Size | 1 1/2" |
| Specific Fitting Shape | Dielectric Union |
| Temperature Range | 33°F to 180°F |
| standard | ANSI B16.39 |
| Height (cm) | 7.11 |
|---|---|
| Length (cm) | 9.4 |
| Width (cm) | 9.4 |
| HS Code | 7412200090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.3275 |
| Style | Model | Pipe Size | Fitting Side A Nominal Pipe Size | Fitting Side B Material | Fitting Side B Nominal Pipe Size | Fitting Side B Type | Hex Size | Overall Length | Adapter Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1/2 LF3003 | 1/2" | 1/2" | Steel | 1/2" | NPT | 1 5/8" | 2 1/4" | - | $41.86 | |
| A | 3/4 LF3003 | 3/4" | 3/4" | Steel | 3/4" | NPT | 1 7/8" | 2 1/4" | - | $50.83 | |
| A | LF3003 1 | 1" | 1" | Steel | 1" | Fbp | 2 1/4" | 2 1/2" | - | $65.59 | |
| B | LF3003 1 1/4 | - | - | - | - | - | - | - | Steel | $283.19 | |
| C | LF3003 2 | - | - | - | - | - | - | - | Malleable Iron | $344.00 |
