| Item | Temperature & Pressure Relief Valve |
|---|---|
| Application | Water Heaters |
| Auto Re-seating | Yes |
| Body Height | 3 3/16" |
| Body Material | Copper Silicon Alloy |
| Body Width | 1 7/8" |
| Connection Type | MNPT x FNPT |
| Discharge Capacity | 105000 btuH |
| Factory Set Pressure | 150 psi |
| For Media | Hot Water |
| Inlet Connection Size | 3/4" |
| Inlet Size | 3/4" |
| Inlet Type | MNPT |
|---|---|
| Max. Operating Pressure | 113 psi |
| Max. Operating Temperature | 210°F |
| Max. Temp. | 210°F |
| Outlet Size | 3/4" |
| Outlet Type | FNPT |
| Preset Temperature | 210°F |
| Shank Length | Extended |
| Spring Material | Stainless Steel |
| Thermostat Length | 2" |
| Standards | ASME, CSA |
| Height (cm) | 19.81 |
|---|---|
| Length (cm) | 6.35 |
| Width (cm) | 3.81 |
| HS Code | 8481801095 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.2835 |
| Style | Model | Max. Working Pressure | Discharge Capacity | Factory Set Pressure | Body Height | Thermostat Length | Outlet Type | Shank Length | Inlet Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3/4 LF 100XL-4 | - | 105000 btuH | 125 psi | 7 5/32" | 4" | FNPT | Standard | MNPT | $47.00 | |
| B | 3/4 LF LLL100XL-2 | - | 105000 btuH | 150 psi | 7 1/4" | 3" | FNPT | Extended | MNPT | $78.57 | |
| C | LF100XL-150210 | 113 psi | 200000 btuH | - | - | - | Female Threaded | 1 1/8" | Male Threaded | $32.74 | |
| D | LFL100XL3-150210 | 113 psi | 200000 btuH | - | - | - | Female Threaded | 1 1/16" | Male Threaded | $51.30 | |

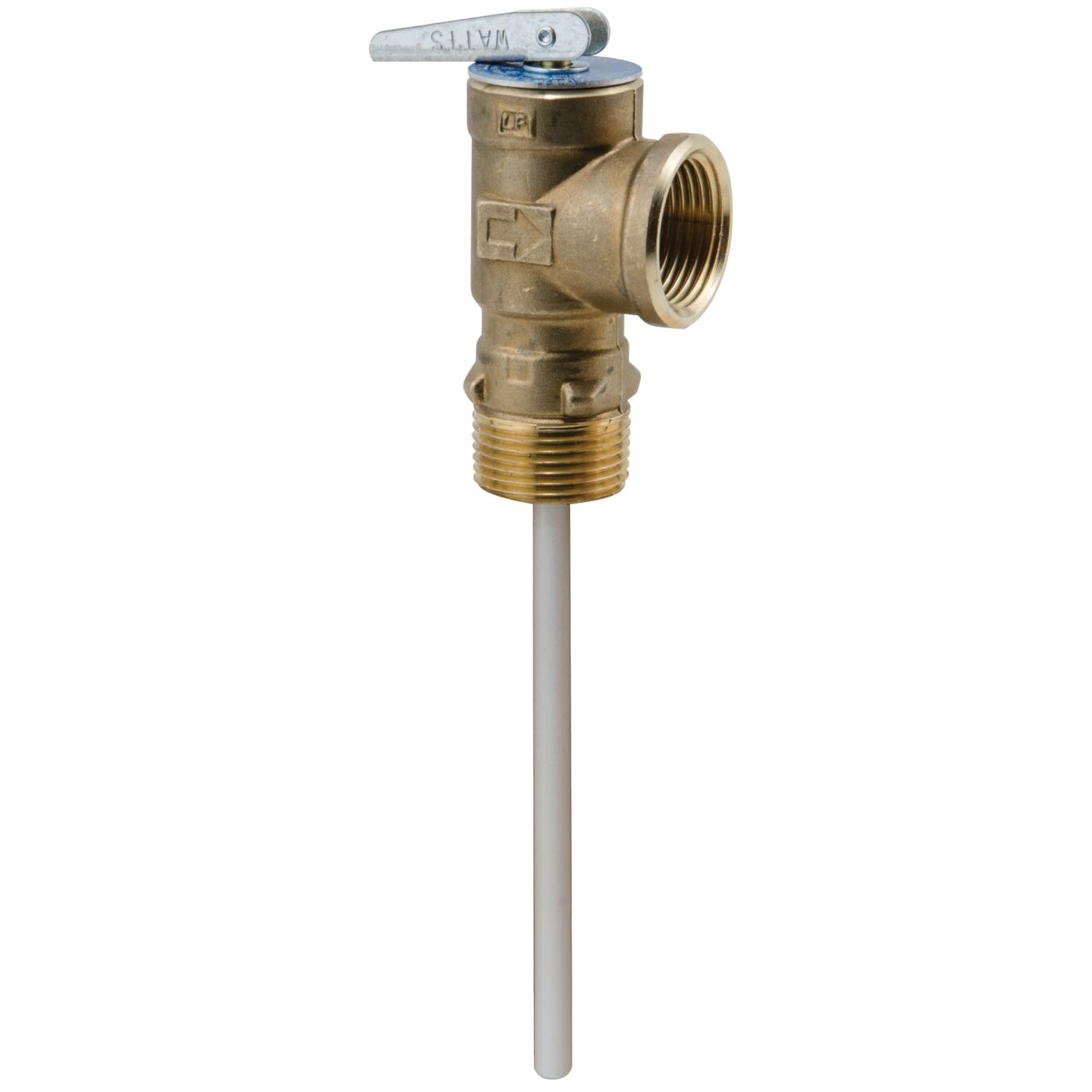

| E | LF100XL 175-210 3/4 | - | - | - | - | - | Female Threaded | 1 1/8" | Male Threaded | $39.18 | |
| D | LFSL100XL-150/210 3/4 | - | - | - | - | - | Female Threaded | 1 1/4" | Male Threaded | $81.80 | |
| F | LF100XL-8 100-210 3/4 | - | - | - | - | - | Female Threaded | 1 3/16" | Male Threaded | $83.36 |
