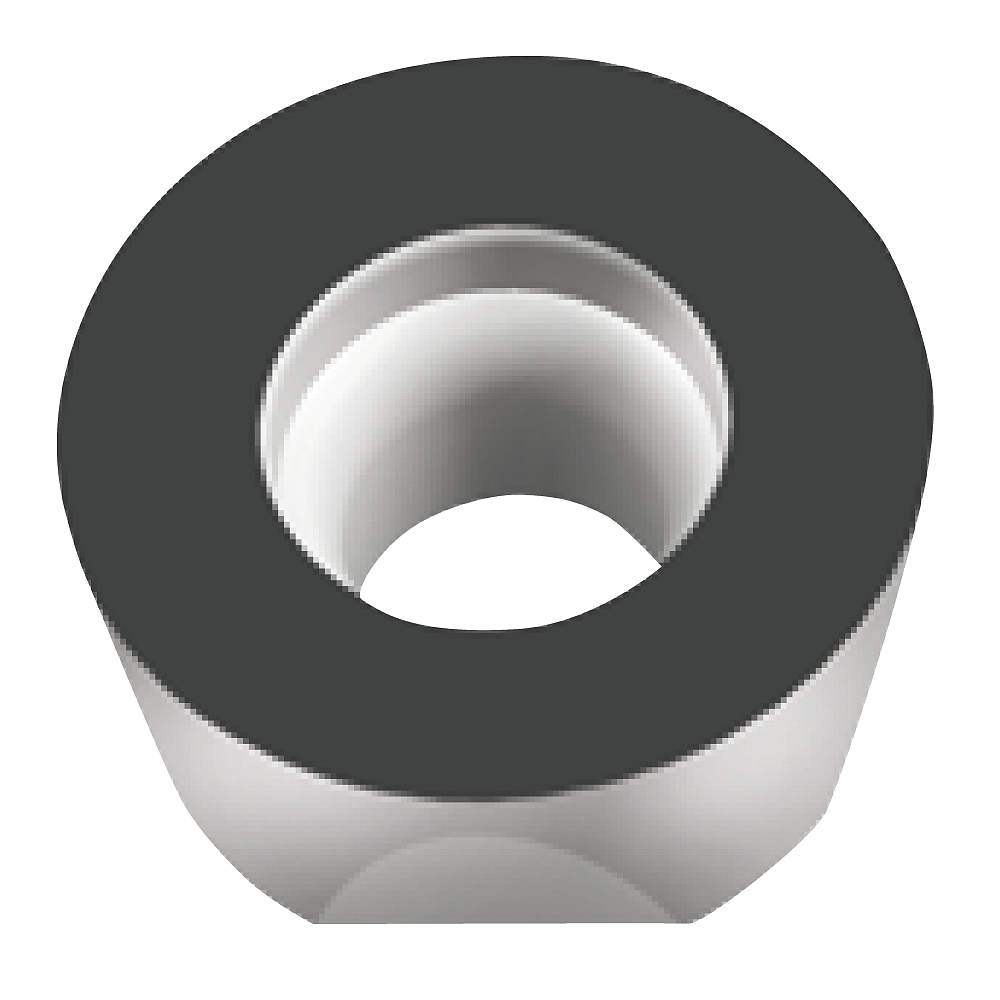

| Item | Milling Insert |
|---|---|
| Ansi Code | ROHX1204M0-F67 W3536 |
| Ansi Number | ROHX1204M0-F67 W3536 |
| Chip-breaker | F67 |
| Chip-breaker Style | 16° Chipbreaker Groove |
| Clearance Angle | 11° |
| Coating | PVD |
| Coating Process | PVD |
| Corner Radius | 6 mm |
| Cutting Application | Milling |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 12 mm |
| Feed Type | Medium |
| Finish - Machining | Tialn+Al2O3+Zrn |
| For Use With | F2334 Milling Insert |
| Grade | Grade W3536 |
| Inscribed Circle | 0.472" |
| Insert Holding Type | Screw Held |
| Insert Size | 1204M0 |
|---|---|
| Insert Style | ROHX |
| Iso Number | ROHX1204M0-F67 W3536 |
| Manufacturer Grade | W3536 |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Mounting Style | Screw Held |
| No. Of Edges | 4 |
| Nose Radius | 0.236" |
| Number Of Cutting Edges | 4 |
| Primary Material Application | Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application Iso Code | M, P, S |
| Rake | Positive |
| Shape | Round |
| Style | Positive |
| Thickness | 0.187" |
| Workpiece Material | High Temp Alloys |
| Height (cm) | 0.33 |
|---|---|
| Length (cm) | 9.8 |
| Width (cm) | 3.99 |
| HS Code | 8209000030 |
|---|---|
| Country Of Origin | DE |
| Weight (kg) | 0.0585 |
| Style | Model | Inscribed Circle | Corner Radius | Thickness | Ansi Number | Iso Number | Chip-breaker | Coating | Nose Radius | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ROHX10T3M0-D57 WKP35S | 0.394" | 5 mm | 0.156" | ROHX10T3M0-D57 WKP35S | ROHX10T3M0-D57 WKP35S | D57 | Chemical vapor deposition | 0.197" | $33.09 | |
| B | ROHX10T3M0-F67 W3536 | 0.394" | 5 mm | 0.156" | ROHX10T3M0-F67 W3536 | ROHX10T3M0-F67 W3536 | F67 | PVD | 0.197" | $39.33 | |
| C | ROHX10T3M0T-A27 WKP35S | 0.394" | 5 mm | 0.156" | ROHX10T3M0T-A27 WKP35S | ROHX10T3M0T-A27 WKP35S | A27 | Chemical vapor deposition | 0.197" | $33.96 | |
| A | ROHX1204M0-D57 W3536 | 0.472" | 6 mm | 0.187" | ROHX1204M0-D57 W3536 | ROHX1204M0-D57 W3536 | D57 | PVD | 0.236" | $49.16 | |
| A | ROHX1204M0-D57 WKP35S | 0.472" | 6 mm | 0.187" | ROHX1204M0-D57 WKP35S | ROHX1204M0-D57 WKP35S | D57 | Chemical vapor deposition | 0.236" | $39.41 | |
| B | ROHX1204M0-D67 W3536 | 0.472" | 6 mm | 0.187" | ROHX1204M0-D67 W3536 | ROHX1204M0-D67 W3536 | D67 | PVD | 0.236" | $49.34 | |
| B | ROHX1204M0-D67 WKP35S | 0.472" | 6 mm | 0.187" | ROHX1204M0-D67 WKP35S | ROHX1204M0-D67 WKP35S | D67 | Chemical vapor deposition | 0.236" | $38.69 |
