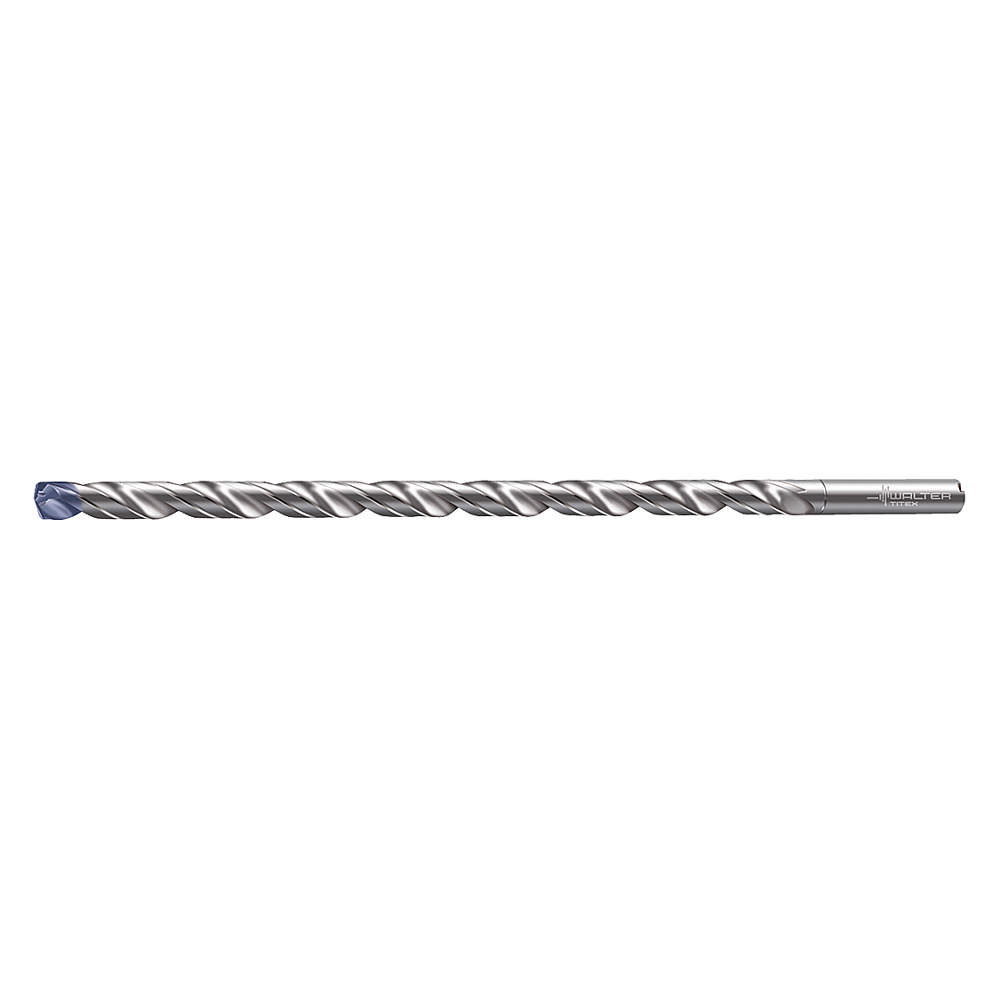

| Item | Jobber Drill Bit |
|---|---|
| Coolant Fed | Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.4252 |
| Depthdia. Ratio | 5xd |
| Dimension Type | Metric |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | Self Centering Point |
| Drill Bit Size | 10.8 mm |
| Drill Diameter Tolerance | M7 |
| Drill Length Class | Jobber Length |
| Drill Point Length | 1.97 mm |
| Finish | TiNAl |
| Finish - Machining | Tinal |
| Flute Length | 71 mm |
| Flute Type | Spiral |
| Grade | Grade K30F |
| List Number | A3382 |
| Material | Solid Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | Grade K30F |
| Maximum Drilling Depth | 56 mm |
|---|---|
| Measurement System | Metric |
| Number Of Coolant Holes | 2 |
| Number Of Flutes | 2 |
| Overall Length | 118 mm |
| Point Angle | 140° |
| Point Type | Self-Centering |
| Primary Material Application | Nickel, Stainless Steel, Titanium |
| Primary Material Application Iso Code | M, S |
| Secondary Material Application | Aluminum, Brass, Bronze, Composite, Copper, Graphite, Steel |
| Secondary Material Application Iso Code | N, O, P |
| Series | X.TREME INOX |
| Shank Dia. | 12 mm |
| Shank Length | 45 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | 10.8 mm |
| Cutting Edge Dia. | 0.425" |
| Cutting Edge Length | 2.205" |
| Length | 4.646" |
| standard | DIN 6537 |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 11.8 |
| Width (cm) | 2.54 |
| Country Of Origin | DE |
|---|---|
| Weight (kg) | 0.139 |
| Style | Model | Drill Bit Size | Decimal Equivalent | Flute Length | Shank Dia. | Overall Length | Shank Length | Drill Diameter Tolerance | Drill Point Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | A3293TTP-5/32IN | 5/32" | 0.1563 | 15/16" | 6 mm | 2 19/32" | 1 13/32" | M7 | 0.722 mm | - | RFQ
|
| A | A3293TTP-7/16IN | 7/16" | 0.4375 | 2 1/8" | 6 mm | 4" | 1 3/4" | M7 | 2.02 mm | - | RFQ
|
| B | A6794TFP-4 | 4 mm | 0.1575 | 92 mm | 6 mm | 134 mm | 36 mm | H7 | 0.728 mm | $769.94 |
