| Item | Roller Chain Link |
|---|---|
| Ansi Chain Size | C2042 |
| Attachment Number | SK-2 |
| Attachment Type | Tab |
| Centerline To Attachment End | 0.38" |
| Centerline To Hole Center | 0.325" |
| Chain Number | C2042 |
| Chain Overall Width | 0.717" |
| Connecting End To Center Line | 0.38" |
| Display Qty | 1 |
| Extended Pin Diameter | 0.156" |
| Finish | Plain |
| For Chain Style (combined) | Plain Steel |
| Inside Pin Dia. | 0.156" |
| Length | 1" |
| Link Type | Roller Attachment |
| Lubrication | SAE 10 To SAE 50 |
| Material | Steel |
| Max. Allowable Load | 595 lbs. |
|---|---|
| Maximum Operating Temperature | 300°F |
| Minimum Operating Temperature | 15°F |
| Number Of Tab Holes | 1 |
| Outside Pin Dia. | 0.156" |
| Overall Width | 0.717" |
| Pin Contruction | Riveted Pin |
| Pin Length | 0.705" |
| Pin Link Plate Thickness | 0.06" |
| Pin Type | Riveted |
| Pitch | 1" |
| Plate Height | 0.472" |
| Plate Thickness | 0.312" |
| Rivet End To Center Line | 0.325" |
| Roller Diameter | 5/8" |
| Roller Link Plate Height | 0.472" |
| Temp. Range | +15°F to +300°F |
| Tensile Strength | 3750 lbs.-in. |
| Height (cm) | 1.27 |
|---|---|
| Length (cm) | 2.54 |
| Width (cm) | 1.82 |
| HS Code | 7315190000 |
|---|---|
| Country Of Origin | JP |
| Weight (kg) | 0.027 |
| Style | Model | Material | Ansi Chain Size | Temp. Range | Finish | Roller Dia. | Tensile Strength | Pitch | Inside Pin Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

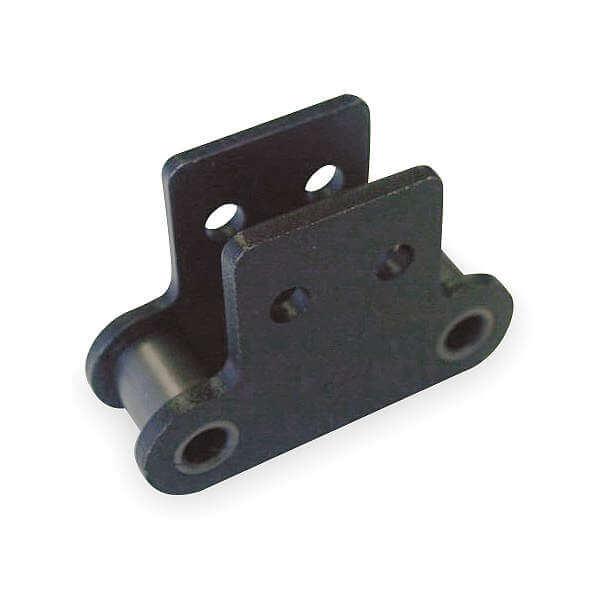

| A | C2040LSK2RL | Steel | C2040L | +14°F to +302°F | Black Oxide | 0.312" | 3530 lbs.-in. | 1" | 0.156" | $28.56 | |

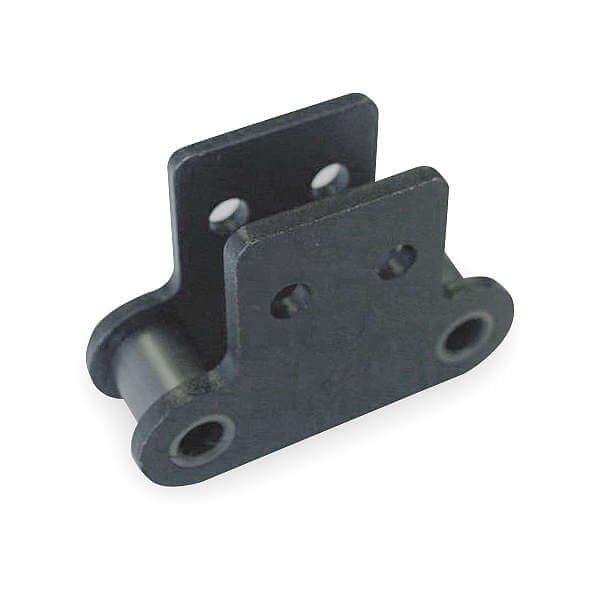

| B | C2040SK2RL | Steel | C2040 | +15°F to +300°F | Plain | 0.312" | 3750 lbs.-in. | 1" | 0.156" | $16.81 | |
| C | C2040ASSK2RL | Stainless Steel | C2040AS | -40°F to +750°F | Plain | 0.312" | - | - | 0.156" | $63.24 | |
| C | C2042ASSK2RL | Stainless Steel | C2042AS | -40°F to +750°F | Plain | 5/8" | - | 1" | 0.156" | $78.29 | |
| B | C2050SK2RL | Steel | C2050 | +15°F to +300°F | Plain | 2/5" | 6170 lbs.-in. | 1 1/4" | 1/5" | $19.50 | |
| C | C2050ASSK2RL | Stainless Steel | C2050AS | -40°F to +750°F | Plain | 2/5" | - | - | 1/5" | $83.06 | |
| C | C2052ASSK2RL | Stainless Steel | C2052AS | -40°F to +750°F | Plain | 3/4" | - | - | 1/5" | $113.24 |
