| Item | Connecting Roller Chain Link |
|---|---|
| Ansi Chain Size | 80L |
| Attachment Number | D-1 |
| Attachment Type | Pin |
| Centerline To Attachment End | 0.758" |
| Centerline To Hole Center | 16/25" |
| Chain Link Overall Width | 1.398" |
| Chain No. | 80 |
| Chain Overall Width | 1.398" |
| Chain Roller Dia. | 5/8" |
| Connecting End To Center Line | 0.758" |
| Extended Pin Diameter | 0.312" |
| Finish | Black Oxide |
| Industry Chain Pitch | 1" |
| Inside Pin Dia. | 0.312" |
| Link Type | Attachment Link |
| Lubrication | Self Lubricating |
| Material | Steel |
| Max. Allowable Load | 3310 lbs. |
| Maximum Operating Temperature | 302°F |
|---|---|
| Minimum Operating Temperature | 14°F |
| Number Of Strands | 1 |
| Number Of Tab Holes | 1 |
| Outside Pin Dia. | 0.312" |
| Overall Width | 1.398" |
| Pin Contruction | Cottered Pin |
| Pin Length | 1.398" |
| Pin Link Plate Thickness | 1/8" |
| Pin Type | Cottered |
| Pitch | 1" |
| Plate Height | 0.949" |
| Plate Thickness | 5/8" |
| Rivet End To Center Line | 16/25" |
| Roller Chain Link Item | Attachment Link |
| Roller Dia. | 5/8" |
| Roller Link Plate Height | 0.949" |
| Tensile Strength | 17600 lbs.-in. |
| Width Between Roller Link Plates | 5/8" |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 2.54 |
| Width (cm) | 3.55 |
| HS Code | 7315190000 |
|---|---|
| Country Of Origin | JP |
| Weight (kg) | 0.0675 |
| Style | Model | Material | Ansi Chain Size | Roller Dia. | Finish | Tensile Strength | Pitch | Temp. Range | Outside Pin Dia. | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

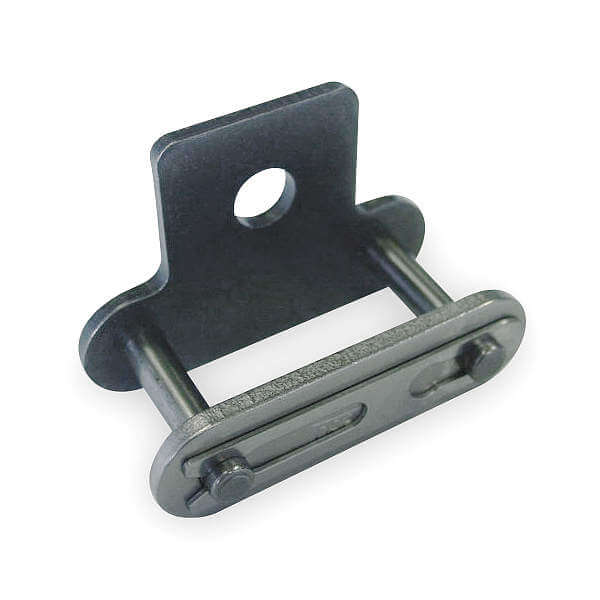

| A | C2060HSA1CL | Steel | C2060H | 0.469" | Plain | 9040 lbs.-in. | - | +15°F to +300°F | 0.234" | 1 | $23.96 | |
| B | C2060HSA2CL | Steel | C2060H | 0.469" | Plain | 9040 lbs.-in. | 1 1/2" | +15°F to +300°F | 0.234" | 1 | $23.96 | |

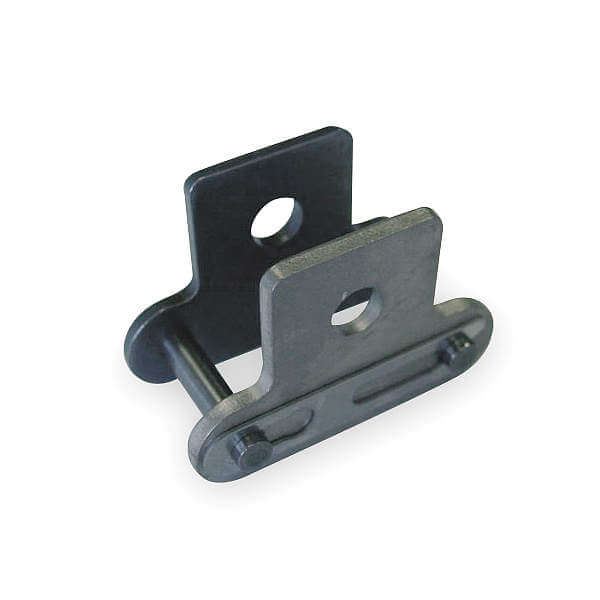

| C | C2060HSK1CL | Steel | C2060H | 0.469" | Plain | 9040 lbs.-in. | - | +15°F to +300°F | 0.234" | 1 | $31.23 | |

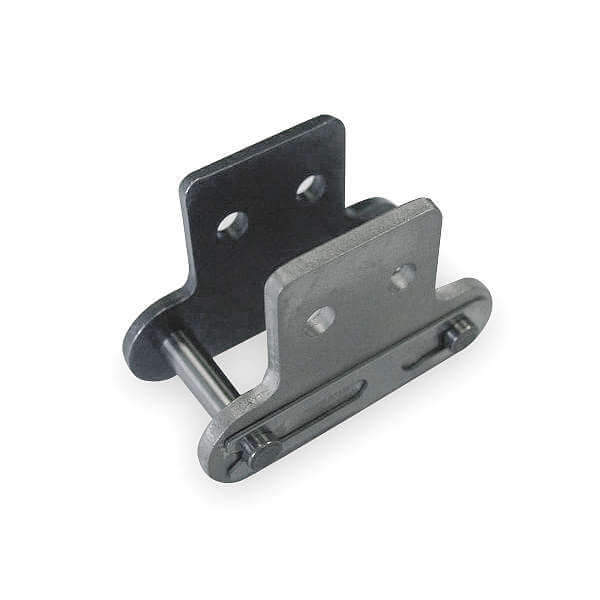

| D | C2060HSK2CL | Steel | C2060H | 0.469" | Plain | 9040 lbs.-in. | 1 1/2" | +15°F to +300°F | 0.234" | 1 | $31.23 | |
| E | C2060HASSA1CL | Stainless Steel | C2060HAS | 0.469" | Plain | 9040 lbs.-in. | 1 1/2" | -40°F to +750°F | 0.234" | 1 | $93.86 | |

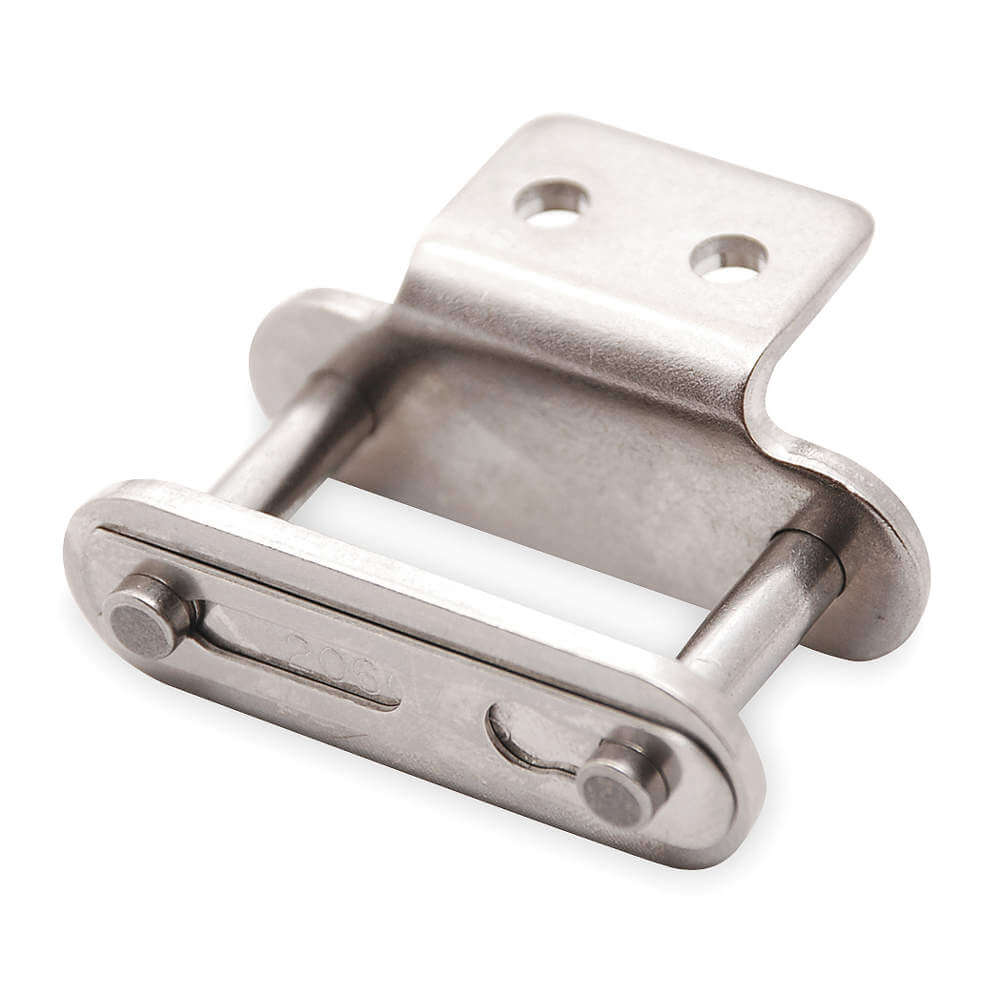

| F | C2060HASA2CL | Stainless Steel | C2060HAS | - | Plain | 9040 lbs.-in. | - | -40°F to +750°F | 0.234" | 1 | $93.86 | |

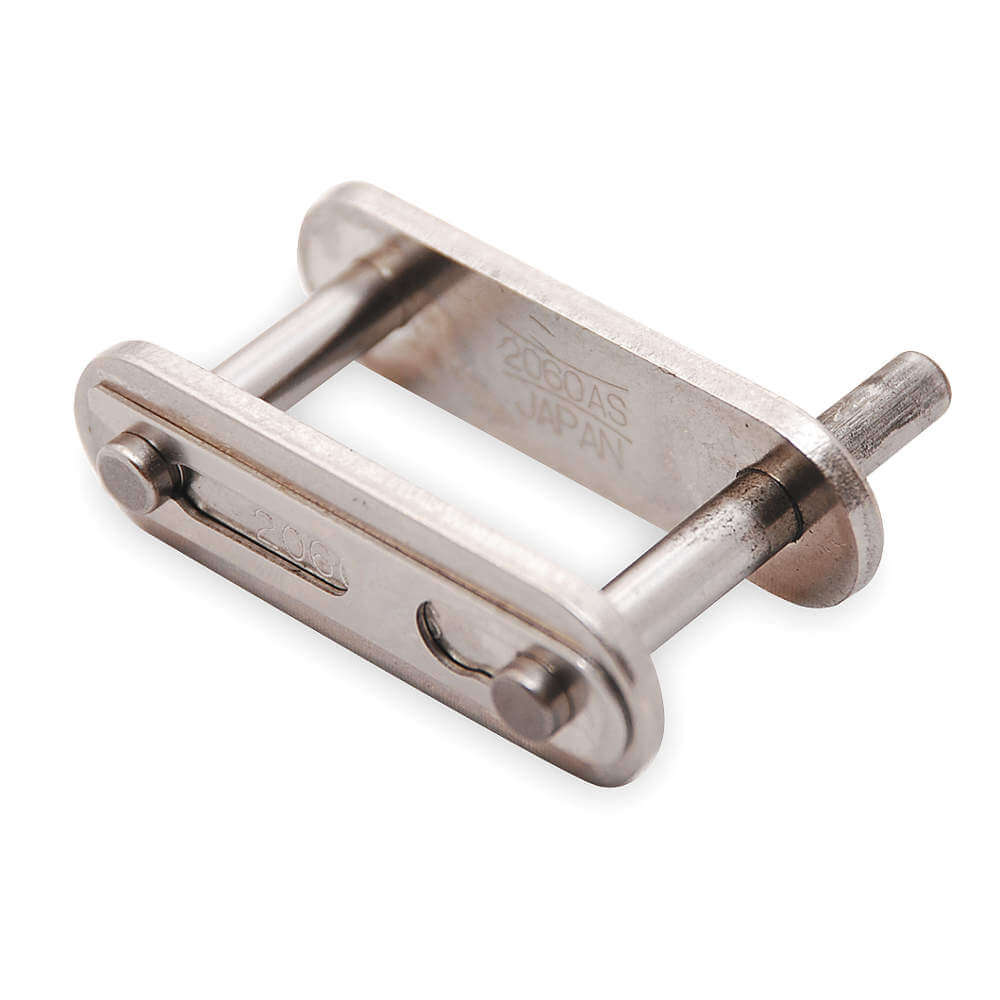

| G | C2060HASD1CL | Stainless Steel | C2060HAS | 0.469" | Plain | 9040 lbs.-in. | - | -40°F to +750°F | 0.234" | 1 | $86.07 |
