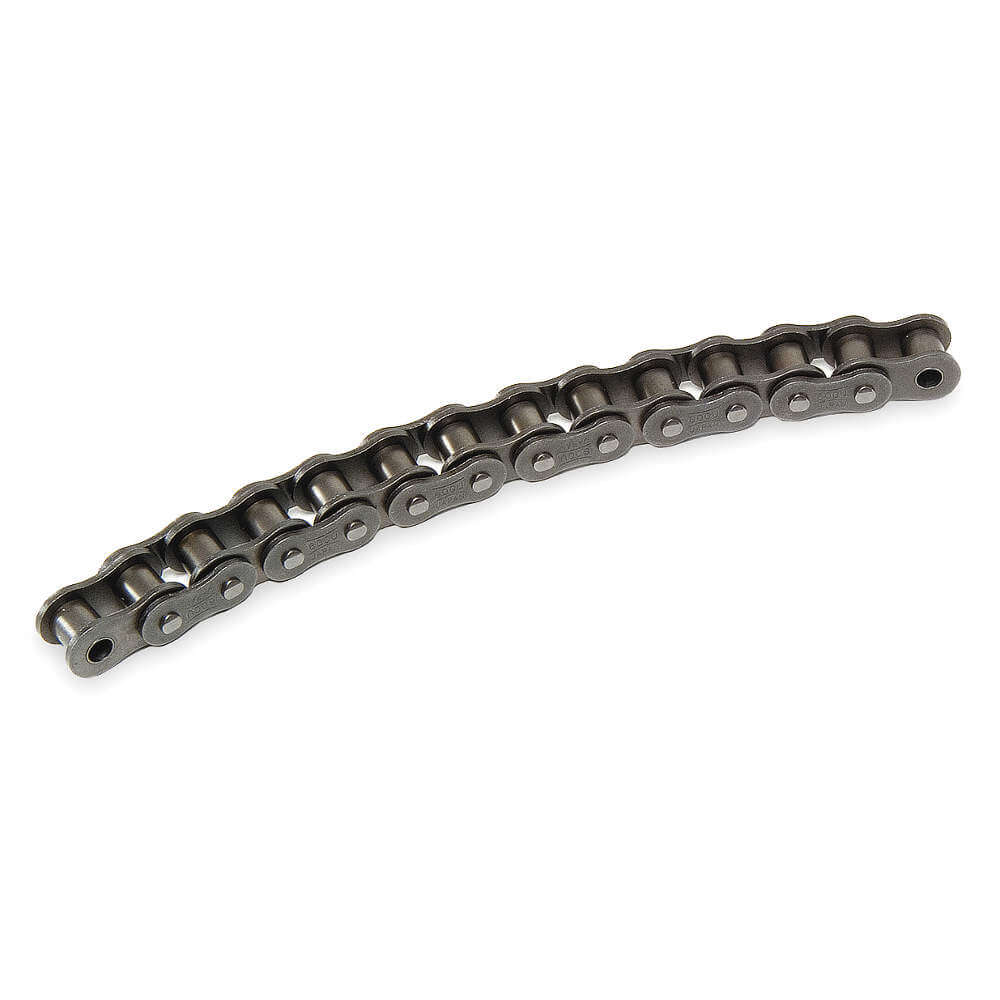

| Item | Roller Chain |
|---|---|
| Breaking Strength | 1560 lbs. |
| Chain Construction | Riveted Pin, Sidebow Curved |
| Chain No. | 80 |
| Chain Overall Width | 1.448" |
| Chain Roller Dia. | 5/8" |
| Connecting End To Center Line | 0.789" |
| Features | Tsubaki Curved Chain Has The Additional Clearance Between The Pins, Bushings, Roller Links And Pin Links To Allow For Extra Flexibility And Greater Lateral Displacement |
| Heavy Series | No |
| Includes | (1) Connecting Link |
| Industry Chain Pitch | 1" |
| Inside Pin Dia. | 0.312" |
| Inside Width | 5/8" |
| Length | 10 ft. |
| Lubrication | SAE 10 To SAE 50 |
| Material | Steel |
| Max. Allowable Load | 1560 lbs. |
| Maximum Operating Temperature | 300°F |
| Minimum Curve Radius | 24" |
| Minimum Operating Temperature | 15°F |
| Number Of Strands | 1 |
| Outside Pin Dia. | 0.312" |
| Overall Length | 10 ft. |
| Overall Width | 1.448" |
| Pin Contruction | Riveted Pin |
|---|---|
| Pin Hole Diameter | 0.312" |
| Pin Length | 1.448" |
| Pin Link Plate Thickness | 1/8" |
| Pin Outside Diameter | 0.313" |
| Pin Type | Riveted |
| Pitch | 1" |
| Plate Height | 0.819", 0.949" |
| Plate Thickness | 1/8" |
| Rivet End To Center Line | 0.659" |
| Roller Bushing Width | 5/8" |
| Roller Chain Item | Roller Chain |
| Roller Chain Standard | ANSI |
| Roller Chain Type | Curved Riveted |
| Roller Dia. | 5/8" |
| Roller Link Plate Height | 0.949" |
| Series | Curved Riveted Series |
| Size | 80CU |
| Temp. Range | +15°F to +300°F |
| Tensile Strength | 13840 lbf. |
| Weight Per Length | 1.66 lbs.-ft. |
| Width Between Roller Link Plates | 5/8" |
| Working Load Limit | 1560 lbs. |
| Height (cm) | 4.06 |
|---|---|
| Length (cm) | 34.04 |
| Width (cm) | 3.68 |
| HS Code | 7315110060 |
|---|---|
| Country Of Origin | JP |
| Weight (kg) | 8.001 |
| Style | Model | Breaking Strength | Pitch | Tensile Strength | Overall Width | Roller Dia. | Width Between Roller Link Plates | Rivet End To Center Line | Connecting End To Center Line | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 35CURB | 210 lbs. | 3/8" | 1800 lbf. | 0.539" | 13/64" | 0.188" | 0.238" | 0.301" | $883.59 | |
| A | 40CURB | 420 lbs. | 1/2" | 3480 lbf. | 0.717" | 5/16" | 0.312" | 0.333" | 0.384" | $699.93 | |
| A | 50CURB | 640 lbs. | 5/8" | - | 0.905" | 13/32" | 3/8" | 0.417" | 0.488" | $828.16 | |
| A | 60CURB | 900 lbs. | 3/4" | 7830 lbf. | 1.115" | 15/32" | 1/2" | 0.522" | 0.593" | $1,147.76 |
