Ships within 2 days via
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Business customers can apply for Net 30
No fees, No interest, Fast approval.
Payment
| Item | Motor Dual Run Capacitor |
|---|---|
| Capacitor Shape | Round |
| Capacitor Type | Motor Dual Run Capacitor |
| Capacitor Voltage | 440/370V AC |
| Case Height | 3 9/16" |
| Case Material | Aluminum |
| Connection Type | Quick Connect |
| Cover Material | Steel |
| Dia. | 2" |
| Diameter | 1 31/32" |
| Eia Tolerance Code | A |
| Eia Ul Base | A |
| For Use With | Electric Motors |
| Frequency | 50/60 Hz |
| Max. Temp. | 70°C |
| Microfarad Rating | 25 µF, 5 µF |
| Min. Temp. | -40°C |
|---|---|
| Number Of Pieces | 1 |
| Number Of Terminals | 3 |
| Overall Depth | 2" |
| Overall Height | 4" |
| Overall Width | 1 31/32" |
| Shape | Round |
| Tab Width | 1/4" |
| Temp. Range | -40°C to +70°C |
| Terminal Connection Type | Male Quick-Connect |
| Terminal Designations | Standard |
| Terminal Gender | Male |
| Terminal Tab Width | 1/4" |
| Terminal Type | Male |
| Voltage | 440/370V AC |
| Height (cm) | 9.91 |
|---|---|
| Length (cm) | 5.33 |
| Width (cm) | 5.33 |
| HS Code | 8532100000 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.2025 |
| Style | Model | Voltage | Overall Height | Microfarad Rating | Dia. | Overall Width | Overall Depth | Terminal Type | Motor Capacitor Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

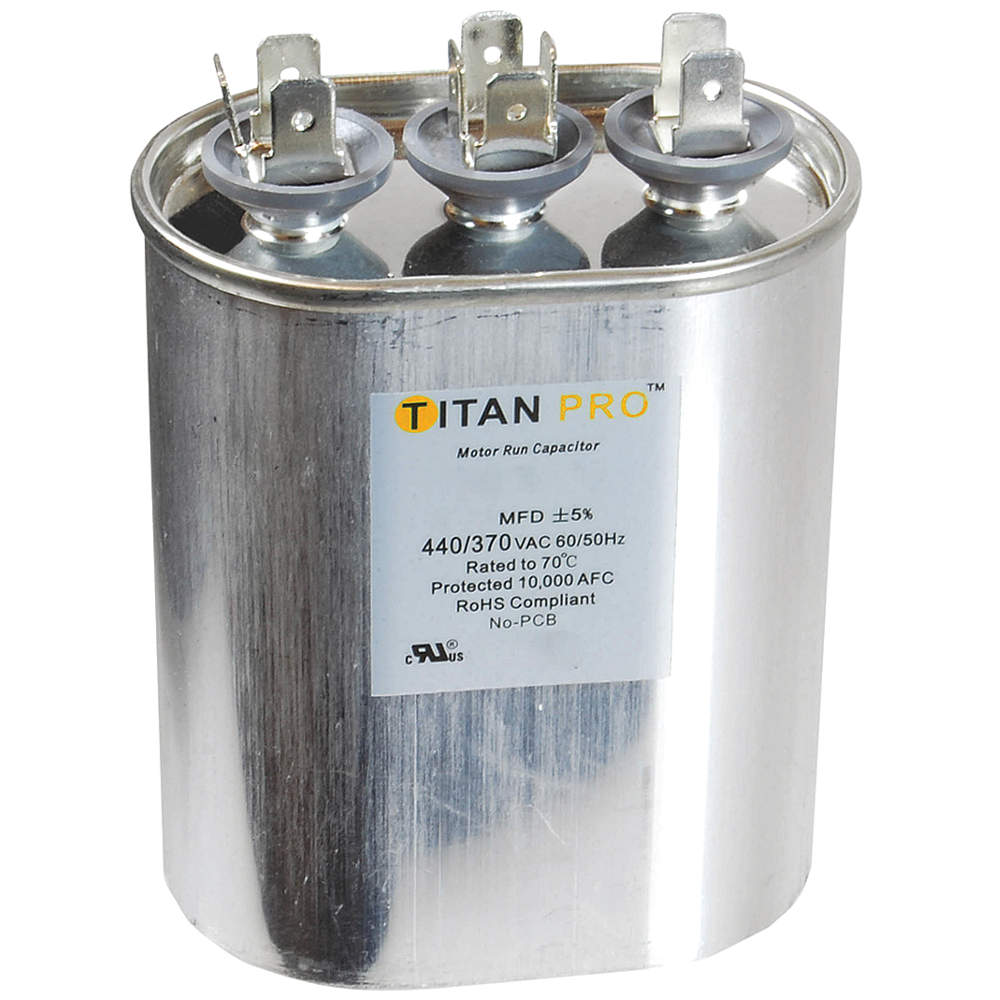

| A | TOCFD154 | 440/370V AC | 2 7/8" | 15 µF, 4 µF | 1 3/4" | 2 11/16" | 1 3/4" | Male | Motor Dual Run Capacitor | $22.90 | |
| A | TOCFD155 | 440/370V AC | 3 3/16" | 15 µF, 5 µF | 1 3/4" | 2 11/16" | 1 3/4" | Male | - | $17.53 | |
| A | TOCFD2015 | 440/370V AC | 4 3/8" | 20 µF, 15 µF | - | 2 13/16" | 1 3/4" | Male | Motor Dual Run Capacitor | $26.93 | |
| A | TOCFD2510 | 440/370V AC | 4 3/8" | 25 µF, 10 µF | 1 3/4" | 2 13/16" | 1 3/4" | Male | Motor Dual Run Capacitor | $28.56 | |
| A | TOCFD255 | 440/370V AC | 3 31/32" | 25 µF, 5 µF | 1 3/4" | 2 13/16" | 1 3/4" | Male | Motor Dual Run Capacitor | $18.16 | |
| A | TOCFD2575 | 440/370V AC | 3 31/32" | 25 µF, 7.5 µF | 1 3/4" | 2 13/16" | 1 3/4" | Male | Motor Dual Run Capacitor | $30.44 | |

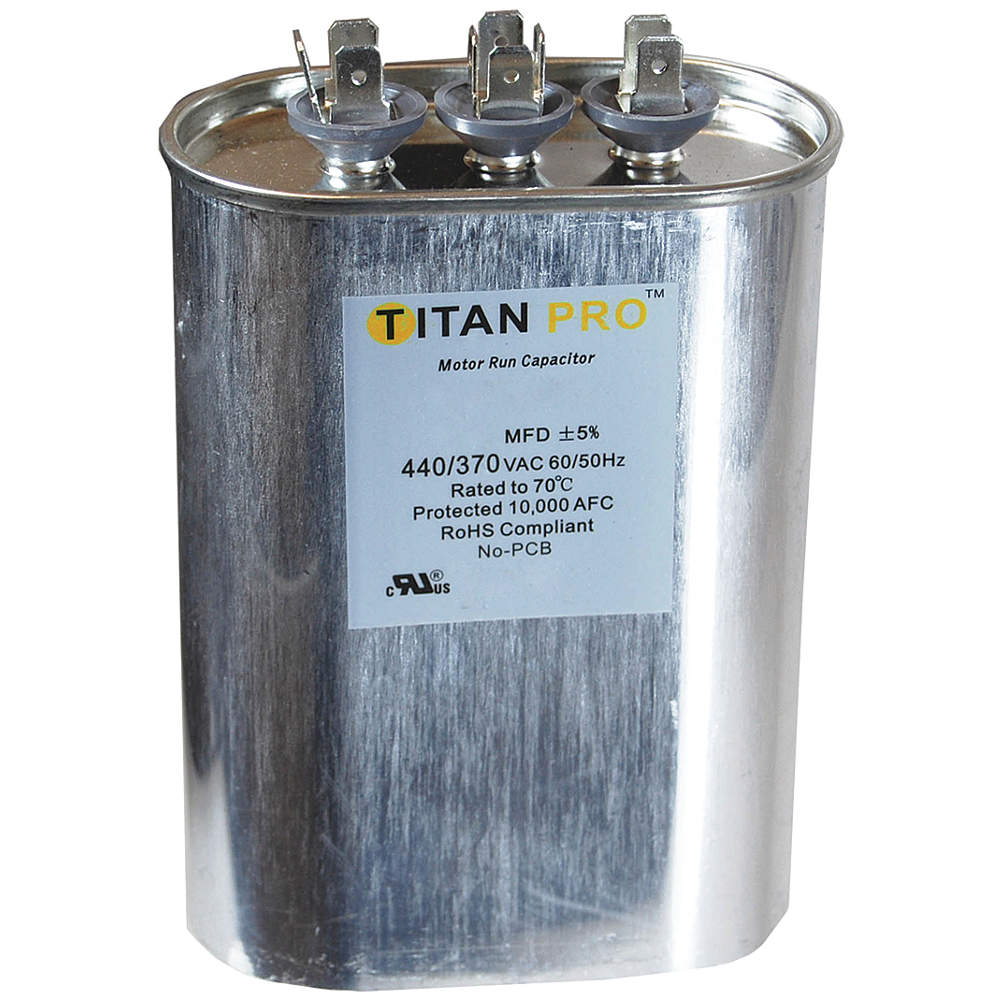

| B | TOCFD304 | 440/370V AC | 4 3/8" | 30 µF, 4 µF | 1 3/4" | 2 13/16" | 1 3/4" | Male | Motor Dual Run Capacitor | $29.26 |
