| Item | Miniature Limit Switch |
|---|---|
| Ac Contact Rating | 3A @ 240V |
| Actuator Length | 0.8" |
| Actuator Location | Top |
| Actuator Style | Roller Plunger |
| Actuator Type | Roller Lever |
| Amps | 3A |
| Arm Material | Metal |
| Body Configuration | Plug In |
| Body Depth | 0.63" |
| Body Height | 1.97" |
| Body Material | Zamak |
| Body Width | 1.18" |
| Boot Sealed Actuator | No Boot Included |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 3A @ 240V |
| Depth | 0.63" |
| Directional Movement | Linear |
| Electrical Connection | 4-pin M12 Connector |
| Height | 1.97" |
| Ip Rating | IP66, IP69 |
| Manufacturer Warranty Length | 18 Months |
| Mounting Hole Diameter | 0.17" |
| Mounting Hole Horizontal Center To Center Distance | 20 mm |
|---|---|
| Mounting Style | Surface |
| Movement | Horizontal |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 4, NEMA 6, NEMA 6P, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4, NEMA 6, NEMA 6P |
| Number Of Mounting Holes | 2 |
| Operating Force | 1.6 lbs. |
| Operating Force - Max. | 7N |
| Operating Temp. Range | -13°F to +158°F |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operating Torque - Maximum | 1.6 lbs.-in. |
| Overall Depth | 0.63" |
| Overall Height | 1.97" |
| Overall Width | 1.18" |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Roller Dia. | 0.46" |
| Roller Material | Steel |
| Roller Width | 0.14" |
| Series | XCMD Series |
| Travel Length | 0.31" |
| Width | 1.18" |
| Standards | CCC, CSA, CSA C22.2 NO.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL LISTED |
| Height (cm) | 1.7 |
|---|---|
| Length (cm) | 5.3 |
| Width (cm) | 7.1 |
| HS Code | 8536509055 |
|---|---|
| Country Of Origin | ID |
| Weight (kg) | 0.0893 |
| Style | Model | Actuator Style | Contact Form | Ip Rating | Roller Dia. | Movement | Arm Material | Travel Length | Operating Force | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | XCMD2106M12 | Wobble Stick | SPDT | IP66, IP67, IP68 | - | Any Direction | Steel | 90° | - | $195.34 | |

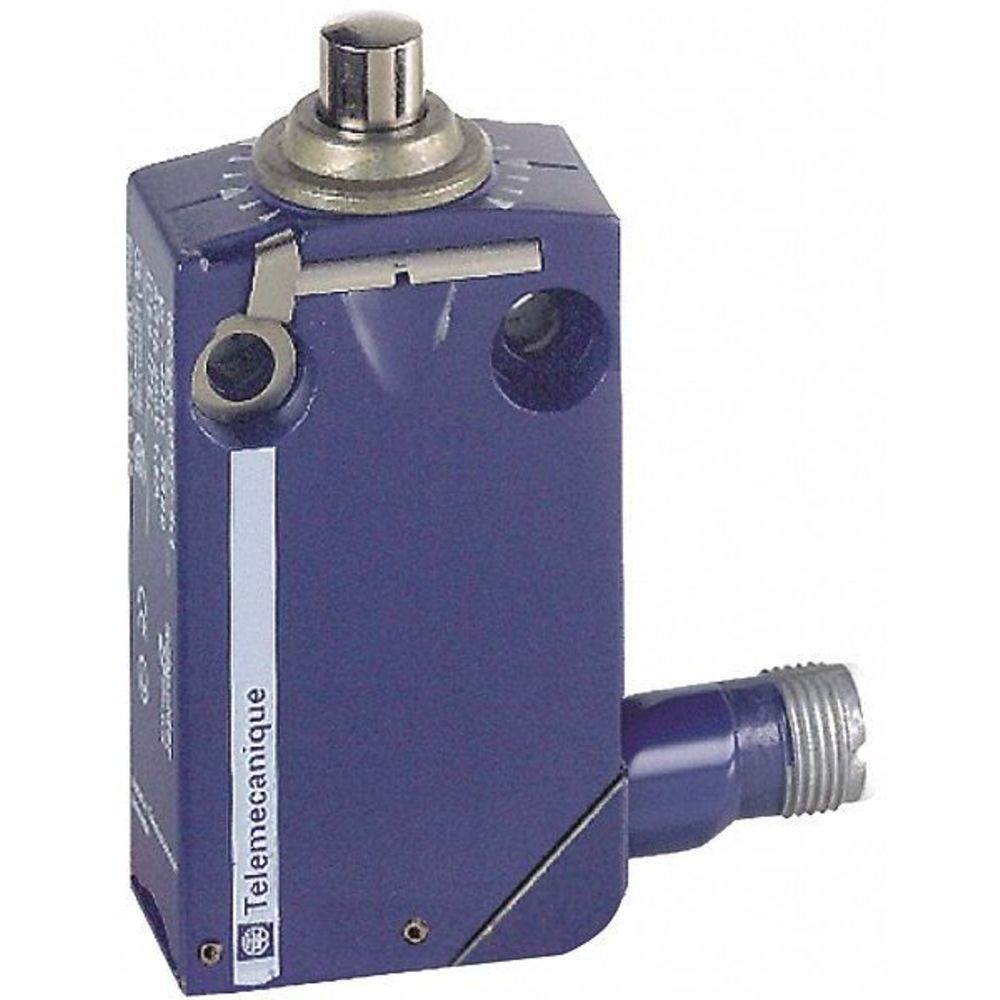

| B | XCMD2110M12 | Plunger | SPDT | IP66, IP67, IP68 | - | Vertical | Metal | 1/5" | 1.9 lbs. | - | RFQ
|

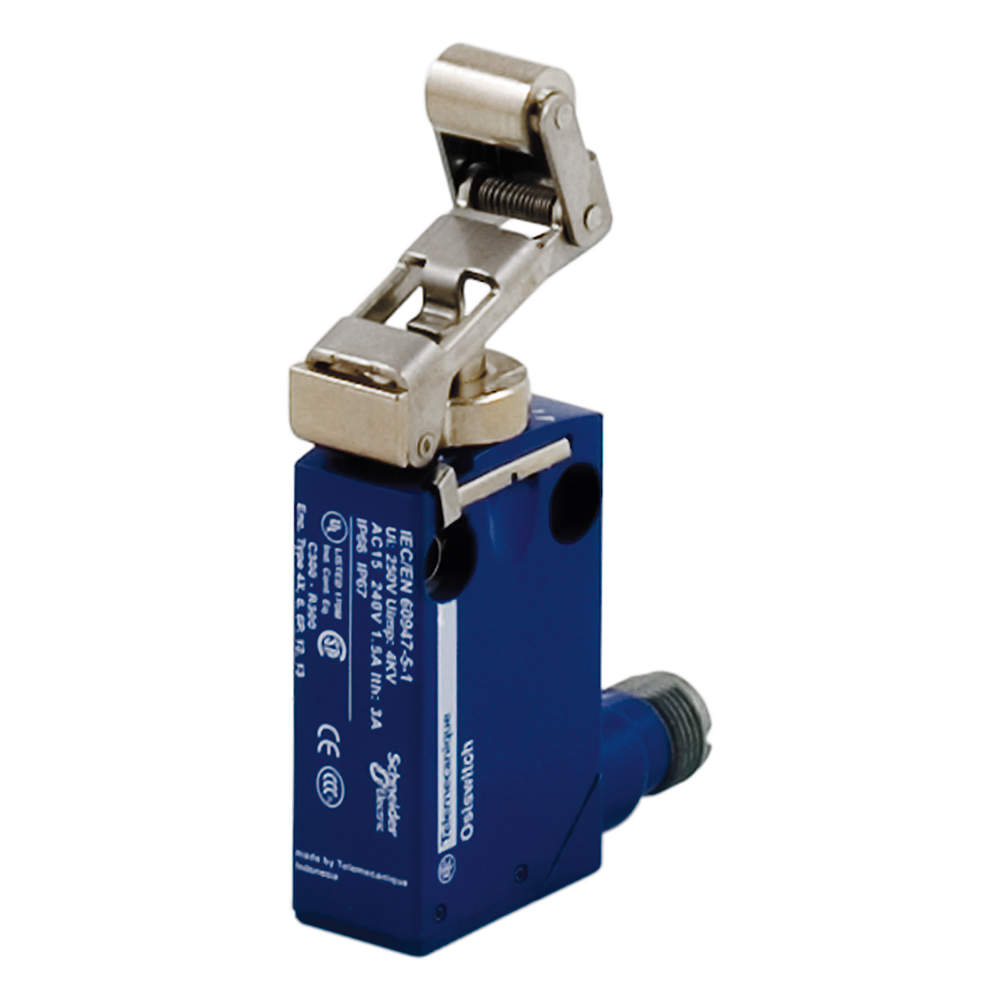

| C | XCMD2124M12 | Roller Plunger | SPDT | IP66, IP67, IP68 | 0.35" | Horizontal, One-Way | Metal | 1.18" | 0.6 lbs. | - | RFQ
|
