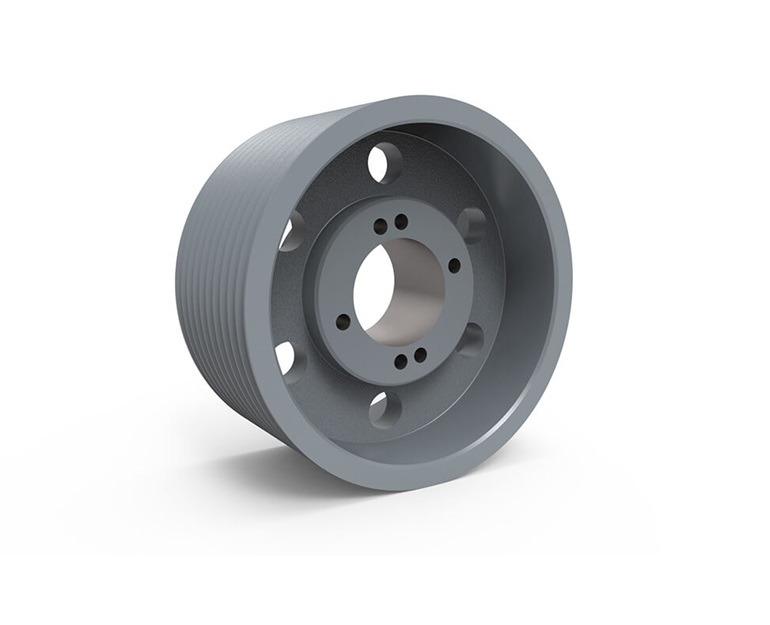

| Item | V-Belt Sheave |
|---|---|
| Belt Type | 8V |
| Bore Type | Quick Disconnect Bushing |
| Bushing | N |
| Datum Dia. | 24 4/5" |
| Dimension E | 14/25" |
| Dimension L | 8.13" |
| Dimension M | 2.94" |
| Face Width | 11.63" |
| Hub Location | 2 1/4" |
|---|---|
| Inside Dia. | 21 22/25" |
| Material | Cast Iron |
| Max. Rpm | 1010 RPM |
| No. Of Grooves | 10 |
| Outside Dia. | 24 4/5" |
| Overall Length | 11 5/8" |
| Pitch Dia. | 24 4/5" |
| Product Type | Narrow |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 62.99 |
| Width (cm) | 62.99 |
|---|---|
| Weight (kg) | 189 |
