| Item | Bolt On Circuit Breaker |
|---|---|
| Ac Voltage Rating | 120/240V AC |
| Ambient Rating | 104°F |
| Amps | 15A |
| Amps Rating | 15A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | High Intensity Discharge |
| Compatible Panelboard/load Center Series | Series QO |
| Dc Voltage | 48V DC |
| Dc Voltage Rating | 48V |
| Depth | 2.9" , 2.91" |
| Electrical Connection | Pressure Plate |
| For Use With | Square D Nqod Panelboards |
| Frame Size | 100A/QO |
| Height | 3" |
| Interrupt Rating | 10 kA @ 120/240V AC |
| Length | 3" |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Operating Temp. | 104°F |
|---|---|
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 14 AWG |
| Mounting Type | Bolt On |
| No. Of Panel Spaces | 2 |
| No. Of Poles | 2 |
| Number Of Poles | 2 |
| Phase | Single |
| Ratings | Not Rated |
| Returnability | Yes |
| Terminal Connection | Pressure Plate |
| Terminal Connection Type | Screw Clamp |
| Tightening Torque | 35.4 lbf.-in. |
| Voltage Rating | 120/240V AC |
| Width | 1 1/2" , 1.5" |
| Wire Size | 14 AWG to 8 AWG |
| Warranty | 18 Months |
| Height (cm) | 7.39 |
|---|---|
| Length (cm) | 7.62 |
| Width (cm) | 3.81 |
| HS Code | 8536200020 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.225 |
| Style | Model | Number Of Poles | Amps | Depth | Terminal Connection | Max. Air Rating | Dc Voltage | Terminal Connection Type | Min. Wire Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

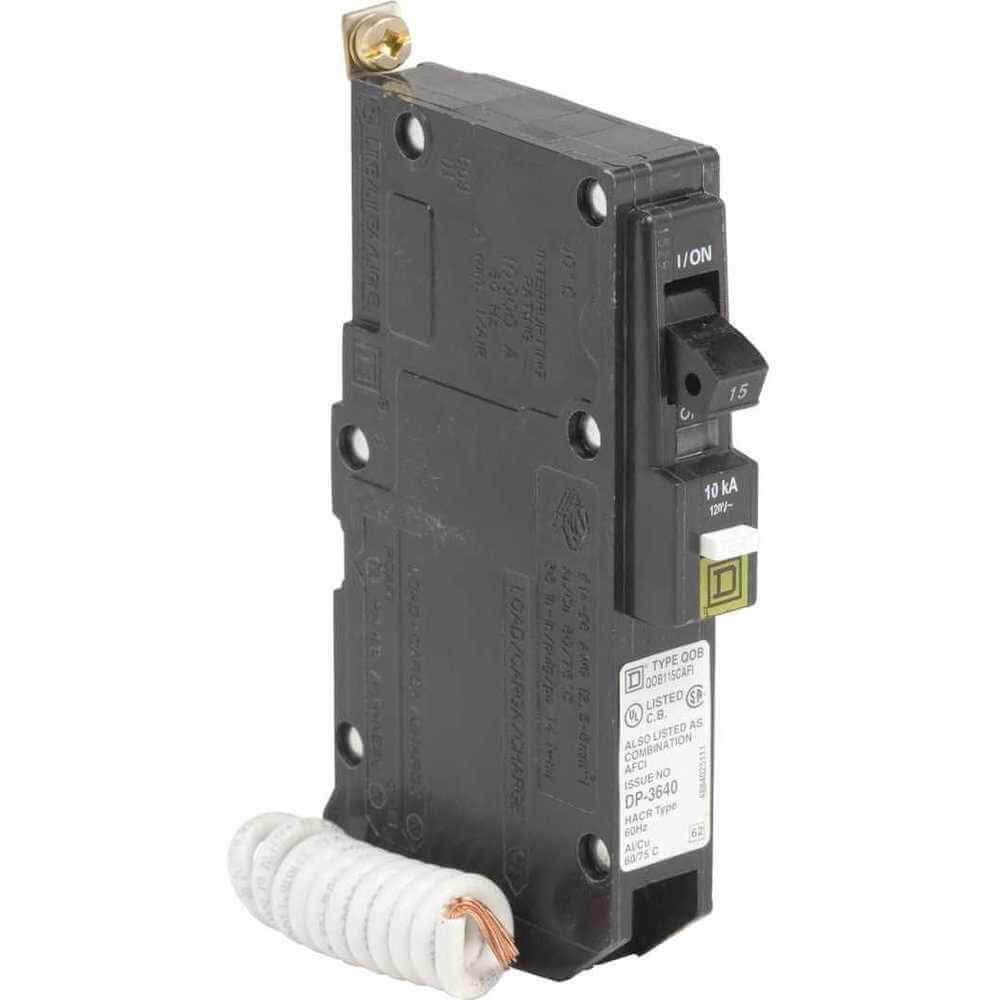

| A | QOB115CAFI | 1 | 15A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | $239.53 | |

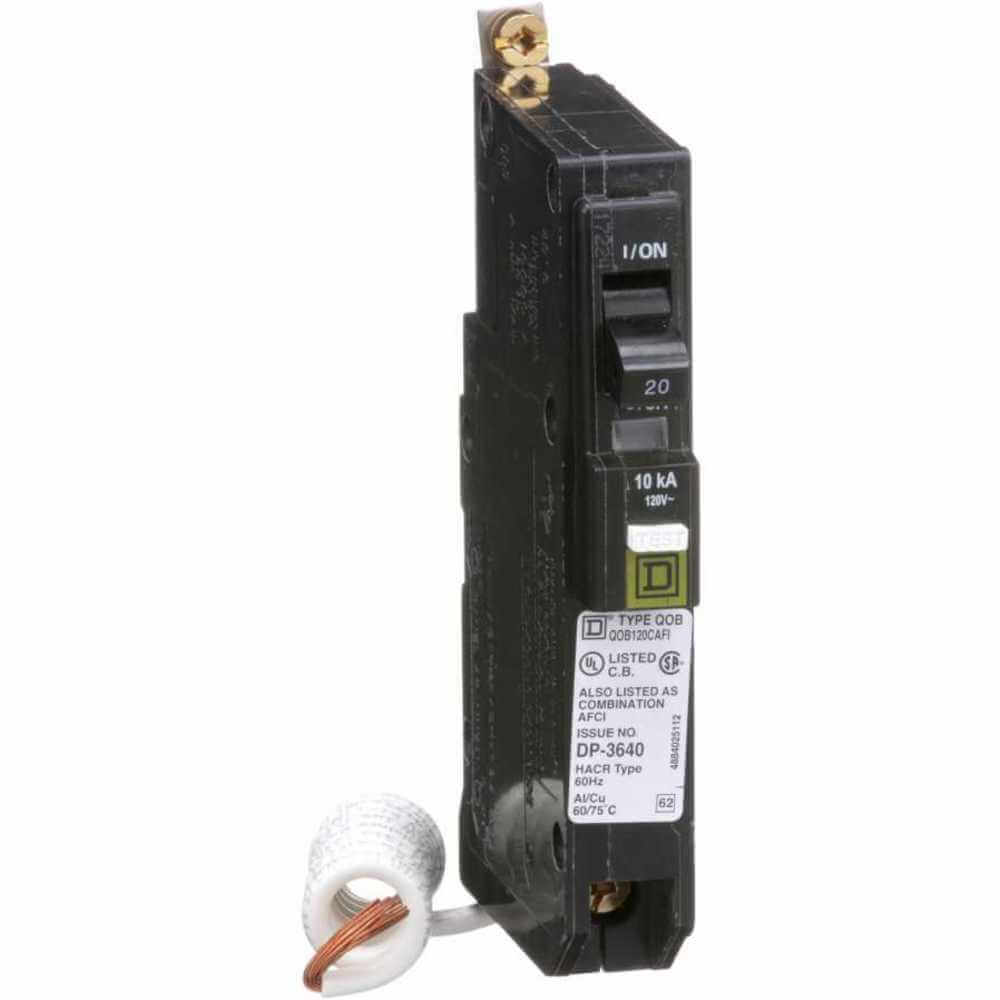

| B | QOB120CAFI | 1 | 20A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | $239.53 | |

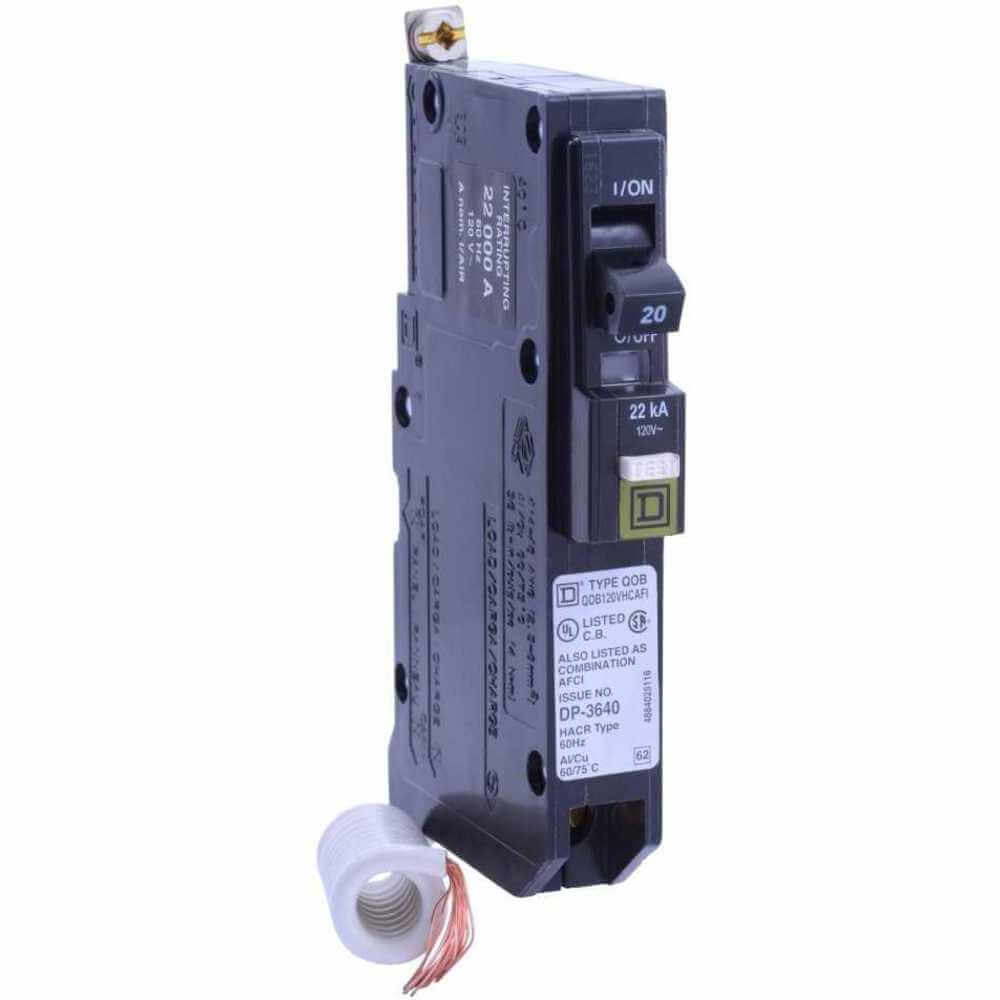

| C | QOB120VHCAFI | 1 | 20A | 2.91" | Pressure Plate | 22 kA At 120/240V AC | Not Rated | Screw Clamp | 12 AWG, 14 AWG | $462.07 | |

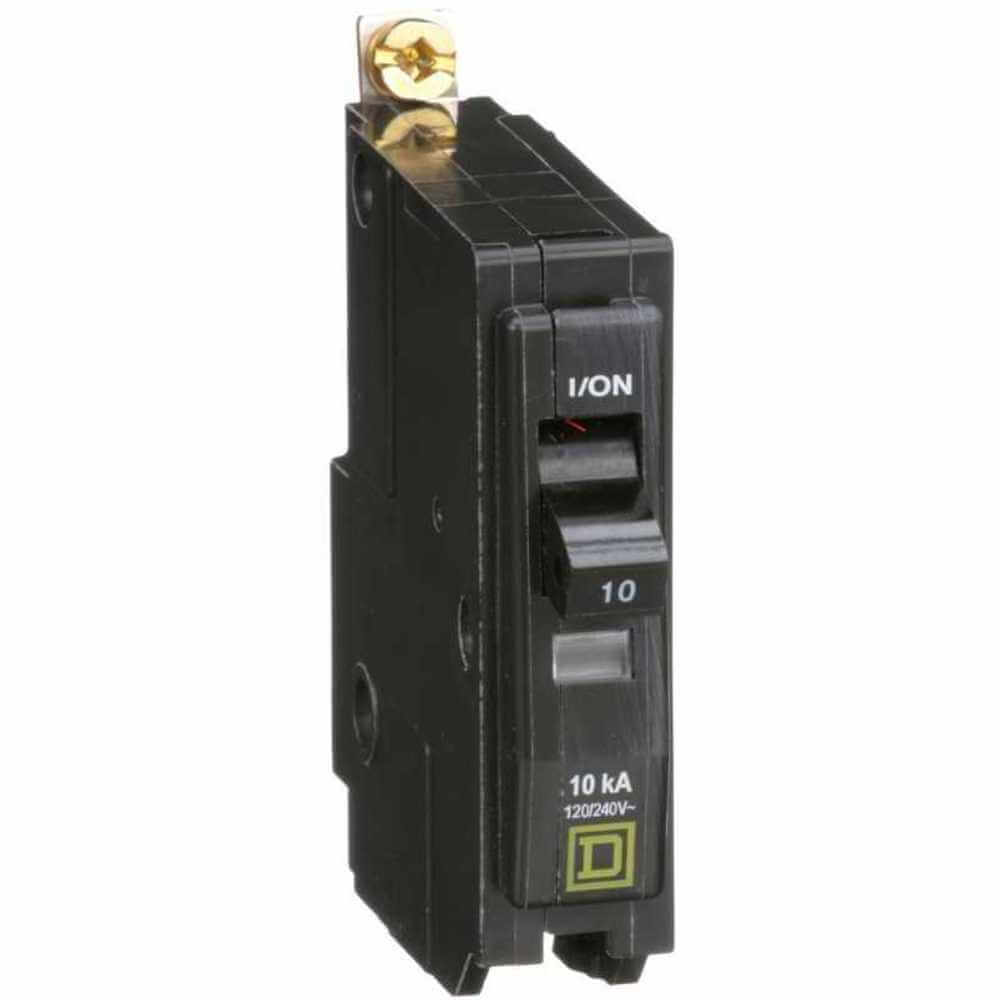

| D | QOB110 | 1 | 10A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | $25.35 | |
| E | QOB115 | 1 | 15A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | $24.62 | |
| F | QOB120 | 1 | 20A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | $26.71 | |

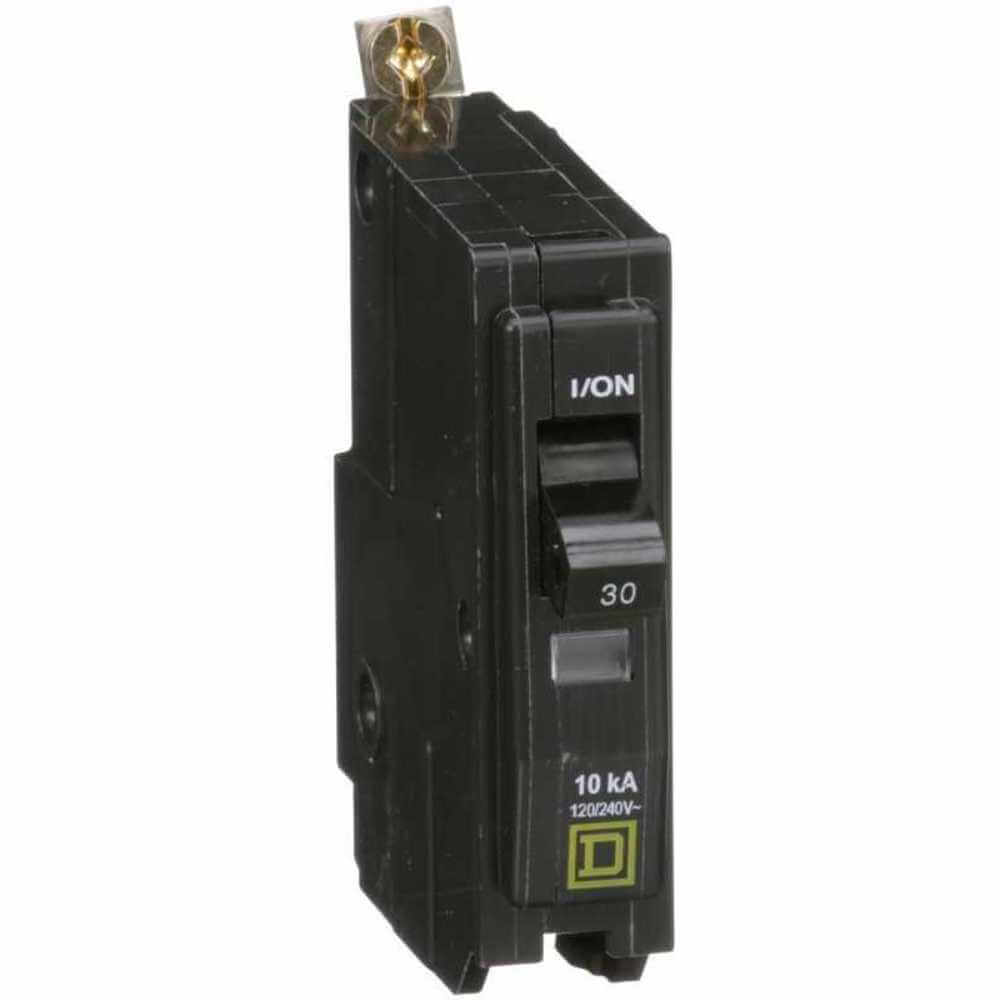

| G | QOB130 | 1 | 30A | 2.91" | Pressure Plate | 10 kA At 120/240V AC | 48V DC | Screw Clamp | 14 AWG | $27.35 |
