| Item | Plug In Circuit Breaker |
|---|---|
| Ac Voltage Rating | 120V AC |
| Air @ 120v Ac | 10 kA |
| Ambient Air Temp. For Operation | 104°F |
| Amps | 30A |
| Amps Rating | 30A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | Series HOM |
| Dc Voltage | Not Rated |
| Dc Voltage Rating | Not Rated |
| Depth | 2.98" |
| Electrical Connection | Clamp Terminal For 2 Cables |
| For Use With | Homeline Load Center |
| Frame Size | 100A/HOM |
| Height | 3.13" |
| Length | 3.13" |
| Max. Air Rating | 10 kA At 120V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 8 AWG |
|---|---|
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 14 AWG |
| Mounting Type | Plug In |
| No. Of Poles | 1 |
| No. Of Spaces | 1 |
| Number Of Poles | 1 |
| Phase | Single |
| Ratings | HACR Rated |
| Returnability | Yes |
| Short Circuit Current Rating | 10 kA |
| Terminal Connection | Screw Clamp |
| Terminal Connection Type | Screw Clamp |
| Tightening Torque | 35.4 lbf.in. @ 0.004 sq. in. to 0.009 sq. in. @ 14 AWG to 8 AWG |
| Voltage Rating | 120/240V AC |
| Width | 1" |
| Wire Size | 14 AWG , 14 AWG to 8 AWG, 14 AWG to 10 AWG |
| standard | CSA CERTIFIED, HACR, UL LISTED |
| Warranty | Lifetime |
| Height (cm) | 2.03 |
|---|---|
| Length (cm) | 7.37 |
| Width (cm) | 6.35 |
| HS Code | 8536200020 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.1575 |
| Style | Model | Number Of Poles | Amps | Ac Voltage Rating | Max. Air Rating | Depth | Dc Voltage | Terminal Connection Type | Terminal Connection | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HOM115 | 1 | 15A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | - | Screw Clamp | $12.57 | |
| B | HOM115GFI | 1 | 15A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Screw Clamp | Screw Clamp | $123.48 | |
| A | HOM120 | 1 | 20A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Screw Clamp | Screw Clamp | $12.57 | |

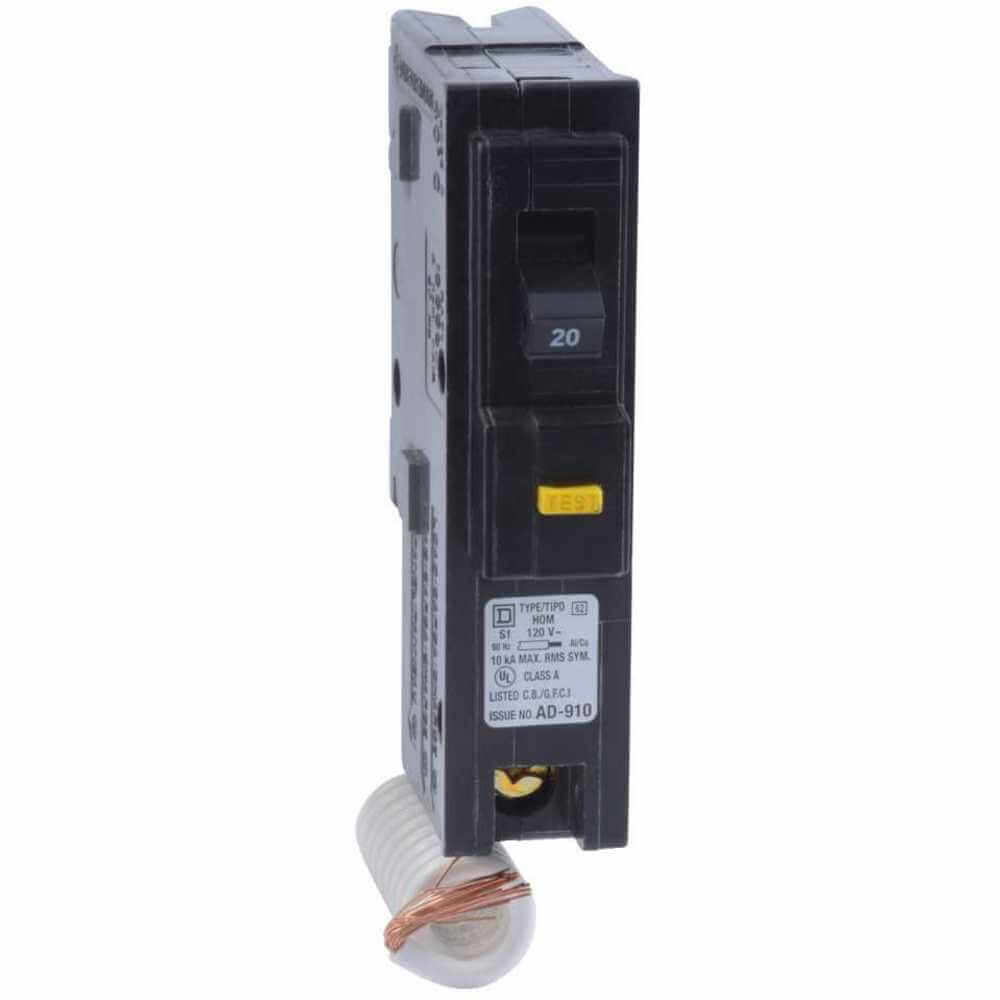

| C | HOM120GFI | 1 | 20A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Screw Clamp | Screw Clamp | $123.48 | |

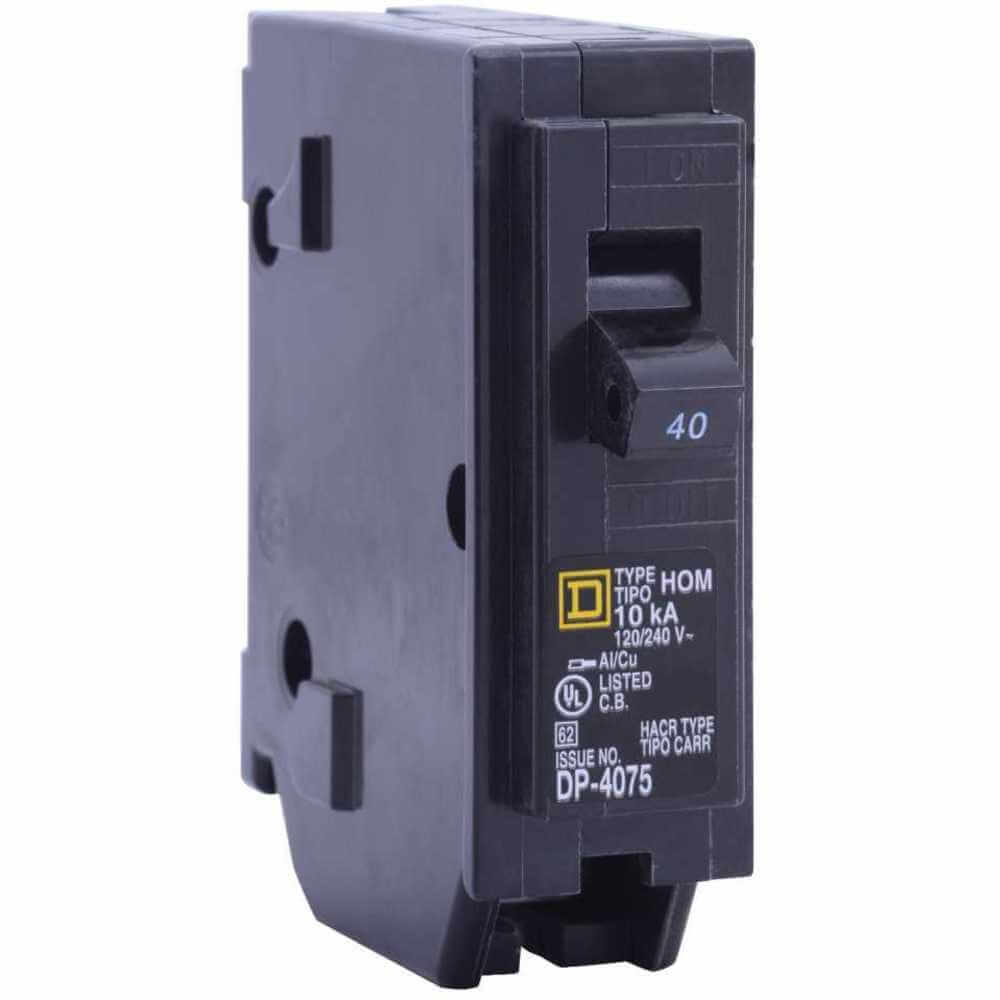

| D | HOM140 | 1 | 40A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Lug | Lug | $15.65 | |
| D | HOM150 | 1 | 50A | 120V AC | 10 kA At 120V AC | 2.98" | Not Rated | Lug | Lug | $15.65 | |

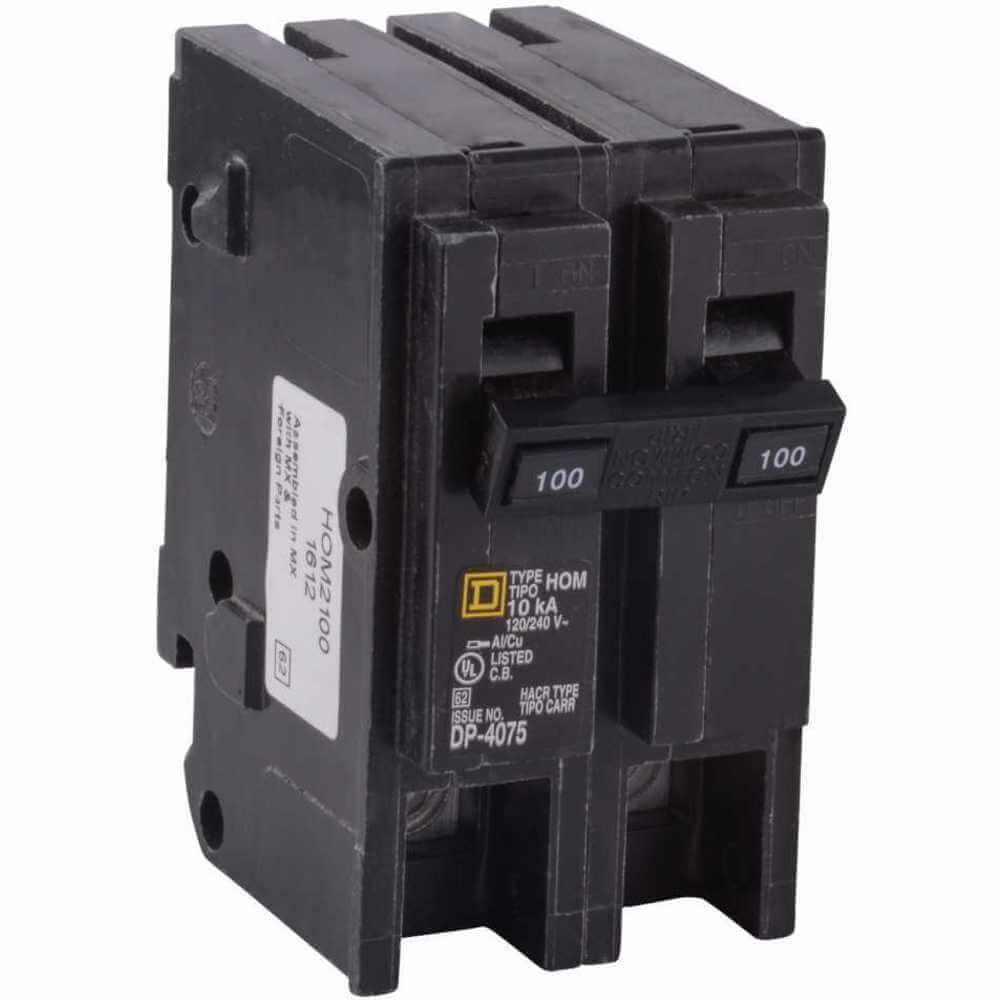

| E | HOM2100 | 2 | 100A | 120/240V AC | 10 kA At 120/240V AC | 2.98" | Not Rated | Lug | Lug | $97.65 |
