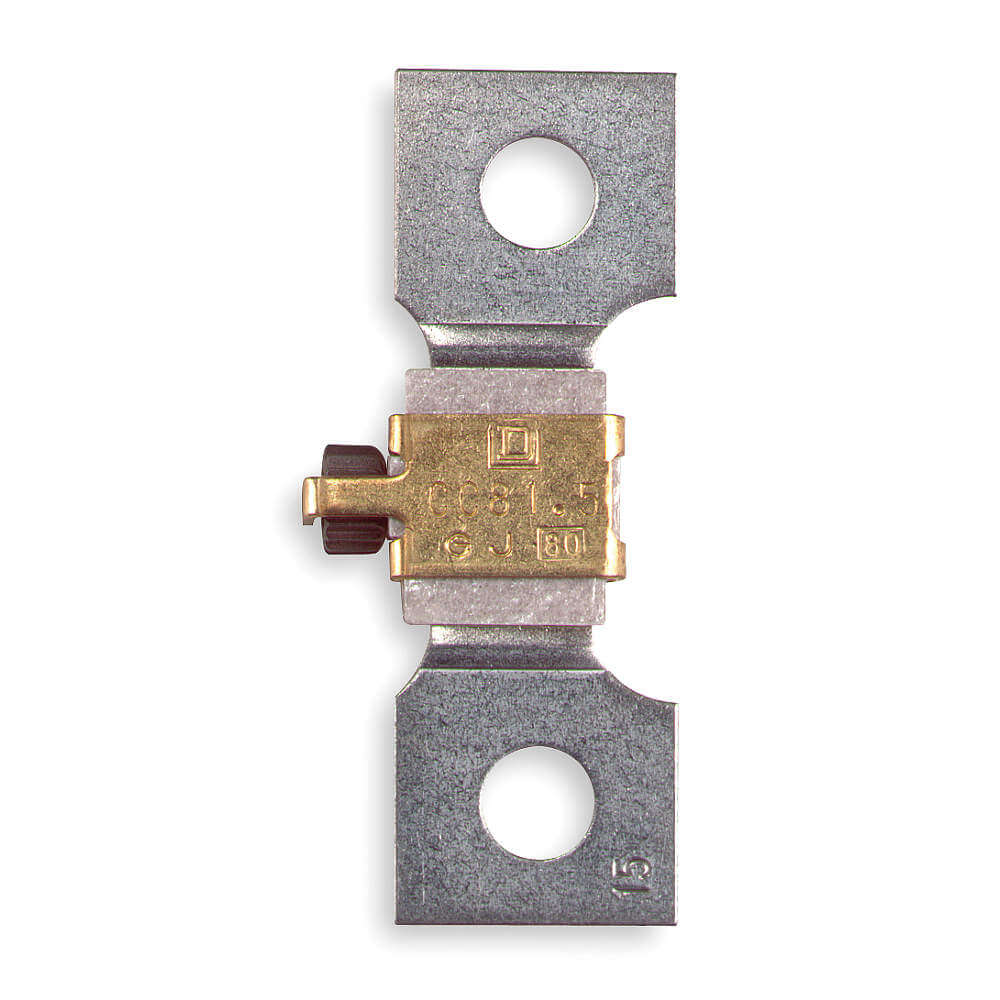

| Item | Thermal Unit |
|---|---|
| Compatible Frame Size | CC, S |
| Fl Amp @ 3-ph/ Size 3/ Open & Large Enclosure | 86A |
| Fl Amp @ 3-ph/ Size 3/ Standard Enclosure | 78.4A |
| Fl Amp @ 3-ph/ Size 4/ Open & Large Enclosure | 123A |
| Fl Amp @ 3-ph/ Size 4/ Standard Enclosure | 112A |
| Full Load Amps | 78.4-123A |
| Full Load Current | 76.6-78.4/78.4-83.3/81-82.9/83.2-86A |
| Motor Tripping Class | Class 20 |
|---|---|
| Nema Size | NEMA 3, NEMA 4 |
| Overload Protection Type | Melting Alloy |
| Returnability | Yes |
| Sensing Method | Melting Alloy |
| Thermal Overload Type | Melting Alloy |
| Trip Class | 20 |
| Warranty | 18 Months |
| Height (cm) | 2.03 |
|---|---|
| Length (cm) | 8.64 |
| Width (cm) | 5.84 |
| HS Code | 8536504000 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.0585 |
| Style | Model | Full Load Amps | Fl Amp @ 3-ph/ Size 3/ Standard Enclosure | Fl Amp @ 3-ph/ Size 3/ Open & Large Enclosure | Fl Amp @ 3-ph/ Size 4/ Standard Enclosure | Fl Amp @ 3-ph/ Size 4/ Open & Large Enclosure | Sensing Method | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | CC103.0 | 61.3-77A | 61.3A | 65.1A | 66.2A | 77A | Melting Alloy | $71.41 | |
| A | CC112.0 | 63.5-79A | 63.5A | 67.7A | 72.4A | 79A | Melting Alloy | $65.70 | |
| A | CC121.0 | 66.3-84.7A | 66.3A | 70.9A | 78.1A | 84.7A | Melting Alloy | $66.97 | |
| A | CC132.0 | 69-91.1A | 69A | 73.9A | 80.7A | 91.1A | Melting Alloy | $66.07 | |
| A | CC143.0 | 70.9-98.1A | 70.9A | 76.5A | 86.5A | 98.1A | Melting Alloy | $71.41 | |
| A | CC156.0 | 73.7-104A | 73.7A | 80.2A | 93.9A | 104A | Melting Alloy | $71.41 | |
| A | CC167.0 | 76.5-113A | 76.5A | 83.1A | 100A | 113A | Melting Alloy | $71.41 |
