| Item | Magnetic Motor Starter |
|---|---|
| Action Type | Nonreversing |
| Amps Rating | 27A |
| Auxiliary Contacts | Without |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
| Coil Frequency | 60 Hz |
| Coil Voltage | 208V , 208V AC |
| Control Circuit Type | Common |
| Depth | 5 14/25" , 5.56" |
| Enclosure Type | NEMA 1 |
| Frequency | 60 Hz |
| Height | 10" |
| Horsepower @ Three Phase - 600v Ac | 10 hp |
| Hp @ 3 Phase - 208v | 7 1/2 hp |
| Hp @ 3 Phase - 230v | 7 1/2 hp |
| Hp @ 3 Phase - 240v | 7 1/2 hp |
| Hp @ 3 Phase - 460v | 10 hp |
| Hp @ 3 Phase - 480v | 10 hp |
| Hp @ 3 Phase - 575v | 10 hp |
| Hp Rating | 7 1/2 hp @ 200V AC, 7 1/2 hp @ 230V AC, 10 hp @ 460V AC, 10 hp @ 575V AC |
| Includes Auxiliary Contacts | No |
| Includes Pilot Light | No |
| Max Current (ac) | 27A |
| Maximum Voltage Rating | 600V AC |
| Nema Enclosure Rating | 1 |
|---|---|
| Nema Size | 1 |
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 208V AC |
| Number Of Poles | 3 |
| Operator | Not Available |
| Overall Depth | 5.56" |
| Overall Height | 10" |
| Overall Width | 6" |
| Overload Protection Type | Thermal |
| Overload Type | Melting Alloy 3 |
| Phase | Three |
| Pilot Light | Without Pilot Light |
| Returnability | Yes |
| Reversing Capability | Non-reversing |
| Sccr | Circuit Breaker 5 kA At 600V AC, Fuse 5 kA At 600V AC |
| Standards | Csa, Ul Listed |
| Starter Style | NEMA |
| Starter Type | NEMA , Non Reversing |
| Terminal Type | Screw Clamp Terminals |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Width | 6" |
| Wire Termination Type | Screw Clamp |
| Warranty | 18 Months |
| Height (cm) | 15.01 |
|---|---|
| Length (cm) | 29.01 |
| Width (cm) | 16.31 |
| HS Code | 8536504000 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 3.3525 |
| Style | Model | Enclosure Type | Number Of Poles | Nema Size | Amps Ac | Height | Coil Voltage | Depth | Action Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

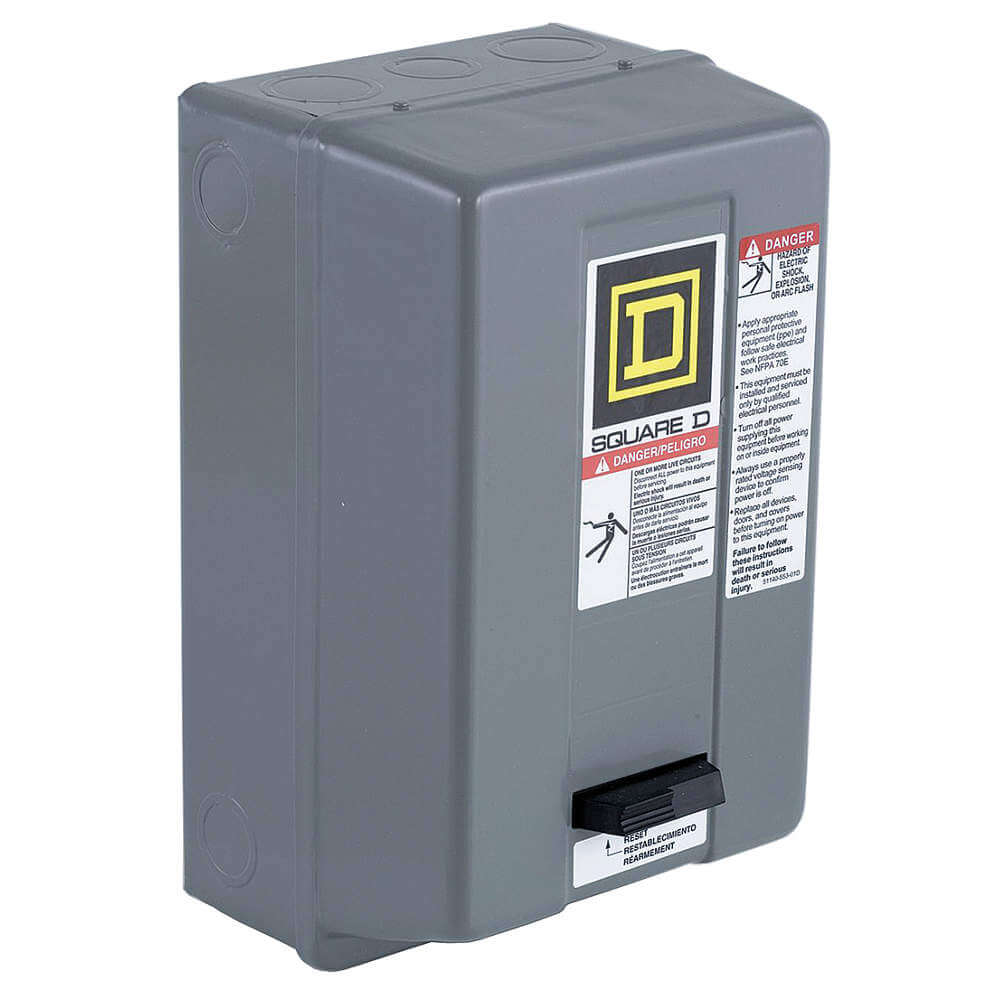

| A | 8536SBG1V08E | NEMA 1 | 2 | - | 18A | 10" | 208V AC | 5 14/25" | Nonreversing | $694.12 | |
| B | 8536SAG12V08 | NEMA 1 | 3 | 00 | 9A | 10" | 208V AC | 5 14/25" | Nonreversing | $673.55 | |

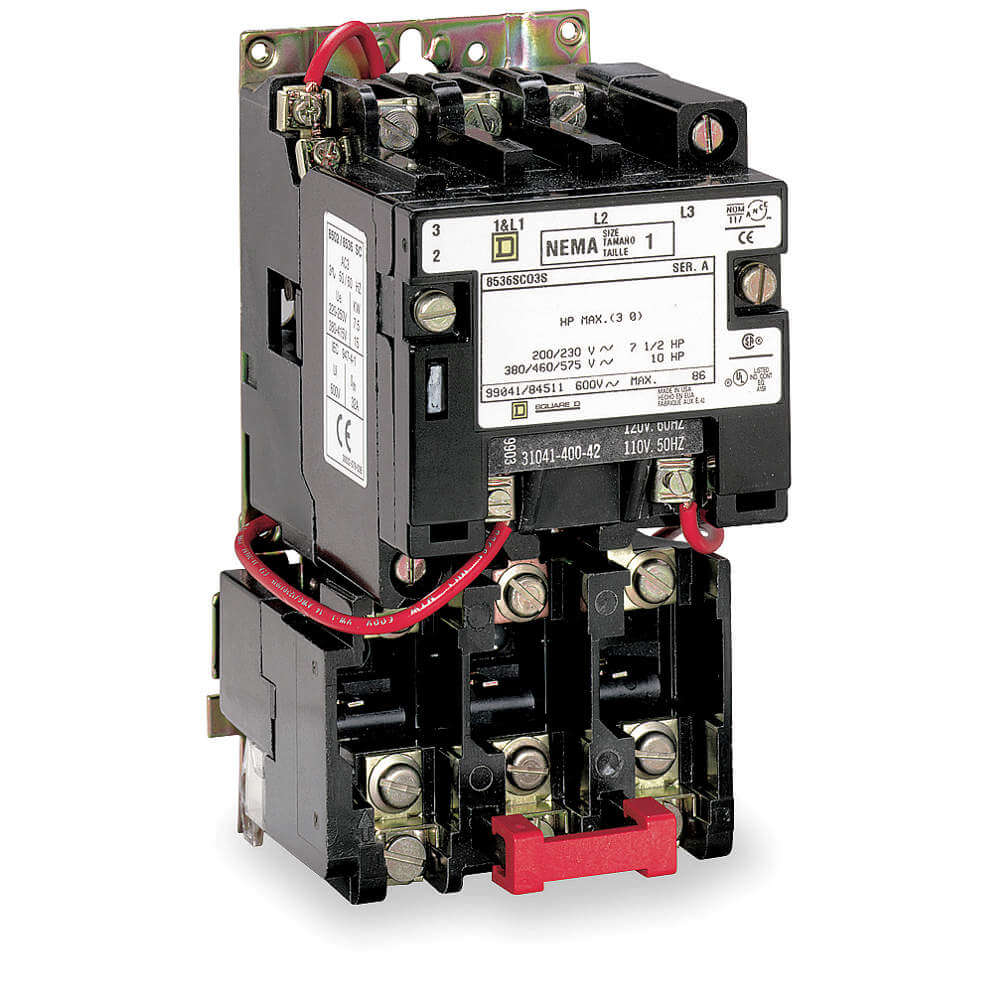

| C | 8536SAO12V08 | Open | 3 | 00 | 9A | 6.77" | 208V AC | 4.22" | Nonreversing | $660.51 | |
| B | 8536SBG2V08 | NEMA 1 | 3 | - | 18A | 10" | 208V AC | 5 14/25" | Nonreversing | $780.09 | |
| C | 8536SBO2V08 | Open | 3 | - | - | 6.77" | 208V AC | 4.22" | Nonreversing | $876.98 | |

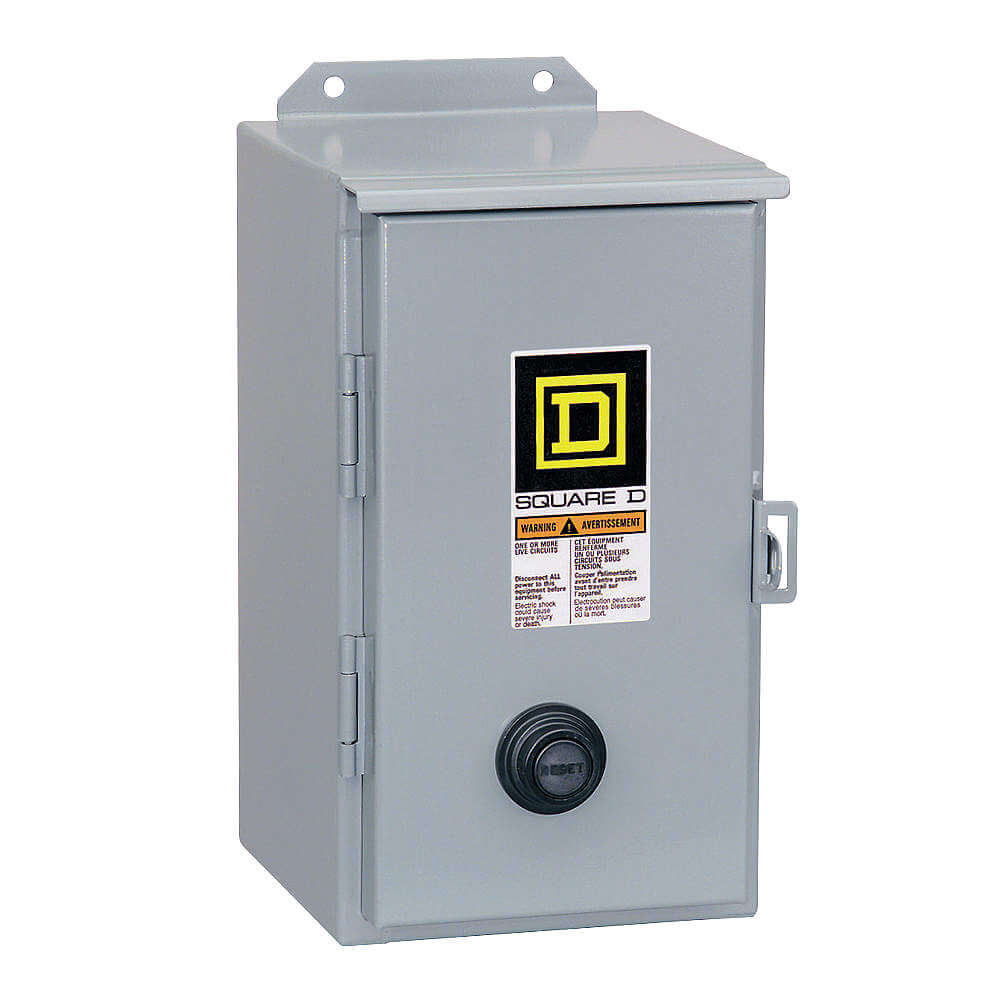

| D | 8536SCA3V08 | NEMA 12 | 3 | 1 | - | 12 3/4" | 208V AC | 8.53" | Nonreversing | $1,496.99 | |
| C | 8536SCO3V08 | Open | 3 | 1 | - | 6.77" | 208V AC | 4.22" | Nonreversing | $986.48 |
