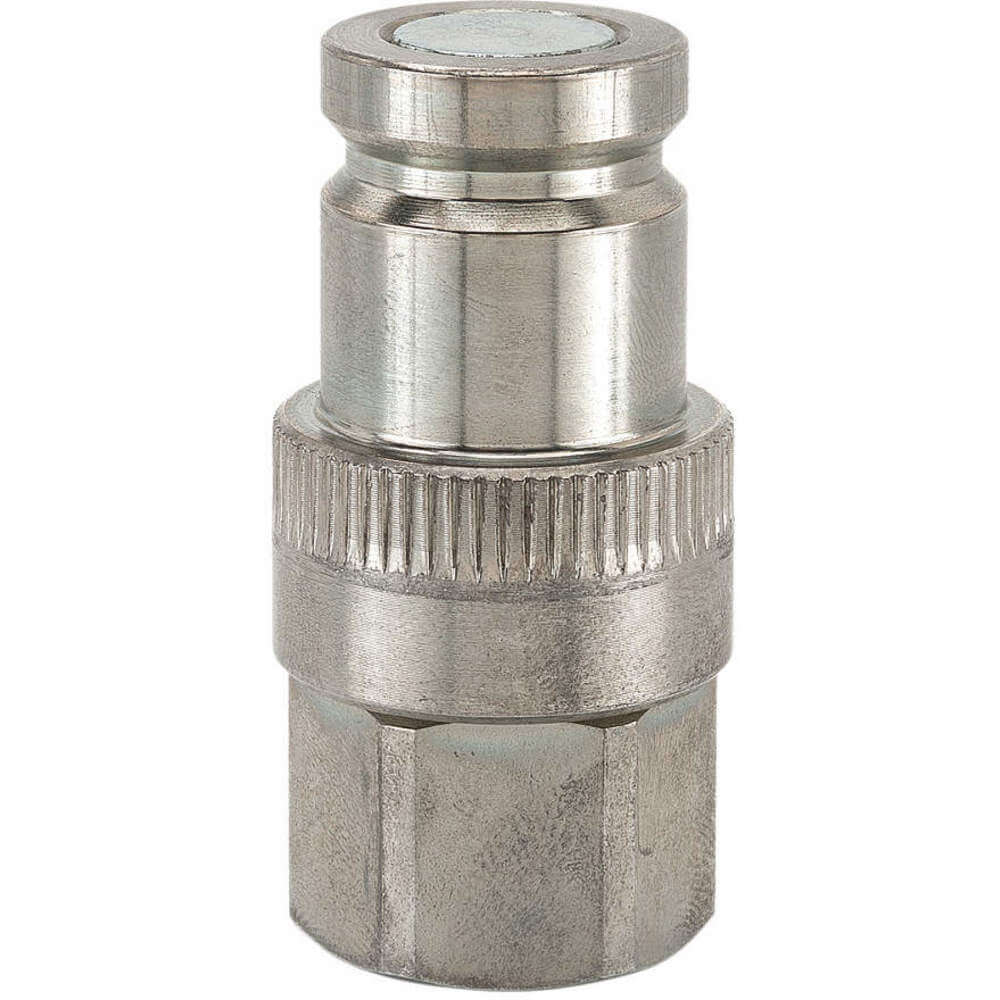

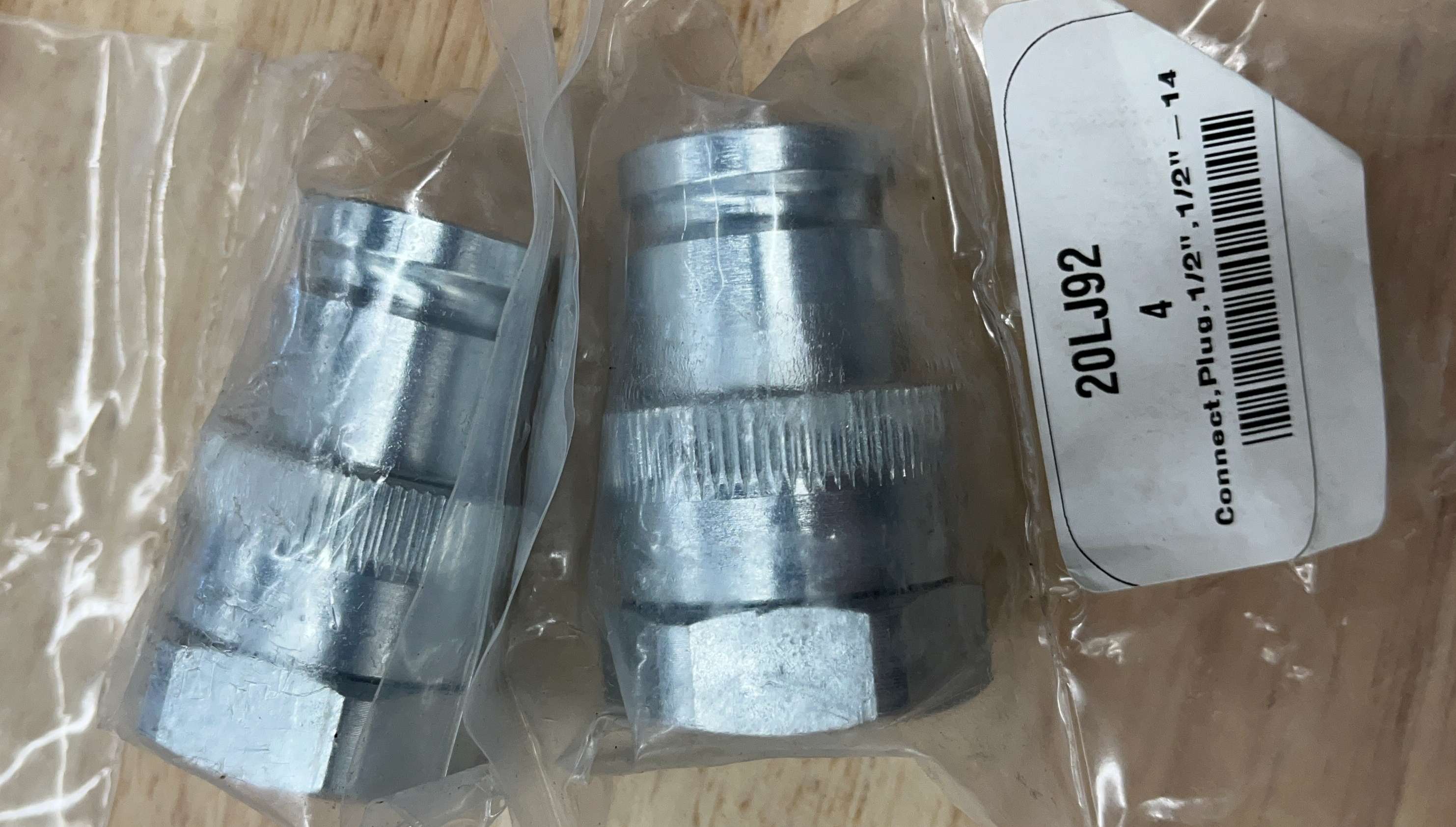

| Item | Hydraulic Coupler Nipple |
|---|---|
| Body Material | Steel |
| Body Size | 1/2" |
| Connection Type | NPTF |
| Coupling Component | Plug |
| Coupling Locking Type | Push-To-Connect |
| Coupling Size | 1/2" |
| Finish | Zinc Plated |
| Finish/coating | Zinc Plated |
| Fitting Type | FNPTF |
| Flow Rate | 20 GPM |
| Gender | Female |
| Hose Fitting Gender | Female |
| Includes Bearing | No |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Length | 2 3/8" |
| Locking Mechanism | Ball |
|---|---|
| Locking Type | Ball |
| Max. Flow Rate | 75.71 LPM |
| Max. Outside Dia. | 1 21/32" |
| Max. Pressure | 10000 psi |
| Max. Working Pressure @ 70 F | 10000 psi |
| Operating Temp. Range | -40°F to +200°F |
| Overall Length | 2 3/8" |
| Parker Interchange | 71-3N8-8F |
| Seal Material | Nitrile |
| Series | 71 Series |
| Shut Off | Yes |
| Sleeve Material | Steel |
| Thread Size | 1/2"-14 |
| Valve Design | Flush Face |
| Valve Type | Non Spill |
| Height (cm) | 8.89 |
|---|---|
| Length (cm) | 13.97 |
| Width (cm) | 10.8 |
| HS Code | 8481803090 |
|---|---|
| Weight (kg) | 0.279 |
| Style | Model | Body Material | Coupling Size | Connection Type | Operating Temp. Range | Sleeve Material | Finish | Max. Pressure | Body Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | SH71-3N16-16F | Stainless Steel | 1" | NPSF | -40°F to +200°F | HP Stainless Steel | Plain | - | - | $3,379.47 | |
| A | SH71-3N16-16FV | Stainless Steel | 1" | NPSF | -20°F to +375°F | HP Stainless Steel | Plain | 7500 psi | - | $3,260.89 | |
| A | SH71-3N4-4F | Stainless Steel | 1/4" | NPTF | -40°F to +200°F | HP Stainless Steel | Plain | 10000 psi | 1/4" | $1,054.79 | |
| A | SH71-3N4-4FV | Stainless Steel | 1/4" | NPTF | -20°F to +375°F | HP Stainless Steel | Plain | 10000 psi | - | $1,161.01 | |
| A | SH71-3N6-6EF | Stainless Steel | 3/8" | UNF | -40°F to +200°F | HP Stainless Steel | Plain | 10000 psi | 3/8" | $1,209.67 | |
| A | SH71-3N6-6F | Stainless Steel | 3/8" | NPSF | -40°F to +200°F | HP Stainless Steel | Plain | 10000 psi | 3/8" | $1,124.40 | |
| A | SH71-3N6-6FV | Stainless Steel | 3/8" | NPSF | -20°F to +375°F | HP Stainless Steel | Plain | 10000 psi | - | $1,104.71 |
