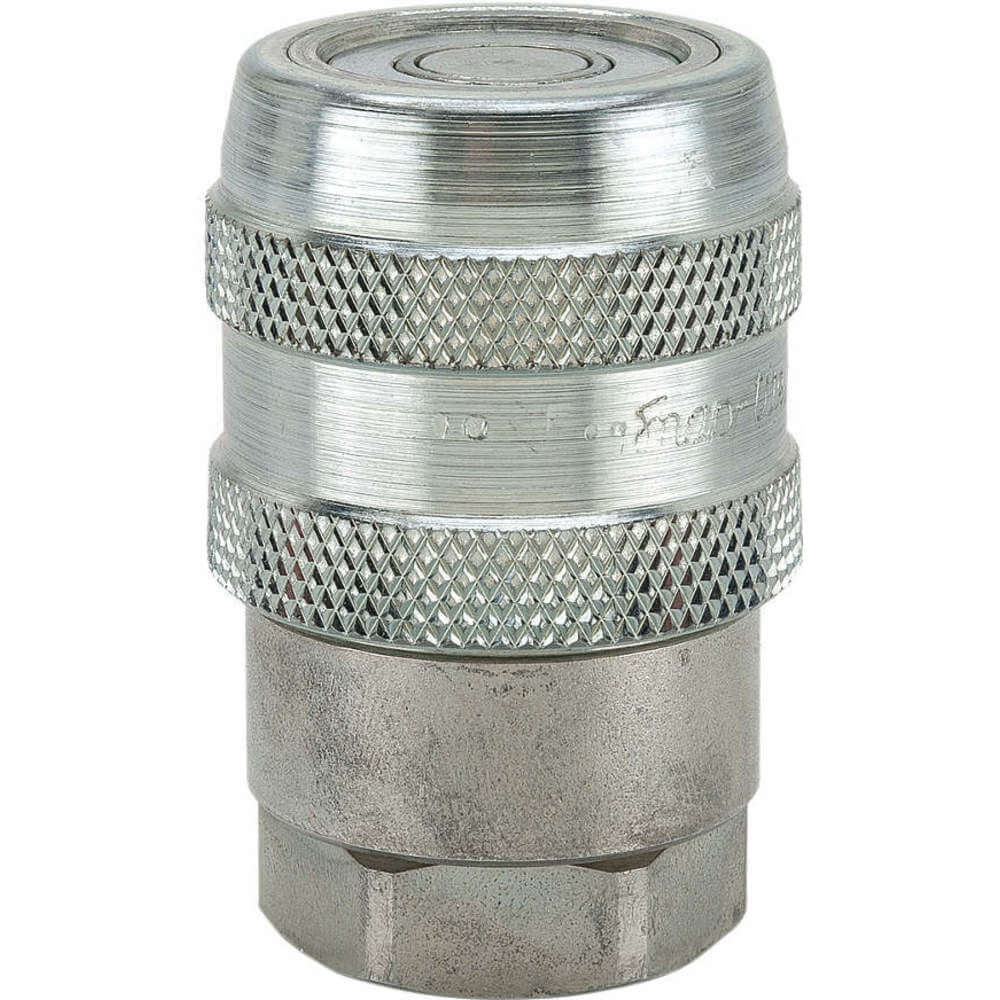

| Item | Hydraulic Coupler Body |
|---|---|
| Bearing Material | Stainless Steel |
| Body Material | Steel |
| Connection Type | NPTF |
| Coupling Component | Socket |
| Coupling Locking Type | Push-To-Connect |
| Coupling Size | 1/4" |
| Finish | Zinc Plated |
| Finish/coating | Zinc Plated |
| Fitting Type | FNPTF |
| Flow Rate | 5 GPM |
| Gender | Female |
| Grade | Grade 440 |
| Hose Fitting Gender | Female |
| Includes Bearing | Yes |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Locking Mechanism | Ball |
|---|---|
| Locking Type | Push To Connect |
| Max. Flow Rate | 18.93 LPM |
| Max. Outside Dia. | 1 3/16" |
| Max. Pressure | 10000 psi |
| Max. Working Pressure @ 70 F | 10000 psi |
| Operating Temp. Range | -20°F to +375°F |
| Overall Length | 1 15/16" |
| Parker Interchange | 71-3C4-4FV |
| Seal Material | Fluorocarbon |
| Series | 71 Series |
| Shut Off | Yes |
| Sleeve Material | Steel |
| Thread Size | 1/4"-18 |
| Valve Design | Flush Face |
| Valve Type | Non Spill |
| Height (cm) | 3.34 |
|---|---|
| Length (cm) | 11.11 |
| Width (cm) | 10.8 |
| HS Code | 8481803090 |
|---|---|
| Weight (kg) | 0.225 |
| Style | Model | Connection Type | Coupling Size | Body Material | Operating Temp. Range | Sleeve Material | Bearing Material | Finish | Max. Pressure | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

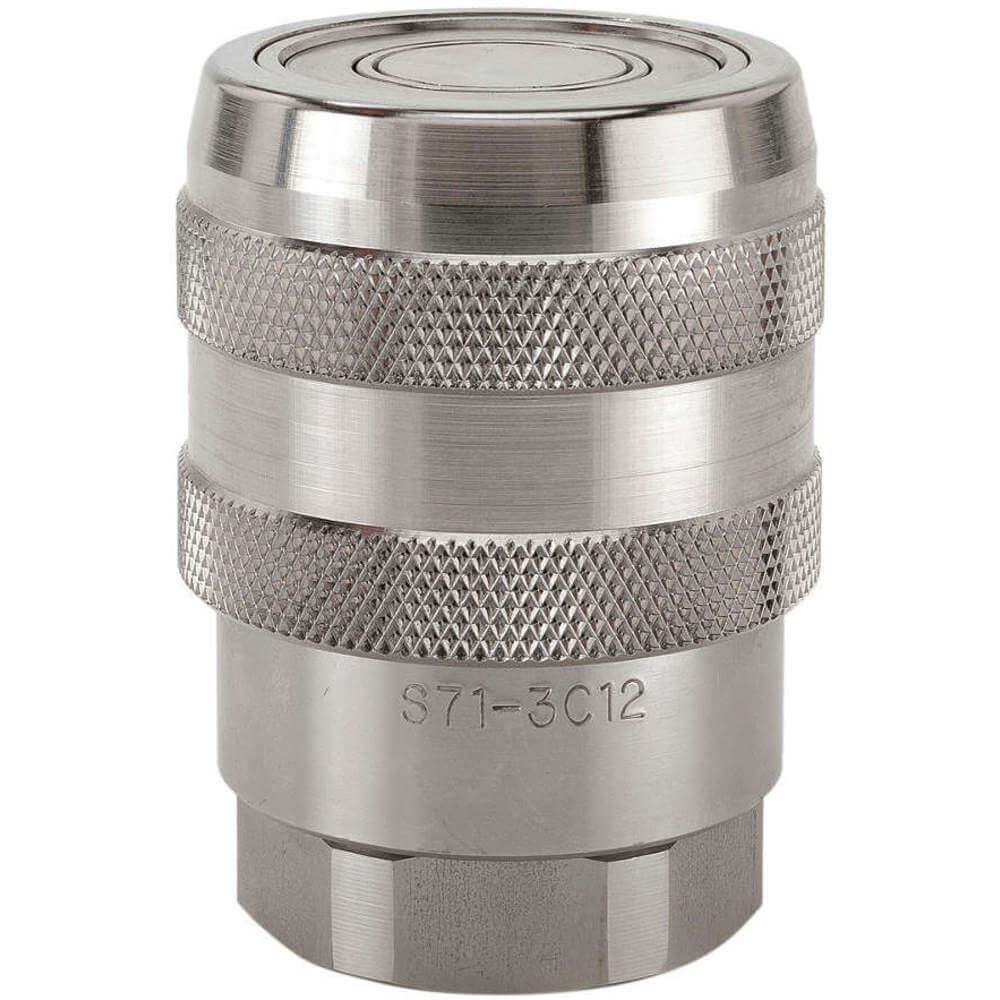

| A | S71-3C12-12EF | UNF | 3/4" | Stainless Steel | -40°F to +200°F | Stainless Steel | Stainless Steel | Plain | 5000 psi | $1,444.88 | |
| A | S71-3C12-12F | NPSF | 3/4" | Stainless Steel | -40°F to +200°F | Stainless Steel | Stainless Steel | Plain | 5000 psi | $1,307.17 | |
| A | S71-3C12-12FV | NPSF | 3/4" | Stainless Steel | -20°F to +375°F | Stainless Steel | Stainless Steel | Plain | 5000 psi | $1,449.77 | |
| A | SH71-3C12-12F | NPSF | 3/4" | Stainless Steel | -40°F to +200°F | HP Stainless Steel | Ceramic | Plain | 7500 psi | $4,975.28 | |
| A | SH71-3C16-16F | FNPS | 1" | Stainless Steel | -40°F to +200°F | HP Stainless Steel | Ceramic | Plain | 7500 psi | $7,785.68 | |
| A | SH71-3C4-4F | NPTF | 1/4" | Stainless Steel | -40°F to +200°F | HP Stainless Steel | Ceramic | Plain | 10000 psi | $1,982.44 | |
| A | SH71-3C4-4FV | NPTF | 1/4" | Stainless Steel | -20°F to +375°F | HP Stainless Steel | Ceramic | Plain | 10000 psi | $1,947.00 |
