| Item | Electric Actuator |
|---|---|
| Ambient Temp. Range | -25°F to +130°F |
| Application | Damper |
| Control Signal | Proportional |
| Depth | 2.688" |
| Electrical Connection Type | Hardwired |
| For Shaft Diameter | 5/8" |
| For Shaft Shape | Round |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Height | 2 3/8" |
| Housing Material | Plastic |
| Includes | Mounting Bracket |
| Input Voltage | 24V AC |
| Ip Rating | IP54 |
| Maximum Operating Temperature | 130°F |
| Minimum Operating Temperature | -22°F |
| Mounting Type | Direct Mount |
| Nema Rating | 2 |
| Number Of Auxiliary Switches | 0 |
| Output Signal | 0-10V DC |
| Overall Depth | 2 3/8" |
| Overall Height | 5 1/2" |
| Overall Width | 2 3/4" |
|---|---|
| Plenum Rating | Plenum Rated |
| Power Consumption | 3.3 VA |
| Product Type | Actuator |
| Rated Torque | 88 lbs.-in. |
| Replaces Honeywell Motors | MN7510A2001 |
| Return Action | Non-Spring Return |
| Shaft Rotation | CW/CCW |
| Shaft Type | Self Centering |
| Signal Type | Proportional |
| Spring Return | No |
| Stroke Deg. | 90° |
| Stroke Degree | 95° |
| System Application | Dampers |
| Time To Close | 150 sec. |
| Time To Open | 150 sec. |
| Timing | 125 sec. |
| Torque | 88 lbs.-in. |
| Type | Non Spring Return |
| Voltage | 24A AC |
| Width | 5.437" |
| standard | C-UL LISTED (C22.2 NO. 24-93) LISTED, CE CERTIFIED, UL 1995, UL LISTED 873 |
| Height (cm) | 8.13 |
|---|---|
| Length (cm) | 26.16 |
| Width (cm) | 16.26 |
| HS Code | 8483405010 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.0045 |
| Style | Model | Timing | Height | Depth | Torque | Signal Type | Replaces Honeywell Motors | Power Consumption | Ambient Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

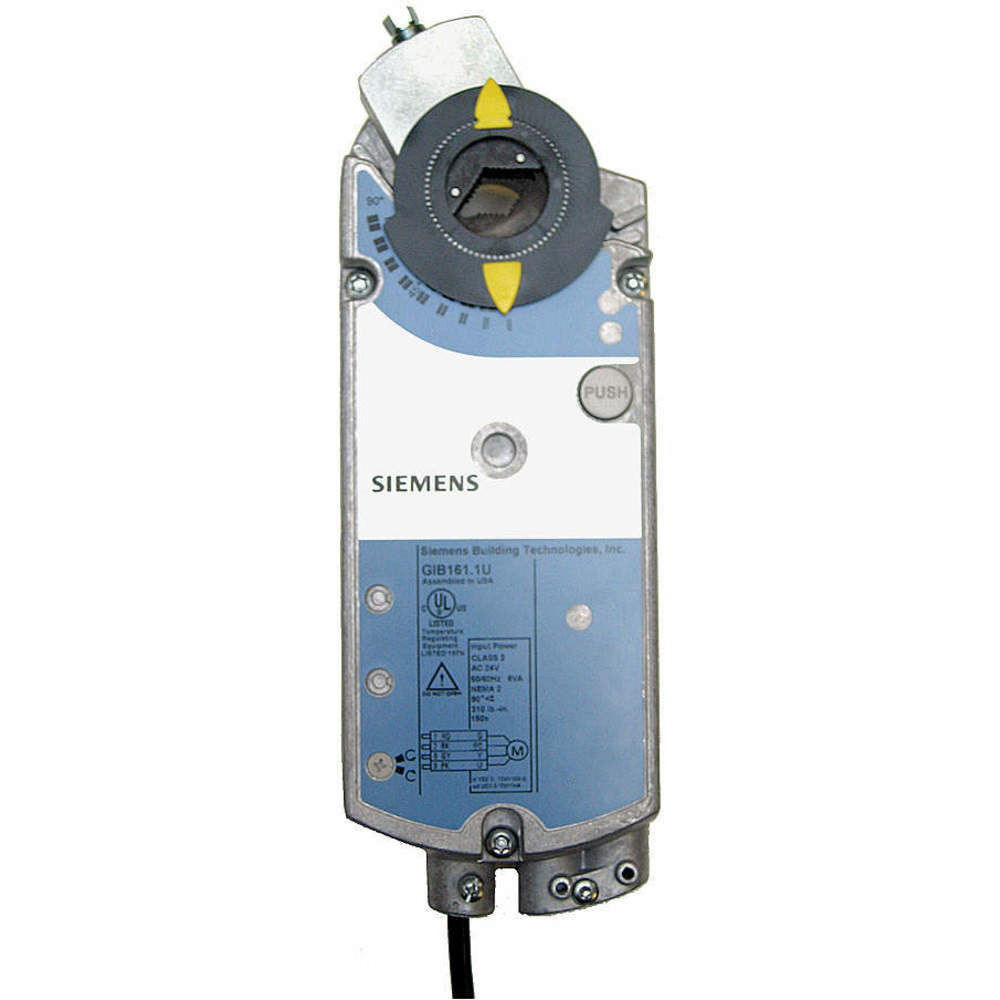

| A | GIB161.1U | 150 sec. | 2 7/8" | 4 3/4" | 310 lbs.-in. | Proportional | MN7234A2008 | 1.9 W | -25°F to +130°F | $623.71 | |

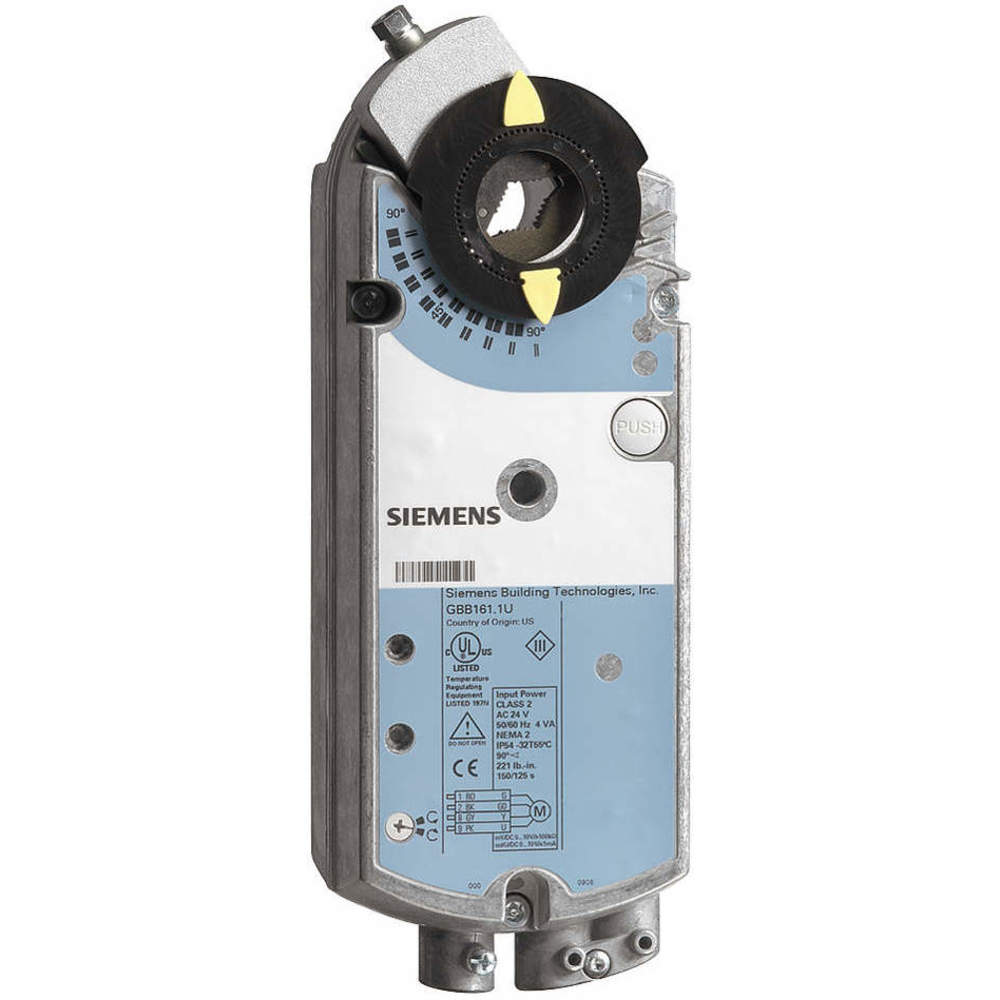

| B | GBB131.1U | 125 sec. | 2 7/8" | 4 3/4" | 221 lbs.-in. | Floating | MN6120A1002 | 1.4 W | -25°F to +130°F | $344.17 | |
| B | GBB161.1U | 125 sec. | 2 7/8" | 4 3/4" | 221 lbs.-in. | Proportional | MN7220A2007 | 1.5 W | -25°F to +130°F | $486.20 | |

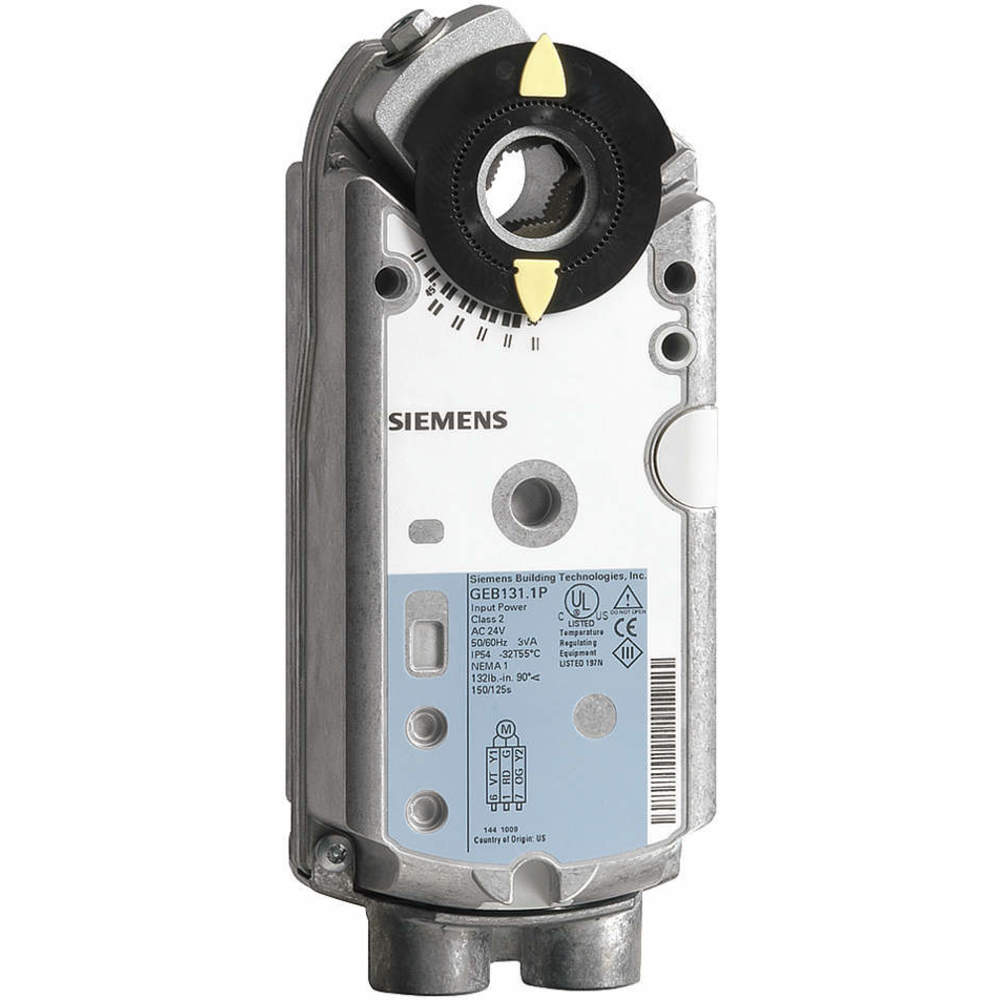

| C | GEB131.1U | 125 sec. | 2 5/8" | 3 1/4" | 132 lbs.-in. | Floating | MN6120A1002 | 1.1 W | -25°F to +130°F | $281.07 | |
| C | GEB161.1U | 125 sec. | 2 3/8" | 2.688" | 132 lbs.-in. | Proportional | MN7220A2007 | 1.2 W | -25°F to +130°F | $576.19 |
