| Item | Relay Socket |
|---|---|
| Base Style | Square |
| Base Style - Relay Socket | Square |
| Color | Gray |
| Contact Form | 4PDT |
| Contact Rating | 16A @ 250V AC |
| Contact Rating (ac) | 16A @ 250V |
| Contact Terminal Arrangement | Mixed |
| Conventional Free Air Thermal Amps | 16A |
| Current Rating | 16A |
| Depth | 3.31" |
| Dielectric Strength | 2500V |
| Electrical Connection | Screw Clamp |
| Electrical Connection - Relay Socket | Screw Clamp |
| Electrical Connection Type | Screw |
| Finger Safe | Yes |
| Flat Pin Width | 0.18" |
| Height | 1.18" |
| Height - Relay Socket | 1.18" |
| Ip Rating | IP20 |
| Length | 3.31" |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -40°F |
|---|---|
| Number Of Pins | 14 |
| Number Of Pins - Relay | 14 |
| Number Of Terminals | 14 |
| Pin Shape | Flat |
| Product Or Component Type | Socket |
| Rated Impulse Withstand Voltage | 4 kV |
| Shape Of Pin | Flat |
| Socket Code | F |
| Socket Design | Elevator |
| Socket Mounting Style | Din-Rail and Surface |
| Socket Style | Square |
| Socket Type | Elevator, Finger Safe |
| Socket Type - Relay | Elevator, Finger Safe |
| Status Indicator | None |
| Terminal Type | Mixed, Screw Clamp |
| Terminals | Screw Clamp Mixed |
| Voltage | 250V |
| Width | 1.97" |
| Width - Relay Socket | 1.97" |
| standard | CE CERTIFIED, CSA CERTIFIED, IEC 61984, UL LISTED |
| Height (cm) | 3 |
|---|---|
| Length (cm) | 8.41 |
| Width (cm) | 5 |
| HS Code | 8536698000 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.0945 |
| Style | Model | Electrical Connection Type | Number Of Pins | Finger Safe | Socket Design | Socket Code | Current Rating | Contact Form | Socket Mounting Style | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

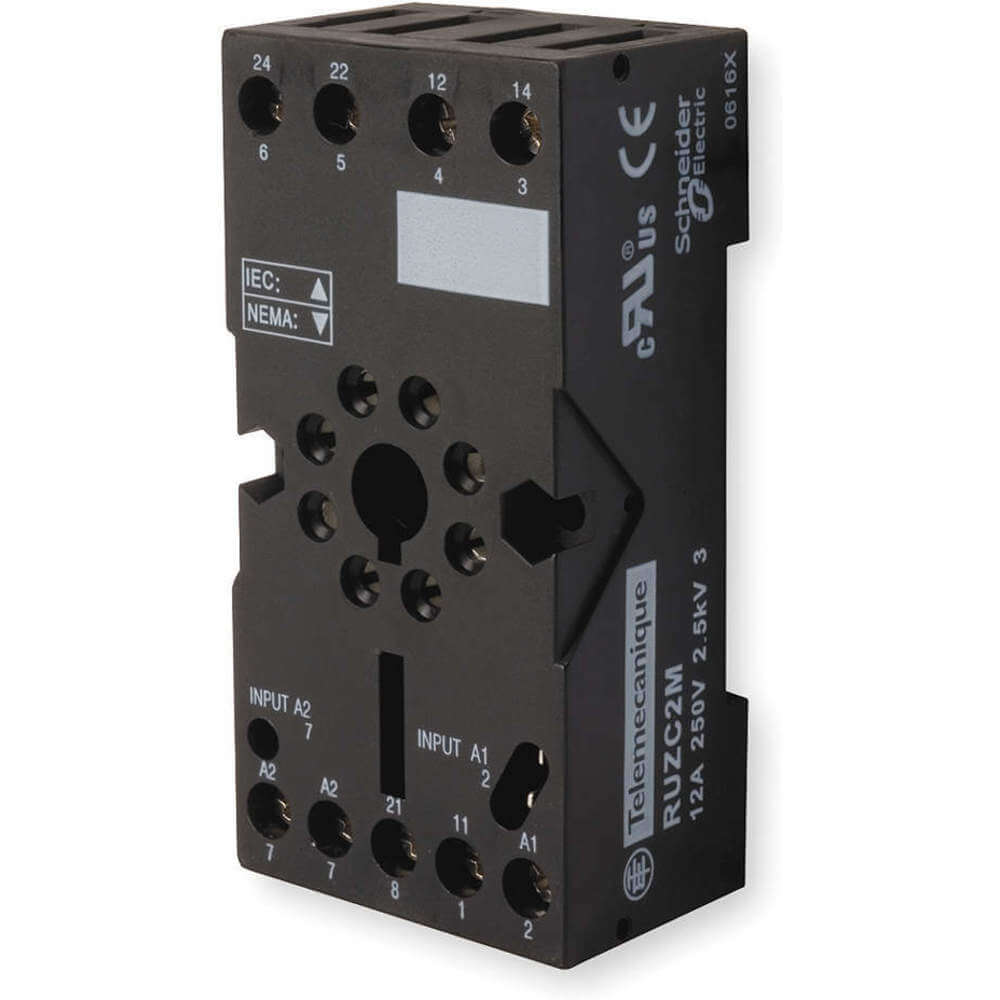

| A | RUZC2M | Screw | 8 | Yes | Elevator | A | 10A | DPDT | DIN Rail | 1 | $14.16 | |

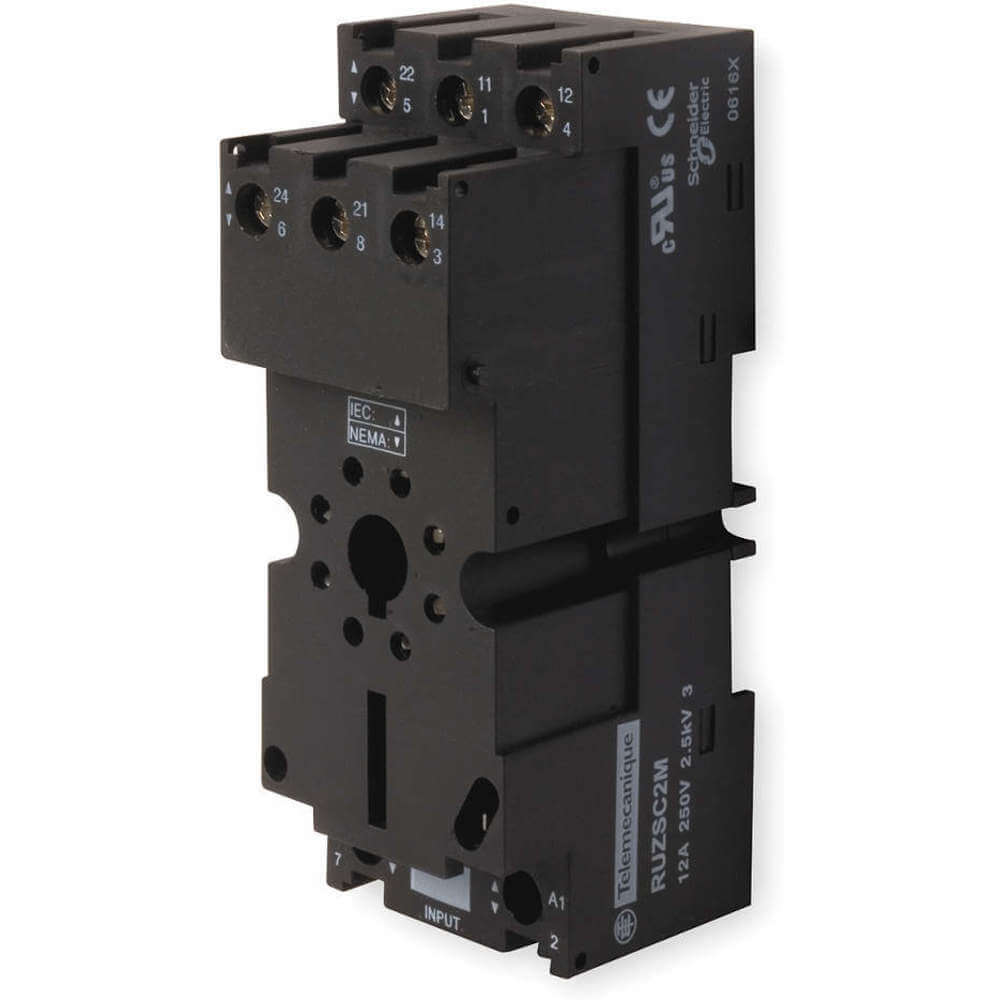

| B | RUZSC2M | Screw | 8 | Yes | Elevator | A | 12A | DPDT | DIN Rail | 1 | $17.44 | |

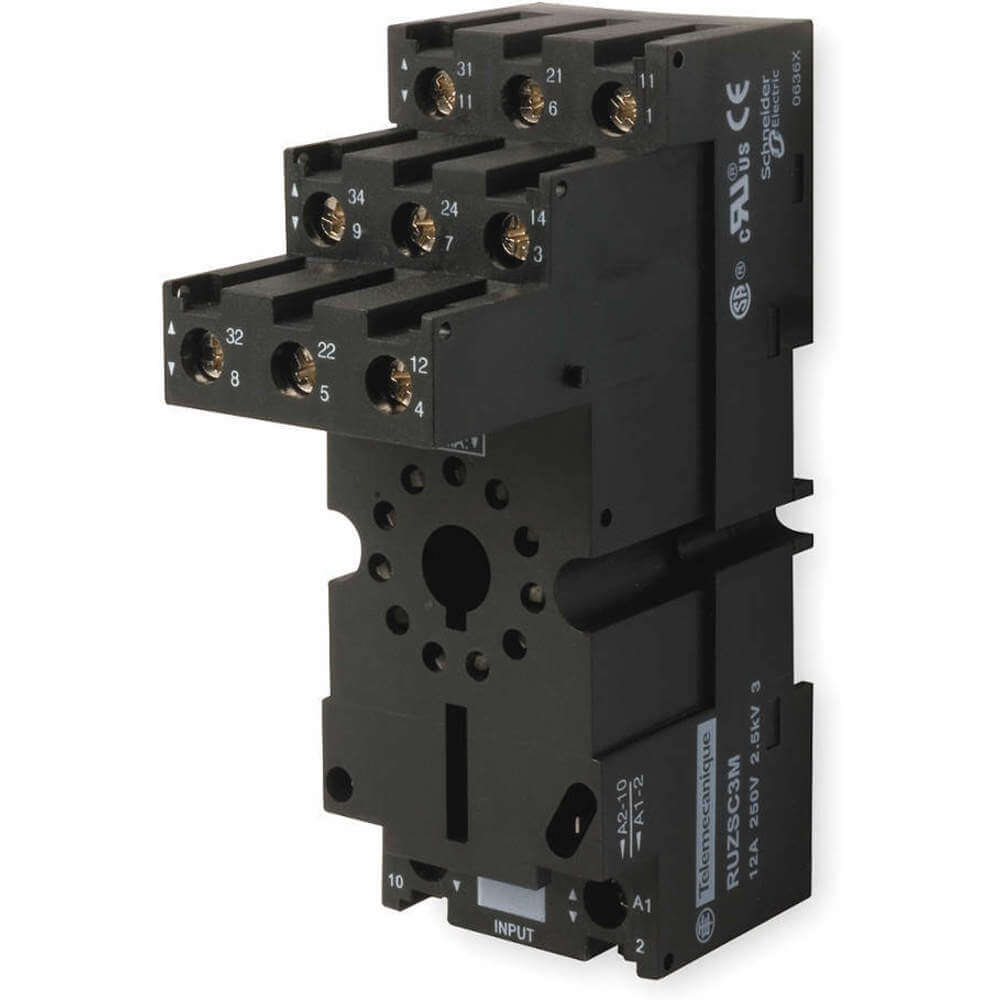

| C | RUZSC3M | Screw | 11 | Yes | Elevator | B | 12A | 3PDT | Din-Rail and Surface | 1 | $14.27 | |

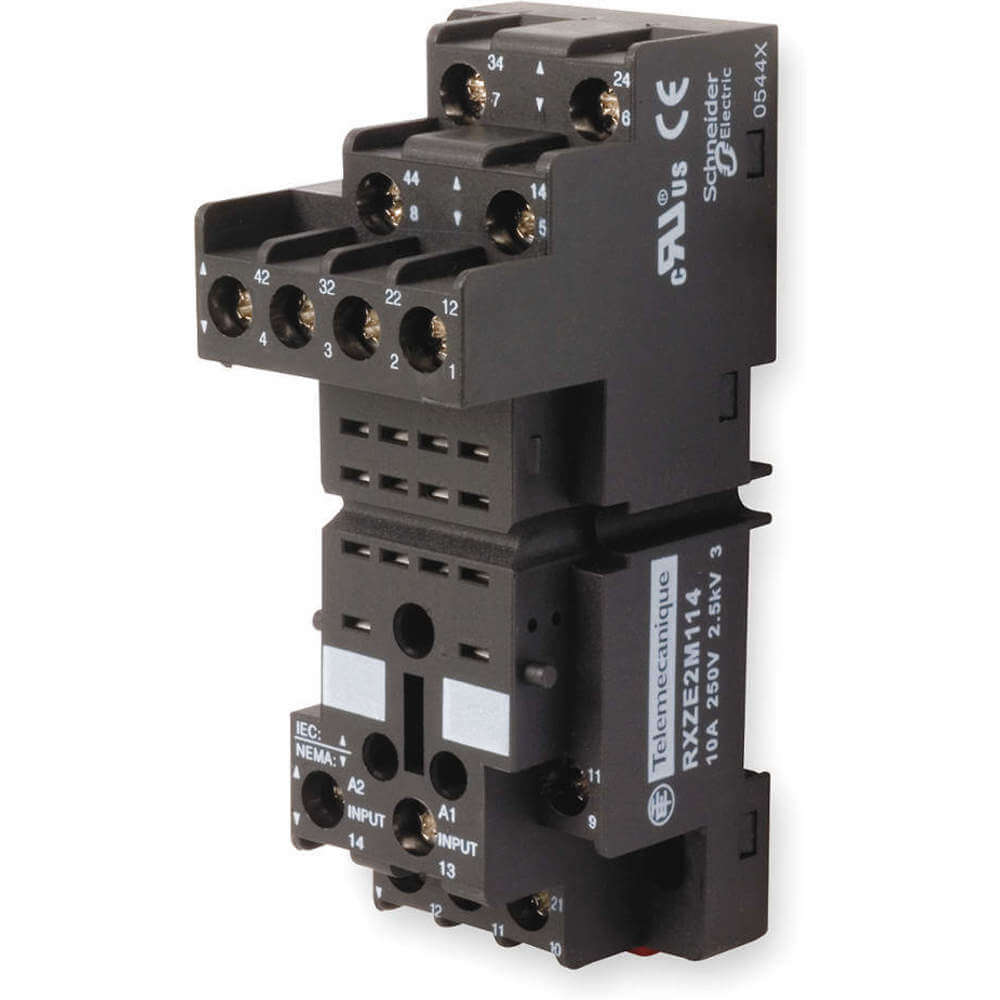

| D | RXZE2M114 | Screw | 14 | Yes | Elevator | G | 10A | DPDT, 4PDT | Din-Rail and Surface | 1 | $14.99 | |

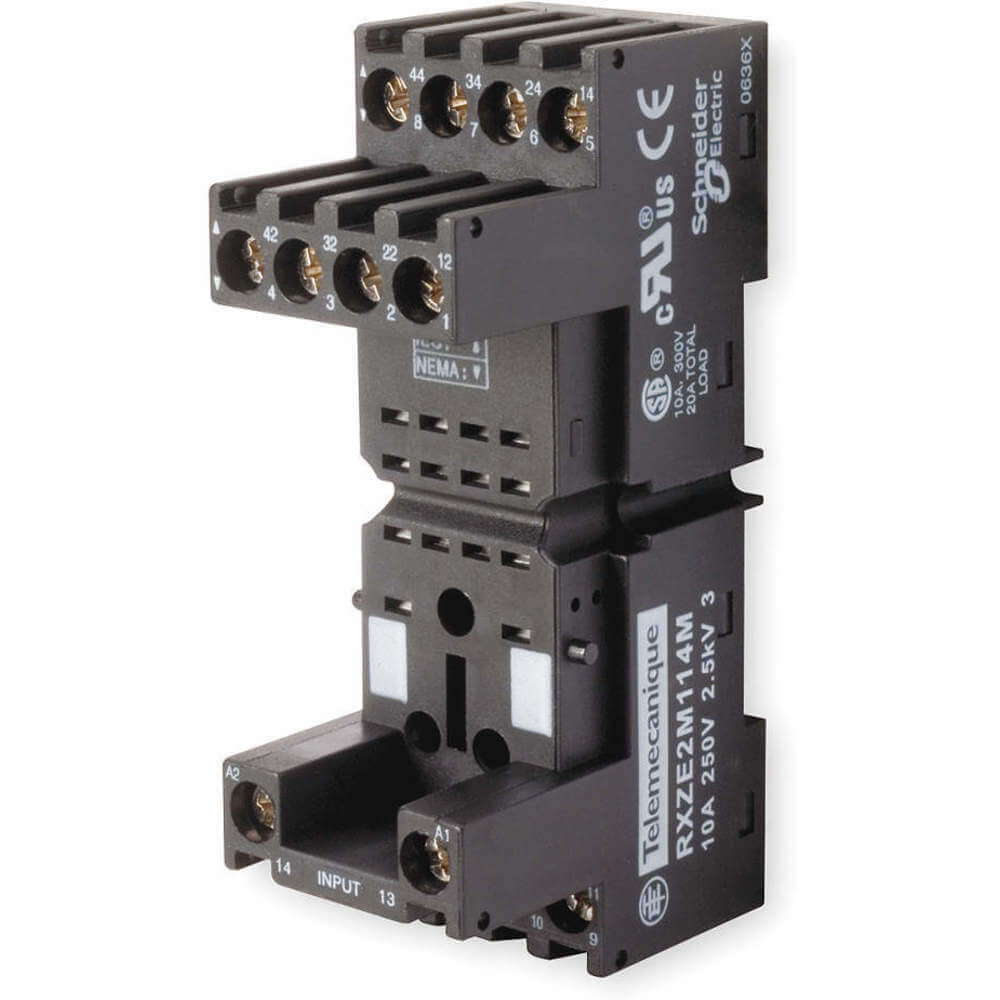

| E | RXZE2M114M | Screw | 14 | Yes | Elevator | G | 10A | DPDT, 4PDT | Din-Rail and Surface | 1 | $15.49 | |

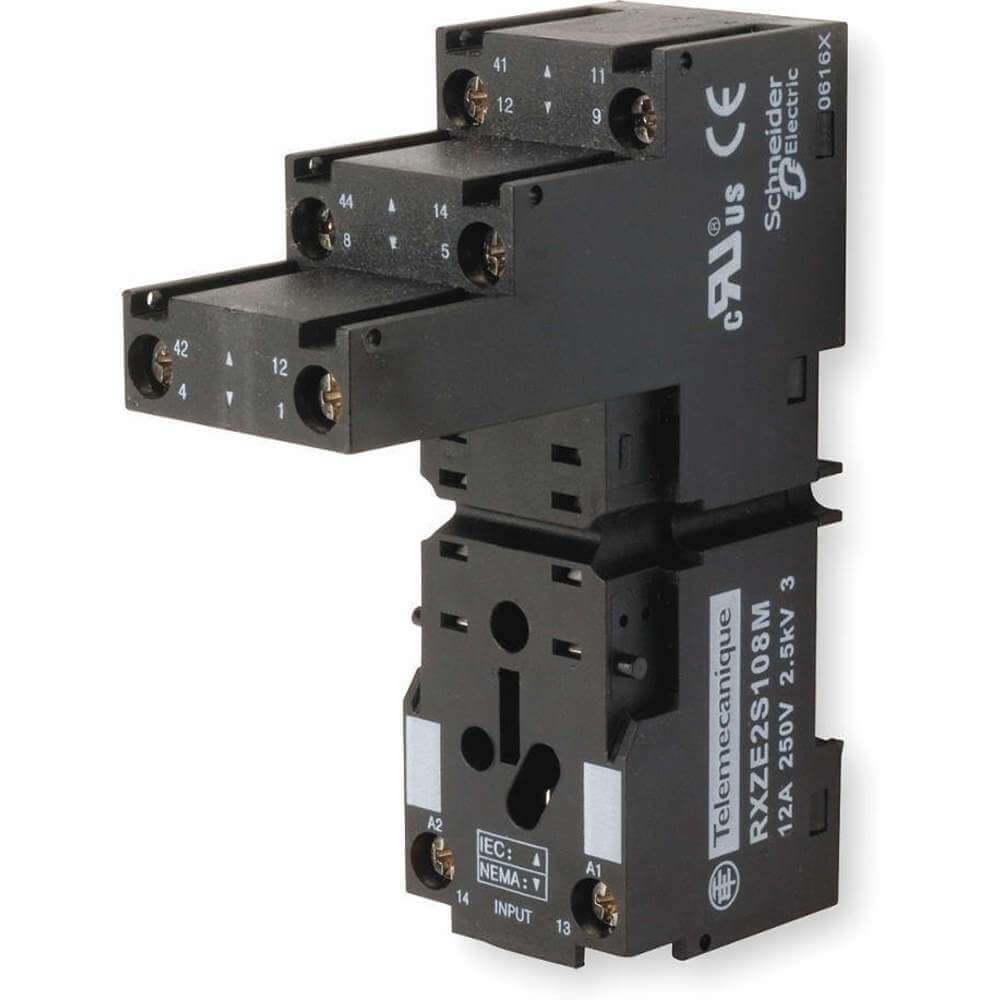

| F | RXZE2S108M | Screw | 8 | Yes | Elevator | K | 12A | DPDT | Din-Rail and Surface | 1 | $14.27 | |

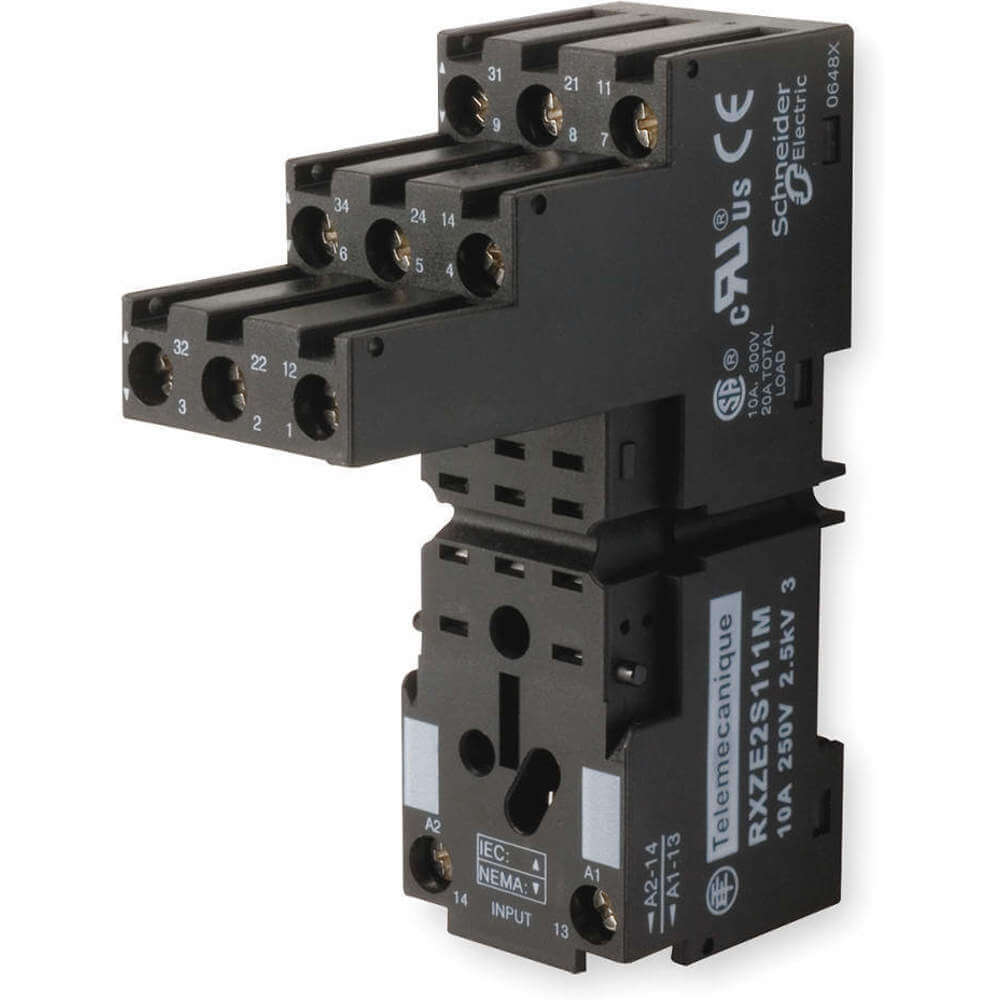

| G | RXZE2S111M | Screw | 11 | Yes | Elevator | R | 10A | 3PDT | Din-Rail and Surface | 1 | $14.27 |
