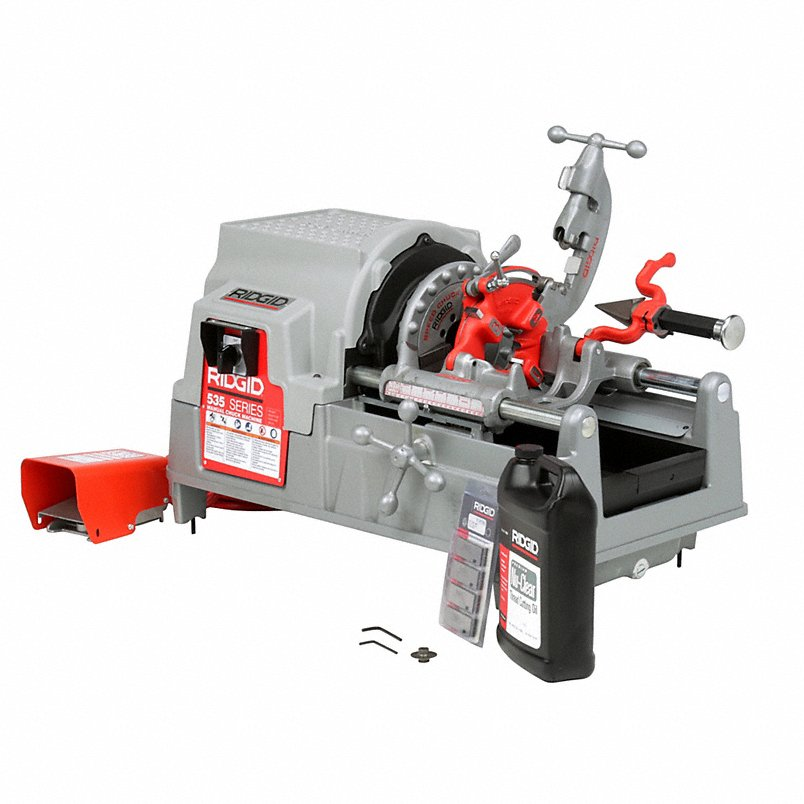

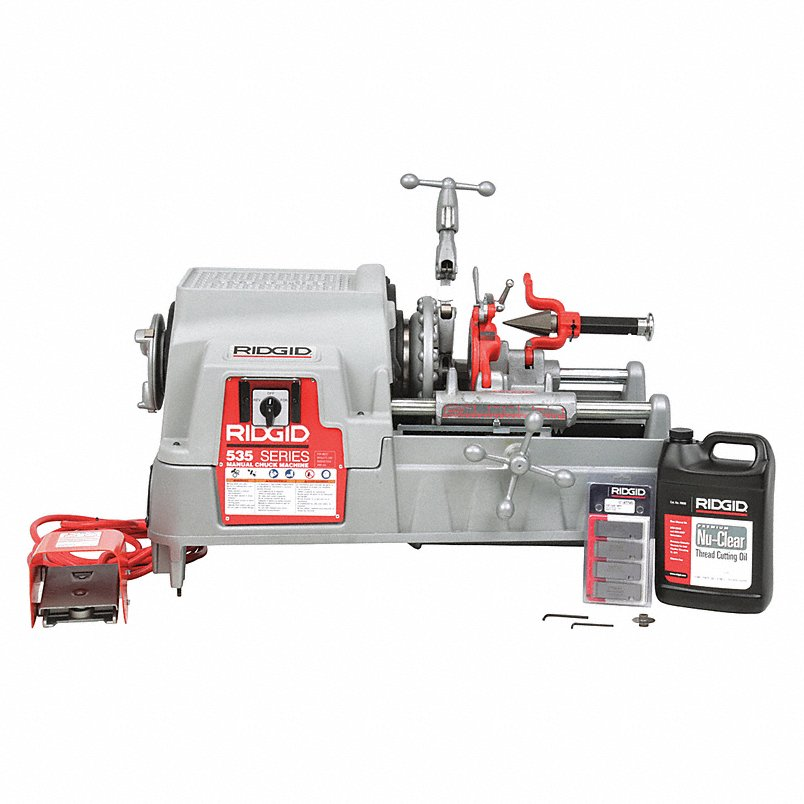

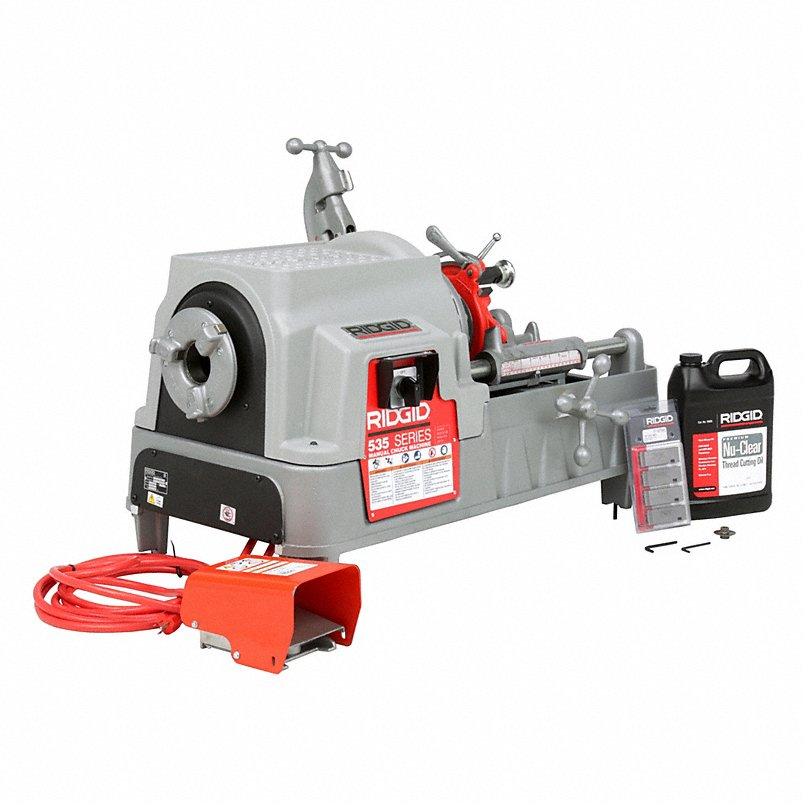

RIDGID 93287 535 Pipe Threading Machine 1/8 To 2 In

Item: AD2NHA
Model: 93287
Cross Ref: 3RY43 / 535
Check Availability
In Stock.

Get it by Thursday, Feb 12

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$12,714.70
10% off
$11,443.23 /unit (ex. VAT)
Add To Cart
Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Payment

Delivery

Specifications

Item Pipe Threading Machine
Chuck Speed Grip Chuck With Replaceable Jaw Inserts
Chuck Type Manual
Current 15A
Die Head Sizes 1/2" to 2"
Features Chip Tray, Length Gauge
Free Speed 36 RPM
Frequency 60 Hz
Head Opening Type Quick Opening
Horsepower 2 hp
Hp 1/2 hp
Includes 3/16" Hex Key, 5/32" Hex Key, Nu-Clear Oil, Quick-Open Right Hand Npt Die Head, Reamer, Wheel Cutter
Kit Contents Bare Tool
Machine Type Stationary Power Threading Machine
Max. Bolt Size 2"
Max. Pipe Dia. 2"
Min. Pipe Dia. 1/8"
Minimum Bolt Size 1/4"
Motor Type Standard
Mount Type Stand
No Load Rpm 36 RPM
No. Of Die Heads 1
No. Of Speeds 1
Oil Capacity 1.75 gal.
Overall Height 21"
Overall Length 37"
Overall Width 21"
Phase 1
Plug Type Three Prong
Power Output 1700 W
Power Source Corded
Pump Self-Priming Constant Flow Gerotor
Pump Type Self Priming Gerotor
Reversing Yes
Switch Type Forward, Off, Reverse And Integral Foot Switch
Thread Type NPT
Threading Equipment Included 2 Die Sets, Cutter, Die Head, Reamer
Through-the-head Oiling Yes
Tool Series 535 Series
Tool Weight 260 lbs.
Voltage 120V

Product Details

    • No. of Speeds (1)
    • Characteristics: Cam-Action Rear Centering Device Turns with Chuck, Large Chip Tray, 1.75 Gal Oil Tray, Can Be Used with Geared Threaders

Shipping Information

Height (cm) 68.58
Length (cm) 120.65
Width (cm) 60.45
HS Code 8466935385
Country Of Origin US
Weight (kg) 128.7
