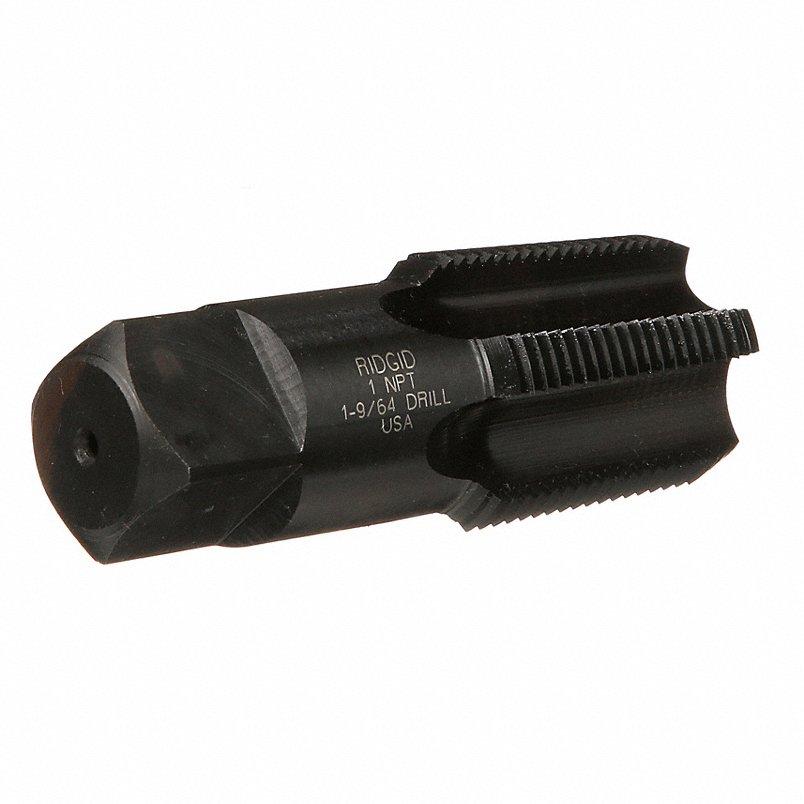

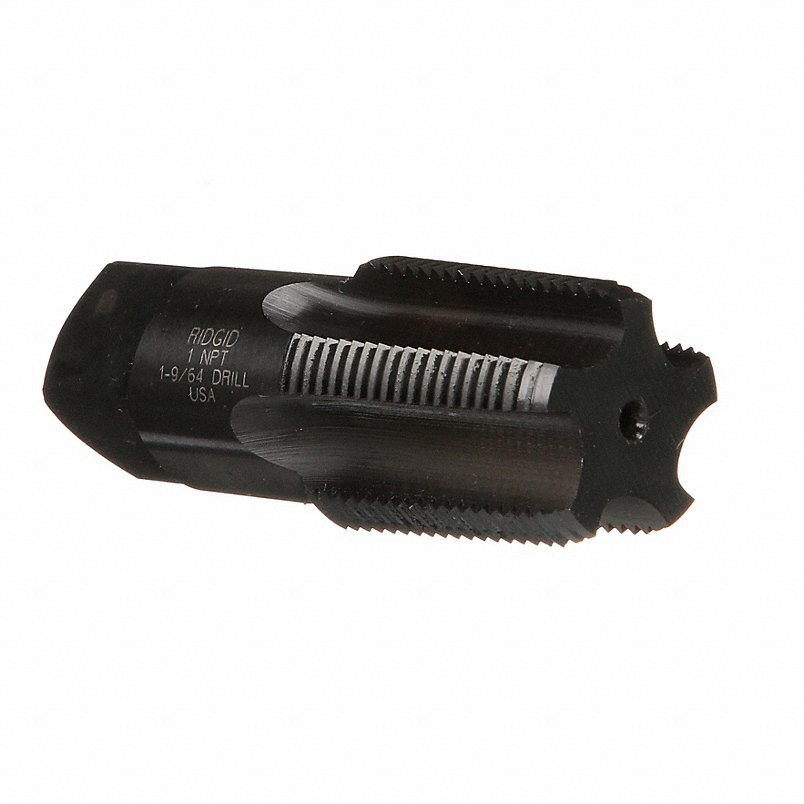

| Item | Tap |
|---|---|
| 75% Thread Drill Size | 1.1406" |
| Dimension Type | Pipe |
| Drill Bit Size | 1 9/64" |
| Extended Neck | Yes |
| Finish | Black Oxide |
| Helix Angle | 0° |
| List Number | 35840 |
| Material | High Speed Steel |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Number Of Pieces | 1 |
| Overall Length | 3 3/4" |
| Shank Dia. | 53/64" |
|---|---|
| Spiral Direction | Right Hand |
| Standards | Ansi, Asme B1.20-1983 |
| Tap Chamfer | Taper |
| Tap Finish | Black Oxide |
| Tap Material | Carbon Steel |
| Tap Style | Pipe |
| Tap Thread Size | 1"-11-1/2 |
| Tap Type | Pipe |
| Thread Direction | Right Hand |
| Thread Length | 1 3/4" |
| Thread Standard | NPT |
| Threads Per Inch | 11.5 |
| Height (cm) | 4.57 |
|---|---|
| Length (cm) | 13.72 |
| Width (cm) | 4.57 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 0.4275 |
| Style | Model | Thread Length | Overall Length | 75% Thread Drill Size | Number Of Flutes | Thread Size | Shank Dia. | Tap Thread Size | Drill Bit Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 35815 | 3/4" | 2 1/8" | 0.3281" | 4 | 1/8"-27 | 9/32" | 1/8"-27 | 21/64" | $39.36 | |
| B | 35825 | 1 1/16" | 2 9/16" | 0.5625" | 4 | 3/8"-18 | 33/64" | 3/8"-18 | 9/16" | $59.86 | |
| B | 35835 | 1 3/8" | 3 1/4" | 0.9063" | 5 | 3/4"-14 | 37/64" | 3/4"-14 | 29/32" | $103.06 | |

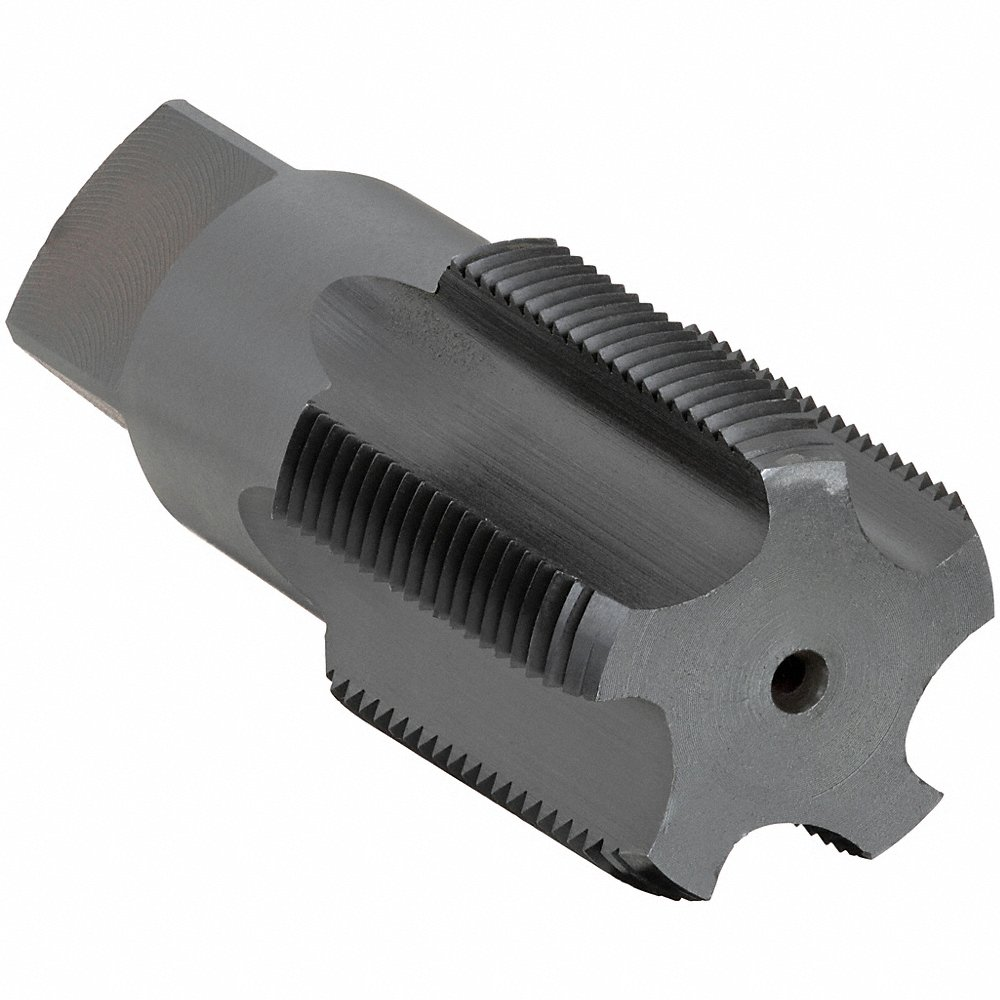

| C | 35845 | 1 3/4" | 4 1/16" | 1.4844" | 4 | 1 1/4"-11 1/2 | 31/32" | 1 1/4"-11 1/2 | 1 31/64" | $210.97 | |
| D | 35850 | 1 3/4" | 4 1/4" | 1.7188" | 7 | 1 1/2"-11 1/2 | 1 1/8" | 1 1/2"-11 1/2 | 1 47/64" | $280.04 |
