| Item | Plate Clamp |
|---|---|
| Attachment Diameter | 3 1/2" |
| Attachment Type | Pivoting Shackle |
| Clamp Type | Plate Clamp |
| Close Type | Manual With Lock |
| Grip Type | Teeth |
| Jaw Capacity | 0" to 1" |
| Jaw Material | Steel |
| Lifting Operation | Vertical Lift With 180°Flip |
| Lifting Point | Pivoting Shackle Eye |
| Lock Type | Load Activated |
| Material | Steel |
| Maximum Jaw Opening | 1" |
|---|---|
| Maximum Material Thickness | 1" |
| Minimum Jaw Opening | 0" |
| Minimum Material Thickness | 0" |
| Open Type | Manual |
| Operation | Vertical Lift With 180° Flip |
| Overall Depth | 8 3/4" |
| Overall Height | 17 3/8" |
| Overall Width | 4 1/2" |
| Safe Working Load | 4000 lbs. |
| Working Load Limit | 4000 lbs. |
| Standards | ASME BTH-1 |
| Height (cm) | 22.86 |
|---|---|
| Length (cm) | 48.26 |
| Width (cm) | 10.16 |
| HS Code | 8205700090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 18.423 |
| Style | Model | Working Load Limit | Overall Height | Overall Width | Overall Depth | Lock Type | Lifting Point | Jaw Capacity | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

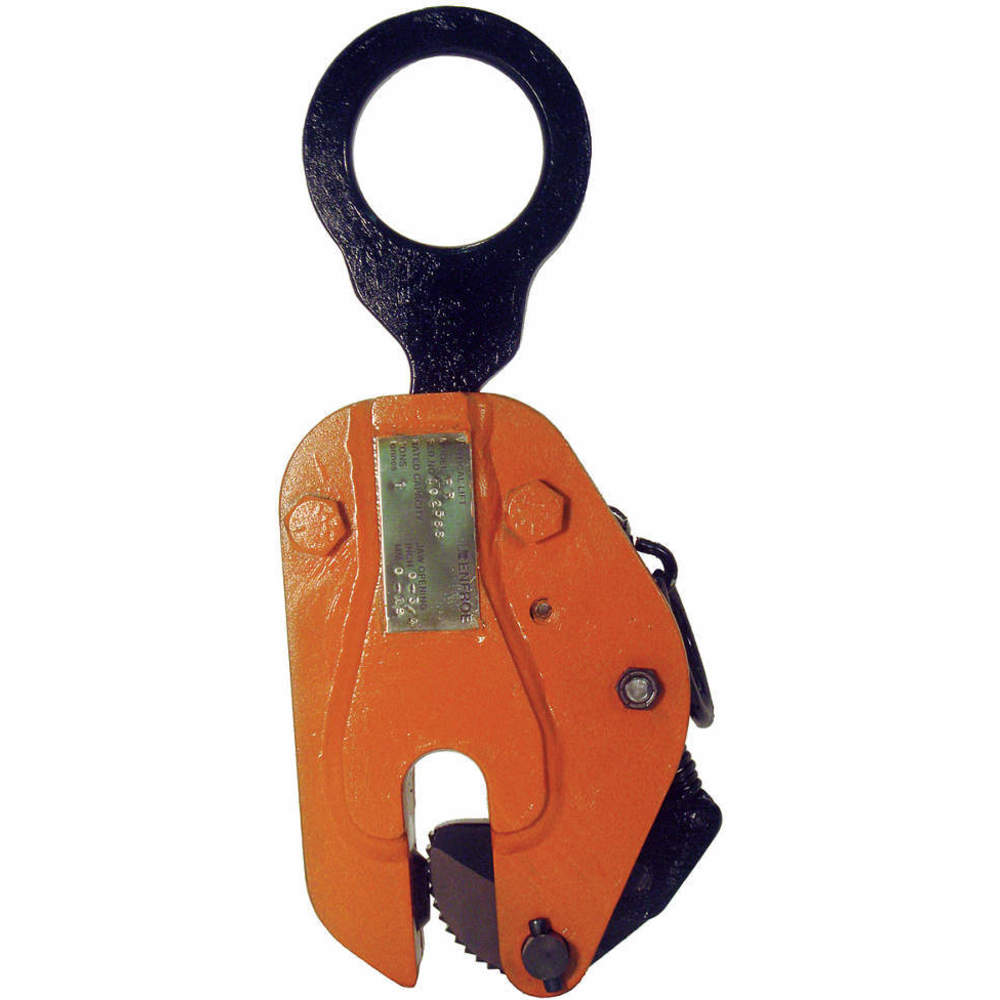

| A | FR-00.50-A | 1000 lbs. | 11 1/4" | 2 1/2" | 4 5/8" | Lock Closed | Load Ring | - | 1 | $681.80 | |
| A | FR-01.00-A | 2000 lbs. | 13 3/4" | 3 1/4" | 5 7/8" | Lock Closed | Load Ring | - | 1 | $975.40 | |
| A | FR-02.00-A | - | - | - | - | Lock Closed | Load Ring | 0" to 1" | 1 | $1,490.51 | |
| A | FR-03.00-A | 6000 lbs. | 18 3/8" | 3 5/8" | 7 5/8" | Lock Closed | Load Ring | - | 1 | $1,621.04 | |

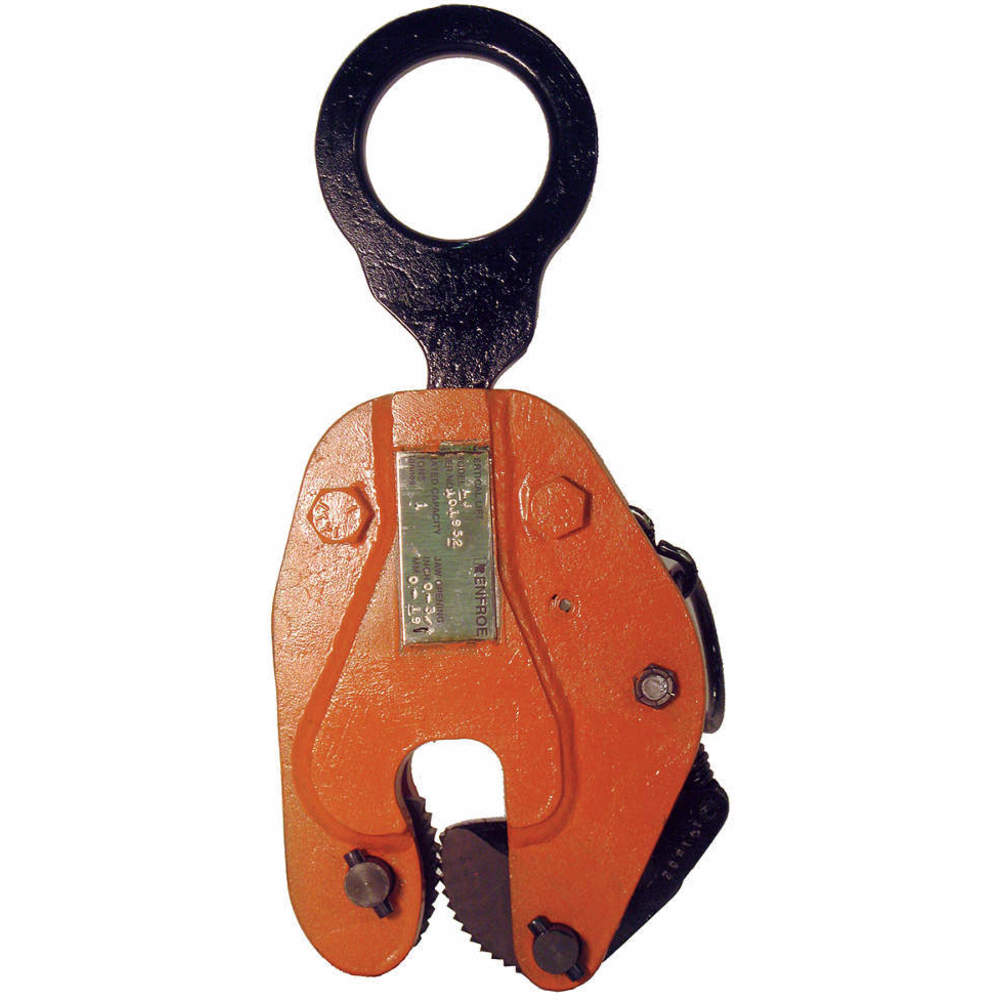

| B | LJ-00.50-A | 1000 lbs. | 10 1/4" | 2 3/8" | 5" | Lock Closed | Load Ring | - | 1 | $701.68 | |
| B | LJ-01.00-A | 2000 lbs. | 13 1/2" | 2 7/8" | 6 1/2" | Lock Closed | Load Ring | - | 1 | $978.44 | |
| B | LJ-02.00-A | 4000 lbs. | 15 7/8" | 3 1/4" | 7 5/8" | Lock Closed | Load Ring | 0" to 1" | 1 | $1,539.07 |
