| Item | Freezer Control |
|---|---|
| Application | Designed For Temperature Cold Control |
| Capillary Length | 47 1/4" |
| Capillary Type | Capillary |
| Cold Off Temperature | -11.2°F |
| Cold On Temperature | -0.4°F |
| Contact Form | SPST |
| Control Range | -12°F to +15°F |
| Control Temperature - Maximum | 15°F |
| Control Temperature - Minimum | -12°F |
| Depth | 1 1/8" |
| For Use With | Freezer Cabinet |
| Full Load Current | 16A |
| Height | 2 1/2" |
| Includes | Faceplate, Mounting Hardware |
| Locked Rotor Amps | 80A |
|---|---|
| Normally Off Temperature | -4°F |
| Normally On Temperature | 10°F |
| Overall Height | 2 1/2" |
| Overall Length | 1 1/8" |
| Product Type | Refrigerator/Freezer Control |
| Switch Action | Closes On Rise |
| Switch Type | Normally Open |
| Type | Medium Temp |
| Voltage | 120/240V AC |
| Warm On | 15 |
| Warm On Temperature | 15.8°F |
| Width | 1 1/8" |
| standard | CSA, ENEC, UL |
| Height (cm) | 5.08 |
|---|---|
| Length (cm) | 8.38 |
| Width (cm) | 8.38 |
| HS Code | 9032100090 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.1125 |
| Style | Model | Voltage | Switch Type | Switch Action | Control Range | Capillary Length | Height | Warm On | Cold Off | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

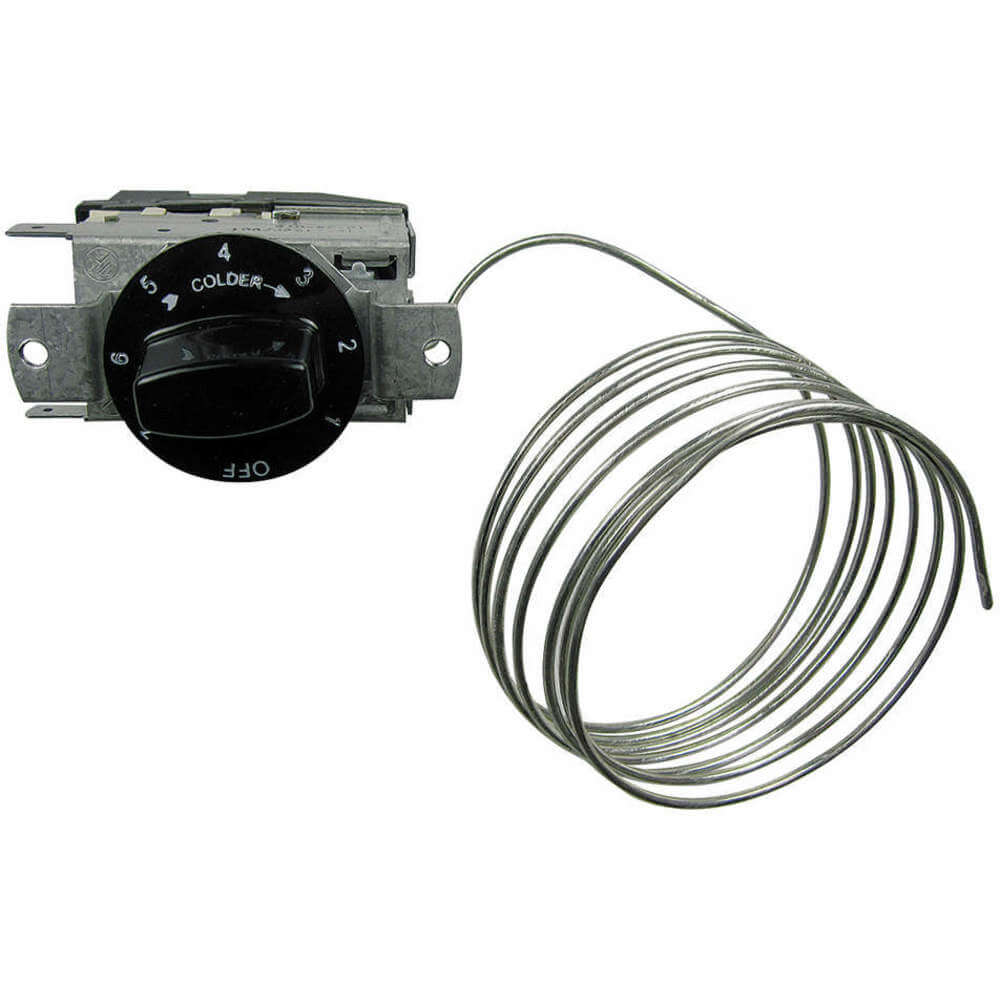

| A | A12-1560 | 120/208/240V AC | Close On Rise | NC | 19°F to 38°F | 72" | 2 1/2" | 38 | 19 | $157.50 | |

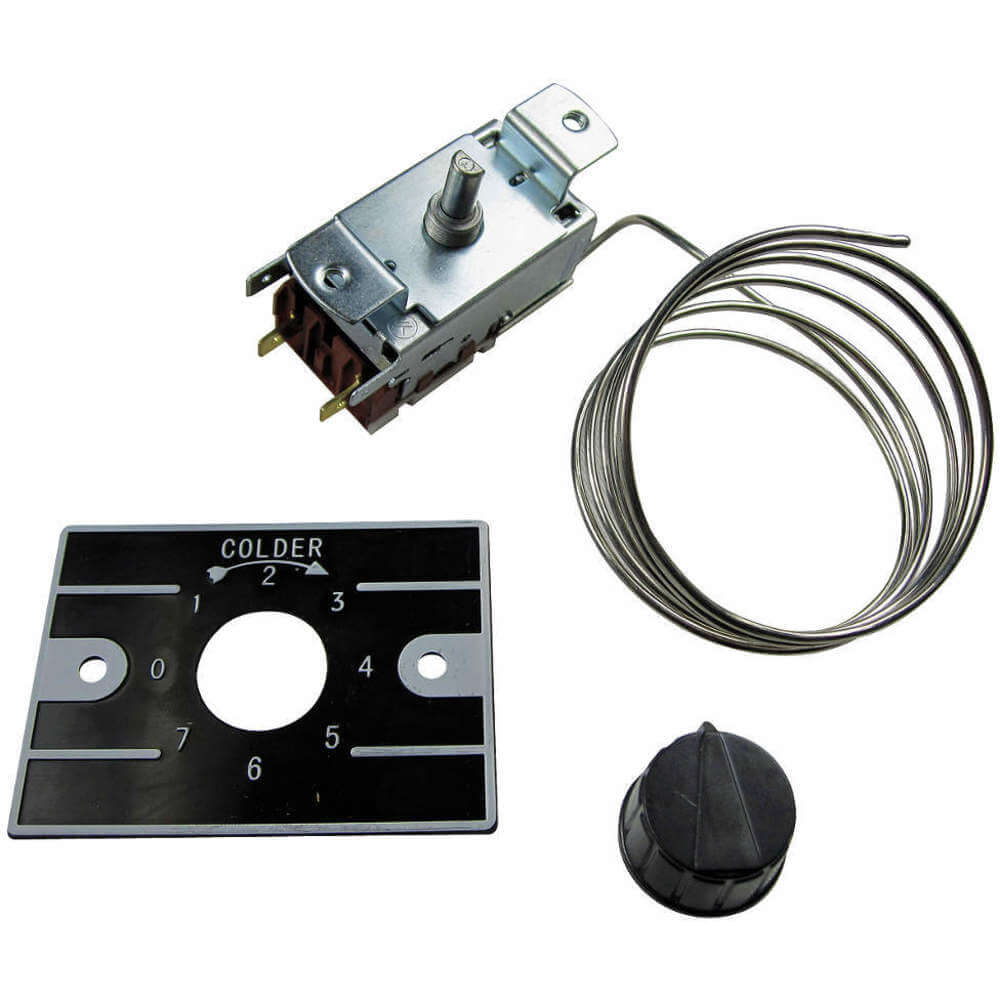

| B | K50Q-1125-001 | 120/240V AC | Normally Open | Closes On Rise | 0°F to +47°F | 47 1/4" | 2 1/2" | 47 | - | $21.40 | |
| B | K50Q-1127-001 | 120/240V AC | Normally Open | Closes On Rise | +34°F to +55°F | 47 1/4" | 2 1/2" | - | 35 | $25.09 |
