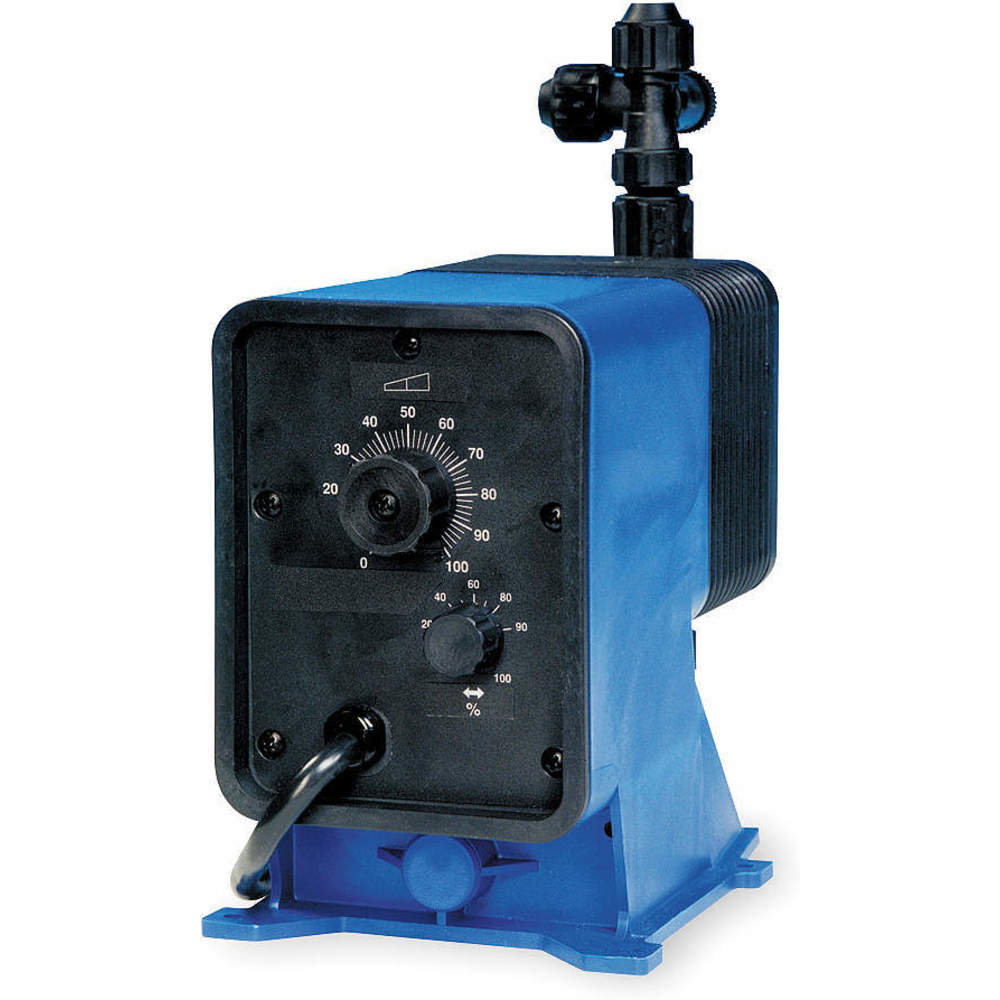

| Item | Chemical Metering Pump |
|---|---|
| Ball Material | Ceramic |
| Check Ball Material | Ceramic |
| Compatible Chemicals | Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Phosphoric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sulfuric Acid 10%, Water |
| Control Programs | Manual Control |
| Cord Length | 6 ft. |
| Diaphragm Material | CSPE, PTFE |
| Discharge Connection Size | 3/8" |
| Discharge Size | 3/8" |
| Discharge Type | Tube |
| Display Qty | 1 |
| Duty Cycle | Continuous |
| Features | Solenoid Drive, Stroke Length And Speed Adjustment |
| Fitting Material | Glass Filled Polypropylene |
| Flow Rate | 115.7 cc/min. |
| Flow Rate Of Water Output Control | Adjustable |
| Head And Fitting Material | Glass Filled Polypropylene |
| Head Material | Glass Filled Polypropylene |
| Housing Material | ABS |
| Includes | 4 ft. Suction Tubing, 8 ft. Discharge Tubing And 4 ft. Bleed Valve Tubing, Backpressure Injection Valve Assembly, Bleed Valve, Foot Valve, Strainer Assembly |
| Includes Degassing Valve | No |
| Inlet Size | 3/8" |
| Inlet Type | Tube |
| Intake Connection Size | 3/8" |
| Intake Connection Type | Tube |
| Material | ABS |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Rate | 44 GPD |
| Max. Hp | 1/5 hp |
|---|---|
| Max. Media Temp. | 104°F |
| Max. Pressure | 100 psi |
| Max. Strokes Per Minute | 125 strokes/min. |
| Max. Viscosity | 1000 cPS |
| Min. Flow Rate | 0.4 GPD |
| Motor Hp | 1/5 hp |
| Motor Rpm | 125 RPM |
| Motor Thermal Protection | Auto |
| No. Of Feeds | 1 |
| Overall Height | 10 3/5" |
| Overall Length | 11 1/5" |
| Overall Width | 5 2/5" |
| Phase | 1 |
| Priming | Self Priming |
| Pump Drive Type | Solenoid |
| Pump Type | Diaphragm Pump |
| Reproducibility | -2% to +2% |
| Seal Material | PTFE |
| Self Priming | Yes |
| Series | E PLUS Series |
| Standards | Ce Certified, Etl, Etl Sanitation, Nsf 61 Certified |
| Suction Lift | 4 ft. |
| Thermal Protection | Automatic |
| Tubing Material | Polyethylene, PVC |
| Turn Down Ratio | 100:1 |
| Type | Adjustable Single Head |
| Voltage | 115/230V AC |
| Height (cm) | 25.15 |
|---|---|
| Length (cm) | 35.31 |
| Width (cm) | 30.23 |
| HS Code | 8413500050 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 5.85 |
| Style | Model | Housing Material | Head Material | Diaphragm Material | Max. Flow Rate | Turn Down Ratio | Max. Discharge Pressure | Max. Viscosity | Seal Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | LB03SA-PTC1-G19 | ABS | Glass Filled Polypropylene | CSPE, PTFE | 12 GPD | 100:1 | 150 psi | 1000 cPS | PTFE | $1,207.31 | |
| A | LB64SA-PTC1-G19 | ABS | Glass Filled Polypropylene | CSPE, PTFE | 30 GPD | 100:1 | 100 psi | 1000 cPS | PTFE | $1,214.37 | |
| B | LPH6SA-PTC3 | ABS | Glass Filled Polypropylene | CSPE, PTFE | 120 GPD | 100:1 | 100 psi | 1000 cPS | PTFE | $2,241.16 | |
| B | LPH7SA-PTC3 | ABS | Glass Filled Polypropylene | CSPE, PTFE | 240 GPD | 100:1 | 35 psi | 1000 cPS | PTFE | $2,488.17 | |
| A | LB03SA-KTC1-G19 | ABS | PVDF | CSPE, PTFE | 12 GPD | 100:1 | 150 psi | 1000 cPS | PTFE | $1,432.64 | |
| A | LB64SA-KTC1-G19 | ABS | PVDF | CSPE, PTFE | 30 GPD | 100:1 | 100 psi | 1000 cPS | PTFE | $1,588.57 | |
| B | LPH6SA-KTC3-G19 | ABS | PVDF | CSPE, PTFE | 120 GPD | 100:1 | 100 psi | 1000 cPS | PTFE | $2,859.50 |
