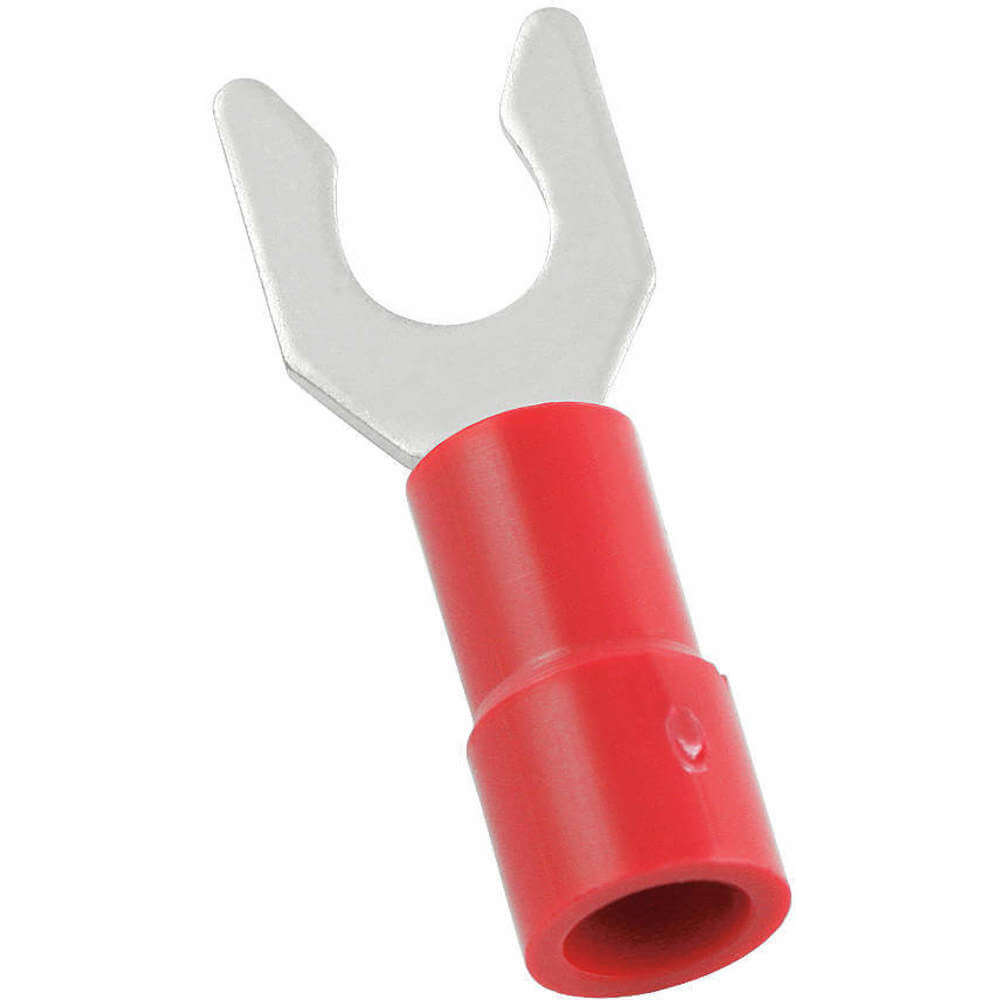

| Item | Fork Terminal |
|---|---|
| Barrel Length | 0.433" |
| Barrel Style | Easy Entry |
| Color Code | Red |
| Compatible With Product Type | Insulated Stranded Copper Cable |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| Flammability Rating | V-0 |
| Insulation Color | Red |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Temp. | 167°F |
| Max. Voltage | 600V |
| Maximum Operating Temperature | 221°F |
| Maximum Wire Size | 16 AWG |
| Min. Wire Size | 22 AWG |
| Overall Length | 0.866" |
|---|---|
| Rohs Compliant | Yes |
| Seam | Butted |
| Seam Style | Butted |
| Special Features | Easy Entry |
| Strip Length | 1/4" |
| Stud Size | #8 |
| Terminal Connection | Crimp |
| Terminal Shape | Locking Fork |
| Terminal Type | Locking |
| Termination | Crimp Termination Only |
| Termination Style | Crimp |
| Tongue Length | 0.433" |
| Tongue Thickness | 0.03" |
| Tongue Width | 0.319" |
| Ul 94 Flammability Rating | V-0 |
| Wire Size | 22 AWG to 16 AWG |
| Standards | UL/CUL LISTED E96029 |
| Height (cm) | 3.81 |
|---|---|
| Length (cm) | 8.89 |
| Width (cm) | 5.08 |
| HS Code | 8536904000 |
|---|---|
| Country Of Origin | TW |
| Weight (kg) | 0.0765 |
| Style | Model | Insulation Color | Stud Size | Wire Size | Tongue Width | Color Code | Strip Length | Min. Wire Size | Insulation Material | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

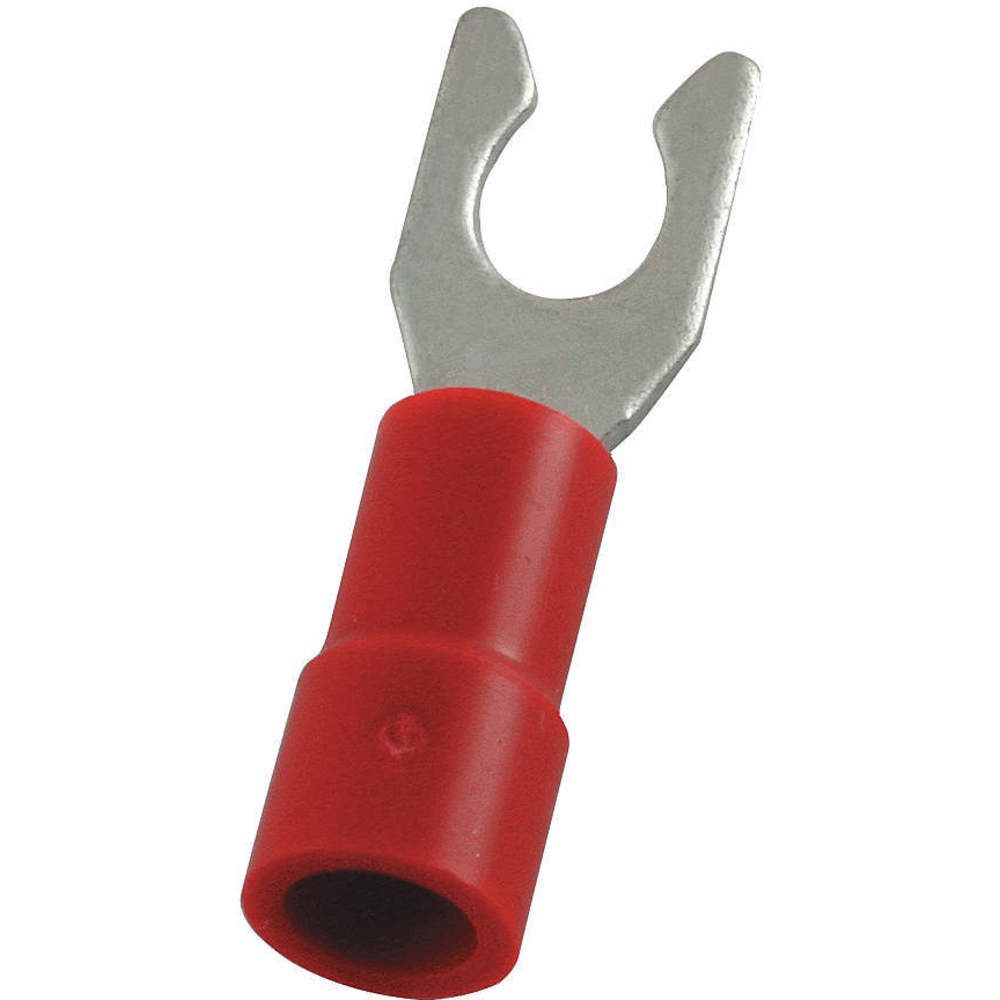

| A | 4FRD3 | Red | #6 | 22 AWG to 16 AWG | 0.252" | Red | 1/4" | 22 AWG | Vinyl | 100 | $43.24 | |

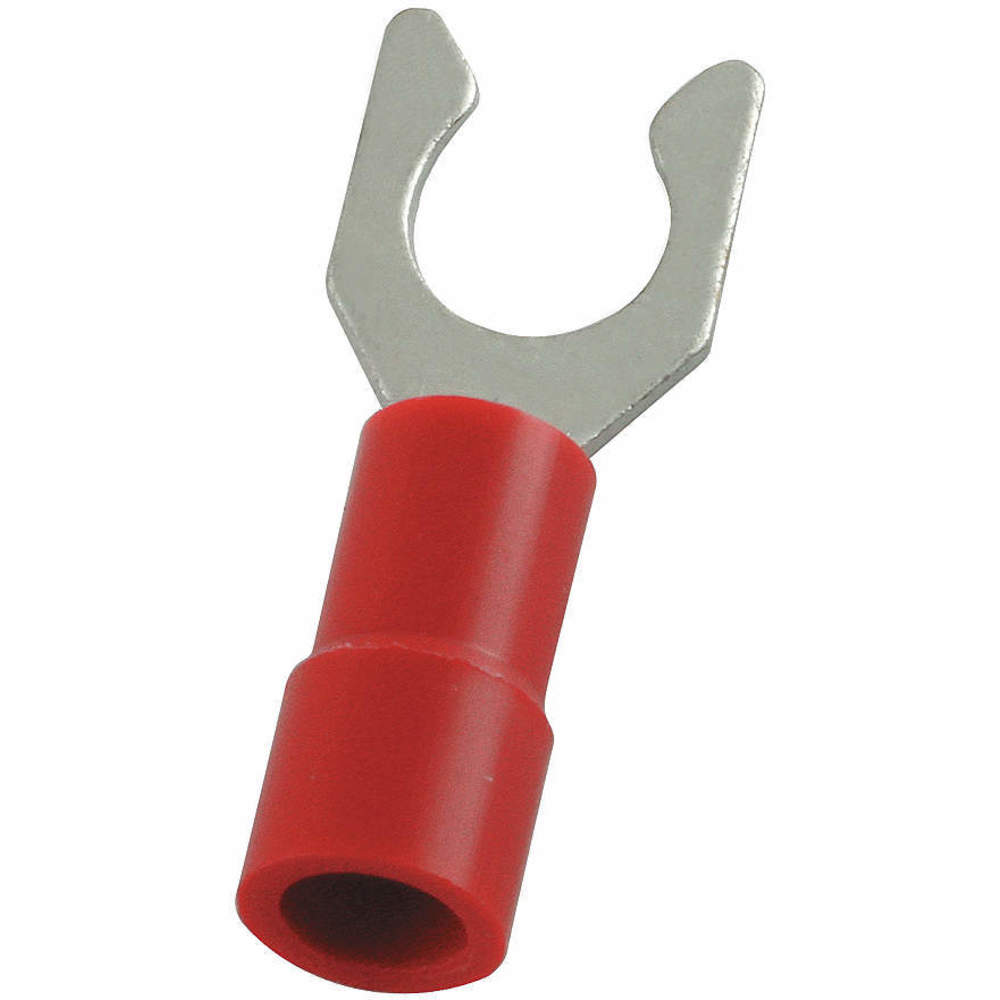

| B | 4FRD4 | Red | #10 | 22 AWG to 16 AWG | - | Red | 1/4" | 22 AWG | Vinyl | 100 | $46.54 | |

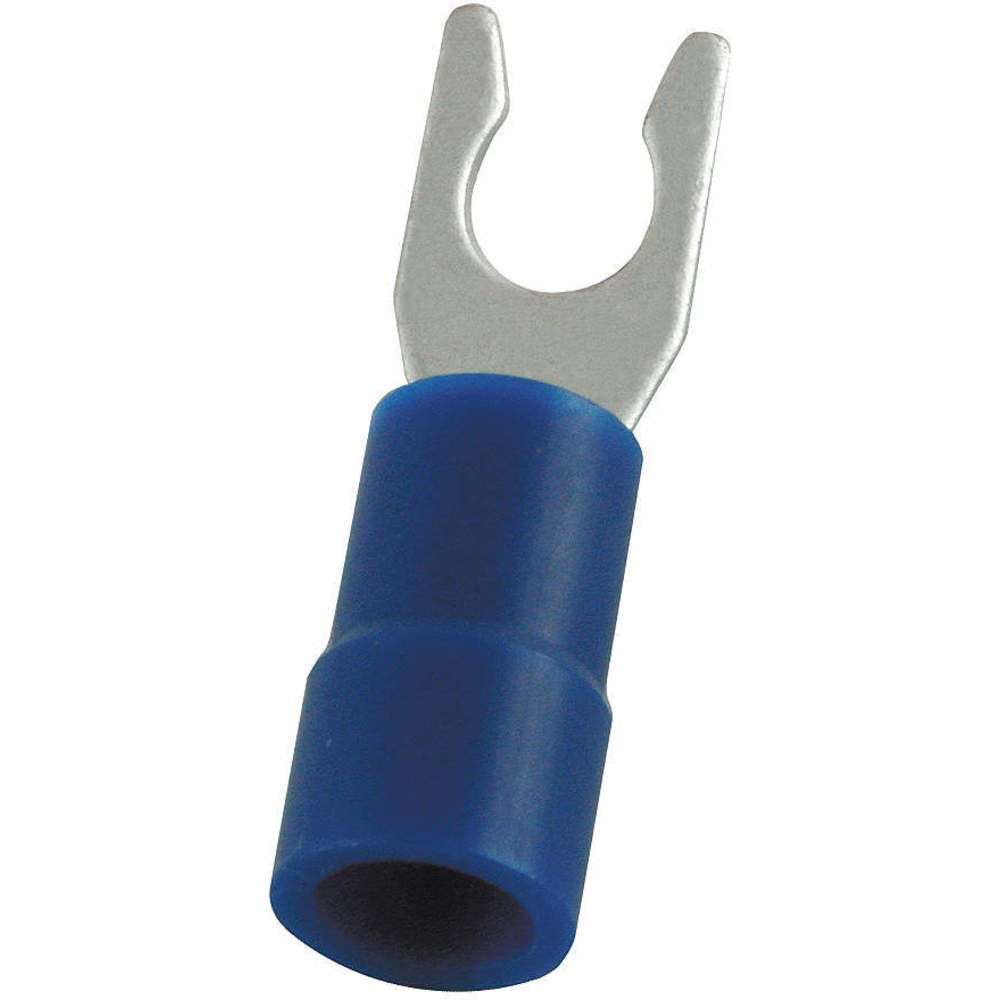

| C | 4FRD5 | Blue | #6 | 16 AWG to 14 AWG | 0.236" | Blue | 1/4" | 16 AWG | Vinyl | 100 | $49.44 | |

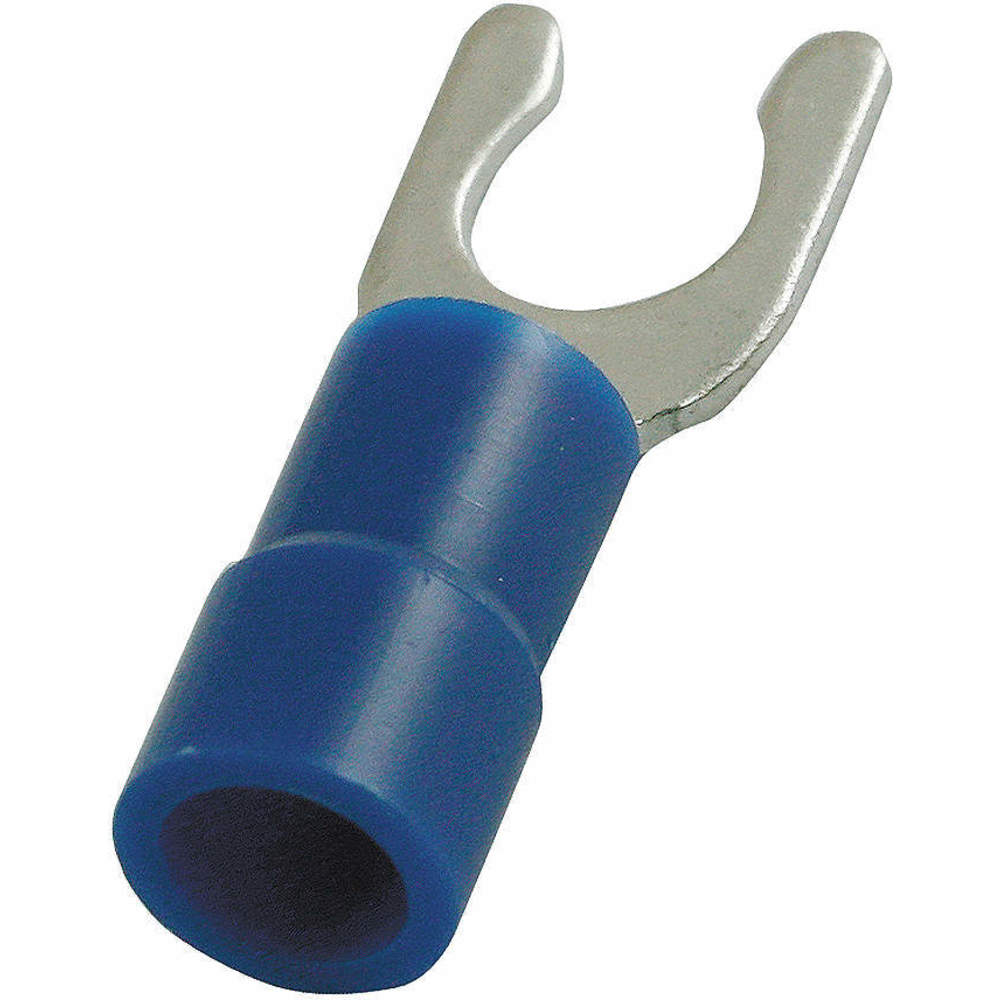

| D | 4FRD6 | Blue | #10 | 16 AWG to 14 AWG | 0.319" | Blue | 1/4" | 16 AWG | Vinyl | 100 | $53.63 | |

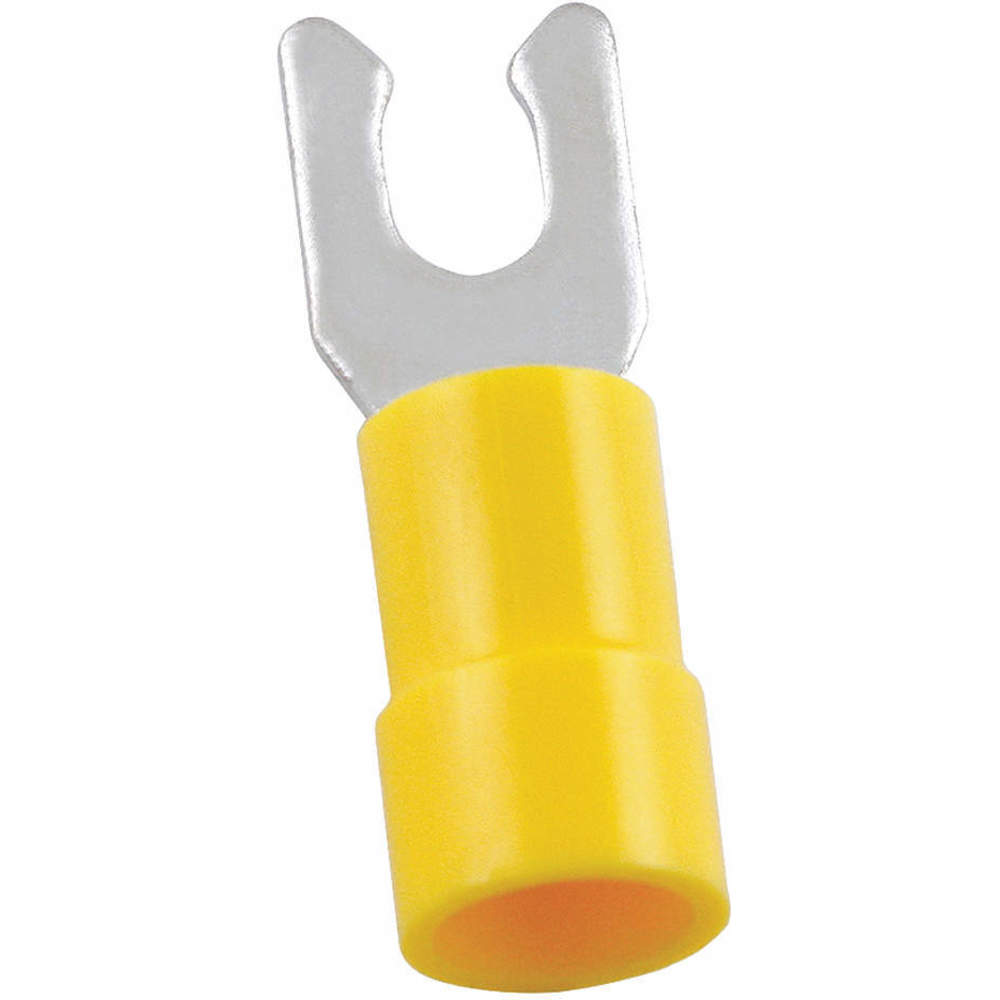

| E | 4FRD7 | Yellow | #10 | 12 AWG to 10 AWG | 0.354" | Yellow | 3/8" | 12 AWG | Vinyl | 50 | $47.57 | |

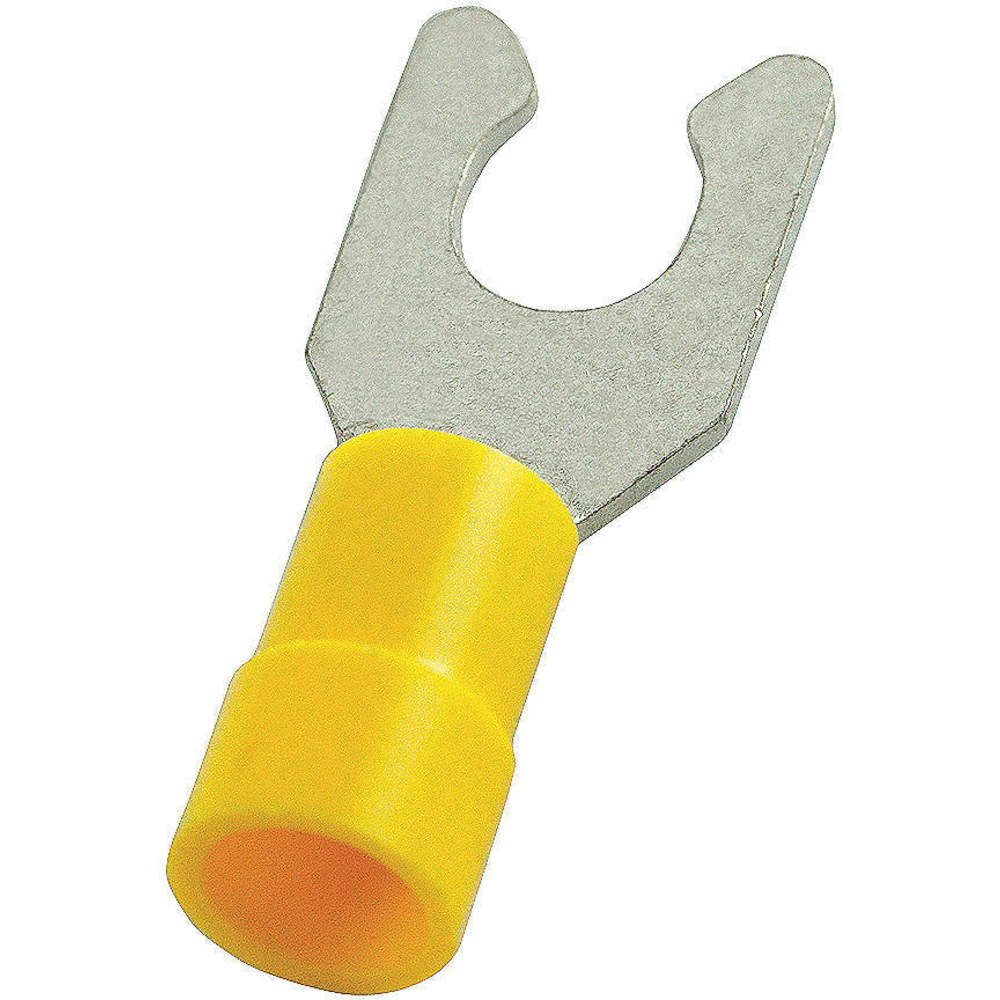

| F | 4FRD8 | Yellow | 1/4" | 12 AWG to 10 AWG | 0.472" | Yellow | 3/8" | 12 AWG | Vinyl | 50 | $71.06 | |

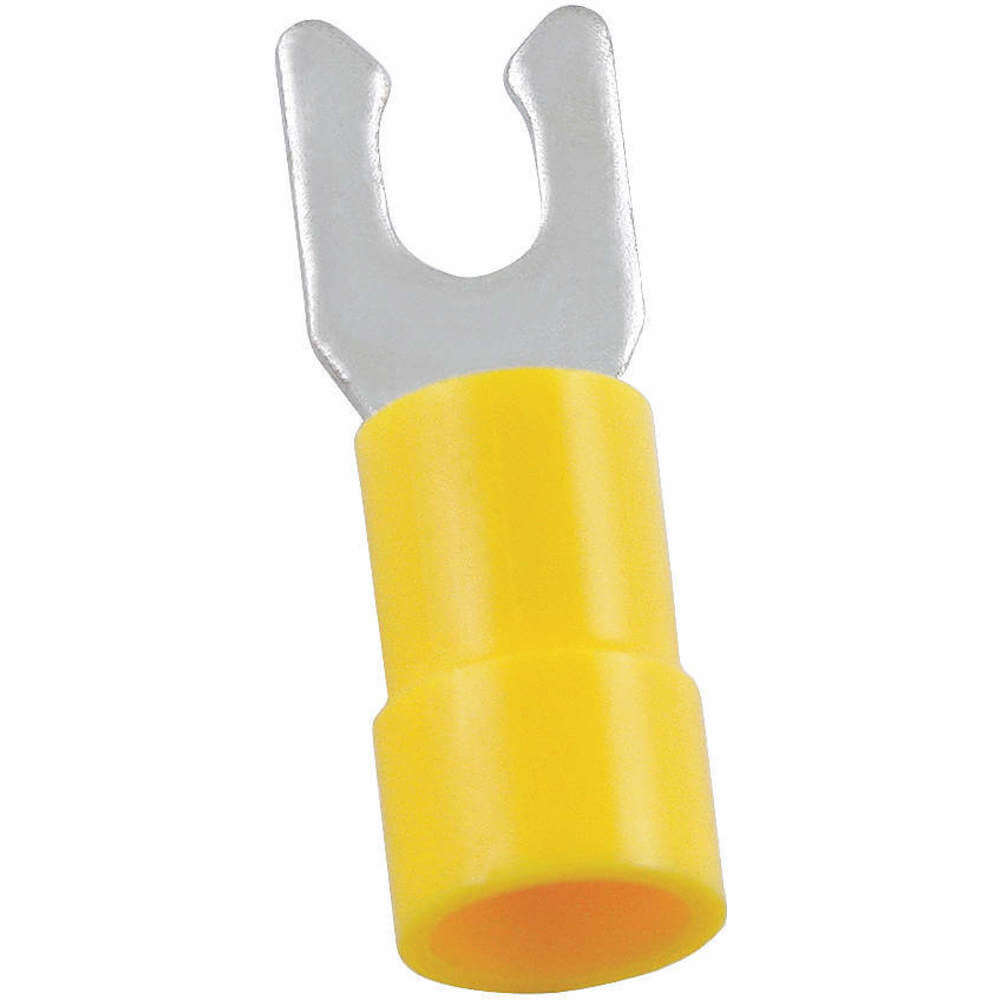

| G | 5UGN8 | Yellow | #6 | 12 AWG to 10 AWG | 0.327" | Yellow | 3/8" | 12 AWG | Vinyl | 50 | $48.43 |
