| Item | Solenoid Air Control Valve |
|---|---|
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. Range | 0°F to +125°F |
| Coefficient Of Volume | 11.3 |
| Electrical Connection | Plug In |
| Electrical Connection Type | Plug In |
| Flow Rate - Maximum | 4.8 CFM |
| For Media | Air |
| Includes Solenoid Coil | Yes |
| Inlet Port Connection Size | 1" |
| Lubrication | Lubrication Not Required |
| Nema Classification | NEMA 1, 12 |
| Nema Rating | Nema 1, Nema 12 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure - Maximum | 145 psi |
|---|---|
| Operating Pressure - Minimum | 35 psi |
| Operating Temperature - Maximum | 125°F |
| Operating Temperature - Minimum | 0°F |
| Overall Height | 8 3/4" |
| Overall Length | 10 15/32" |
| Overall Width | 4 9/32" |
| Override | Locking |
| Pilot Port Connection Size | 1" |
| Pipe Size | 1" |
| Pressure | 35 psi to 145 psi |
| Pressure Rating | 35 psi to 145 psi |
| Product Type | Solenoid Air Control Valve |
| Return Action | Spring Return |
| Series | VALVAIR Series |
| Voltage | 24V DC |
| Height (cm) | 7.62 |
|---|---|
| Length (cm) | 26.67 |
| Width (cm) | 16.91 |
| HS Code | 8481200060 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 4.41 |
| Style | Model | Voltage | Coefficient Of Volume | Overall Height | Overall Width | Overall Length | Pipe Size | Body Style | Pilot Port Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

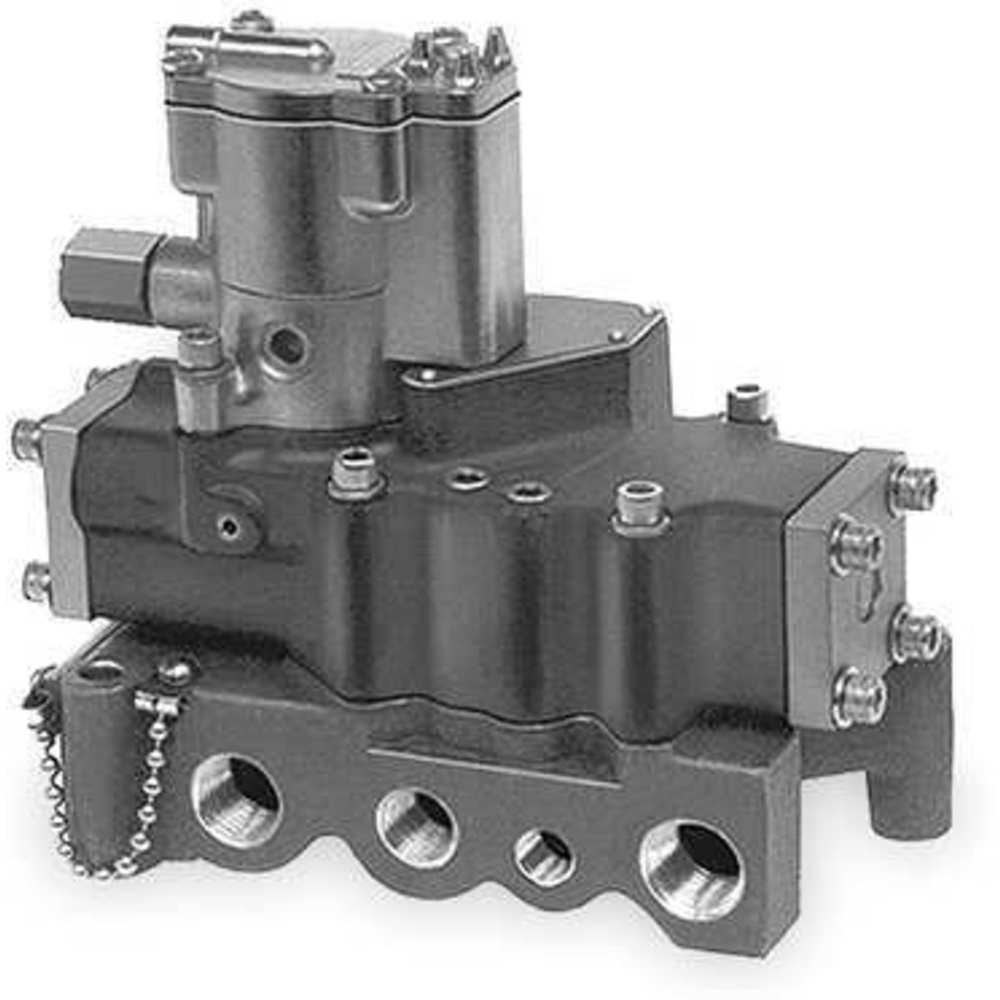

| A | L6753910253 | 120V AC | 5 | 6 15/16" | 2 27/32" | 7 9/16" | 3/8" | Body Ported, Inline | - | $1,151.47 | |

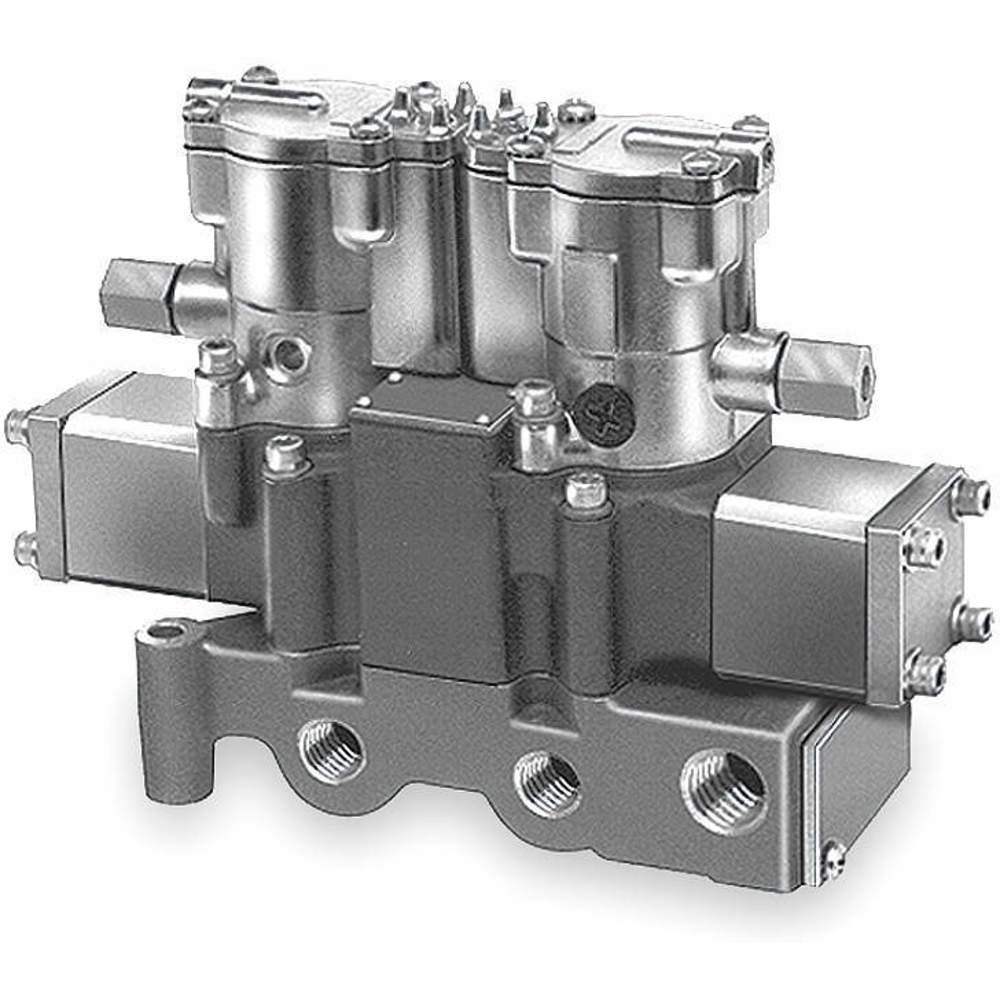

| B | L6553910253 | 120V AC | 5 | 6 15/16" | 2 27/32" | 7 3/8" | 3/8" | Body Ported, Inline | - | $1,647.77 | |
| B | L6553910249 | 24V DC | 5 | 6 15/16" | 2 27/32" | 7 3/8" | 3/8" | Body Ported | - | $1,636.13 | |
| A | L6753910249 | 24V DC | 5 | 6 15/16" | 2 27/32" | 7 9/16" | 3/8" | - | - | $1,112.56 | |
| A | L6758910253 | 120V AC | 11.3 | 8 3/4" | 4 9/32" | 10 15/32" | 1" | Body Ported, Inline | - | $2,079.96 | |
| B | L6558910253 | 120V AC | 11.3 | 8 3/4" | 4 9/32" | 9 1/2" | 1" | Body Ported, Inline | - | $2,308.84 | |
| B | L6558910249 | 24V DC | 11.3 | 8 3/4" | 4 9/32" | 9 1/2" | 1" | Body Ported | - | $2,346.49 |
