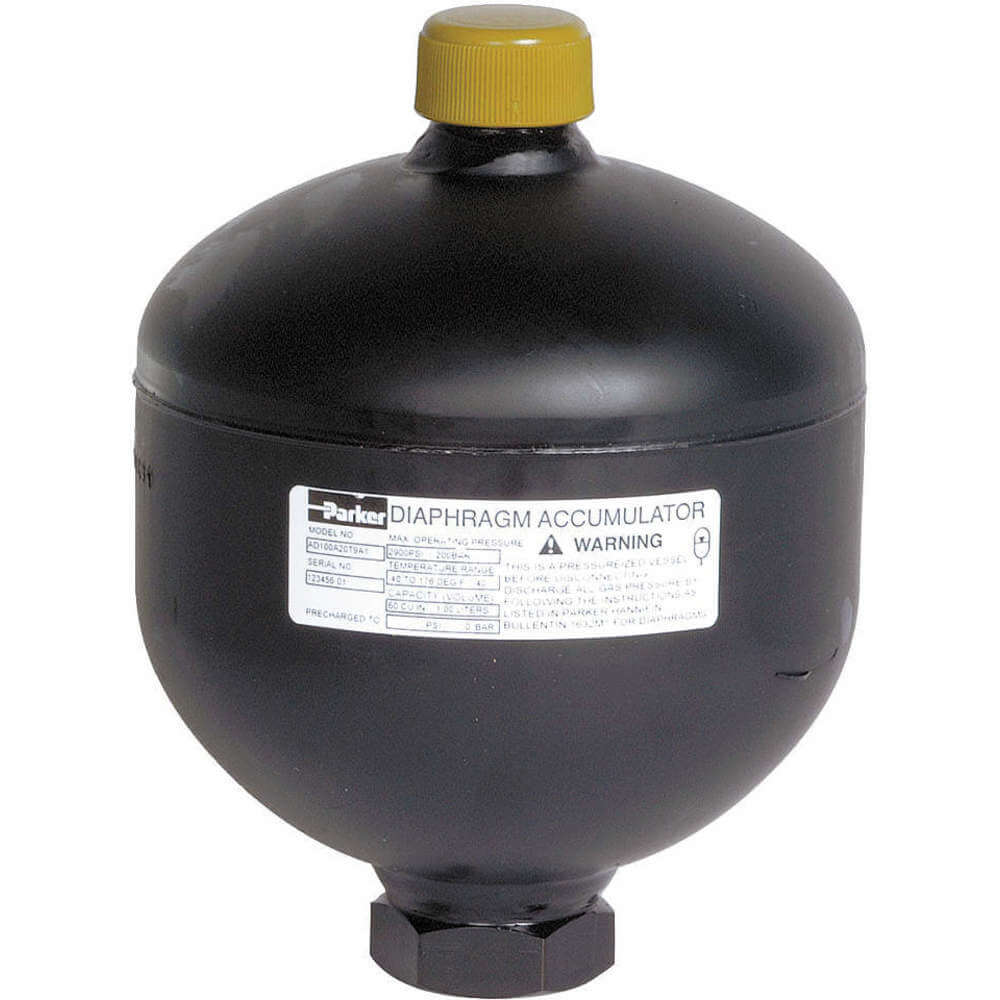

| Item | Diaphragm Accumulator |
|---|---|
| Construction | Steel |
| Diameter | 4.2" |
| Diaphragm Material - Accumulators | Hydrin |
| Fluid Volume | 30 cu. in. |
| Gas Volume (cu.-in.) | 30 cu. in. |
| Height | 5.87" |
| Hydraulic Fluid Port Dash Size | -8 |
| Inlet Port Thread Size | #8 |
| Max. Flow | 26 GPM |
| Max. Operating Pressure | 2300 psi |
|---|---|
| Mounting Orientation - Accumulators | Vertical |
| Mounting Position | Vertical |
| Operating Temp. Range | -40°F to +176°F |
| Overall Height | 5.94" |
| Pre-charged | No |
| Shell Material - Accumulators | Steel |
| Temp. Range | -40°F to +176°F |
| Vent Diameter | 30 cu. in. |
| Height (cm) | 39.88 |
|---|---|
| Length (cm) | 18.8 |
| Width (cm) | 18.54 |
| HS Code | 8479899899 |
|---|---|
| Country Of Origin | DE |
| Weight (kg) | 2.205 |
| Style | Model | Max. Operating Pressure | Max. Flow | Gas Volume (cu.-in.) | Height | Fluid Volume | Diameter | Mounting Position | Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | AD075B25T9A1 | 2600 psi | 26 GPM | 45 cu. in. | 6.54" | 45 cu. in. | 4.87" | Vertical | -40°F to +176°F | $815.91 | |
| A | AD016B25T9A1 | 3600 psi | 11 GPM | 10 cu. in. | 4 18/25" | 10 cu. in. | - | Vertical | -40°F to +176°F | $606.44 | |
| A | AD007B25T9A1 | 3600 psi | 11 GPM | 5 cu. in. | 4.37" | - | 2 13/25" | Vertical | -40°F to +176°F | $552.79 | |
| A | AD032B21T9A1 | 2300 psi | 26 GPM | 20 cu. in. | 5.35" | 20 cu. in. | 3.74" | Vertical | -40°F to +176°F | $651.26 |
