| Item | Union |
|---|---|
| Application | Air |
| Basic Material | Metal |
| Body Finish | Zinc Plated |
| Body Material | Steel |
| Compatible Fitting Brands | Seal Lok |
| Compatible Tube Hardness | 72 HRB |
| Compatible Tube Material | Alloy Steel, Copper, Monel Nickel Alloy, Stainless Steel, Steel |
| Compatible Tube Wall Thickness | 0.148" |
| Configuration Sub-type | Union Orfs, Orfs |
| Configuration Type | Straight |
| End 2 Type | Inch |
| Finish/coating | Zinc Nickel Plated |
| Fitting Material | Steel |
| Fitting Side A Connection Type | Male O Ring Face Seal |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Connection Type | Male O Ring Face Seal |
| Fitting Side B Tube Outer Diameter | 1/2" |
|---|---|
| Hex Size | 7/8" |
| Material | Steel |
| Max. Pressure | 9200 psi |
| Maximum Operating Pressure | 9200 psi |
| Maximum Operating Temperature | 500°F |
| Minimum Operating Temperature | 65°F |
| Overall Length | 1 13/32" |
| Resistance Properties | Vibration Resistant |
| Series | ORFS Series |
| Specific Fitting Shape | Straight Connector |
| System Of Measurement | Imperial |
| Temp. Range | -30°F to +250°F |
| Tube Fitting/adapter Type | ORFS, Seal Lok O Ring Face Seal |
| Tube Size | 1/2" |
| Standards | SAE J1453 |
| Height (cm) | 2.22 |
|---|---|
| Length (cm) | 3.57 |
| Width (cm) | 2.22 |
| HS Code | 7307199060 |
|---|---|
| Country Of Origin | IN |
| Weight (kg) | 0.063 |
| Style | Model | Material | Temp. Range | Tube Size | Connection Type | Fitting Material | Specific Fitting Shape | Overall Length | Max. Pressure | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 10SC10-B | - | -40°F to +400°F | - | - | Brass | Straight Connector | 2 1/16" | - | 1 | $81.10 | |
| A | 10-10 HBZ-B | - | -40°F to +400°F | - | - | Brass | Straight Connector | 2 1/16" | - | 1 | $79.43 | |

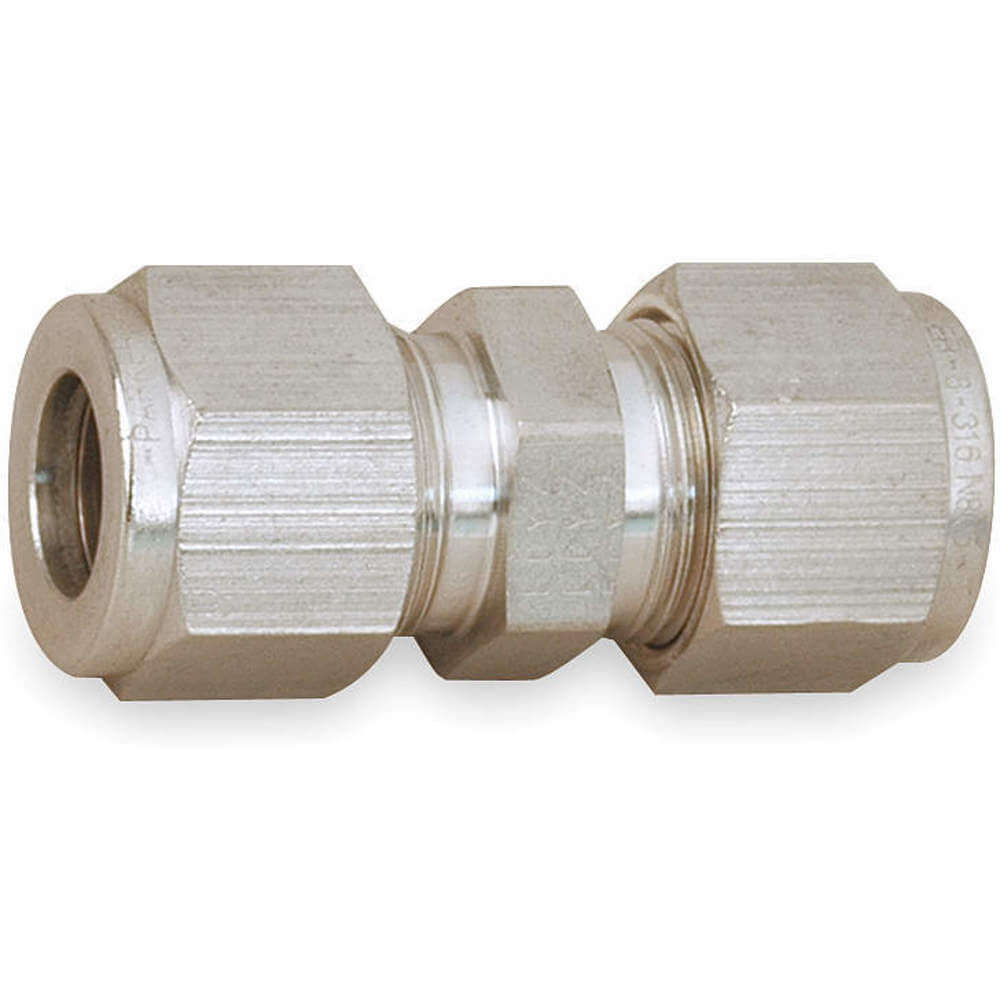

| B | 4SC4-S | - | -20°F to +800°F | 1/4" | Compression | Steel | Straight Connector | 1 5/8" | 8000 psi | 1 | $34.06 | |
| C | 4 HLO-S | Steel | -30°F to +250°F | - | - | Steel | Straight Connector | 1 3/32" | 9200 psi | 1 | $14.27 | |
| C | 6 HLO-S | Steel | -30°F to +250°F | 3/8" | - | Steel | Straight Connector | 1 7/32" | 9200 psi | 1 | $14.27 | |
| C | 12 HLO-S | Steel | -30°F to +250°F | 3/4" | - | Steel | Straight Connector | 1 27/32" | 6000 psi | 1 | $39.19 | |

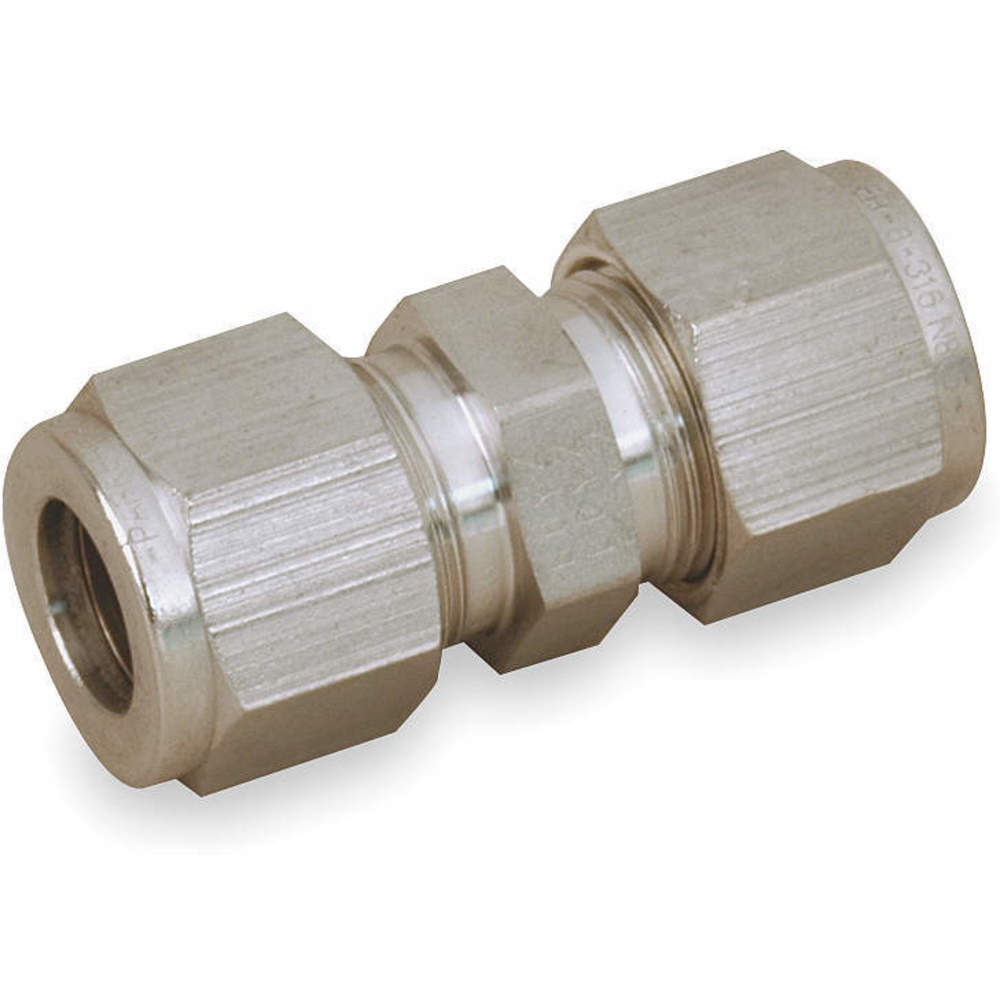

| D | 12SC12-316 | - | -425°F to +1200°F | - | - | Stainless Steel | Straight Connector | 2 1/8" | - | 1 | $203.16 |
