| Item | Cap |
|---|---|
| Application | Air, Flammable Liquid, Freon, Inert Gases, Non-Combustible Gases, Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Cap |
| Body Material | Brass |
| Compatible Tube Material | Aluminum, Brass, Copper, Steel |
| Configuration Sub-type | Cap |
| Configuration Type | Auxiliary |
| Connection Type | Flare |
| Fitting Connection Type | Flared |
| Fitting Material | Brass |
| Fitting Thread Size | 7/8"-14 |
| Fitting Tube Size Outer Diameter | 5/8" |
| Fitting Type | Flare |
| Flare Angle | 45° |
| Flare Thread Size | 7/8"-14 |
| Hex Size | 1 1/16" |
| Material | Brass |
|---|---|
| Max. Pressure | 650 psi |
| Maximum Operating Pressure | 2800 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | 65°F |
| Overall Length | 31/32" |
| Pressure Rating | 1400 psi |
| Sae Reference | SAE 010107 |
| Series | 45° FLARE Series |
| Specific Fitting Shape | Cap |
| Specific Pipe Fitting Shape | Cap |
| System Of Measurement | Inch |
| Temp. Range | -65°F to +250°F |
| Thread 1 Type | Fine |
| Tube Size | 5/8" |
| standard | SAE J512, SAE J513 |
| Height (cm) | 2.7 |
|---|---|
| Length (cm) | 2.46 |
| Width (cm) | 2.7 |
| HS Code | 7415338010 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.54 |
| Style | Model | Tube Size | Connection Type | Fitting Thread Size | Fitting Tube Size Outer Diameter | Hex Size | Overall Length | Pressure Rating | Flare Thread Size | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

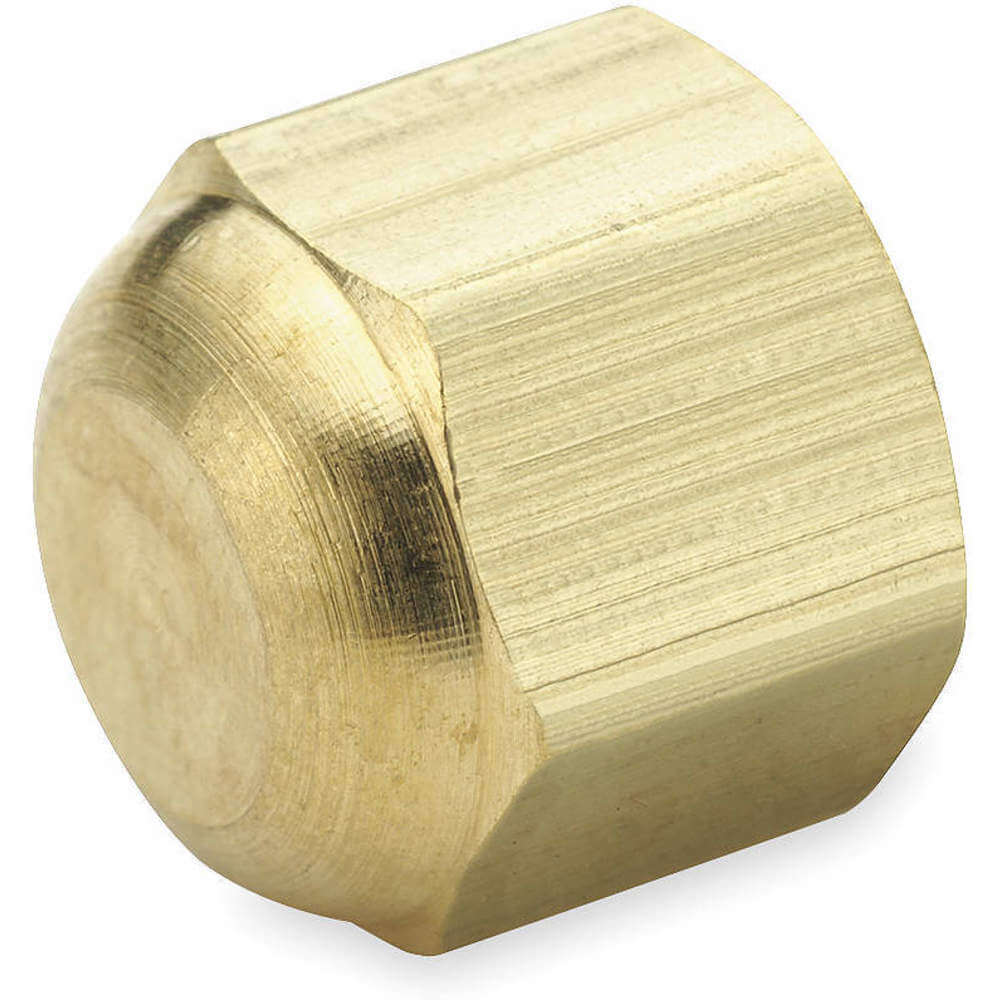

| A | 640F-4 | 1/4" | Flare | 7/16"-20 | 1/4" | 9/16" | 17/32" | 1200 psi | 7/16"-20 | 10 | $20.33 | |
| A | 640F-5 | 0.312" | Flare | 1/2"-20 | 5/16" | 5/8" | 5/8" | 1000 psi | 1/2"-20 | 10 | $37.43 | |
| B | 640F-8 | - | Flare | 3/4"-16 | 1/2" | 7/8" | 27/32" | 650 psi | 3/4"-16 | 10 | $57.76 | |
| B | 640F-6 | 3/8" | Flare | 5/8"-18 | 3/8" | 3/4" | 11/16" | 750 psi | 5/8"-18 | 10 | $32.86 | |

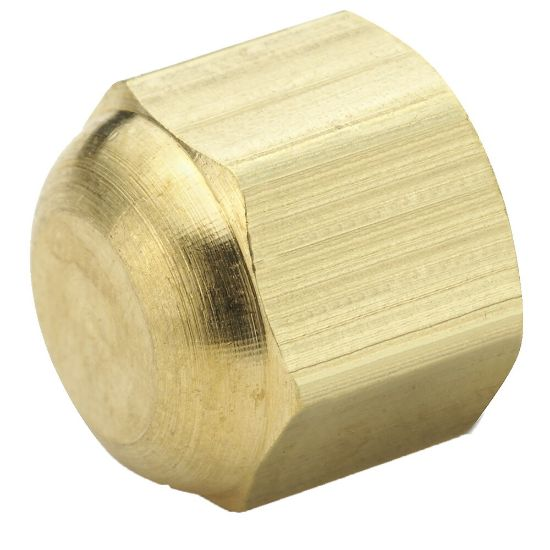

| C | 640F-3 | - | Flared | 3/8"-24 | 3/16" | 1/2" | 15/32" | 1400 psi | - | 10 | $57.77 |
