| Item | Air Regulator |
|---|---|
| Adjustment Knob | Nonrising |
| Adjustment Location | Top |
| Adjustment Mechanism | Knob |
| Adjustment Mechanism Material | Steel |
| Adjustment Range | 0 psi to 125 psi |
| Adjustment Range - Regulators | 0 psi to 125 psi |
| Air Inlet Gender | Female |
| Air Inlet Size | 1/4" |
| Air Outlet Gender | Female |
| Air Outlet Size | 1/4" |
| Air Outlet Type | NPT |
| Body Material | Zinc |
| For Fluid Type | Air |
| For Substance Type | Air |
| Includes | (2) Gauge Plugs And Face Gauge, Regulator |
| Max. Flow Rate | 53 CFM |
| Max. Pressure | 250 psi |
| Max. Temp. | 175°F |
| Maximum Operating Pressure | 125 psi |
| Maximum Regulated Pressure | 125 psi |
| Minimum Operating Pressure | 18 psig |
|---|---|
| Minimum Operating Temperature | 32°F |
| Minimum Regulated Pressure | 2 psi |
| Modular Connection | Modular Connection |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Overall Depth | 2 13/16" |
| Overall Height | 6" |
| Overall Length | 2.74" |
| Overall Width | 2 3/4" |
| Overall Width - Regulators | 2 21/25" |
| Pipe Size - Regulators | 1/4" |
| Pressure Gauge Included | Yes |
| Pressure Gauge Port Size | 1/4" |
| Pressure Gauge Port Type | NPT |
| Regulator Type | Relieving |
| Seal Material | Nitrile |
| Series | 06R Series |
| System Location | Air Line |
| Valve Design | Balanced |
| Height (cm) | 6.98 |
|---|---|
| Length (cm) | 7.14 |
| Width (cm) | 15.24 |
| HS Code | 8481100060 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.0575 |
| Style | Model | Body Material | Air Inlet Size | Max. Flow Rate | Overall Width | Air Outlet Size | Overall Depth | Overall Length | Pressure Gauge Included | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

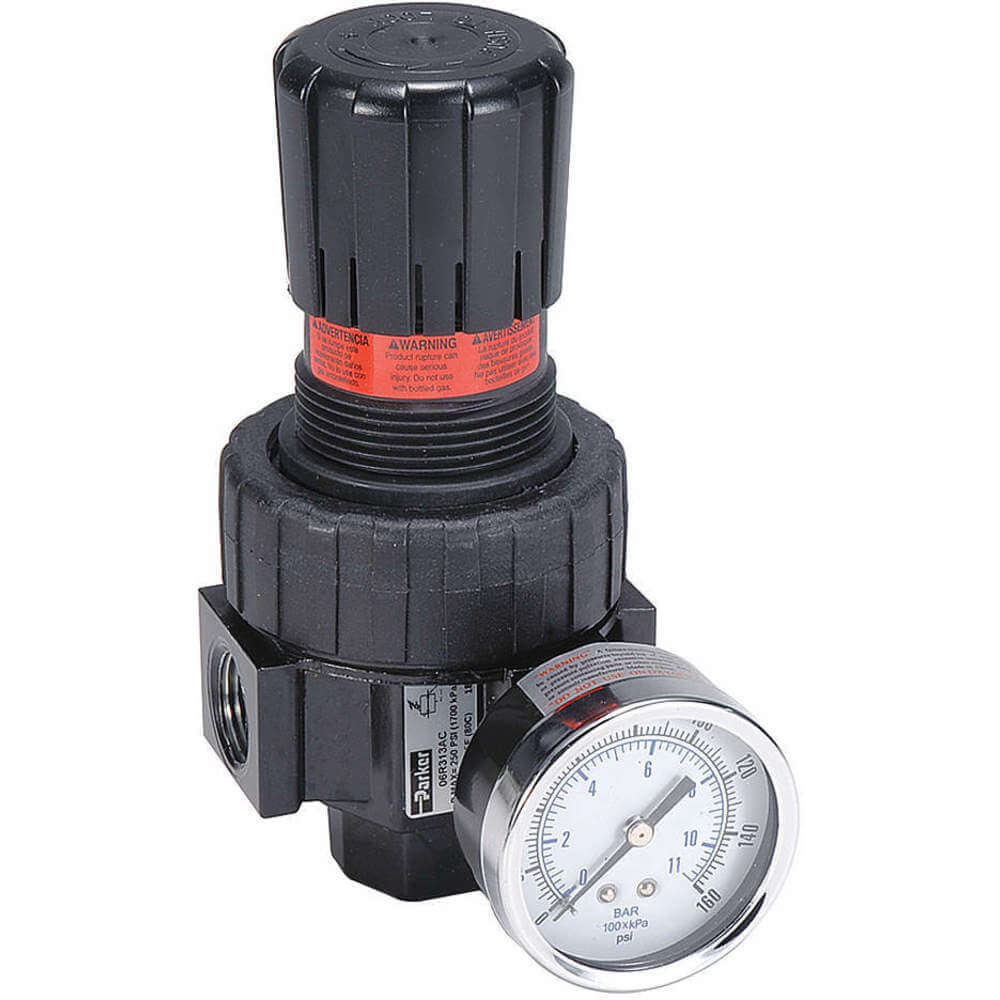

| A | 06R218AC | Zinc | 3/8" | 60 CFM | 2 3/4" | 3/8" | 2 13/16" | 2.74" | Yes | $223.90 | |

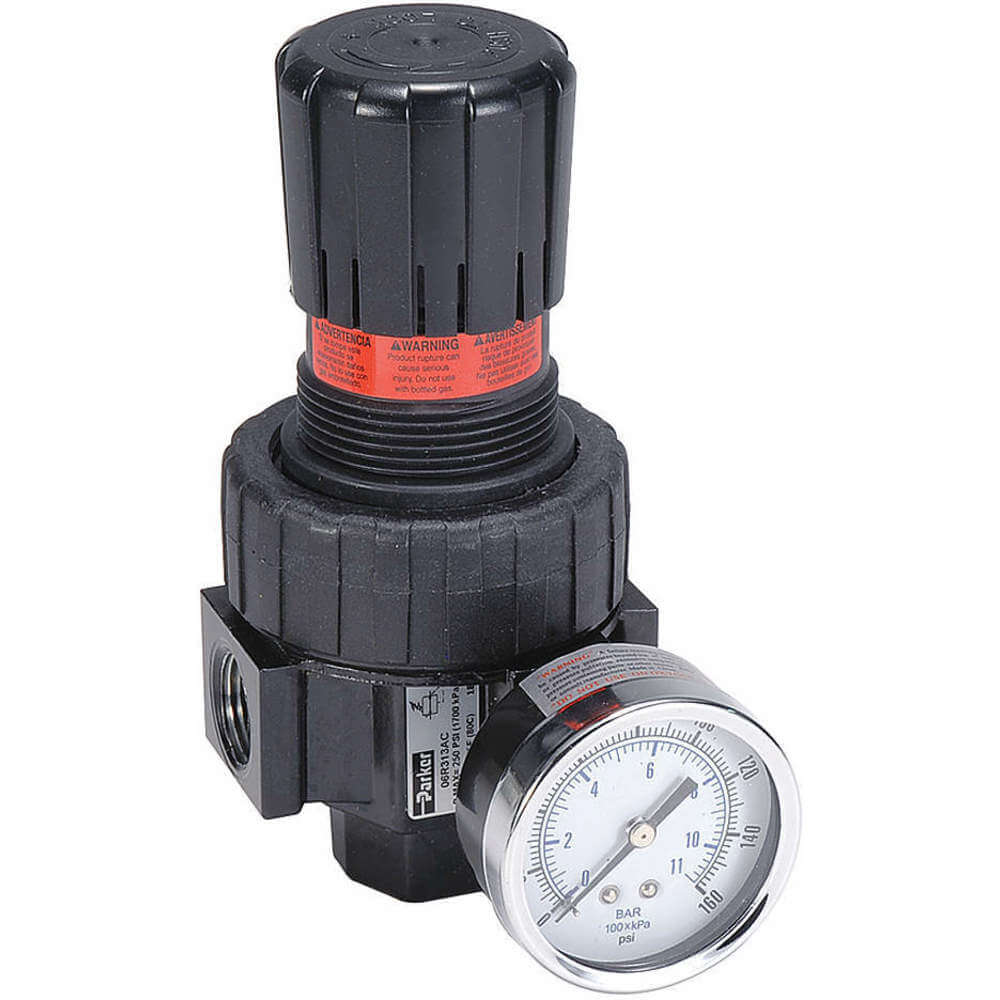

| B | 06R318AC | Zinc | 1/2" | 75 CFM | 2 3/4" | 1/2" | 2 13/16" | 2.74" | Yes | $219.77 | |
| B | 07R318AC | Zinc | 1/2" | 90 CFM | 2 3/4" | 1/2" | 3 1/4" | - | Yes | $316.70 | |

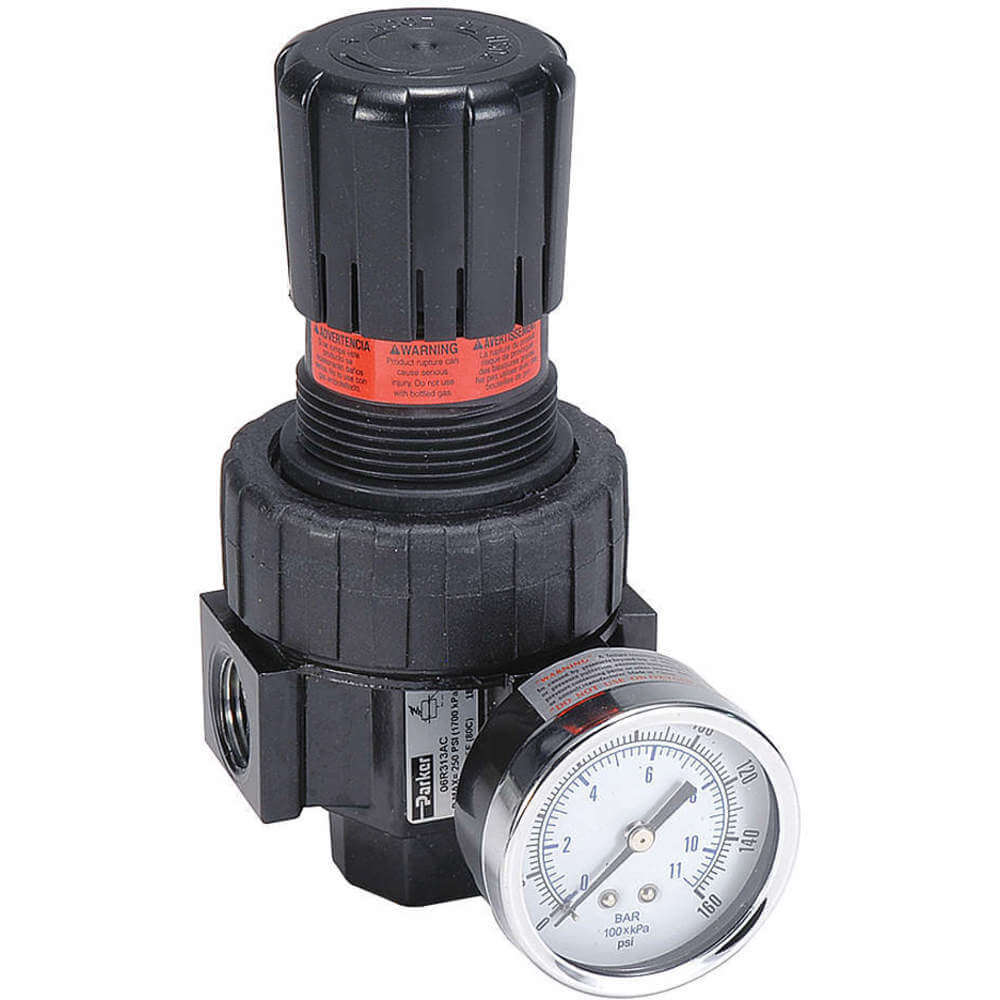

| C | 07R418AC | Zinc | 3/4" | 90 CFM | 2 3/4" | 3/4" | 3 1/4" | 3 1/4" | Yes | $317.60 | |

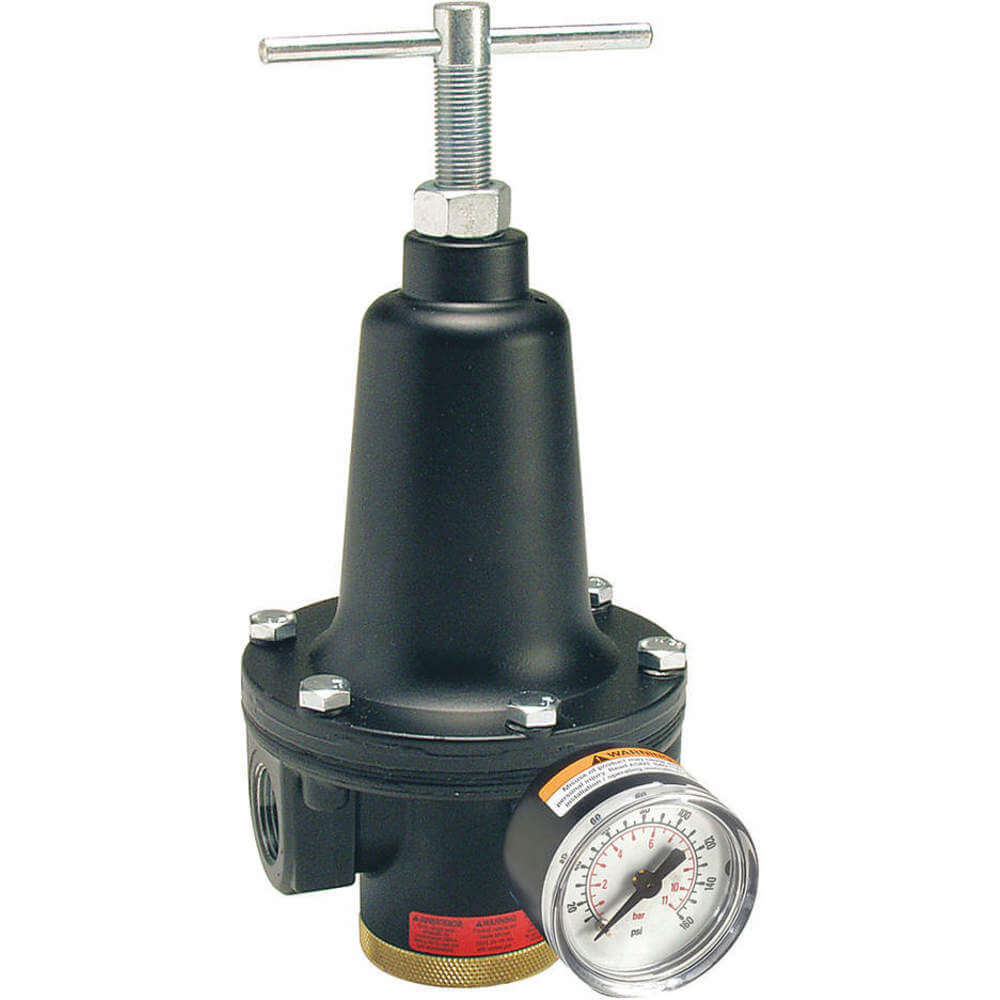

| D | R119-04CG | Zinc | 1/2" | 150 CFM | 3 9/16" | 1/2" | 3 9/16" | 3 14/25" | Yes | $338.43 | |
| D | R119-06CG/M2 | Zinc | 3/4" | 300 CFM | 4 3/8" | 3/4" | 4 11/16" | 4.69" | Yes | $506.33 | |
| D | R119-08CG/M2 | Zinc | 1" | 400 CFM | 4 15/16" | 1" | 4 11/16" | 4.69" | Yes | $512.00 |
