| Item | Defrost Timer Control |
|---|---|
| Amps | 40A |
| Applicable Ac Voltage Ranges | 120V AC |
| Contact Hp @ 120v | 2 hp |
| Current Rating | 40A |
| Day Skipper | No |
| Defrost Cycle Time - Maximum | 27 min. |
| Defrost Time - Minimum | 1 min. |
| Depth | 3 4/5" |
| Display Qty | 1 |
| Enclosure Material | Metal |
| Enclosure Type | Indoor |
| Finish | Metal Enclosure Has Gray Enamel |
| Horsepower @ 120v - Maximum | 2 hp |
| Housing Material Type | Metallic |
| Initiation | Time |
|---|---|
| Length | 7.7" |
| Max. On/off Cycles | 12 |
| Max. Time Setting | 27.5 min. |
| Min. Time Setting | 1 min. |
| Nema Enclosure Rating | 1 |
| No. Of Contact Form | 3 , NO/NC |
| Number Of Poles | 2 |
| Number Of Trippers Included | 2 |
| Series | 8000 Series |
| Termination | Time |
| Termination Type | Time |
| Timer Switch Type | Mechanical |
| Width | 4 2/5" |
| Height (cm) | 12.19 |
|---|---|
| Length (cm) | 22.61 |
| Width (cm) | 12.7 |
| HS Code | 9107008000 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.765 |
| Style | Model | Enclosure Material | Contact Form | Contact Type | Defrost Time | Amps | Defrost Initiation | Time | Day Skipper | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 8041-00 | Steel | Spdt-No, 2Nc | - | - | 40A | - | - | - | $272.33 | |
| A | 8047-00 | Steel | 2NO/1NC | - | - | 40A | - | - | - | $286.54 | |
| A | 8143-00 | Steel | 2NO/1NC | - | - | 40A | - | - | - | $277.06 | |
| A | 8041-20 | Steel | Spdt-No, 2Nc | - | - | 40A | - | - | - | $278.91 | |
| A | 8141-20 | Steel | Spdt-No, 2Nc | - | - | 40A | - | - | - | $278.63 | |
| A | 8143-20 | Steel | 2NO/1NC | - | - | 40A | - | - | - | $272.33 | |

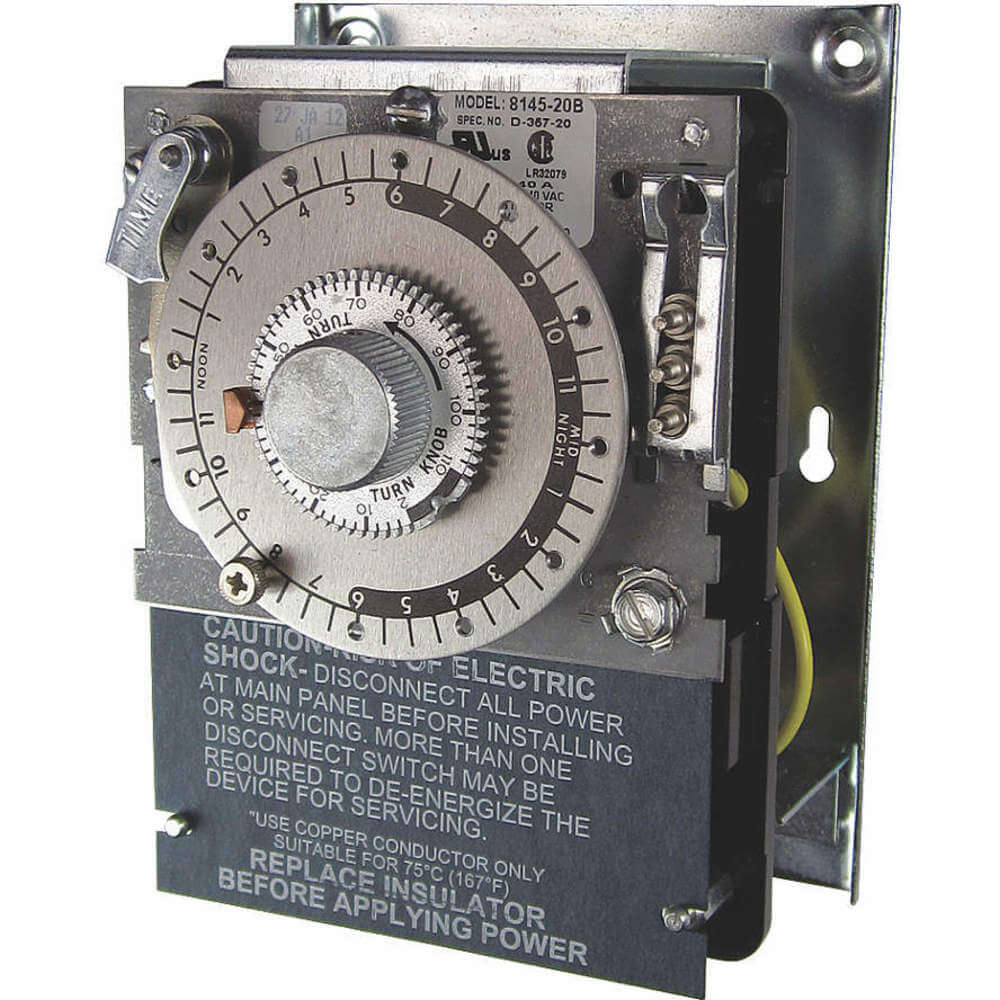

| B | 8145-20B | Steel | Spdt-No, Nc | SPDT | - | 40A | - | - | - | $226.40 |
