| Item | Ferrule |
|---|---|
| Barrel Diameter | 0.17" |
| Barrel Finish | Tin Plated |
| Barrel Length | 0.27" |
| Barrel Material | Copper |
| Base Material | Copper |
| Color | Blue |
| Color Code | Blue |
| Compatible Grainger Part No. | 376U38, 376U39, 377M39, 38YU65, 38YU66, 38YU67 |
| Compatible Manufacturer Model No. | CP-991, CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH), CTFP-25, CTFP-40 |
| Compatible Mfr. Model No. | CP-991, CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH), CTFP-25, CTFP-40 |
| Compatible With Product Type | Terminal Block |
| Compatible With Series | CT Series |
| Connection Material | Tinned |
| Contact Finish | Tin |
| Contact Material | Copper |
| Cover Material | Polypropylene |
| Ferrule Diameter | 0.1" |
| Ferrule Material | Copper |
| Ferrule Type | Single Wire Standard |
| For Wire Size | 14 AWG |
| Insertion Length | 7/8" |
| Insulation Color | Blue |
| Insulation Coverage | Partially Insulated |
| Insulation Material | Polypropylene |
| Insulation Type | Self Insulated |
| Max. Temp. | 221°F |
| Maximum Conductors | 1 |
| Maximum Wire Size | 14 AWG |
| Min. Wire Size | 14 AWG |
| Overall Length | 0.98" |
| Product Color | Blue |
|---|---|
| Product Material | Polypropylene |
| Special Features | Funnel Entry, Seamless Barrel, Suitable For Limited Space Applications, Type Fsd |
| Strip Length | 7/8" |
| Termination Type | Crimp |
| Wire Range | 14 AWG |
| Wire Size | 14 AWG |
| Barrel Dia. | 0.17" |
| Connection Material | Tin |
| Copper Conductor Size | #14 AWG |
| Ferrule Dia. | 0.1" |
| Finish | Tin Plated |
| Flammability Rating | UL94-HB |
| For Use With | CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH) |
| Height | 43.18 mm |
| Inside Dia. | 0.09" |
| Insulation Coverage | Partially"sulated |
| Insulation Type | Self-Insulated |
| Length | 0.7" |
| Material | Copper |
| Max. Conductors | 1 |
| Max. Metric Conductor Size | 2.5 sq. mm |
| Max. Wire Insulation Dia. | 4.2 mm |
| Packaging Type | Bag |
| Pin Length | 18 mm |
| Standards | CSA C22.2 NO. 291-14, DIN 46228 PART 4 |
| Temp. Rating | 105°C |
| Width | 96.52 mm |
| Wire Size Range | 14 AWG to 14 AWG |
| Wire Strip Length | 22.2 mm |
| Height (cm) | 3.05 |
|---|---|
| Length (cm) | 1.75 |
| Width (cm) | 8.13 |
| Country Of Origin | DE |
|---|---|
| Weight (kg) | 0.126 |
| Style | Model | Wire Range | Strip Length | Wire Size | Max. Temp. | Maximum Conductors | Ferrule Diameter | Insulation Type | Insertion Length | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

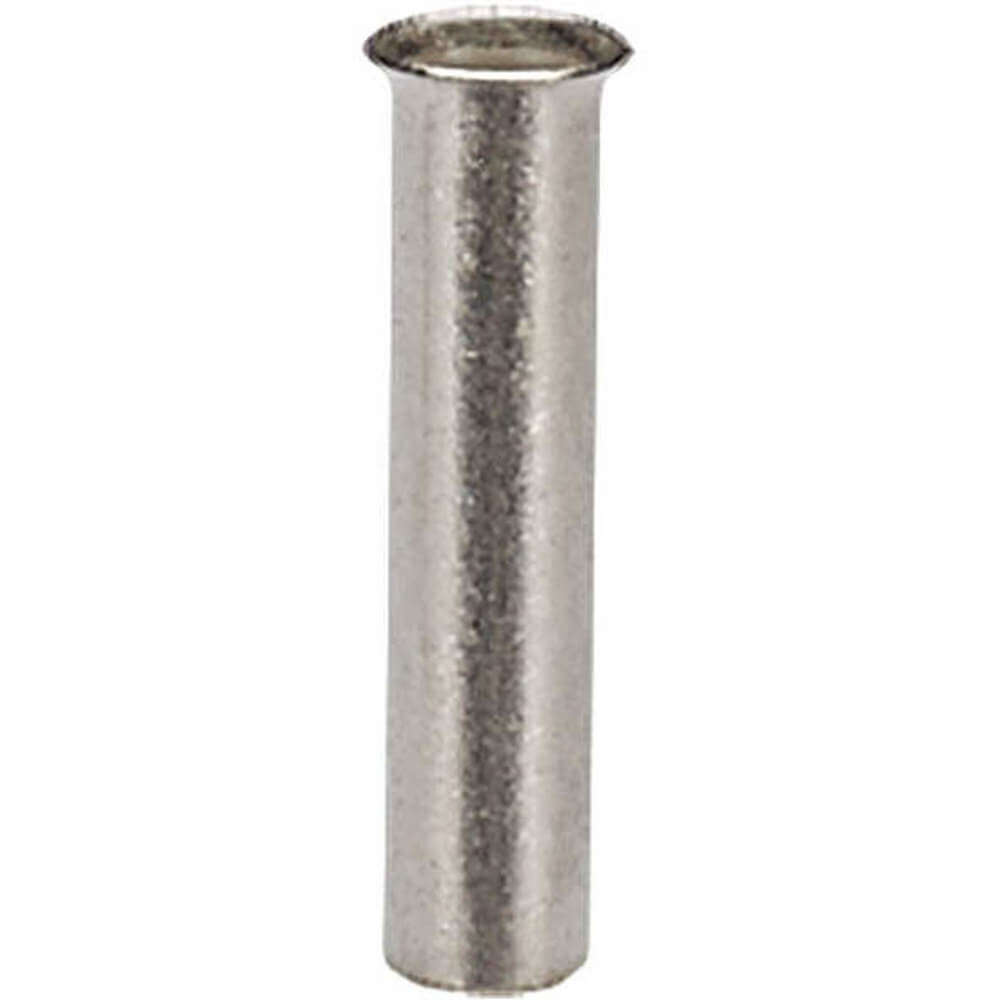

| A | F78-10-M | 16 AWG | 13/32" | 16 AWG | 302°F | 1 | 2/25" | Non Insulated | 13/32" | 1000 | $171.31 | |

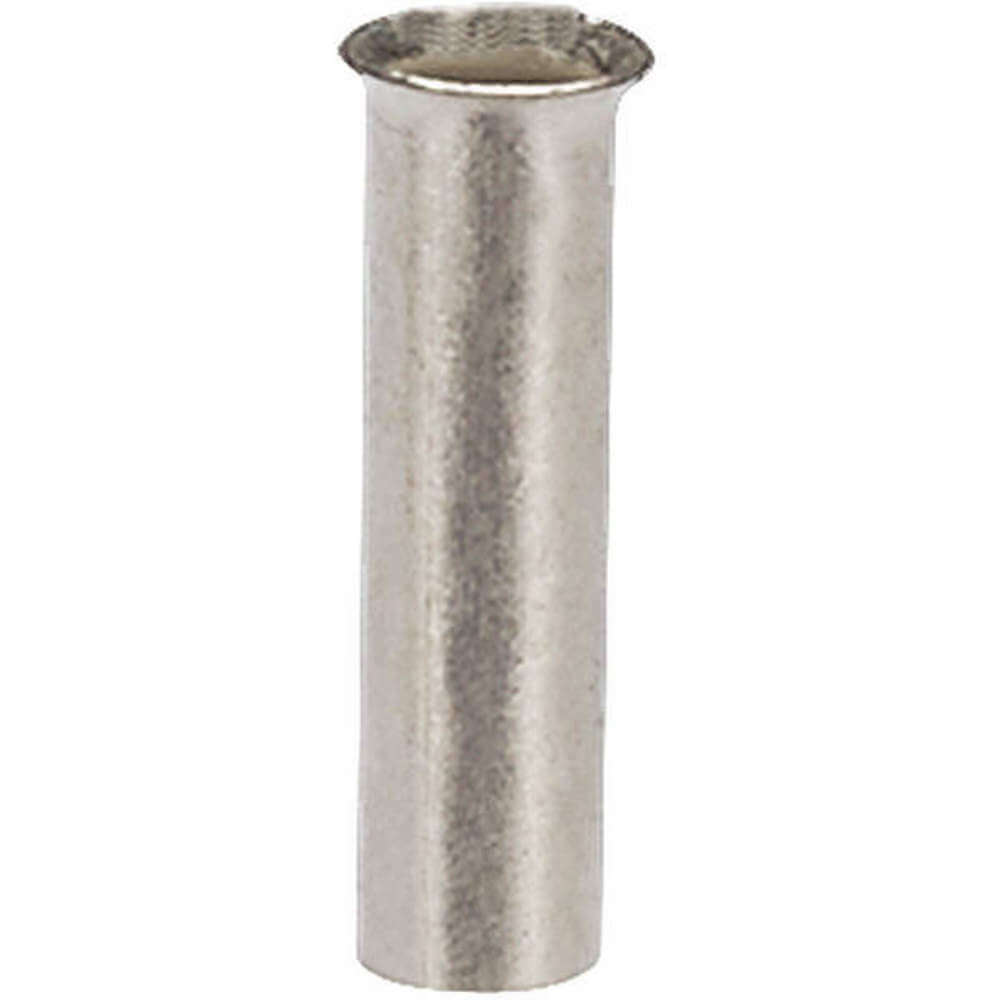

| B | F80-10-M | 14 AWG | 13/32" | 14 AWG | 302°F | 1 | 0.1" | Non Insulated | 13/32" | 1000 | $186.26 | |

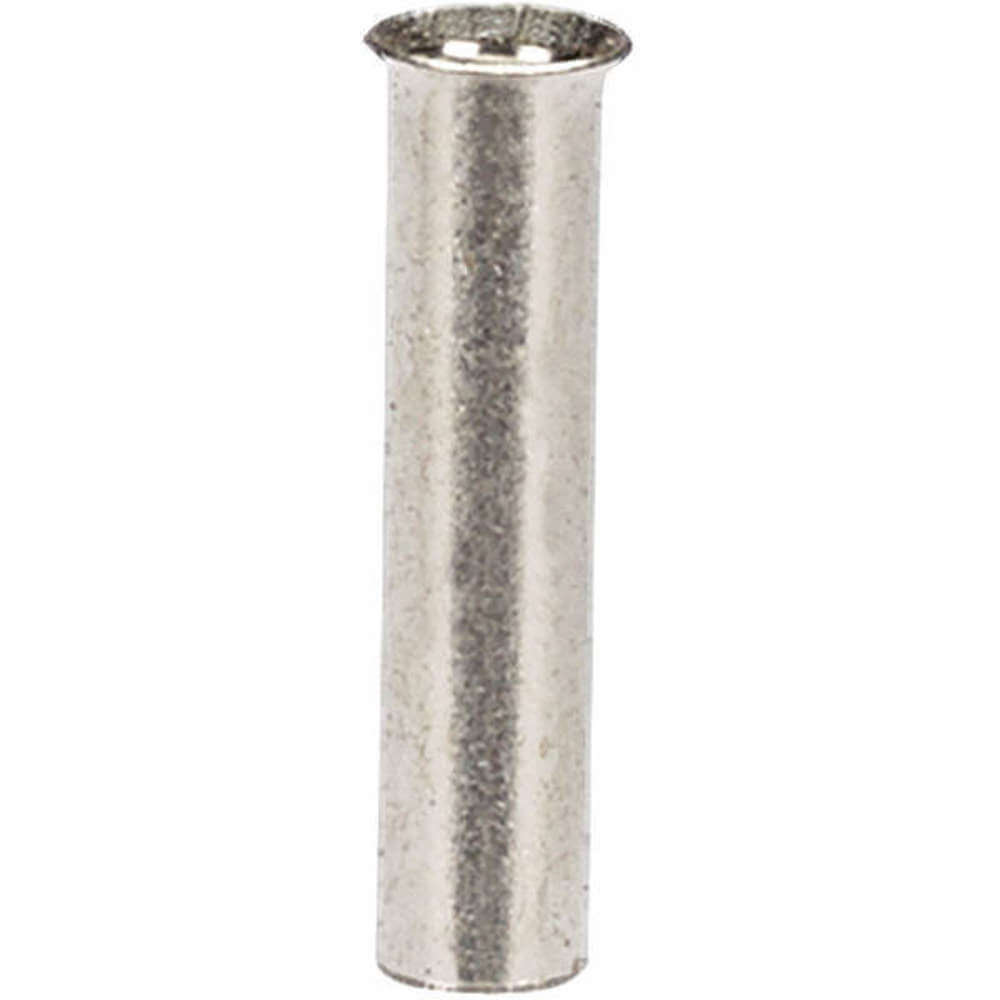

| C | F80-12-M | 14 AWG | 15/32" | 14 AWG | 302°F | 1 | 0.1" | Non Insulated | 15/32" | 1000 | $205.09 | |
| D | F82-12-M | 10 AWG | 15/32" | 10 AWG | 302°F | 1 | 0.15" | Non Insulated | 15/32" | 1000 | $264.01 | |
| E | F82-15-M | 10 AWG | 19/32" | 10 AWG | 302°F | 1 | 0.15" | Non Insulated | 19/32" | 1000 | $460.11 | |
| F | F83-12-D | 8 AWG | 15/32" | 8 AWG | 302°F | 1 | 0.19" | Non Insulated | 15/32" | 500 | $200.24 | |
| G | F83-15-D | 8 AWG | 19/32" | 8 AWG | 302°F | 1 | 0.19" | Non Insulated | 19/32" | 500 | $246.44 |
