| Item | Machine Vise |
|---|---|
| Base | Slotted |
| Base Material | Steel |
| Base Type | Fixed |
| Bed/base | Ground |
| Clamping Force | 7960 lbs. |
| Compatible Machinery | CNC Milling Machine |
| Features | 80, 000 psi Stress Relieved Ductile Iron Castings, Hardened Jaw Plates, Hardened Vise Bed, Palmgren'S Anti-Lift Mechanism, Repeatability Within 0.001 In, Vise Nut Does Not Extend Beyond The End Of The Vise Body |
| Jaw Deflection | 0.003" |
| Jaw Deflection - Maximum | 0.001" |
| Jaw Face Type | Smooth |
| Jaw Face Width | 8" |
| Jaw Material | Steel |
| Jaw Opening | 10 7/16" |
| Jaw Plate | Smooth |
| Jaw Width | 8" |
|---|---|
| Lead Screw Type | ACME |
| Machine Vise Type | Precision |
| Max Bed/base Parallel Tolerance | 0.0004" |
| Max Jaw Opening | 10" |
| Max. Clamping Force | 7960 lbf. |
| Maximum Clamping Force | 7960 lbf. |
| Mounting Slot Length | 1" |
| Mounting Slot/keyway Width | 5/8" |
| Mounting Type | Keyway |
| Overall Height | 8" |
| Overall Length | 26" |
| Overall Width | 12 3/5" |
| Throat Depth | 2 13/64" |
| Type | Dual Force |
| Height (cm) | 20.32 |
|---|---|
| Length (cm) | 66.04 |
| Width (cm) | 32 |
| Country Of Origin | TW |
|---|---|
| Weight (kg) | 67.95 |
| Style | Model | Jaw Width | Jaw Opening | Throat Depth | Overall Length | Overall Height | Base | Type | Clamping Force | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

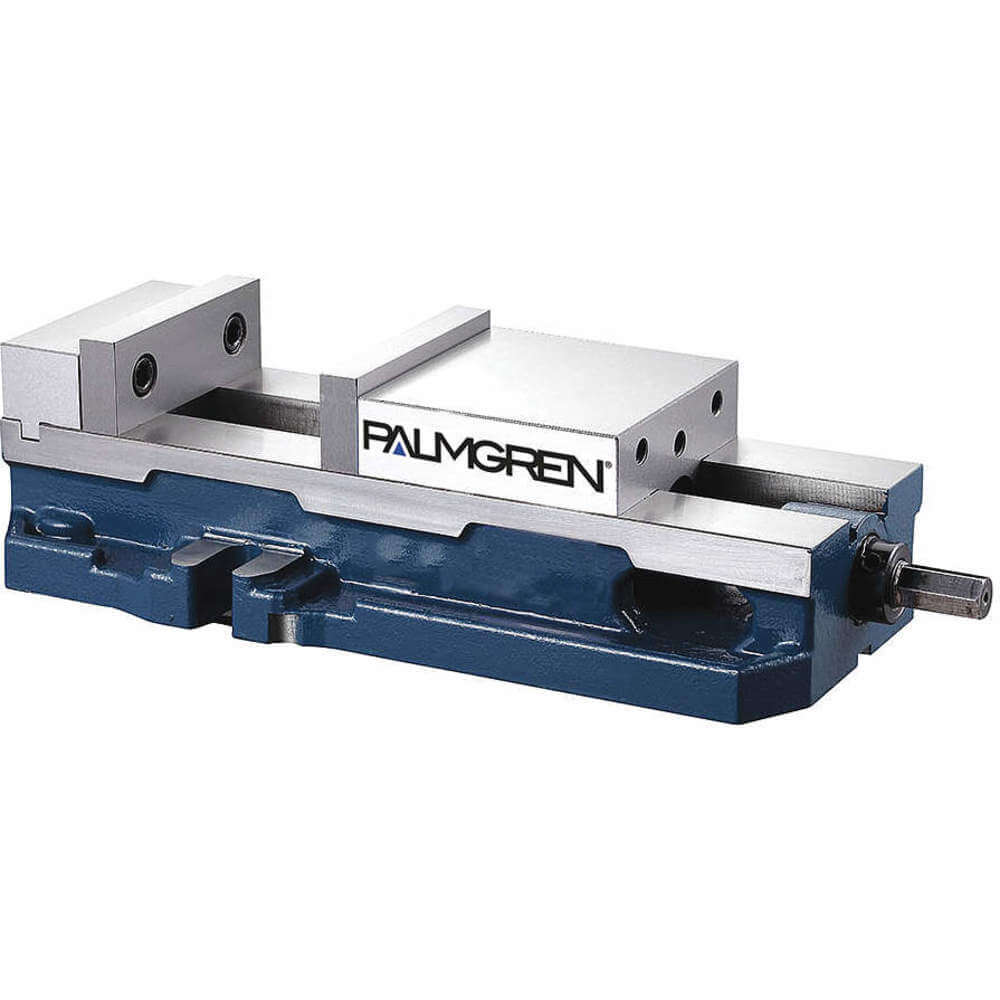

| A | 9625927 | 4" | 6 1/64" | 1 3/8" | 15" | 6" | Slotted | Dual Force | 7960 lbs. | $1,194.27 | |
| B | 9625929 | 6" | 8 63/64" | 1 3/4" | 22" | 6.3" | Slotted | Dual Force | 7960 lbs. | $1,218.27 | |

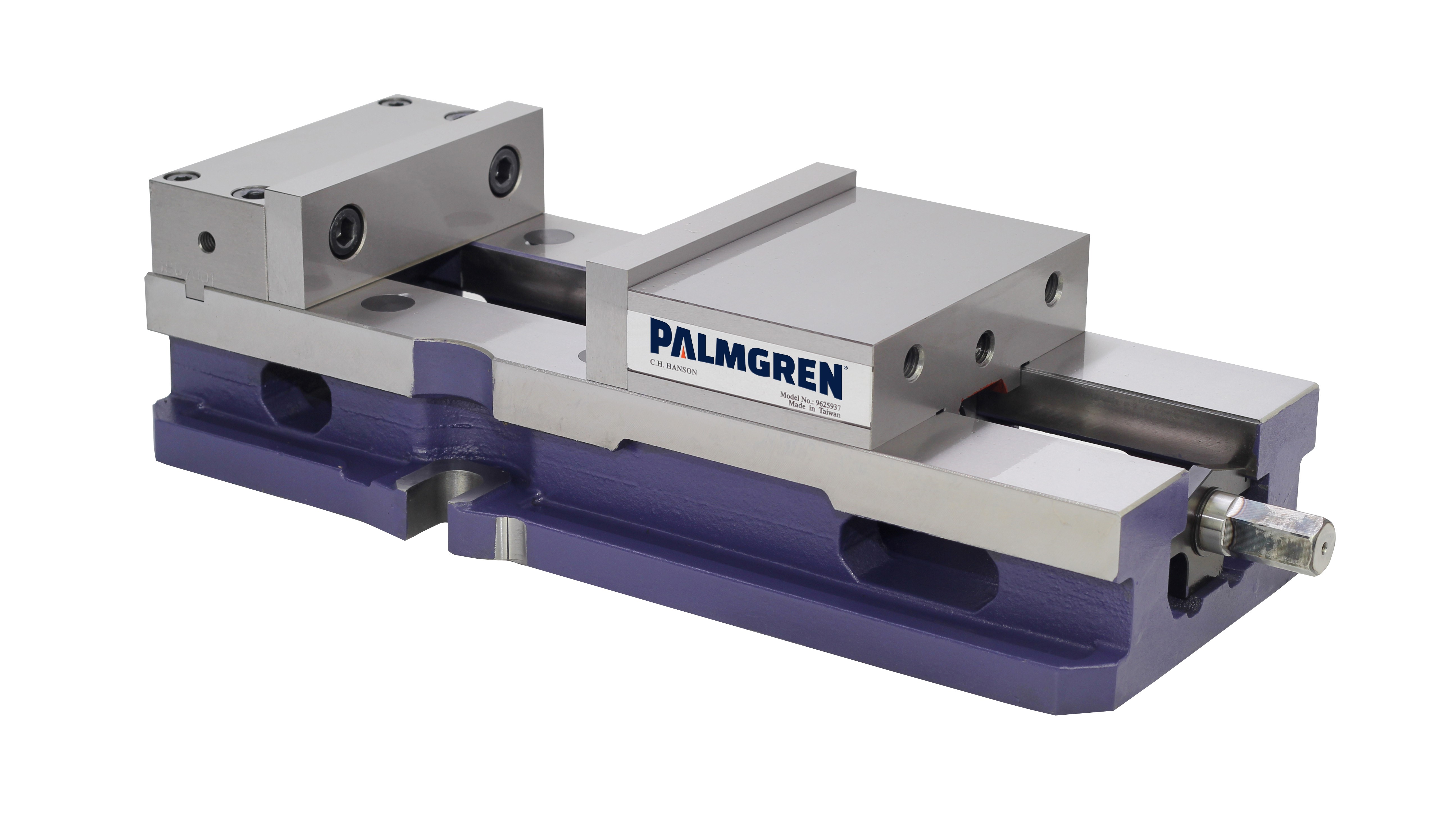

| C | 9625937 | 6" | 9" | 1 47/64" | 18.25" | 4.5938" | Stationary | - | - | $1,544.58 |
