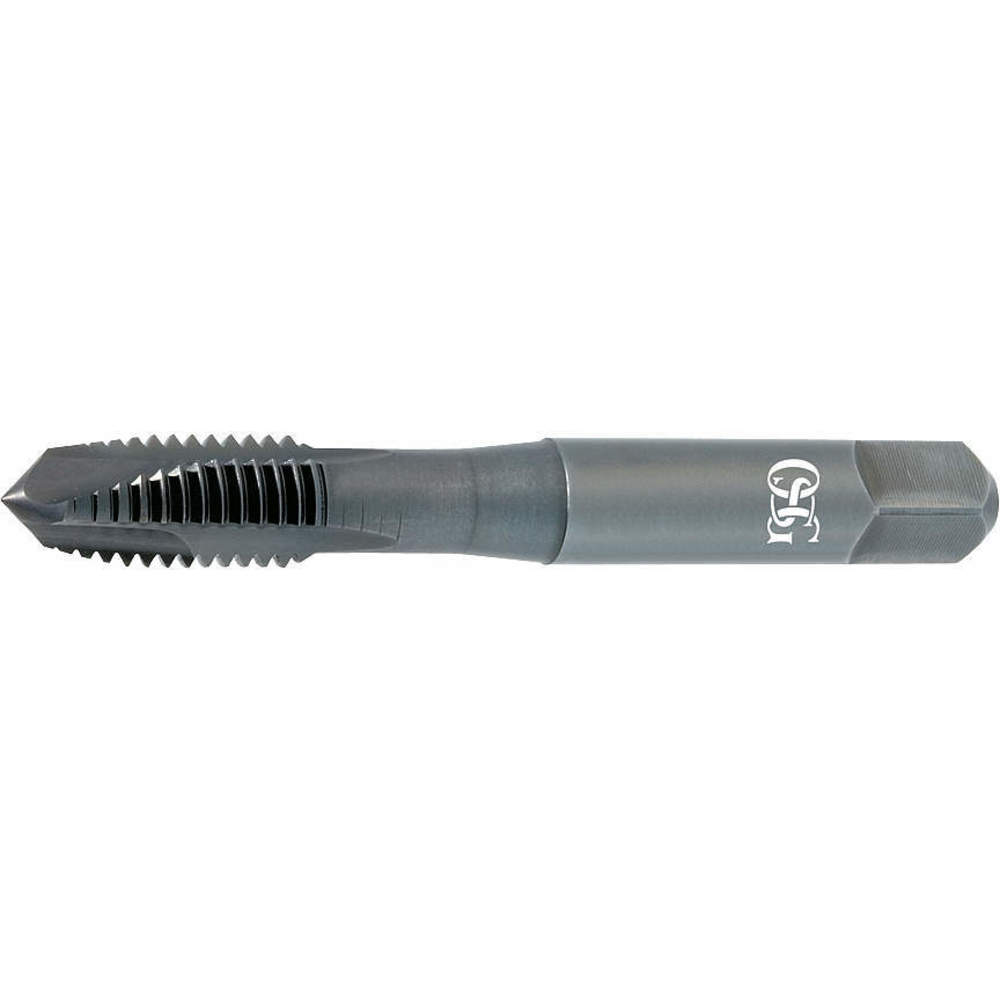

| Item | Spiral Point Tap |
|---|---|
| Finish | TiCN |
| List Number | 344NI |
| Material | VC-10 |
| Number Of Flutes | 3 |
| Overall Length | 46mm |
| Pitch | 0.45mm |
| Pitch Diameter Limits | D3 |
|---|---|
| Shank Dia. | 3.58mm |
| Size | M2.5 |
| Tap Style | Plug |
| Thread Direction | Right Hand |
| Thread Length | 13mm |
| Thread Type | Metric Coarse |
| Height (cm) | 0.76 |
|---|---|
| Length (cm) | 6.35 |
| Width (cm) | 0.76 |
| HS Code | 8207400000 |
|---|---|
| Weight (kg) | 0.0045 |
| Style | Model | Number Of Flutes | Overall Length | Thread Length | Thread Size | Tap Finish | 75% Thread Drill Size | Thread Limit | Thread Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1115710001 | 3 | 45 mm | 12 mm | M2.5 x 0.45 | Black Oxide | #46 | D3 | Metric Coarse | $96.26 | |
| A | 1115710108 | 3 | 49 mm | 16 mm | M3 x 0.5 | TiCN | 2.5 mm | D3 | Metric Coarse | $83.59 | |
| A | 1115710208 | 3 | 54 mm | 19 mm | M4 x 0.7 | TiCN | 3.3 mm | D4 | Metric Coarse | $70.06 | |
| A | 1115710308 | 3 | 60 mm | 22 mm | M5 X 0.8 | TiCN | 4.2 mm | D4 | Metric Coarse | $71.84 | |
| A | 1115710408 | 3 | 63 mm | 25 mm | M6 x 1 | TiCN | 5 mm | D5 | Metric Coarse | $90.96 | |
| A | 1115710508 | 3 | 69 mm | 15 mm | M8 x 1.25 | TiCN | H | D5 | Metric Coarse | $99.63 | |
| A | 1115710608 | 3 | 74 mm | 18 mm | M10 x 1.25 | TiCN | 0.3438" | D5 | Metric Fine | $143.74 |
