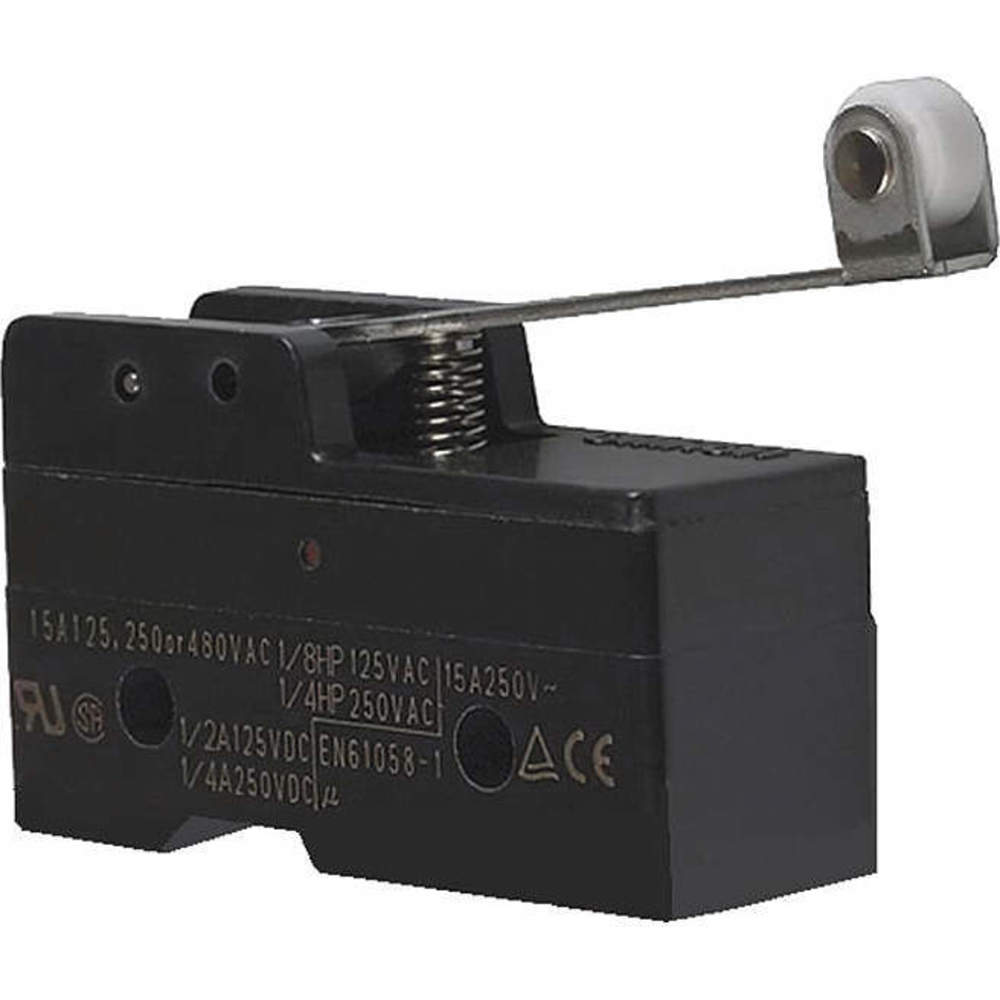

| Item | Snap Switch |
|---|---|
| Ac Contact Rating | 15A @ 250V |
| Actuation Type | Hinge Roller Lever |
| Actuator Length | 1.05" |
| Actuator Style | Hinge Roller Lever |
| Actuator Type - Snap Action Switch | Hinge Roller, Lever |
| Amps Rating | 15A |
| Body Depth | 0.69" |
| Body Height | 0.69" |
| Body Material | Phenolic |
| Body Width | 1.94" |
| Center Mounting Hole Distance | 1" |
| Dc Contact Rating | 15A @ 14V |
| Depth | 0.69" |
| Depth - Snap Action Switch | 0.69" |
| Differential Travel | 1/25" |
| Differential Travel - Maximum | 0.0402" |
| Display Qty | 1 |
| Electrical Connection | Solder |
| Electrical Connection - Snap Action Switch | Solder Lug |
| Height | 1.05" |
| Height - Snap Action Switch | 1.05" |
| Length | 1.94" |
| Lever Actuator Length | 1.05" |
| Lever Actuator Length - Snap Action Switch | 1.05" |
| Max. Operating Force | 0.98N |
| Max. Pretravel | 7.1 mm |
|---|---|
| Maximum Operating Force | 0.98N |
| Mounting Dimension | 1" |
| Mounting Hole Diameter | 3/16" |
| No. Of Contact Form | 2 , NO/NC |
| Operating Force | 4.59 oz. |
| Operating Force - Minimum | 0.98N |
| Operating Temp. | -13°F to +176°F |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Over Travel | 0.157" |
| Overall Depth | 0.69" |
| Overall Height | 0.69" |
| Overall Width | 1.94" |
| Pre-travel | 0.28" |
| Release Force | 0.79 ozf |
| Roller Adjustability | Fixed |
| Roller Diameter | 0.37" |
| Roller Material | Plastic |
| Roller Position | Inside Offset |
| Roller Width | 4/25" |
| Series | Z |
| Standards | Csa, Ul Listed |
| Terminal Type | Solder |
| Voltage | 125/250/480V AC |
| Watertight | No |
| Height (cm) | 2.03 |
|---|---|
| Length (cm) | 6.35 |
| Width (cm) | 5.08 |
| HS Code | 8536509040 |
|---|---|
| Country Of Origin | JP |
| Weight (kg) | 0.0315 |
| Style | Model | Release Force | Ac Contact Rating | Electrical Connection | Max. Pretravel | Over Travel | Actuator Length | Depth | Terminal Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

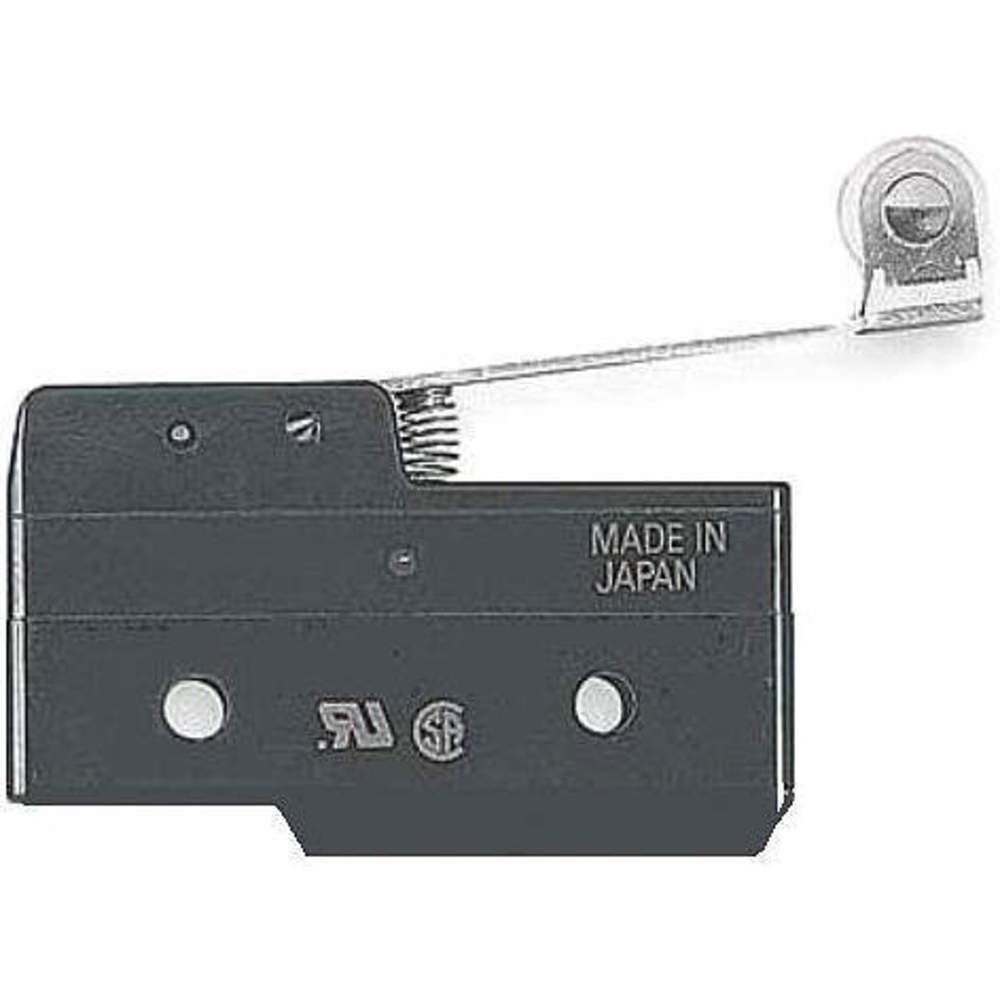

| A | A-20GV2 | 0.49 ozf | 20A @ 480V | Solder | 0.473" | 0.094" | 1.91" | 0.69" | Solder | $36.14 | |

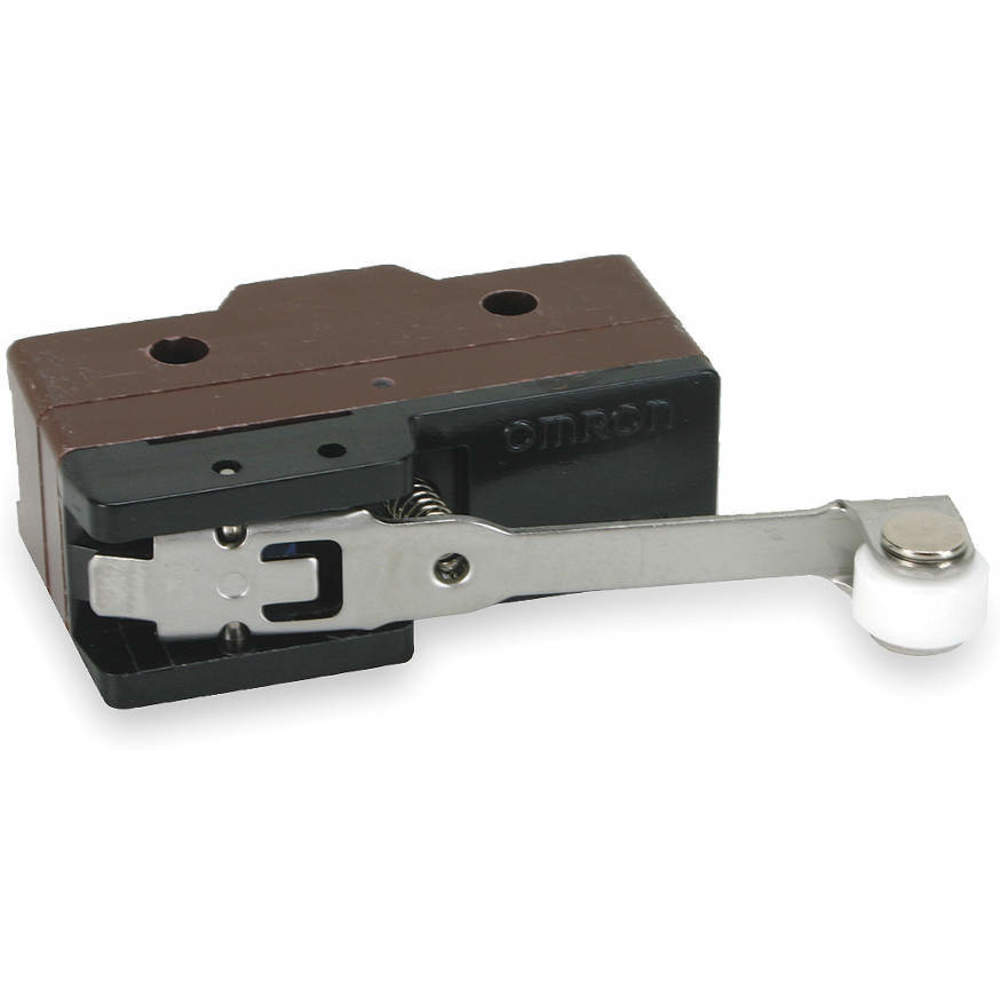

| B | X-10GW2-B | 0.76 ozf | 2A @250V | Screw | 0.359" | 0.157" | 1.91" | 0.69" | Screw | $49.86 | |

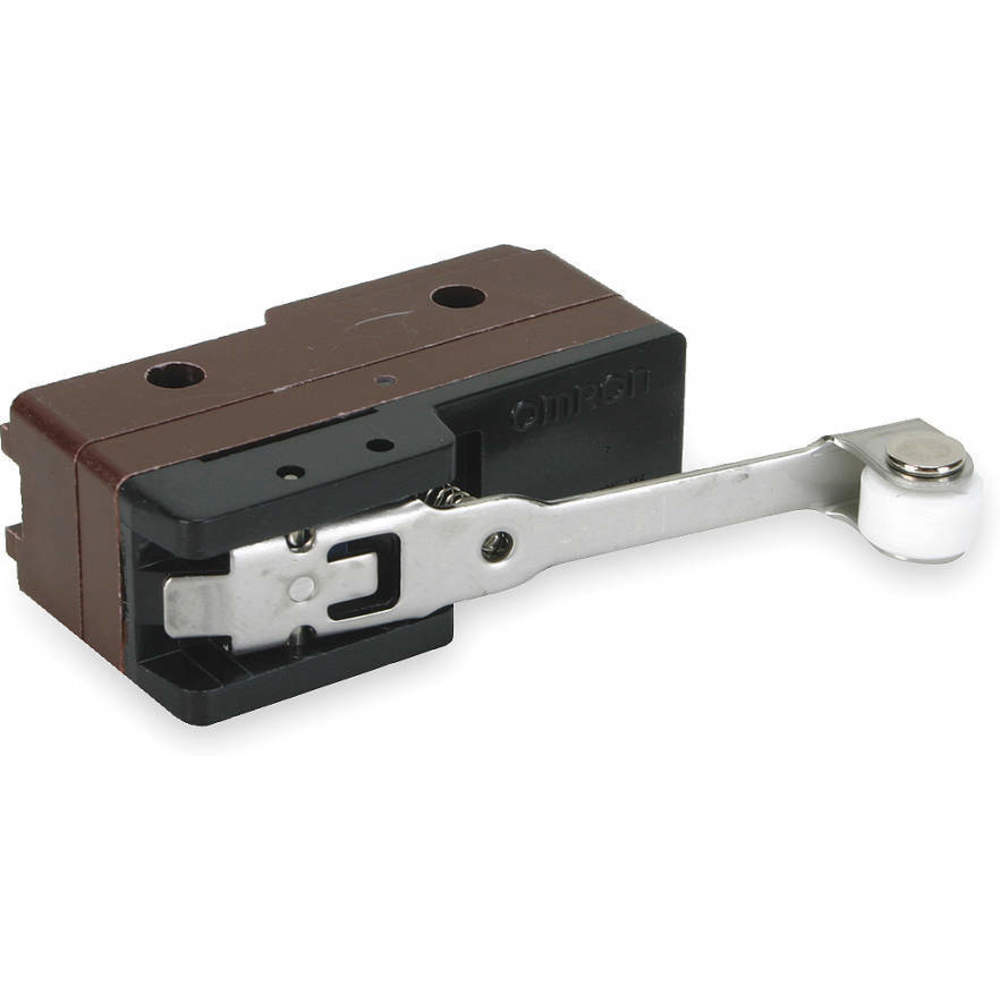

| C | X-10GW2 | 0.74 oz. | - | - | 0.359" | 4/25" | 1.91" | 0.69" | Solder | $46.09 | |

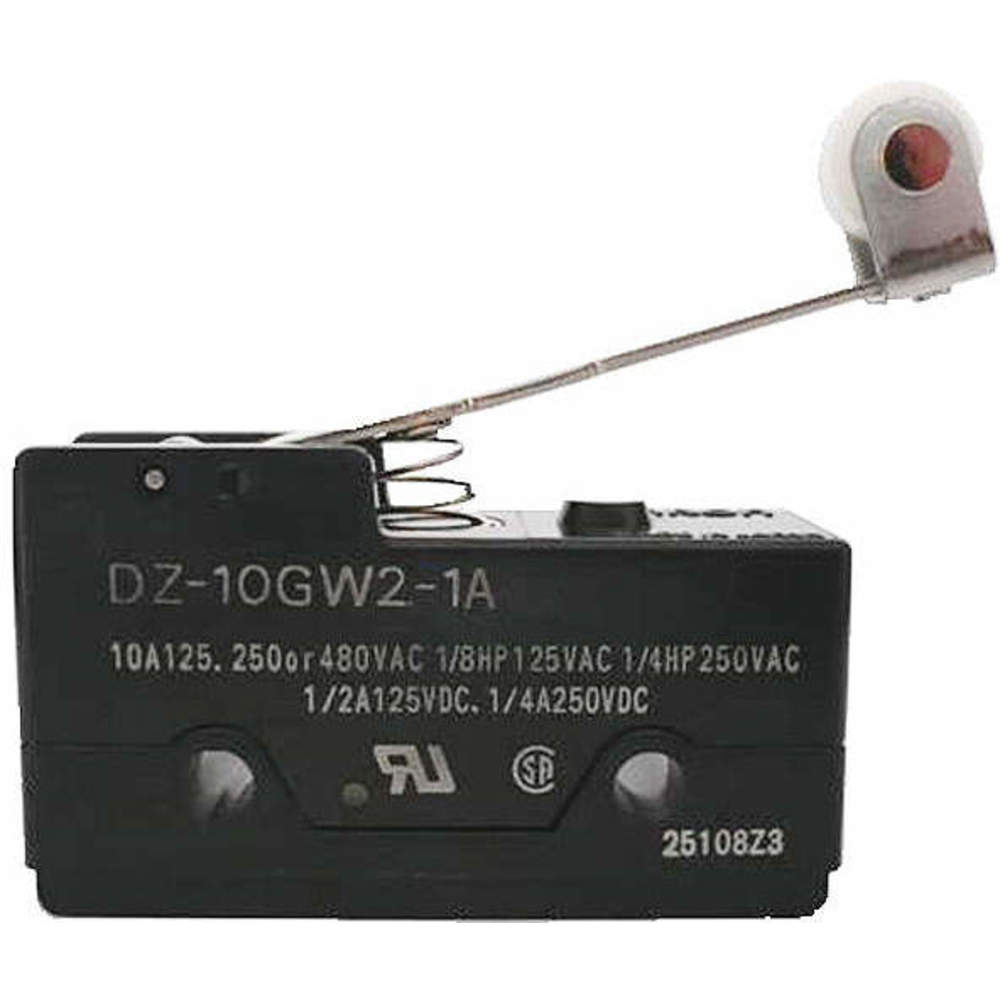

| D | DZ-10GW2-1A | 1.47 ozf | 2A @ 480V | Solder | 15.8 mm | 0.047" | 1.91" | 0.69" | Solder | $71.41 | |

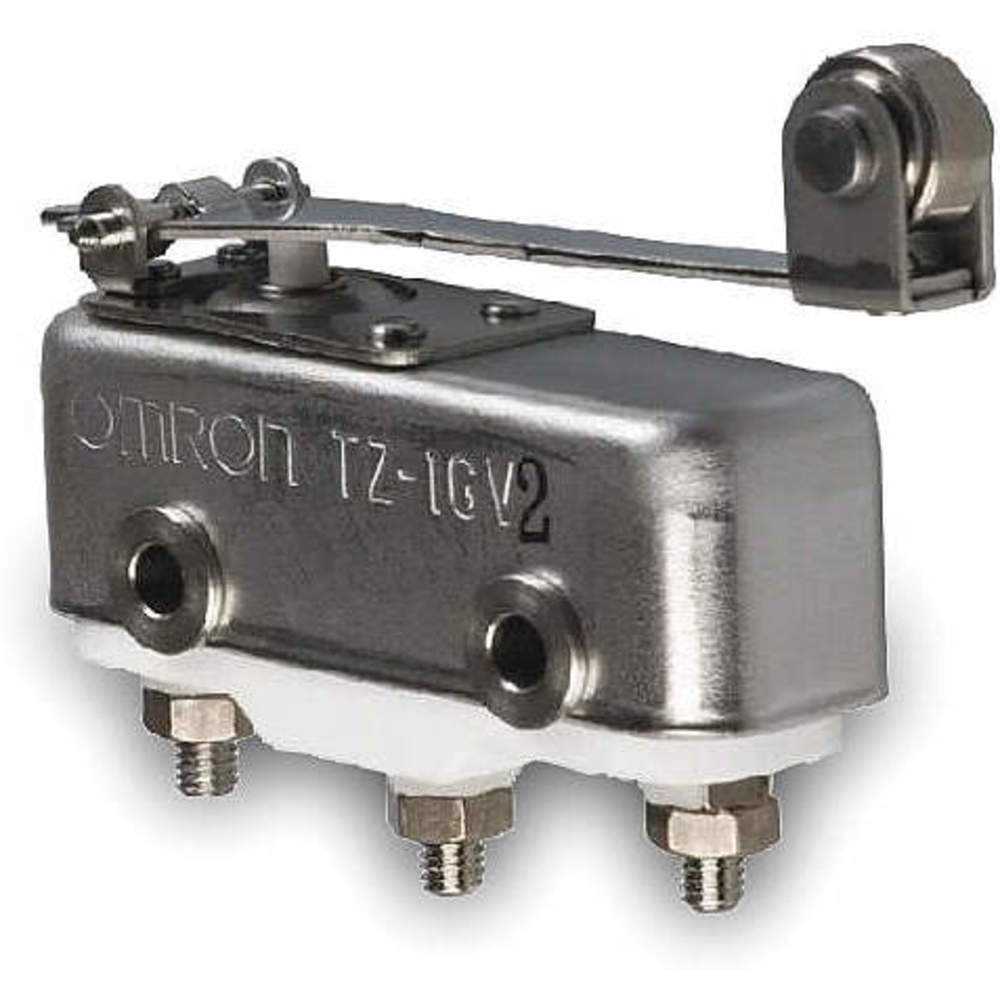

| E | TZ-1GV2 | 0.72 ozf | 1A @ 240V | Screw | 0.102" | 0.138" | 1.91" | 0.69" | Bolt | $743.85 | |

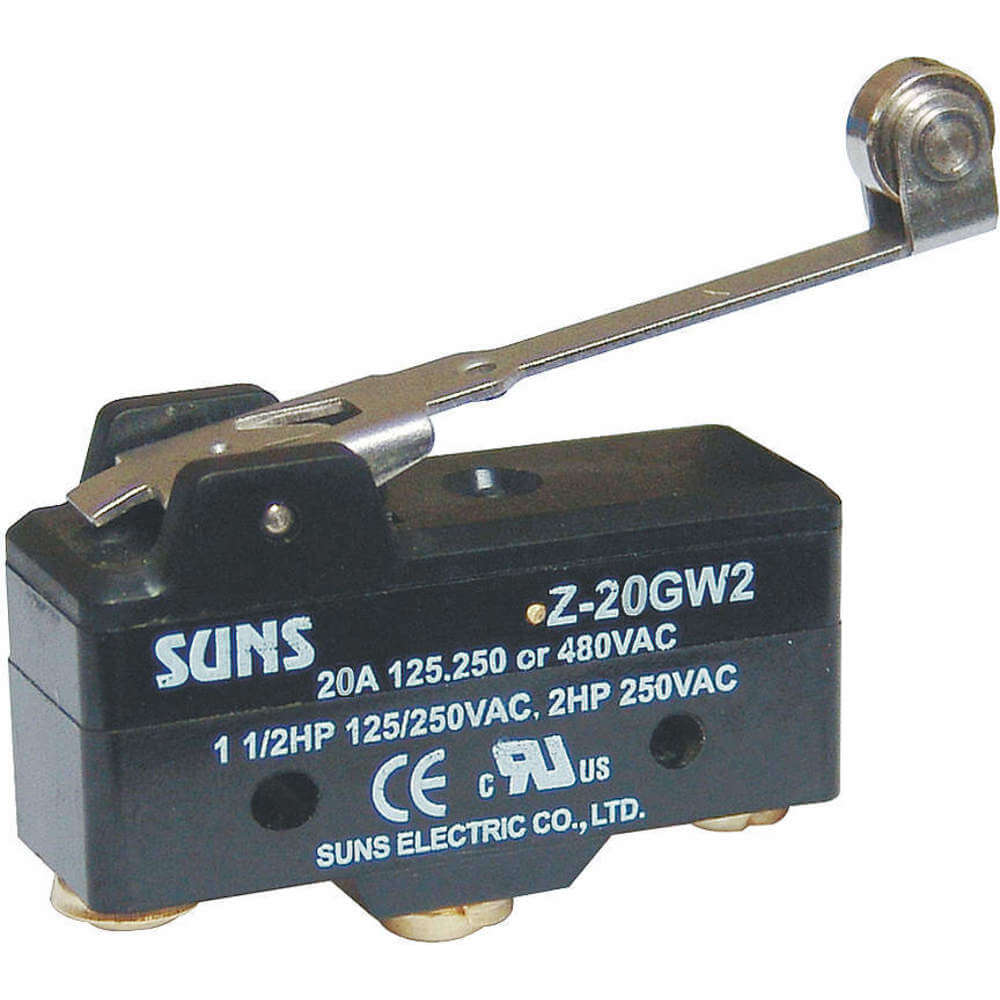

| F | Z-20GW2 | 0.5 ozf | 20A @ 480V | Screw | 0.469" | 0.06" | 1.91" | 0.69" | Screw | $14.77 | |
| G | Z-25GW22 | 0.49 ozf | 25A @ 480V | Screw | 1/4" | 0.187" | 1.39" | 16/25" | Screw | $17.29 |
