| Item | Rectangular Proximity Sensor |
|---|---|
| Basic Material | Plastic |
| Basic Proximity Sensor Case Material | Plastic |
| Case Material | Plastic |
| Circuit Type | NPN |
| Depth | 10 mm |
| Description/special Features | Red Detection Indicator, Reverse Polarity Protection, Surge Suppressor |
| Detecting Distance | 5 mm |
| Length | 30.5 mm |
| Max. Detecting Distance | 5 mm |
| Max. Load Current | 100 mA |
| Number Of Wires | 3 |
|---|---|
| Operating Frequency | 500 Hz |
| Operating Temp. Range | -13°F to +158°F |
| Output Mode | No |
| Power Required | 10-30V DC |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Operating Frequency | 500 Hz |
| Sensing Method | Inductive |
| Shielded / Unshielded | Unshielded |
| Width | 18 mm |
| Height (cm) | 5.84 |
|---|---|
| Length (cm) | 9.14 |
| Width (cm) | 9.4 |
| HS Code | 8536509065 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.0675 |
| Style | Model | Max. Detecting Distance | Output Mode | Shielded / Unshielded | Operating Frequency | Basic Material | Max. Load Current | Proximity Sensor Operating Frequency | Depth | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | TL-W3MC1 | 3 mm | No | Unshielded | 600 Hz | Plastic | 100 mA | 600 Hz | 6 mm | $198.90 | |
| A | TL-W5E1 | 5 mm | No | Shielded | 300 Hz | Metal | 200 mA | 300 Hz | 10 mm | $255.54 | |

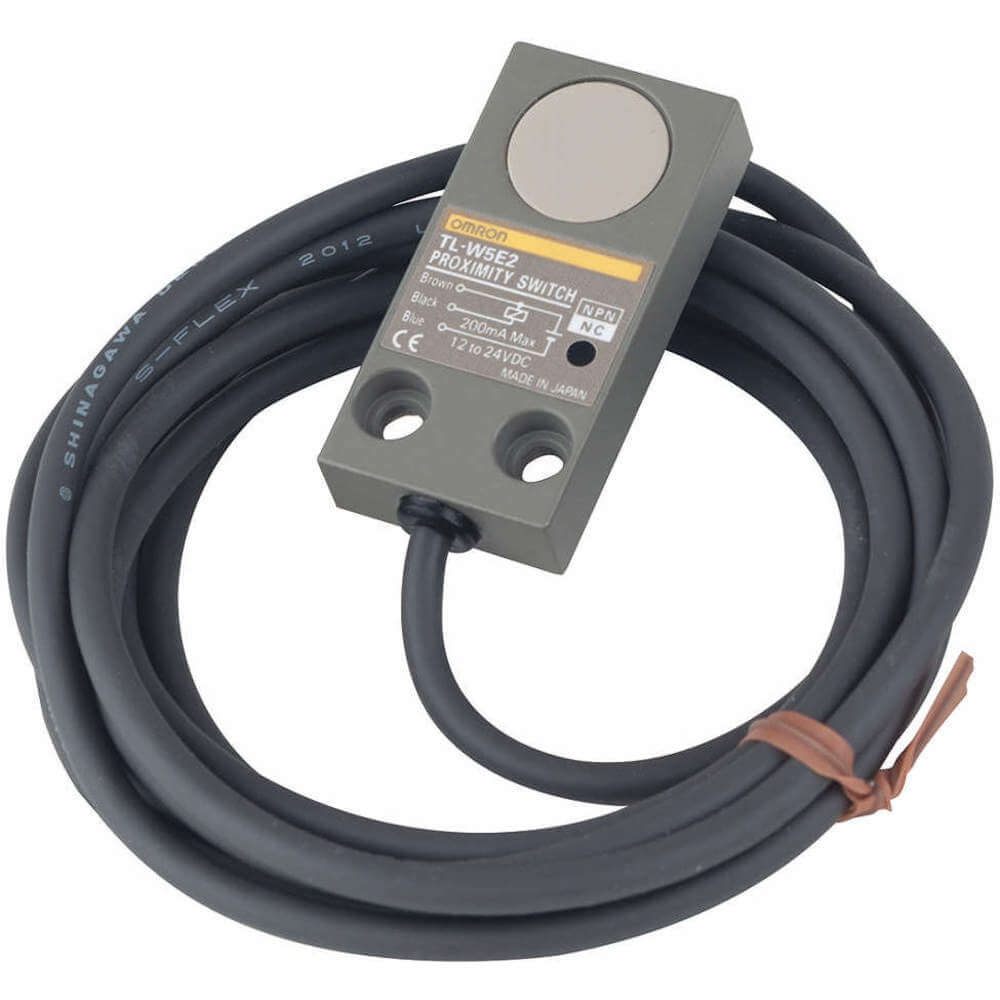

| B | TL-W5E2 | 5 mm | NC | Shielded | 300 Hz | Metal | 200 mA | 300 Hz | 10 mm | $250.69 | |
| A | TL-W20ME1 | 20 mm | No | Unshielded | 40 Hz | Plastic | 200 mA | 40 Hz | 23 mm | $274.93 | |
| A | TL-W20ME2 | 20 mm | NC | Unshielded | 40 Hz | Plastic | 200 mA | 40 Hz | 23 mm | $319.24 |
